7-50 — FRONT SEAT (#155460) — 97 parça

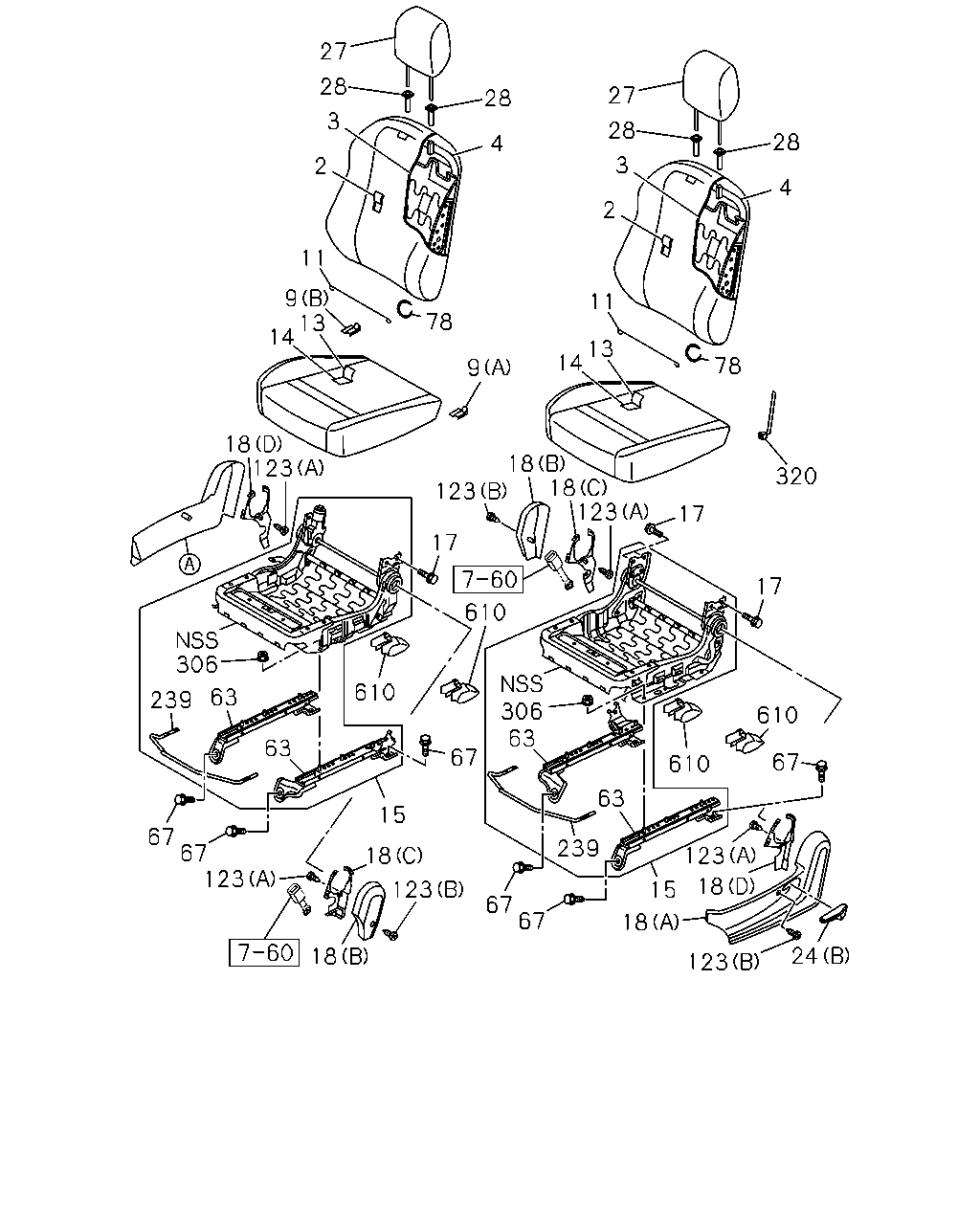

çizim 464436
27 28 3 2 4 28 27 28 3 2 11 13 14 78 4 28 9 78 13 9 11 14 18 123 306 239 63 63 15 18 123 67 67 123 67 67 610 123 18 123 18 17 17 320 610 67 610 63 239 15 123 18 18 67 63 610 306 17 18 123 24
BalonParca AdiParca NoAdetTipApplied Date A B C
2 COVER; TRIM,FRT SEAT,BACK
BLACK 		8-97425-104-0 01 1 1501- ● ●
2 COVER; TRIM,FRT SEAT,BACK
BLACK 		8-97425-106-0 01 1 1501- ● ●
2 COVER; TRIM,FRT SEAT,BACK
LIGHT GRAY 		8-97423-177-0 01 1 1501- ●
2 COVER; TRIM,FRT SEAT,BACK
LIGHT GRAY 		8-97423-177-0 01 1 1501- ●
3 PAD; FRT SEAT BACK 8-98224-379-0 01 1 1501- ● ●
3 PAD; FRT SEAT BACK 8-98224-380-0 01 1 1501- ● ●
3 PAD; FRT SEAT BACK 8-98187-524-0 01 1 1501- ●
3 PAD; FRT SEAT BACK 8-98187-524-0 01 1 1501- ●
4 FRAME ASM; FRT SEAT 8-98224-496-0 01 1 1501- ● ●
4 FRAME ASM; FRT SEAT 8-98224-496-0 01 1 1501- ● ●
4 FRAME ASM; FRT SEAT 8-98187-533-0 01 1 1501- ●
4 FRAME ASM; FRT SEAT 8-98187-533-0 01 1 1501- ●
9 COVER; SIDE
(B) OUTER 		8-98273-217-0 01 1 1501- ● ●
9 COVER; SIDE
(A) INNER 		8-98273-219-0 01 1 1501- ● ●
11 WIRE; SEAT BACK 8-98220-094-0 01 1 1501- ● ● ●
11 WIRE; SEAT BACK 8-98220-094-0 01 1 1501- ● ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
BLACK 		8-97423-149-0 01 1 1501- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
BLACK 		8-97426-615-0 01 1 1501- ● ●
13 COVER; TRIM,FRT SEAT,CUSHION
LIGHT GRAY 		8-97423-188-0 01 1 1501- ●
13 COVER; TRIM,FRT SEAT,CUSHION
LIGHT GRAY 		8-97423-189-0 01 1 1501- ●
14 PAD; FRT SEAT CUSHION 8-98187-559-0 01 1 1501- ● ●
14 PAD; FRT SEAT CUSHION 8-98187-560-0 01 1 1501- ● ●
14 PAD; FRT SEAT CUSHION 8-98187-557-0 01 1 1501- ●
14 PAD; FRT SEAT CUSHION 8-98187-558-0 01 1 1501- ●
15 FRAME; CUSHION,FRT SEAT 8-98187-716-3 01 1 1501- ● ●
15 FRAME; CUSHION,FRT SEAT 8-98239-095-1 01 1 1501- ● ●
15 FRAME; CUSHION,FRT SEAT 8-98187-567-2 01 1 1501- ●
15 FRAME; CUSHION,FRT SEAT 8-98187-568-2 01 1 1501- ●
17 BOLT; RECLINING 8-98220-045-0 04 1 1501- ● ● ●
17 BOLT; RECLINING 8-98220-045-0 04 1 1501- ● ● ●
18 COVER; RECLINING
(A) BLACK 		8-97424-092-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(D) BLACK 		8-97424-515-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(C) BLACK 		8-97424-516-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(B) BLACK 		8-97424-517-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(B) BLACK 		8-97424-579-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(D) BLACK 		8-97424-582-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(C) BLACK 		8-97424-585-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(E) BLACK 		8-97424-094-0 01 1 1501- ● ●
18 COVER; RECLINING
(A) BLACK 		8-97424-090-0 01 1 1501- ●
24 KNOB; RECLINING,FRT,SEAT
(B) BLACK 		8-97424-518-0 01 1 1501- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) BLACK 		8-97424-591-0 01 1 1501- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) BLACK 		8-97424-595-0 01 1 1501- ● ●
27 REST; HD,FRT SEAT
LIGHT GRAY 		8-97424-664-0 01 1 1501- ● ●
27 REST; HD,FRT SEAT
LIGHT GRAY 		8-97424-664-0 01 1 1501- ● ●
27 REST; HD,FRT SEAT
LIGHT GRAY 		8-97424-716-0 01 1 1501- ●
27 REST; HD,FRT SEAT
LIGHT GRAY 		8-97424-716-0 01 1 1501- ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-665-0 01 1 1501- ● ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-665-0 01 1 1501- ● ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-666-0 01 1 1501- ● ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-666-0 01 1 1501- ● ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-499-0 01 1 1501- ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-499-0 01 1 1501- ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-500-0 01 1 1501- ●
28 HOLDER; GUIDE,HD REST
BLACK 		8-97424-500-0 01 1 1501- ●
63 ADJUSTER; SEAT SLIDE
OUTER 		8-98224-309-1 01 1 1501- ● ●
63 ADJUSTER; SEAT SLIDE
OUTER 		8-98224-310-1 01 1 1501- ● ●
63 ADJUSTER; SEAT SLIDE
INNER 		8-98224-312-1 01 1 1501- ● ●
63 ADJUSTER; SEAT SLIDE
INNER 		8-98224-313-1 01 1 1501- ● ●
63 ADJUSTER; SEAT SLIDE
INNER 		8-98220-096-1 01 1 1501- ●
63 ADJUSTER; SEAT SLIDE
OUTER 		8-98220-097-1 01 1 1501- ●
63 ADJUSTER; SEAT SLIDE
OUTER 		8-98224-186-1 01 1 1501- ●
63 ADJUSTER; SEAT SLIDE
INNER 		8-98224-187-1 01 1 1501- ●
67 BOLT; FRT SEAT TO BODY
M12X27.5 W/PL WASHER 		8-98050-319-0 08 1 1501- ● ● ●
78 RING; SNAP 8-98220-068-0 17 1 1501- ● ●
78 RING; SNAP 8-98220-068-0 18 1 1501- ● ●
78 RING; SNAP 8-98220-068-0 12 1 1501- ●
78 RING; SNAP 8-98220-068-0 12 1 1501- ●
123 SCREW; COVER,RECLINING
(A) M4X8 		8-98220-085-0 02 1 1501- ● ● ●
123 SCREW; COVER,RECLINING
(A) M4X8 		8-98220-085-0 02 1 1501- ● ● ●
123 SCREW; COVER,RECLINING
(B) M4X10 		8-98220-086-0 03 1 1501- ● ● ●
123 SCREW; COVER,RECLINING
(B) M4X10 		8-98220-086-0 03 1 1501- ●
123 SCREW; COVER,RECLINING
(B) M4X10 		8-98220-086-0 05 1 1501- ● ●
239 HANDLE; SIDE SUPPORT,FRT SEAT 8-98220-104-0 01 1 1501- ● ● ●
239 HANDLE; SIDE SUPPORT,FRT SEAT 8-98220-104-0 01 1 1501- ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-98220-087-0 07 1 1501- ● ● ●
306 NUT; SEAT ADJ
M8 FLANGE 		8-98220-087-0 07 1 1501- ● ● ●
320 CLIP; BAND,SEAT 8-98220-048-0 02 1 1501- ● ● ●
610 COVER; LEG,FRT SEAT
BLACK 		8-97416-785-4 04 1 1501- ● ●
çizim 464886
123 18 24 228 20 228 228 24 24 123 18
BalonParca AdiParca NoAdetTipApplied Date A B C
18 COVER; RECLINING
(A) BLACK 		8-97424-092-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(D) BLACK 		8-97424-515-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(C) BLACK 		8-97424-516-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(B) BLACK 		8-97424-517-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(B) BLACK 		8-97424-579-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(D) BLACK 		8-97424-582-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(C) BLACK 		8-97424-585-0 01 1 1501- ● ● ●
18 COVER; RECLINING
(E) BLACK 		8-97424-094-0 01 1 1501- ● ●
18 COVER; RECLINING
(A) BLACK 		8-97424-090-0 01 1 1501- ●
20 CAP; RECLINING ADJ
BLACK 		8-97424-598-0 01 1 1501- ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) BLACK 		8-97424-518-0 01 1 1501- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(B) BLACK 		8-97424-591-0 01 1 1501- ● ● ●
24 KNOB; RECLINING,FRT,SEAT
(A) BLACK 		8-97424-595-0 01 1 1501- ● ●
123 SCREW; COVER,RECLINING
(A) M4X8 		8-98220-085-0 02 1 1501- ● ● ●
123 SCREW; COVER,RECLINING
(A) M4X8 		8-98220-085-0 02 1 1501- ● ● ●
123 SCREW; COVER,RECLINING
(B) M4X10 		8-98220-086-0 03 1 1501- ● ● ●
123 SCREW; COVER,RECLINING
(B) M4X10 		8-98220-086-0 03 1 1501- ●
123 SCREW; COVER,RECLINING
(B) M4X10 		8-98220-086-0 05 1 1501- ● ●
228 SCREW; KNOB
M5X10 		8-98224-268-0 03 1 1501- ● ●
