◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#155459) — 93 parça

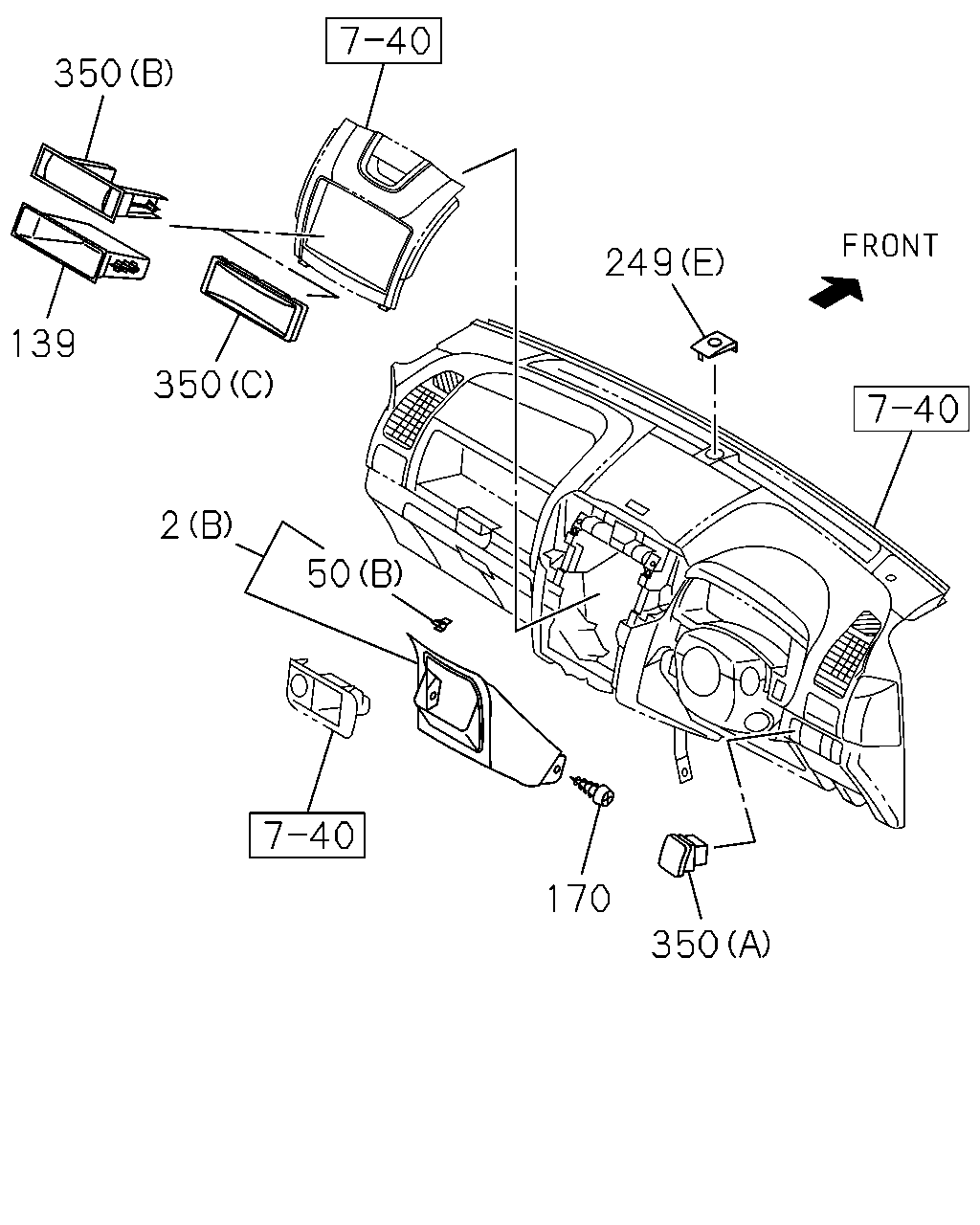

çizim 464376
350 139 350 2 170 50 249 350
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-535-0 01 1 1501- ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-531-0 01 1 1501- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-536-0 01 1 1501- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-532-0 01 1 1501- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97427-532-0 01 1 1501- ●
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1501- ●
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97416-653-3 01 1 1501- ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-891-0 02 1 1501- ● ●
50 CLIP; CONSOLE
FRONT CONSOLE WO/LID<D54> (B) 		8-98164-677-0 02 1 1501- ●
139 BOX; CONSOLE,UPR
RADIO DELETE(UL5) BLACK 		8-97416-619-0 01 1 1501- ● ●
139 BOX; CONSOLE,UPR
RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C) BLACK 		8-97416-619-0 01 1 1501- ●
170 RETAINER; CONSOLE BOX
FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-699-0 02 1 1501- ●
249 COVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) (E) BLACK 		8-97416-614-2 01 1 1501- ● ●
249 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (E) BLACK 		8-97416-613-2 01 1 1501- ● ●
249 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1501- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1501- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97417-152-1 01 1 1501- ● ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-150-2 01 1 1501- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-150-2 01 1 1501- ●
249 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1501- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1501- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE W/LID<D55> RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-151-2 01 1 1501- ●
350 COVER; CONSOLE
RADIO DELETE(UL5) (B) BLACK 		8-97416-806-0 01 1 1501- ● ● ●
350 COVER; CONSOLE
INST PANEL FOR DIN E SIZE AUDIO(7QL) (C) BLACK 		8-97416-807-0 01 1 1501- ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1501- ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1501- ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1501- ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1501- ● ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1501- ● ● ●
350 COVER; CONSOLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98103-424-2 01 1 1501- ● ●
350 COVER; CONSOLE
(A) 		8-98103-424-2 01 1 1501- ●

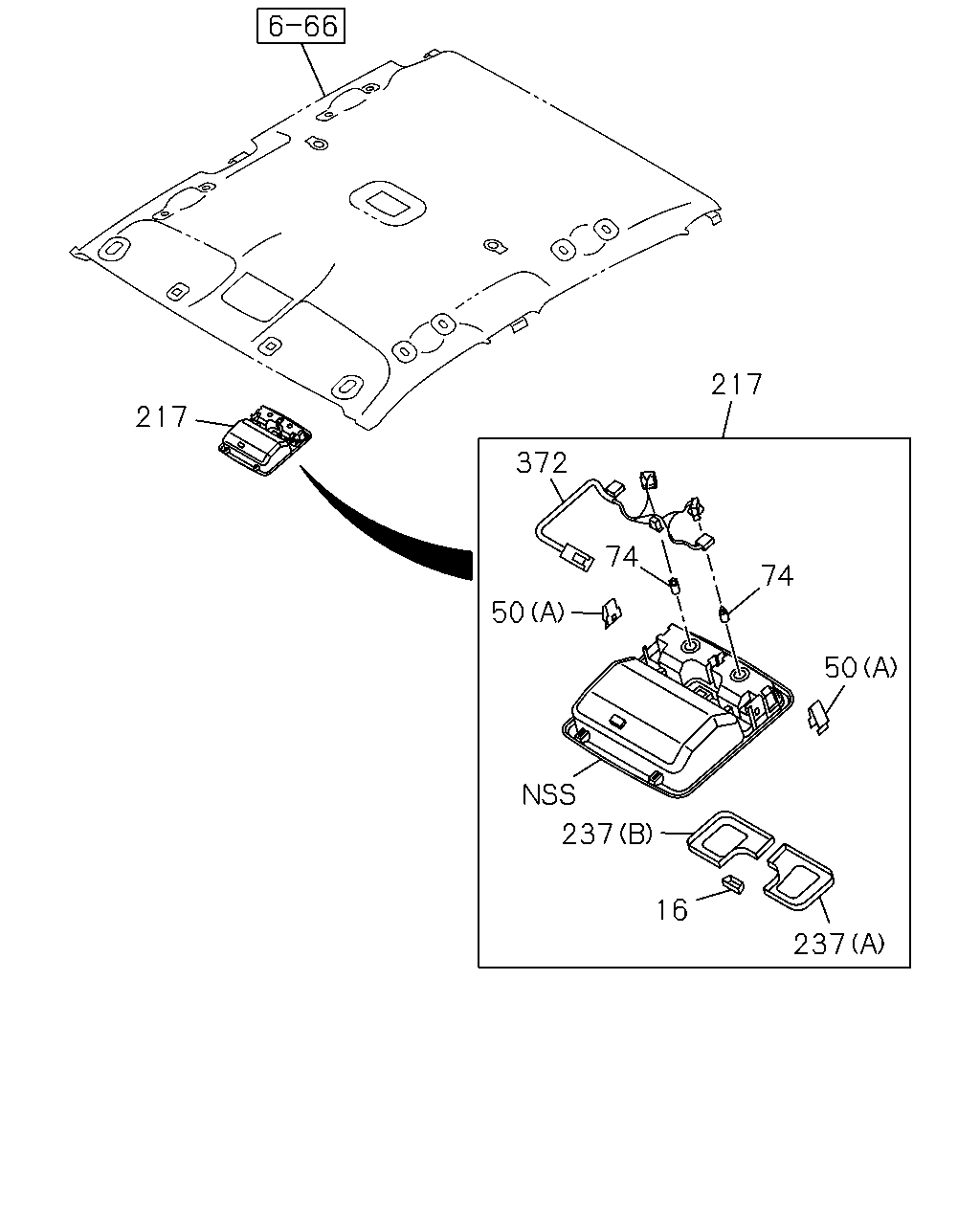

çizim 464872
217 372 50 217 237 16 237 50 74 74
BalonParca AdiParca NoAdetTipApplied Date A B C
16 KNOB ASM
HEADER CONSOLE<DK6> GRAY 		8-97423-261-0 01 1 1501- ● ●
50 CLIP; CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-891-0 02 1 1501- ● ●
50 CLIP; CONSOLE
FRONT CONSOLE WO/LID<D54> (B) 		8-98164-677-0 02 1 1501- ●
74 BULB; CONSOLE
HEADER CONSOLE<DK6> 12V 5W 		8-94124-595-0 02 1 1501- ● ●
217 CONSOLE; HEADER
HEADER CONSOLE<DK6> GRAY 		8-97416-690-5 01 1 1501- ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (A) 		8-98192-893-0 01 1 1501- ● ●
237 LENS; HEADER CONSOLE
HEADER CONSOLE<DK6> (B) 		8-98192-894-0 01 1 1501- ● ●
372 HARNESS ASM; SWITCH,HEADER CONSOLE
HEADER CONSOLE<DK6> 		8-98192-890-0 01 1 1501- ● ●

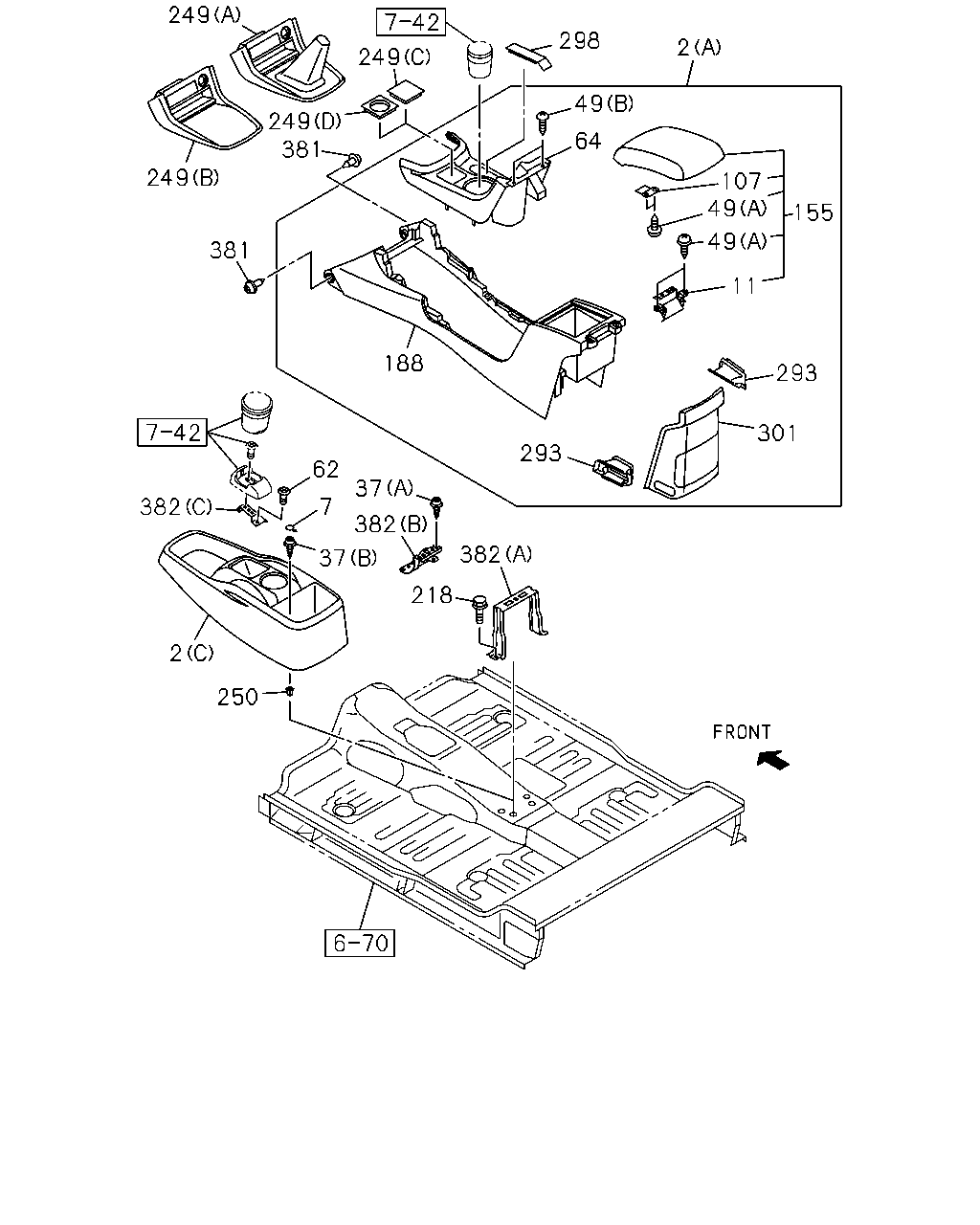

çizim 465042
249 249 249 381 298 2 49 249 64 107 49 155 49 293 11 301 293 188 381 382 62 37 37 382 382 218 250 2 7
BalonParca AdiParca NoAdetTipApplied Date A B C
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-535-0 01 1 1501- ● ●
2 CONSOLE; CENTER
CUSTOM FRONT CONSOLE<D07> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-531-0 01 1 1501- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-536-0 01 1 1501- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> EXC. REAR HEATER DUCT<S8C> (A) BLACK 		8-97427-532-0 01 1 1501- ● ●
2 CONSOLE; CENTER
FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97427-532-0 01 1 1501- ●
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (B) BLACK 		8-97416-633-4 01 1 1501- ●
2 CONSOLE; CENTER
FRONT CONSOLE WO/LID<D54> (C) BLACK 		8-97416-653-3 01 1 1501- ●
7 COVER; HOLE,FLOOR CONSOLE
FRONT CONSOLE WO/LID<D54> BLACK 		8-97416-610-0 02 1 1501- ●
11 HINGE; CONSOLE LID
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1501- ● ●
11 HINGE; CONSOLE LID
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-090-0 01 1 1501- ●
37 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1501- ● ●
37 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (A) M5X16 TAPPING W/PL WASHER 		0-74165-516-0 03 1 1501- ●
37 SCREW; CONSOLE
FRONT CONSOLE WO/LID<D54> (B) M5X16 TAPPING W/PL WASHER 		8-98039-091-0 02 1 1501- ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) M5X16 		8-98197-847-0 06 1 1501- ● ●
49 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (A) M5X16 		8-98197-847-0 06 1 1501- ●
49 SCREW; CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1501- ● ●
49 SCREW; CONSOLE
FRONT CONSOLE W/LID<D55> (B) M4X14 		8-98234-823-0 02 1 1501- ●
62 SCREW; BRKT
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M5X10 TAPPING 		0-71240-510-0 02 1 1501- ● ● ●
64 BEZEL; CENTER CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1501- ● ●
64 BEZEL; CENTER CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-087-3 01 1 1501- ●
107 LOCK; LID,RR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1501- ● ●
107 LOCK; LID,RR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-089-0 01 1 1501- ●
155 LID; PARCEL BOX
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1501- ● ●
155 LID; PARCEL BOX
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-088-1 01 1 1501- ●
188 CONSOLE; RR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1501- ● ●
188 CONSOLE; RR
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-086-3 01 1 1501- ●
218 BOLT; BRKT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1501- ● ●
218 BOLT; BRKT
FRONT CONSOLE W/LID<D55> M6X12.5 FLANGE 		8-98014-141-0 02 1 1501- ●
249 COVER
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER AUTOMATICCONT(C61) (E) BLACK 		8-97416-614-2 01 1 1501- ● ●
249 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65) (E) BLACK 		8-97416-613-2 01 1 1501- ● ●
249 COVER
HEATER & DEFROSTER(C42),AIR CONDITIONER MANUAL CONT(C60),COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (E) BLACK 		8-97416-613-2 01 1 1501- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) BLACK 		8-97416-660-1 01 1 1501- ●
249 COVER
A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (B) BLACK 		8-97417-152-1 01 1 1501- ● ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-150-2 01 1 1501- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-150-2 01 1 1501- ●
249 COVER
FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1501- ●
249 COVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (D) BLACK 		8-97416-659-2 01 1 1501- ●
249 COVER
M/T MUA 5 SPEED 5H(MWQ) FRONT CONSOLE W/LID<D55> RADIO DELETE(UL5),AM/FM,CLOCK,CD PLAYER(U1C), INSTPANEL FOR DIN E SIZE AUDIO(7QL) (A) BLACK 		8-97417-151-2 01 1 1501- ●
250 GROMMET; CONSOLE BOX
FRONT CONSOLE WO/LID<D54> D=7X7 L=7.5 		5-09983-007-0 02 1 1501- ●
293 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-786-0 01 1 1501- ● ●
293 DUCT
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> REAR HEATER DUCT<S8C> 		8-98134-787-0 01 1 1501- ● ●
298 BEZEL; HAND BRAKE,CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1501- ● ●
298 BEZEL; HAND BRAKE,CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97416-651-2 01 1 1501- ●
301 BEZEL; CONSOLE
CUSTOM FRONT CONSOLE<D07> BLACK 		8-97423-091-2 01 1 1501- ● ●
301 BEZEL; CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97423-092-2 01 1 1501- ● ● ●
381 RETAINER; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1501- ● ●
381 RETAINER; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> BLACK 		8-97360-070-0 02 1 1501- ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1501- ● ●
382 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (A) 		8-98102-973-3 01 1 1501- ●
382 BRACKET; FLOOR CONSOLE
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1501- ● ●
382 BRACKET; FLOOR CONSOLE
FRONT CONSOLE W/LID<D55> (B) 		8-98112-864-4 01 1 1501- ●
382 BRACKET; FLOOR CONSOLE
4JK1-TCX ENG(LR0) EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1501- ●
382 BRACKET; FLOOR CONSOLE
4JK1-TCX ENG(LR0) EXC. FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1501- ●
382 BRACKET; FLOOR CONSOLE
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (C) 		8-98123-599-2 01 1 1501- ●
