◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶

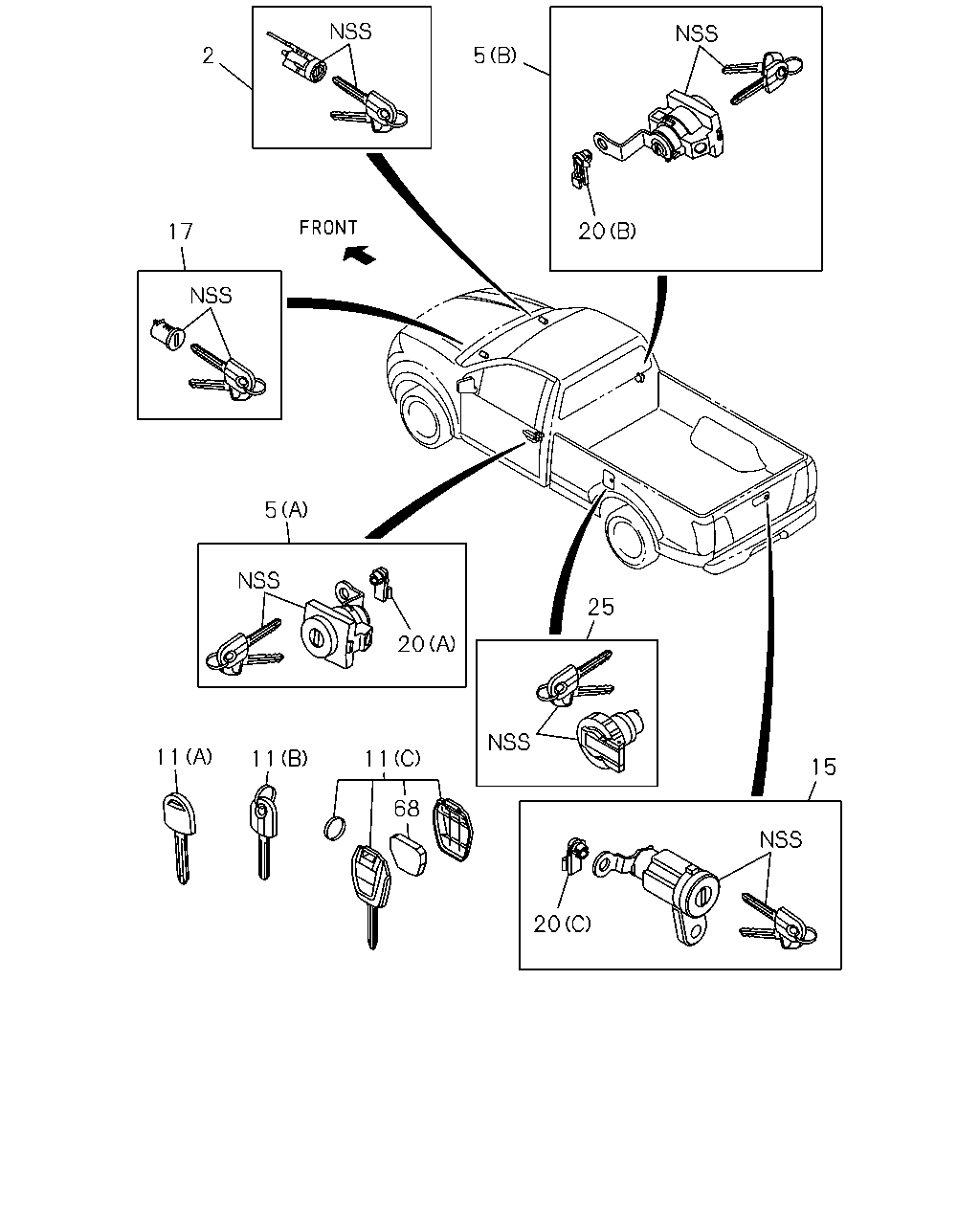

7-30 — LOCK CYLINDER SET (#155455) — 39 parça

2 17 5 11 11 11 68 25 20 5 20 15 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	BARREL ASM; W/KEY,STRG LOCK REMOTE CONT DOOR LOCK<AP5>	8-98274-647-0	01	1	1501-	●	●
2	BARREL ASM; W/KEY,STRG LOCK EXC. REMOTE CONT DOOR LOCK<AP5>	8-98274-646-0	01	1	1501-	●	●	●
5	CYLINDER ASM; DOOR LOCK EXC. REMOTE CONT DOOR LOCK<AP5> (A)	8-98274-650-0	01	1	1501-	●	●	●
5	CYLINDER ASM; DOOR LOCK (B)	8-98274-649-0	01	1	1501-	●	●	●
11	KEY; BLANK REMOTE CONT DOOR LOCK<AP5> (C) REMOTE CONT DOOR LOCK W/IMMOBILIZER	8-98274-338-0	AR	1	1501-	●	●
11	KEY; BLANK (A)	8-97350-352-0	AR	1	1501-	●	●	●
11	KEY; BLANK (B) IMMOBILIZER	8-98274-332-0	AR	1	1501-	●	●	●
15	CYLINDER ASM; W/KEY,TAIL GATE LOCK LOCK END GATE<8CW>	8-98274-653-0	01	1	1501-	●	●
17	CYLINDER ASM; W/KEY,GLOVE BOX LOCK LOCK GLOVE BOX<A99>	8-98274-648-0	01	1	1501-	●	●	●
20	SNAP; DOOR LOCK CYL LOCK END GATE<8CW> (C)	8-97357-958-0	01	1	1501-	●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW	8-97350-043-0	01	1	1501-	●	●	●
20	SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1501-	●	●	●
25	CAP; FUEL TANK,W/KEY FUEL TANK CAP W/LOCK<N05>	8-98060-587-0	01	1	1501-	●	●	●
68	TRANSMITTER; DOOR LOCK REMOTE CONT DOOR LOCK<AP5>	8-98102-844-1	01	1	1501-	●	●

1 20 20 20

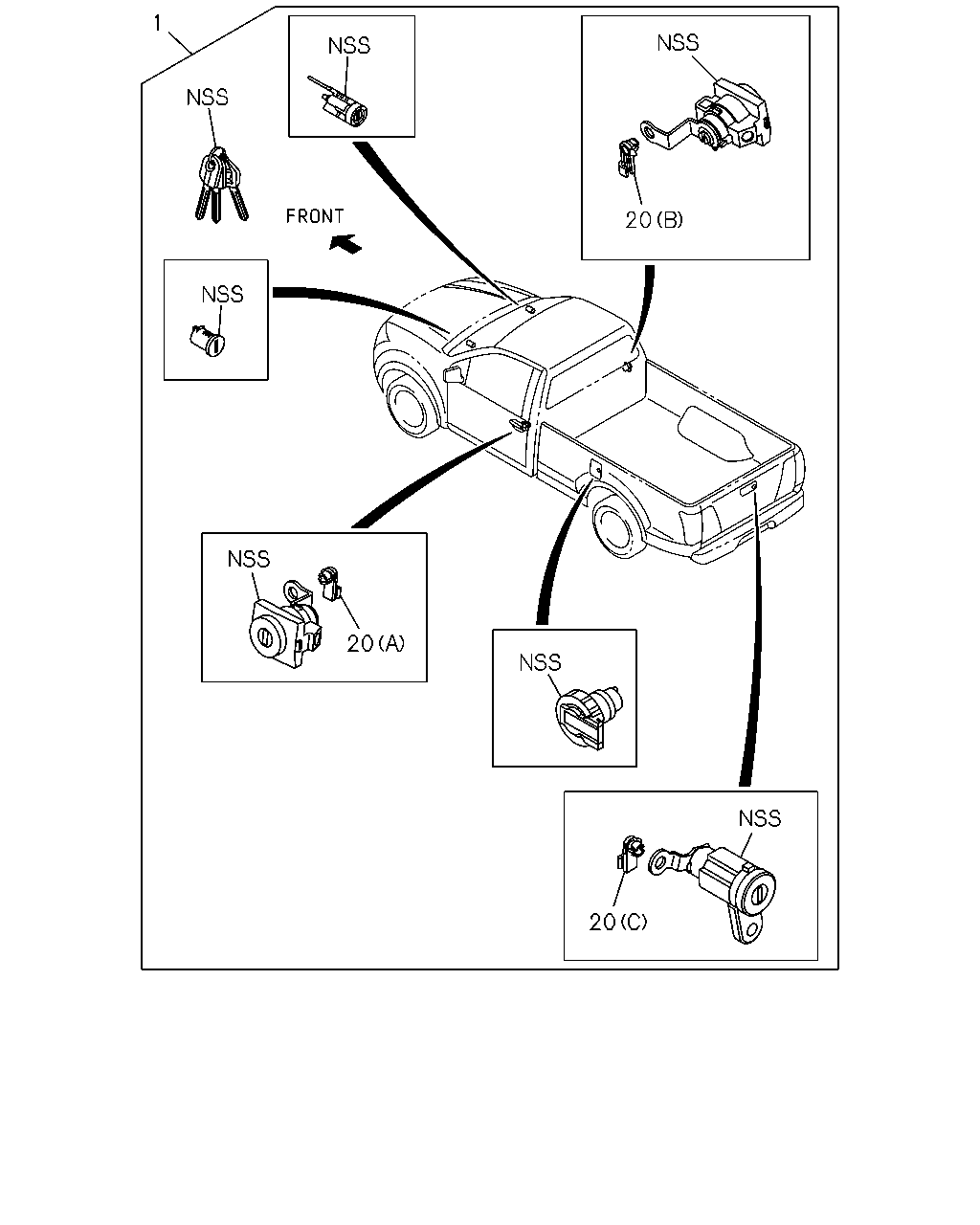

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW>	8-98274-603-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> FUEL TANK CAP W/LOCK<N05> EXC. LOCK END GATE<8CW>	8-98274-603-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-585-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> LOCK END GATE<8CW> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-585-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) REMOTE CONT DOOR LOCK<AP5> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-584-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK REMOTE CONT DOOR LOCK<AP5> EXC. FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-584-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW>	8-98274-576-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW>	8-98274-576-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) LOCK GLOVE BOX<A99> FUEL TANK CAP W/LOCK<N05>	8-98274-576-0	01	1	1501-			●
1	CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>,LOCK END GATE<8CW>	8-98274-576-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK FUEL TANK CAP W/LOCK<N05> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,LOCK END GATE<8CW>	8-98274-576-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98274-577-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98274-577-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>	8-98274-577-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK LOCK END GATE<8CW> EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>	8-98274-577-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, LOCK END GATE<8CW>	8-98274-575-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-575-0	01	1	1501-	●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) LOCK GLOVE BOX<A99> EXC. FUEL TANK CAP W/LOCK<N05>	8-98274-575-0	01	1	1501-			●
1	CYLINDER SET; CAR LOCK AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,FUEL TANK CAP W/LOCK<N05>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY>, LOCK END GATE<8CW>	8-98274-575-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4>,FUEL TANK CAP W/LOCK<N05>,LOCK END GATE<8CW>	8-98274-575-0	01	1	1501-		●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) FUEL TANK CAP W/LOCK<N05> EXC. LOCK GLOVE BOX<A99>	8-98274-574-0	01	1	1501-			●
1	CYLINDER SET; CAR LOCK 4JK1-TCX ENG(LR0) EXC. LOCK GLOVE BOX<A99>,FUEL TANK CAP W/LOCK<N05>	8-98274-573-0	01	1	1501-			●
20	SNAP; DOOR LOCK CYL LOCK END GATE<8CW> (C)	8-97357-958-0	01	1	1501-	●	●
20	SNAP; DOOR LOCK CYL EXC. REMOTE CONT DOOR LOCK<AP5> (A) YELLOW	8-97350-043-0	01	1	1501-	●	●	●
20	SNAP; DOOR LOCK CYL (B) WHITE	8-97350-044-0	01	1	1501-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
