7-20 — MIRROR AND MIRROR STAY (#155454) — 20 parça

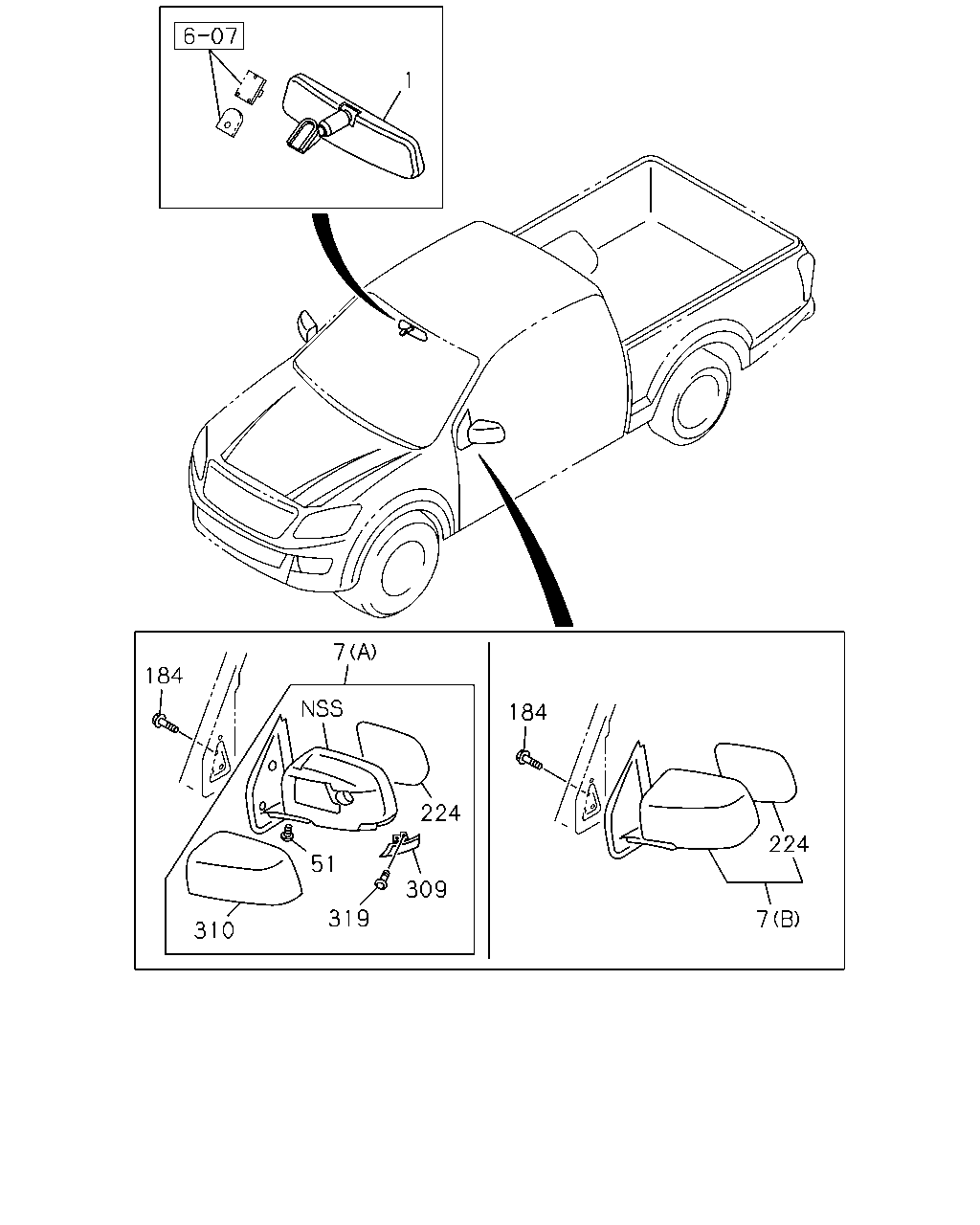

çizim 464846
1 184 7 184 224 7 224 51 309 319 310
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MIRROR; ROOM 8-97237-560-0 01 1 1501- ● ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) 		8-98065-333-4 01 1 1501- ● ●
7 MIRROR ASM; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> (A) 		8-98065-334-4 01 1 1501- ● ●
7 MIRROR ASM; DOOR
(B) 		8-98065-317-3 01 1 1501- ●
7 MIRROR ASM; DOOR
(B) 		8-98065-318-3 01 1 1501- ●
51 SCREW; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-685-0 01 1 1501- ● ●
51 SCREW; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-685-0 01 1 1501- ● ●
184 BOLT; MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> M6X14 FLANGE 		8-97247-698-0 06 1 1501-1505 ● ●
184 BOLT; MIRROR
M6X14 FLANGE 		8-97247-698-0 06 1 1501-1505 ●
184 BOLT; MIRROR
M6X14 FLANGE 		8-97247-698-0 06 1 1506- ● ● ●
224 MIRROR; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-681-0 01 1 1501- ● ●
224 MIRROR; DOOR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-682-0 01 1 1501- ● ●
224 MIRROR; DOOR 8-98193-669-0 01 1 1501- ●
224 MIRROR; DOOR 8-98193-670-0 01 1 1501- ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-683-0 01 1 1501- ● ●
309 LAMP ASM; SIDE TURN,DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-684-0 01 1 1501- ● ●
310 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-686-0 01 1 1501- ● ●
310 COVER; DOOR MIRROR
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-687-0 01 1 1501- ● ●
319 SCREW; SIDE TURN LAMP
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-685-0 01 1 1501- ● ●
319 SCREW; SIDE TURN LAMP
DOOR MIR ELEC FOLDING COLOR TURN SIG,BRIGHT<DE3> 		8-98193-685-0 01 1 1501- ● ●
