◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#155453) — 21 parça

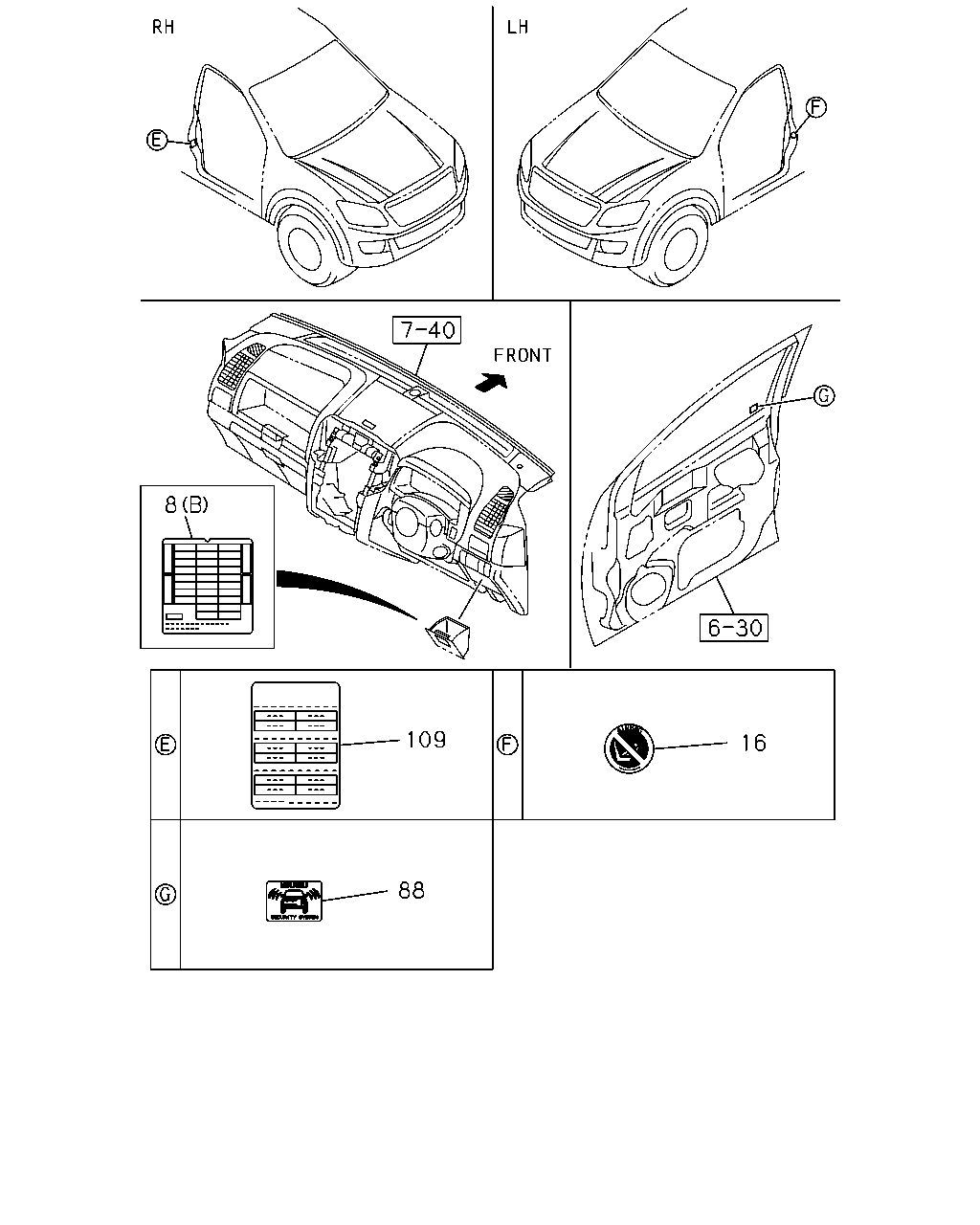

çizim 464357
8 109 88 16
BalonParca AdiParca NoAdetTipApplied Date A B C
8 LABEL; FUSE
4JK1-TCX ENG(LR0) (B) 		8-98213-358-0 01 1 1501- ● ●
8 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1501- ●
8 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1501- ● ● ●
16 PLATE; CAUTION,SIR 8-97378-569-0 01 1 1501- ● ● ●
88 LABEL; ANTI THEFT
REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98141-993-2 02 1 1501- ● ●
109 PLATE; CAUTION,TIRE PLACARD 8-98102-346-1 01 1 1501-1602 ● ● ●
109 PLATE; CAUTION,TIRE PLACARD 8-98102-346-1 01 1 1603- ● ●
109 PLATE; CAUTION,TIRE PLACARD
FRT&RR 245/70R16(QCQ),FRT&RR 255/65R17(QZX) 		8-98102-346-1 01 1 1603- ●

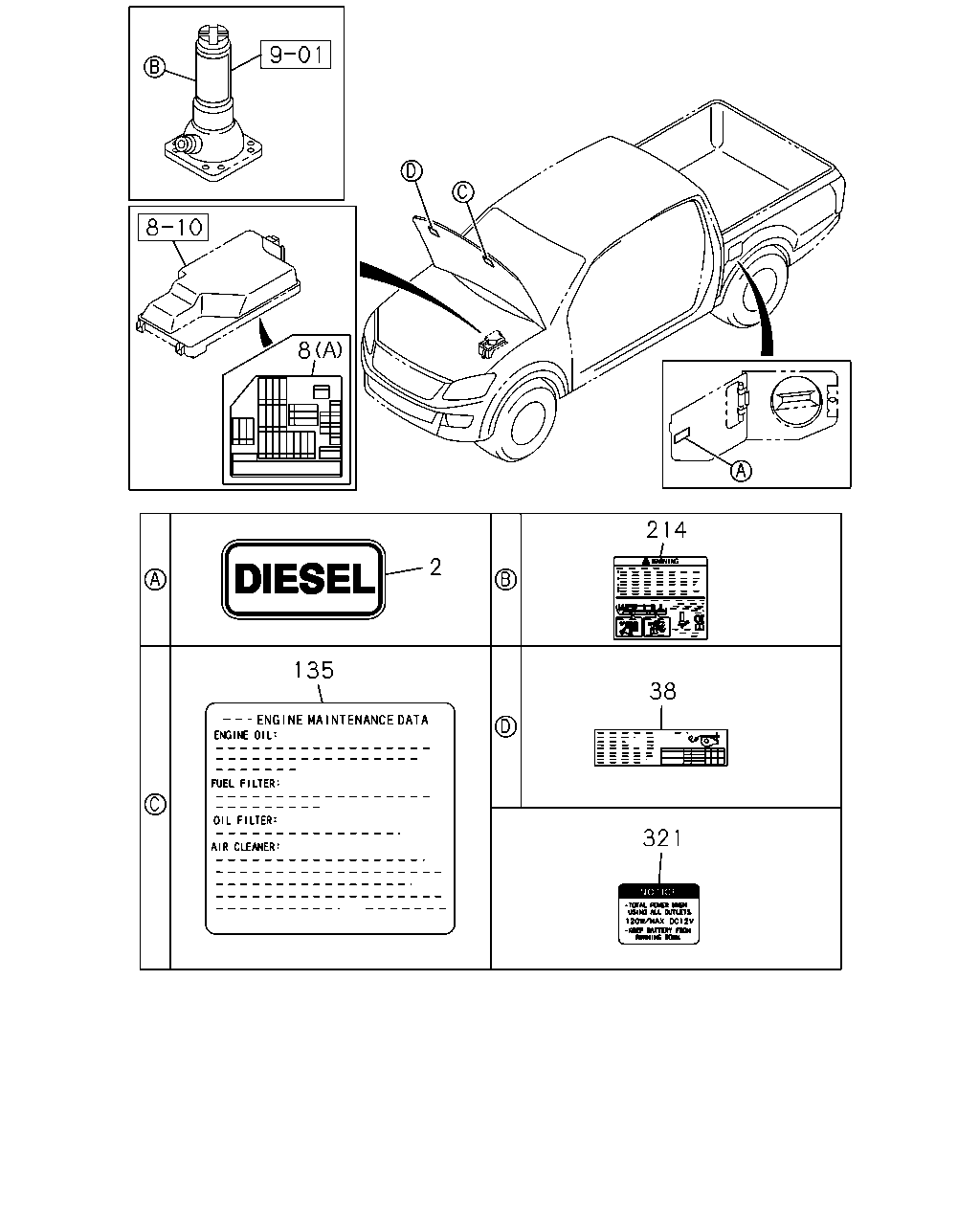

çizim 464833
2 135 214 38 321 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 LABEL; FUEL CAUTION
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1501-1510 ● ●
2 LABEL; FUEL CAUTION
REAR BODY DBL WALL CTR PULL(E63) 		8-98147-133-0 01 1 1501-1510 ●
8 LABEL; FUSE
4JK1-TCX ENG(LR0) (B) 		8-98213-358-0 01 1 1501- ● ●
8 LABEL; FUSE
(B) 		8-98213-358-0 01 1 1501- ●
8 LABEL; FUSE
(A) 		8-98166-842-3 01 1 1501- ● ● ●
38 PLATE; CAUTION,LSV
BRK WHL LK CONT LSPV<JR9> 		8-97947-963-0 01 1 1501- ● ● ●
135 PLATE; CAUTION,ENGINE
4JK1-TCX ENG(LR0) 		8-98200-831-0 01 1 1501- ● ● ●
135 PLATE; CAUTION,ENGINE
4JJ1-TCX ENG(LS0) 		8-98200-830-0 01 1 1501- ●
214 LABEL; JACK 8-98245-069-0 01 1 1501-1501 ● ● ●
214 LABEL; JACK 8-98304-658-0 01 1 1502- ● ● ●
321 LABEL; WARNING,POWER 8-98183-494-1 01 1 1501- ● ●
321 LABEL; WARNING,POWER
ACCESSORY SOCKET FRT CONSOLE<KC5> 		8-98183-494-1 01 1 1501- ●
çizim 464838
319
BalonParca AdiParca NoAdetTipApplied Date A B C
319 LABEL; TOP TETHER 8-98174-417-0 02 1 1501- ● ●
