◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-01 - EMBLEM AND NAME PLATE ▶
7-01 — EMBLEM AND NAME PLATE (#155452) — 15 parça

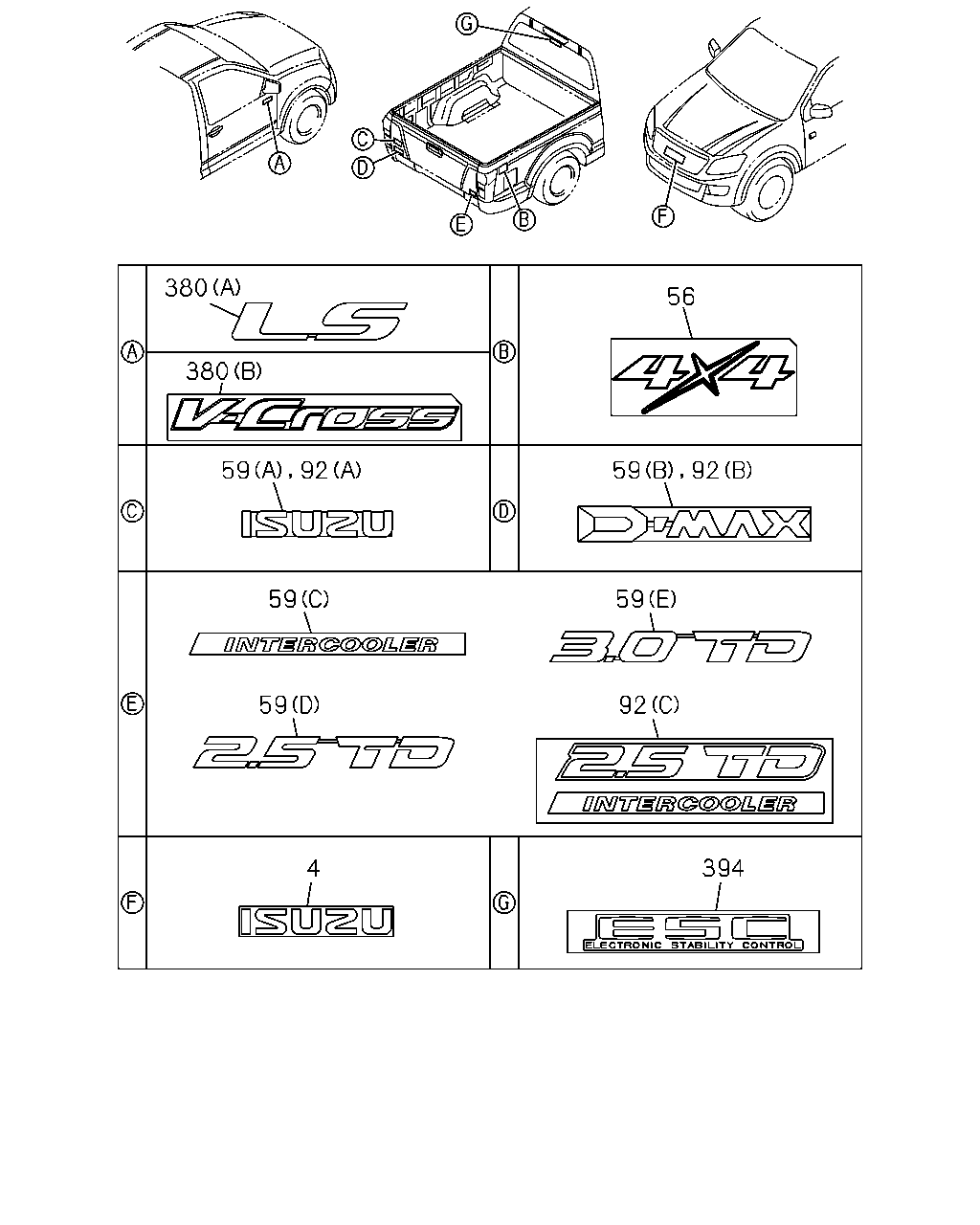

çizim 465068
380 380 59 92 59 59 4 394 92 59 59 92 56
BalonParca AdiParca NoAdetTipApplied Date A B C
4 EMBLEM; RAD GRILLE 8-98164-912-0 01 1 1501- ● ● ●
56 DECAL; BODY SIDE
BODY COLOR NAUTILUS BLUE MICA(521),BODY COLOR COSMIC BLACK MICA(523),BODY COLOR MINERAL GRAY MET(530),BODY COLOR TUNDRA GREEN MICA(533),BODY COLORVENETIAN RED MICA(546) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> LIGHT SILVER & RED 		8-97421-195-1 02 1 1501- ● ●
56 DECAL; BODY SIDE
BODY COLOR SPLASH WHITE(527),BODY COLOR TITANIUM SILVER MET(529),BODY COLOR ASH BEIGE MET(541), BODY COLOR FJORD BLUE MET(545) REAR BODY DBL WALL CTR PULL(E63) DECAL 4X4<YJ3> DARK GRAY & RED 		8-97421-196-1 02 1 1501- ● ●
59 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-896-0 01 1 1501- ● ●
59 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98134-860-0 01 1 1501- ● ●
59 DECAL; TAIL GATE
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1501- ●
59 DECAL; TAIL GATE
REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-903-0 01 1 1501- ●
59 DECAL; TAIL GATE
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) (D) 		8-98134-871-0 01 1 1501- ● ●
59 DECAL; TAIL GATE
4JJ1-TCX ENG(LS0) REAR BODY DBL WALL CTR PULL(E63) (E) 		8-98134-872-0 01 1 1501- ●
92 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98129-861-0 01 1 1501- ●
92 DECAL; RR END
REAR BODY DBL WALL CTR PULL(E63) (B) 		8-98129-863-0 01 1 1501- ●
92 DECAL; RR END
4JK1-TCX ENG(LR0) REAR BODY DBL WALL CTR PULL(E63) (C) 		8-98129-870-0 01 1 1501- ●
380 PLATE; SIDE
4JJ1-TCX ENG(LS0) (B) 		8-98129-891-0 02 1 1501- ●
380 PLATE; SIDE
4JK1-TCX ENG(LR0) (A) 		8-98129-894-0 02 1 1501- ● ●
394 DECAL; RR BODY
ELECTRONIC TRACTION CONTROL<NW9> 		8-98129-857-2 01 1 1501- ● ●
