6-90 — REAR BUMPER (#155451) — 13 parça

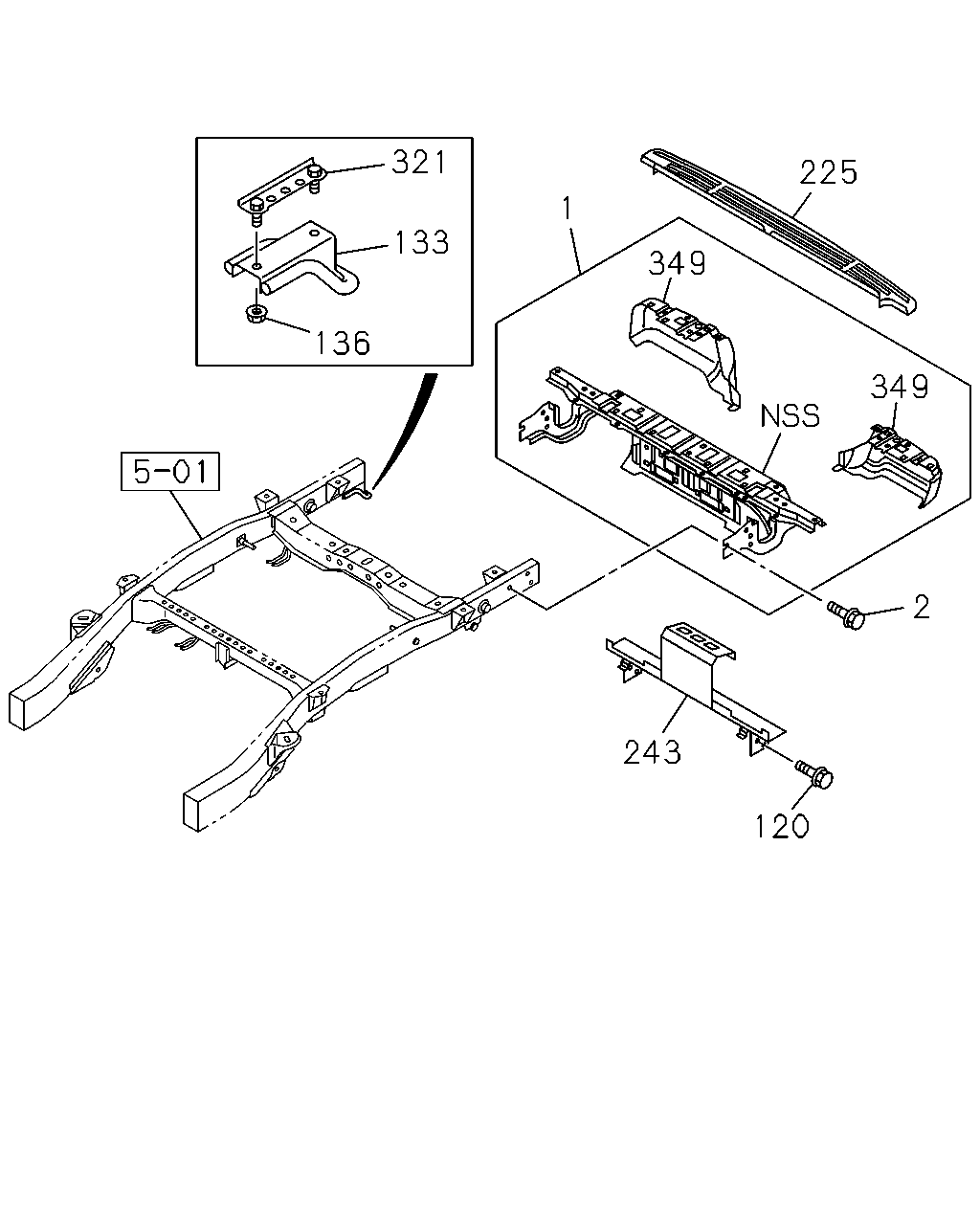

çizim 464942
321 133 136 349 1 225 349 2 243 120
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER; RR
REAR STEP BUMPER(VF6) BLACK 		8-98153-276-4 01 1 1501- ● ● ●
1 BUMPER; RR
REAR STEP BUMPER CHROME(V42) PLATED 		8-98153-275-4 01 1 1501- ● ● ●
2 BOLT; BACK BAR
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M12X30 		8-98062-142-0 06 1 1501- ● ● ●
120 BOLT
REAR BODY DELETE(8HH) EXC. REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) M12X30 FLANGE 		0-28661-230-0 02 1 1501- ● ● ●
133 HOOK
TOW HOOK RR ONLY<7TK> 		8-98107-434-0 01 1 1501- ● ● ●
136 NUT; HOOK
TOW HOOK RR ONLY<7TK> M10 FLANGE 		0-91180-210-0 02 1 1501- ● ● ●
225 PAD; STEP,RR BUMPER
REAR STEP BUMPER(VF6),REAR STEP BUMPER CHROME(V42) 		8-98102-359-2 01 1 1501- ● ● ●
243 BRACKET
REAR BODY DELETE(8HH) 		8-98202-598-1 01 1 1501- ● ● ●
321 BRACKET; HOOK
TOW HOOK RR ONLY<7TK> 		8-98123-937-0 01 1 1501- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-275-0 01 1 1501- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER(VF6) 		8-98238-276-0 01 1 1501- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98238-273-0 01 1 1501- ● ● ●
349 SHELL; RR BUMPER
REAR STEP BUMPER CHROME(V42) 		8-98238-274-0 01 1 1501- ● ● ●
