6-86 — TRUNK OPENER AND FUEL LID (#155450) — 9 parça

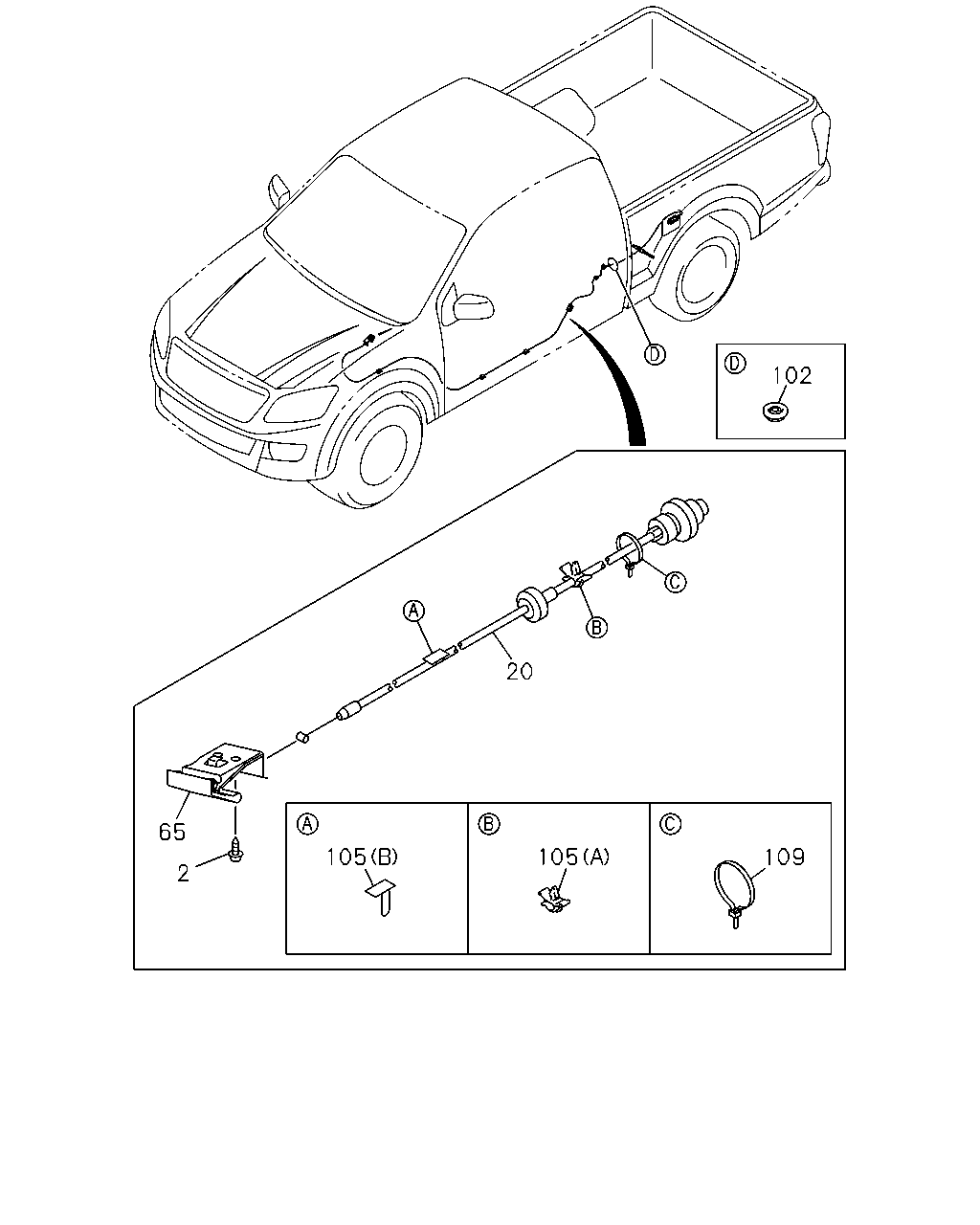

çizim 464939
102 20 105 105 109 2 65
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SCREW; LEVER TO BODY
REAR BODY DBL WALL CTR PULL(E63) M5X16 TAPPING 		8-98167-449-0 02 1 1501- ● ● ●
20 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98073-725-2 01 1 1501- ● ●
20 CABLE; TRUNK LID & FUEL FILLER
REAR BODY DBL WALL CTR PULL(E63) 		8-98073-727-2 01 1 1501- ●
65 KNOB; FUEL FILLER DOOR
REAR BODY DBL WALL CTR PULL(E63) BLACK 		8-98103-120-0 01 1 1501- ● ● ●
102 GROMMET
REAR BODY DELETE(8HH) 		8-97321-645-1 01 1 1501- ● ● ●
105 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) (B) ID=7 		8-98158-303-0 05 1 1501- ● ●
105 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) (A) D=5.8 		5-09709-081-0 02 1 1501- ●
105 CLIP; CABLE,FUEL LID OPENER
REAR BODY DBL WALL CTR PULL(E63) (B) ID=7 		8-98158-303-0 04 1 1501- ●
109 CLIP; CABLE
REAR BODY DBL WALL CTR PULL(E63) L=330 		5-09709-118-0 01 1 1501- ● ● ●
