1-41 — FUEL PIPING; CHASSIS (#15545) — 28 parça

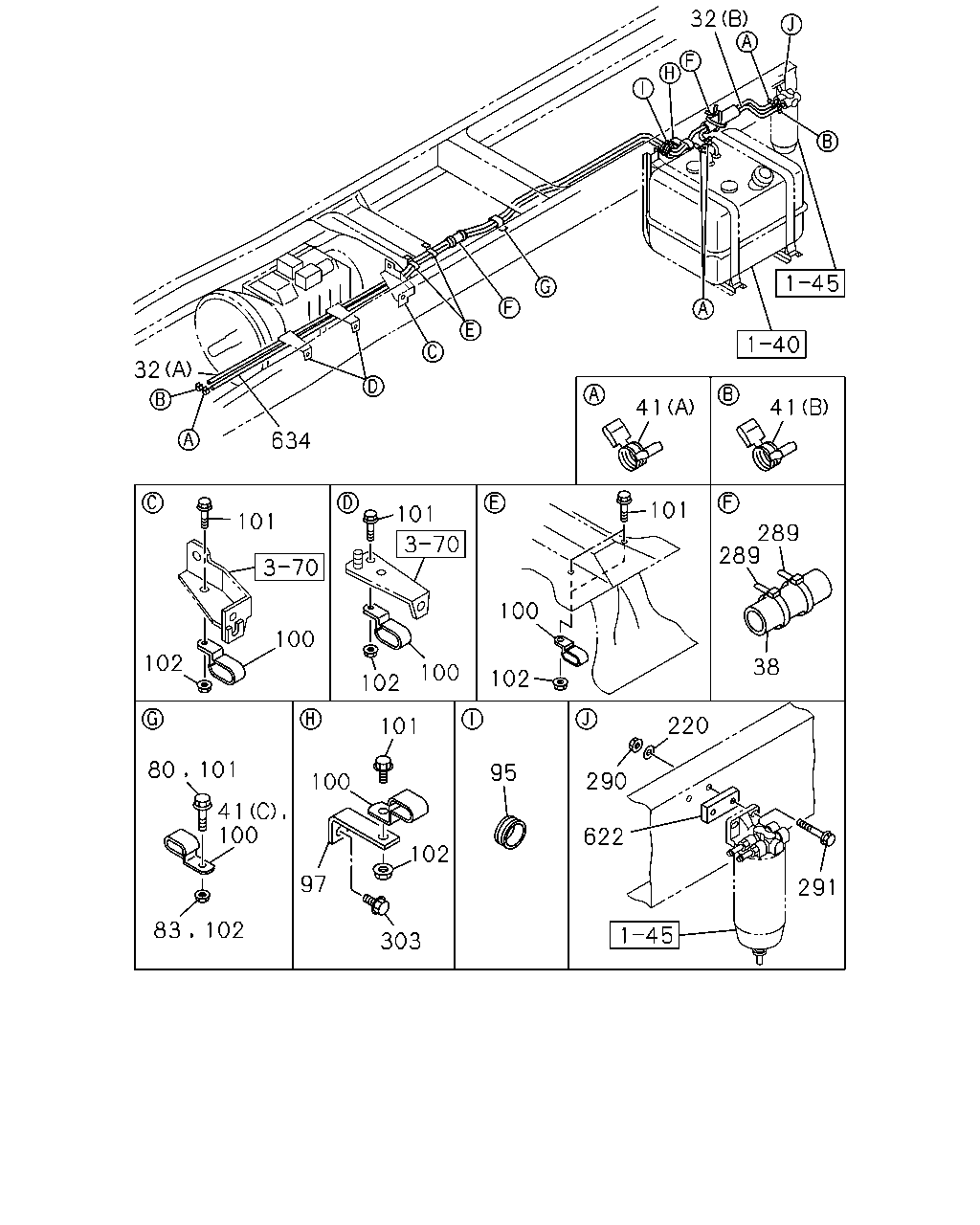

çizim 92188
32 32 41 41 634 101 101 101 289 289 100 100 102 38 100 102 102 220 101 80 101 95 290 100 41 100 622 102 97 291 83 102 303
BalonParca AdiParca NoAdetTipApplied Date
32 PIPE; DELIVERY,FUEL TANK
(B) L=960 SERVICED BY L=3000 		0-01260-300-0 01 1 0611-
32 PIPE; DELIVERY,FUEL TANK
(A) L=2300 SERVICED BY L=3000 		0-01262-300-0 01 1 0611-
38 SLEEVE; RUBBER,RUBBER HOSE
L=150 SERVICED BY L=1300 		1-09360-677-1 02 1 0611-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=19X32 H=17.5 L=22.5 		1-09701-315-0 01 1 0703-1109
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1110-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=14 		1-09704-102-0 04 1 0611-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=19 		8-94238-569-0 02 1 0611-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 01 1 0703-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 01 1 0703-
95 BUSHING; PIPE,FUEL TANK
ID=32 OD=40 T=23 		1-09332-112-0 01 1 0611-
97 BRACKET; CLIP 1-47475-927-0 01 1 0611-1010
97 BRACKET; CLIP
L=68 		1-47475-525-0 01 1 1011-
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 06 1 0611-0702
100 CLIP; FUEL PIPE
ID=19X32 H=17.5 L=22.5 		1-09701-315-0 05 1 0703-
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 04 1 0611-0702
101 BOLT; CLIP,FUEL PIPE
M8X20 FLANGE 		0-28650-820-0 03 1 0703-
101 BOLT; CLIP,FUEL PIPE
M8X25 FLANGE 		0-28650-825-0 02 1 0611-
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 06 1 0611-0702
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 05 1 0703-
220 WASHER; PL
ID=10.5 OD=26 		0-91614-710-0 02 1 0611-
289 CLIP; BAND,HOSE
L=250 		5-09707-030-1 04 1 0611-
290 NUT; FILTER TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0611-
291 BOLT; FILER TO BRKT
M10X50 FLANGE 		0-28051-050-0 02 1 0611-0905
291 BOLT; FILER TO BRKT
M10X60 FLANGE 		0-28051-060-0 02 1 0906-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 0611-
622 SPACER; BRKT 1-53168-492-0 01 1 0611-0908
622 SPACER; BRKT 8-98124-944-0 01 1 0909-
634 HOSE; RUBBER RETURN
L=1900 SERVICED BY L=3000 		0-01260-300-0 01 1 0611-
