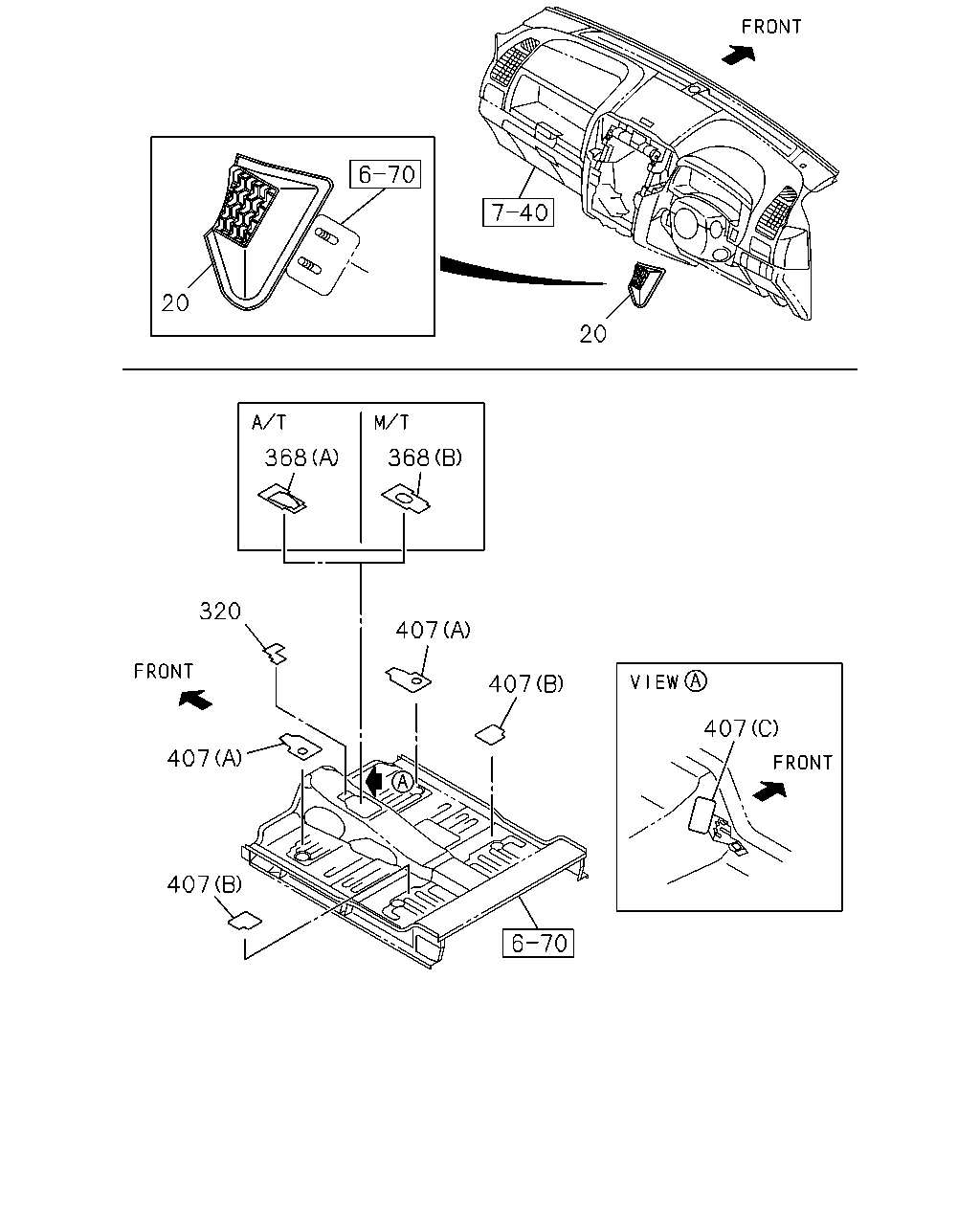

6-76 — FLOOR EQUIPMENT AND SEALING (#155445) — 7 parça

20 20 368 368 320 407 407 407 407 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
20	REST; FOOT	8-98064-439-2	01	1	1501-	●	●	●
320	INSULATOR; FLOOR,FRT CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55>	8-98166-704-0	01	1	1501-	●	●	●
368	INSULATOR; FLOOR,RR A/T 5 SPEED-AISIN(MA1) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A)	8-98166-707-0	01	1	1501-	●		●
368	INSULATOR; FLOOR,RR M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B)	8-98166-706-0	01	1	1501-	●	●	●
407	DEADENER; FLOOR PANEL (C)	8-98165-147-0	01	1	1501-	●	●	●
407	DEADENER; FLOOR PANEL (A)	8-98103-655-1	02	1	1501-	●		●
407	DEADENER; FLOOR PANEL (B)	8-98155-918-0	02	1	1501-	●		●
