◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#155444) — 12 parça

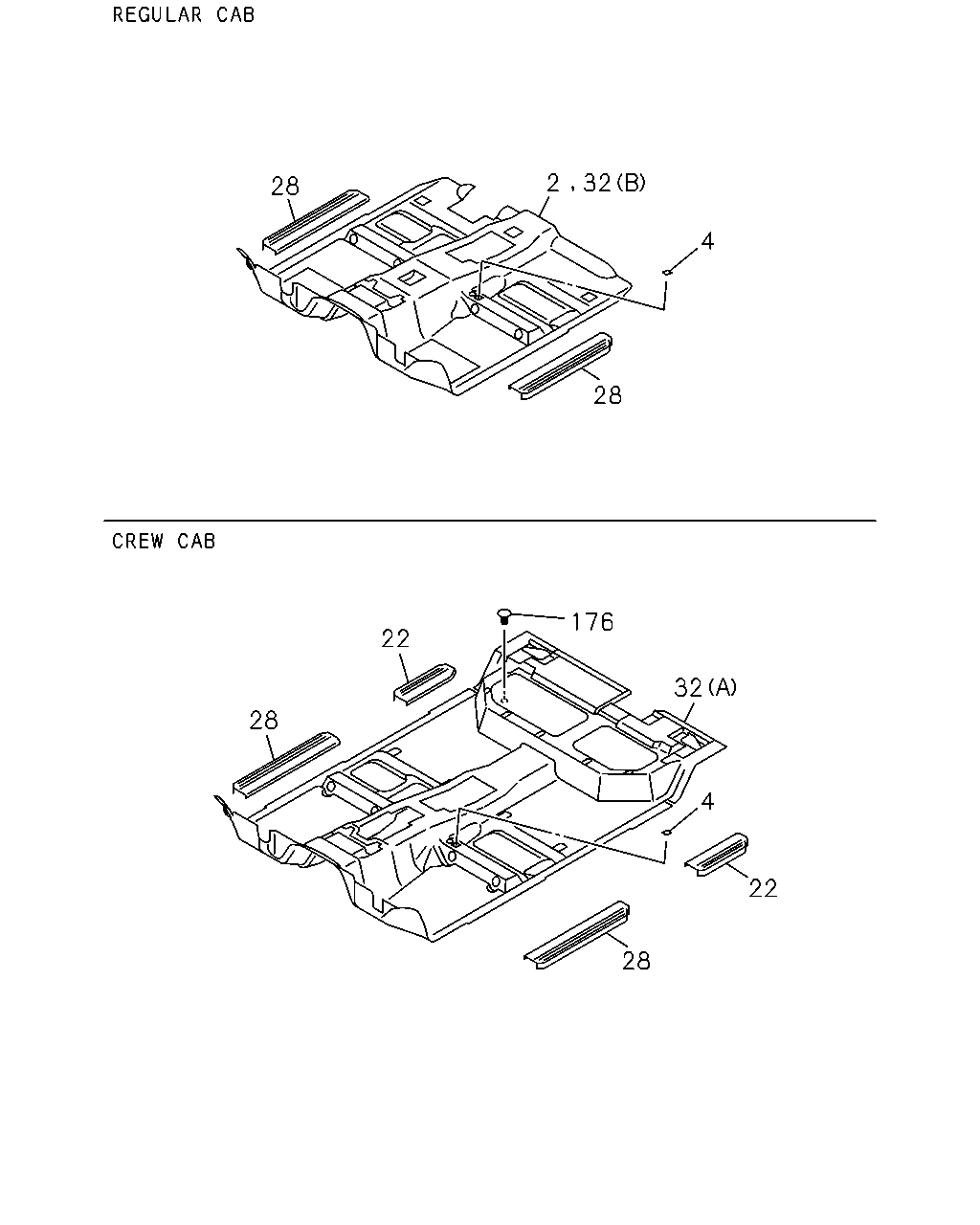

çizim 464496
28 2 32 4 28 176 32 4 22 28 22 28
BalonParca AdiParca NoAdetTipApplied Date A B C
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE WO/LID<D54> BLACK 		8-97429-905-0 01 1 1501- ●
2 MAT; FLOOR
4JK1-TCX ENG(LR0) COVERING FLOOR VINYL<B38> FRONT CONSOLE W/LID<D55> BLACK 		8-97429-907-0 01 1 1501- ●
4 INSULATOR; FRT 8-98185-968-0 04 1 1501- ● ● ●
22 PLATE; SILL,RR
BLACK 		8-97416-948-5 01 1 1501- ● ●
22 PLATE; SILL,RR
BLACK 		8-97416-950-5 01 1 1501- ● ●
28 PLATE; SILL,FRT
BLACK 		8-97416-944-3 01 1 1501- ● ● ●
28 PLATE; SILL,FRT
BLACK 		8-97416-946-3 01 1 1501- ● ● ●
32 CARPET; FLOOR
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A) BLACK 		8-97429-887-0 01 1 1501- ● ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE WO/LID<D54> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97429-899-0 01 1 1501- ●
32 CARPET; FLOOR
4JK1-TCX ENG(LR0) FRONT CONSOLE W/LID<D55> EXC. COVERING FLOOR VINYL<B38> (B) BLACK 		8-97429-901-0 01 1 1501- ●
176 RETAINER; CARPET
BLACK 		8-97416-667-0 10 1 1501- ● ●
176 RETAINER; CARPET
BLACK 		8-97416-667-0 02 1 1501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
