6-70 — FLOOR PANEL (#155443) — 53 parça

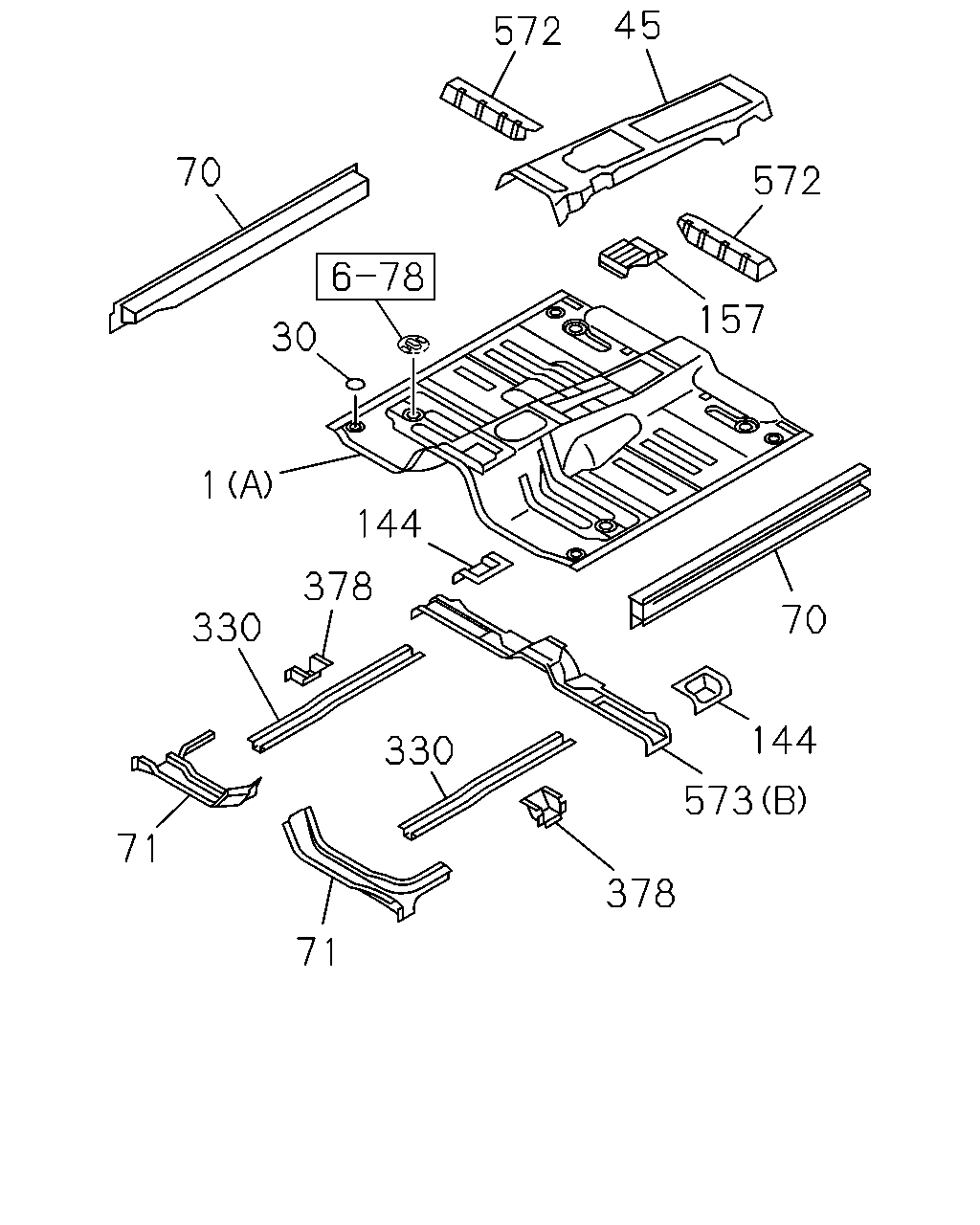

çizim 465014
70 30 144 1 378 330 330 71 71 378 573 70 144 157 572 45 572
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1501- ● ●
1 PANEL; FLOOR
(A) 		8-98103-921-7 01 1 1501- ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1501- ● ●
30 GROMMET; CAB MTG RAIL
4JK1-TCX ENG(LR0) OD=59 T=9 		8-98202-803-0 04 1 1501-1505 ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1506- ●
45 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1501- ● ●
45 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1501- ●
70 PANEL; ROCKER INNER 8-98162-994-1 01 1 1501- ● ●
70 PANEL; ROCKER INNER 8-98162-998-1 01 1 1501- ● ●
70 PANEL; ROCKER INNER 8-98162-991-1 01 1 1501- ●
70 PANEL; ROCKER INNER 8-98162-996-1 01 1 1501- ●
71 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1501- ● ● ●
71 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1501- ● ● ●
144 BRACKET; MTG,RR 8-98100-940-3 02 1 1501- ● ●
144 BRACKET; MTG,RR 8-98100-940-3 01 1 1501- ●
144 BRACKET; MTG,RR 8-98104-737-4 01 1 1501- ●
157 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1501- ● ●
157 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1501- ●
330 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1501- ● ● ●
378 GASSET; LWR 8-98101-037-0 02 1 1501- ● ● ●
572 SILL; FLOOR,FRT 8-98101-019-3 01 1 1501- ● ● ●
572 SILL; FLOOR,FRT 8-98101-020-3 01 1 1501- ● ● ●
573 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1501- ● ● ●
573 SILL; FLOOR,RR
(A) 		8-98104-056-3 01 1 1501- ● ●

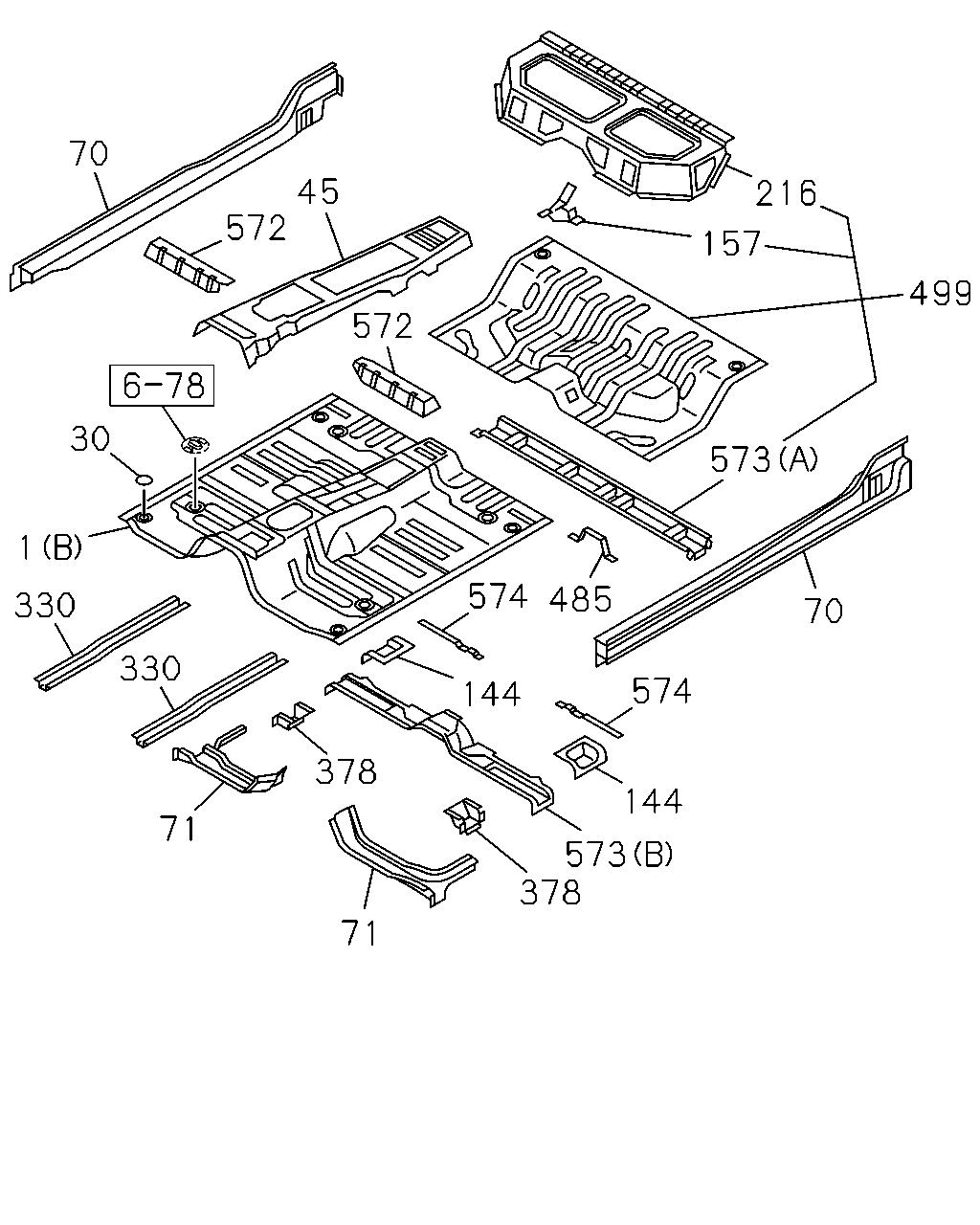

çizim 465021
70 45 572 30 1 330 330 71 378 71 378 573 574 144 70 573 499 157 216 572 574 485 144
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
(B) 		8-98199-516-0 01 1 1501- ● ●
1 PANEL; FLOOR
(A) 		8-98103-921-7 01 1 1501- ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 06 1 1501- ● ●
30 GROMMET; CAB MTG RAIL
4JK1-TCX ENG(LR0) OD=59 T=9 		8-98202-803-0 04 1 1501-1505 ●
30 GROMMET; CAB MTG RAIL
OD=59 T=9 		8-98202-803-0 04 1 1506- ●
45 REINFORCEMENT; TUNNEL,FRT 8-98101-035-8 01 1 1501- ● ●
45 REINFORCEMENT; TUNNEL,FRT 8-98104-022-7 01 1 1501- ●
70 PANEL; ROCKER INNER 8-98162-994-1 01 1 1501- ● ●
70 PANEL; ROCKER INNER 8-98162-998-1 01 1 1501- ● ●
70 PANEL; ROCKER INNER 8-98162-991-1 01 1 1501- ●
70 PANEL; ROCKER INNER 8-98162-996-1 01 1 1501- ●
71 BRACKET; CAB MTG,CENTER 8-98101-984-5 01 1 1501- ● ● ●
71 BRACKET; CAB MTG,CENTER 8-98101-985-8 01 1 1501- ● ● ●
144 BRACKET; MTG,RR 8-98100-940-3 02 1 1501- ● ●
144 BRACKET; MTG,RR 8-98100-940-3 01 1 1501- ●
144 BRACKET; MTG,RR 8-98104-737-4 01 1 1501- ●
157 BRACKET; TOOL BOX LID 8-98115-430-5 01 1 1501- ● ●
157 BRACKET; TOOL BOX LID 8-98115-434-6 01 1 1501- ●
216 PANEL; SEAT RISER 8-98116-648-4 01 1 1501- ● ●
330 REINFORCEMENT; FLOOR 8-98100-938-0 02 1 1501- ● ● ●
378 GASSET; LWR 8-98101-037-0 02 1 1501- ● ● ●
485 SEAL; TAPE TYPE 8-94336-915-0 01 1 1501- ● ●
499 PANEL; FLOOR,RR 8-98116-646-9 01 1 1501-1506 ● ●
499 PANEL; FLOOR,RR 8-98322-482-0 01 1 1507- ● ●
572 SILL; FLOOR,FRT 8-98101-019-3 01 1 1501- ● ● ●
572 SILL; FLOOR,FRT 8-98101-020-3 01 1 1501- ● ● ●
573 SILL; FLOOR,RR
(B) 		8-98151-571-2 01 1 1501- ● ● ●
573 SILL; FLOOR,RR
(A) 		8-98104-056-3 01 1 1501- ● ●
574 TAPE; ADHESIVE 8-98178-885-0 02 1 1501- ● ●
