◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#155442) — 14 parça
çizim 464426
1 7 1 7 220
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LINING; HD
MAP LAMP<C74> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. HEADER CONSOLE<DK6> GRAY 		8-97416-957-5 01 1 1501- ● ●
1 LINING; HD
MAP LAMP<C74> EXC. HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-955-5 01 1 1501- ● ●
1 LINING; HD
HEADER CONSOLE<DK6> 6-SPEAKER SYSTEM CUSTOM<UW6> EXC. MAP LAMP<C74> GRAY 		8-97416-956-5 01 1 1501- ● ●
1 LINING; HD
HEADER CONSOLE<DK6> EXC. MAP LAMP<C74>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-953-5 01 1 1501- ● ●
1 LINING; HD
EXC. MAP LAMP<C74>,HEADER CONSOLE<DK6>,6-SPEAKER SYSTEM CUSTOM<UW6> GRAY 		8-97416-954-5 01 1 1501- ● ●
1 LINING; HD
GRAY 		8-97417-113-3 01 1 1501- ●
7 RETAINER; HEADLINING RAIL
GRAY 		8-97416-696-0 02 1 1501- ● ● ●
220 BRACKET; SPEAKER
6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98128-570-0 02 1 1501- ● ●

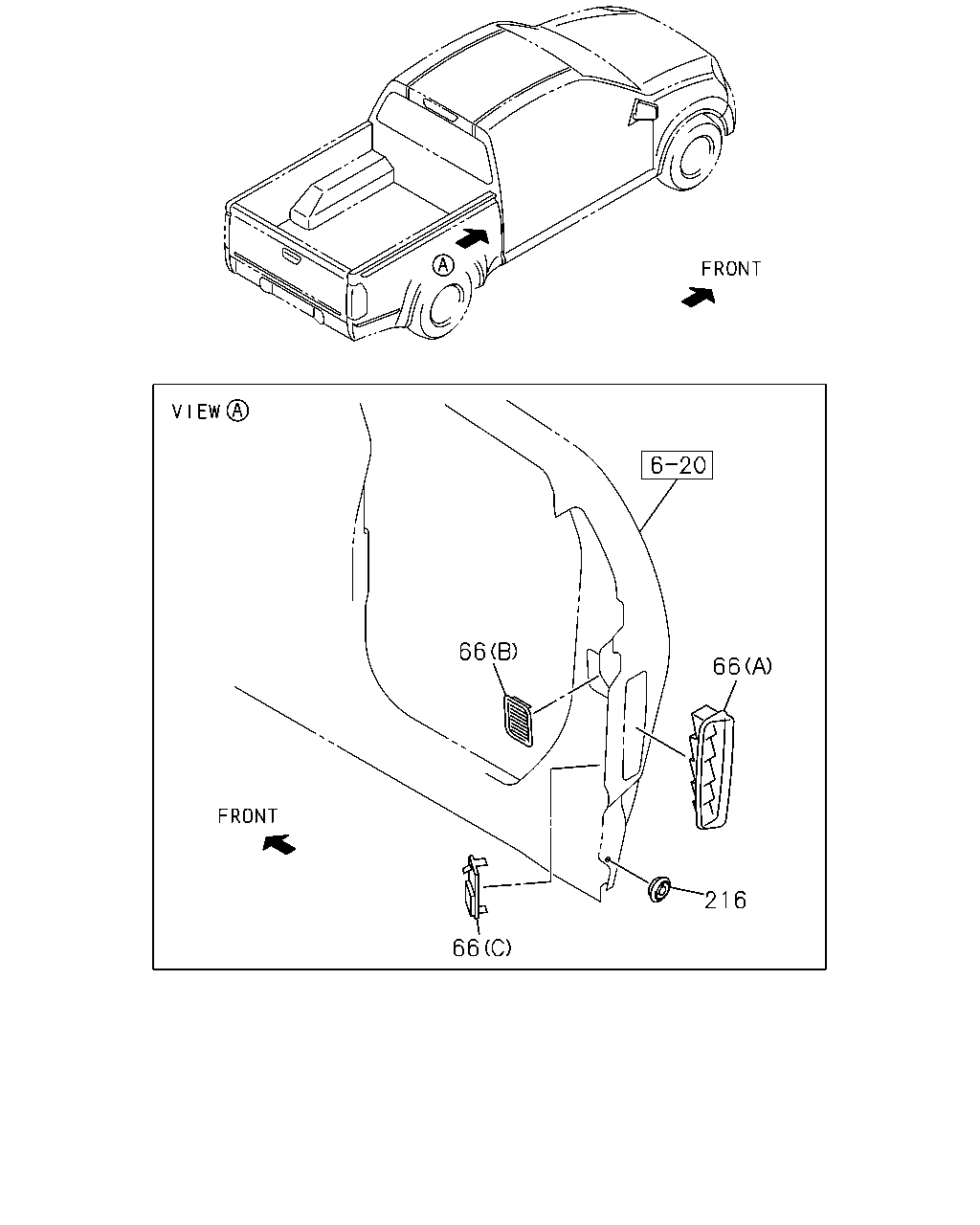

çizim 464430
66 216 66 66
BalonParca AdiParca NoAdetTipApplied Date A B C
66 GRILLE; AIR OUTLET
(A) 		8-98164-822-2 01 1 1501- ● ● ●
66 GRILLE; AIR OUTLET
(A) 		8-98164-823-2 01 1 1501- ● ● ●
66 GRILLE; AIR OUTLET
(B) 		8-97365-208-0 02 1 1501- ● ●
66 GRILLE; AIR OUTLET
(C) 		8-97251-682-1 02 1 1501- ●
216 GROMMET; HOLE
OD=19 		8-97365-823-0 12 1 1501- ● ●
216 GROMMET; HOLE
OD=30 		8-94107-655-0 02 1 1501- ●
