6-60 — ROOF PANEL (#155441) — 20 parça

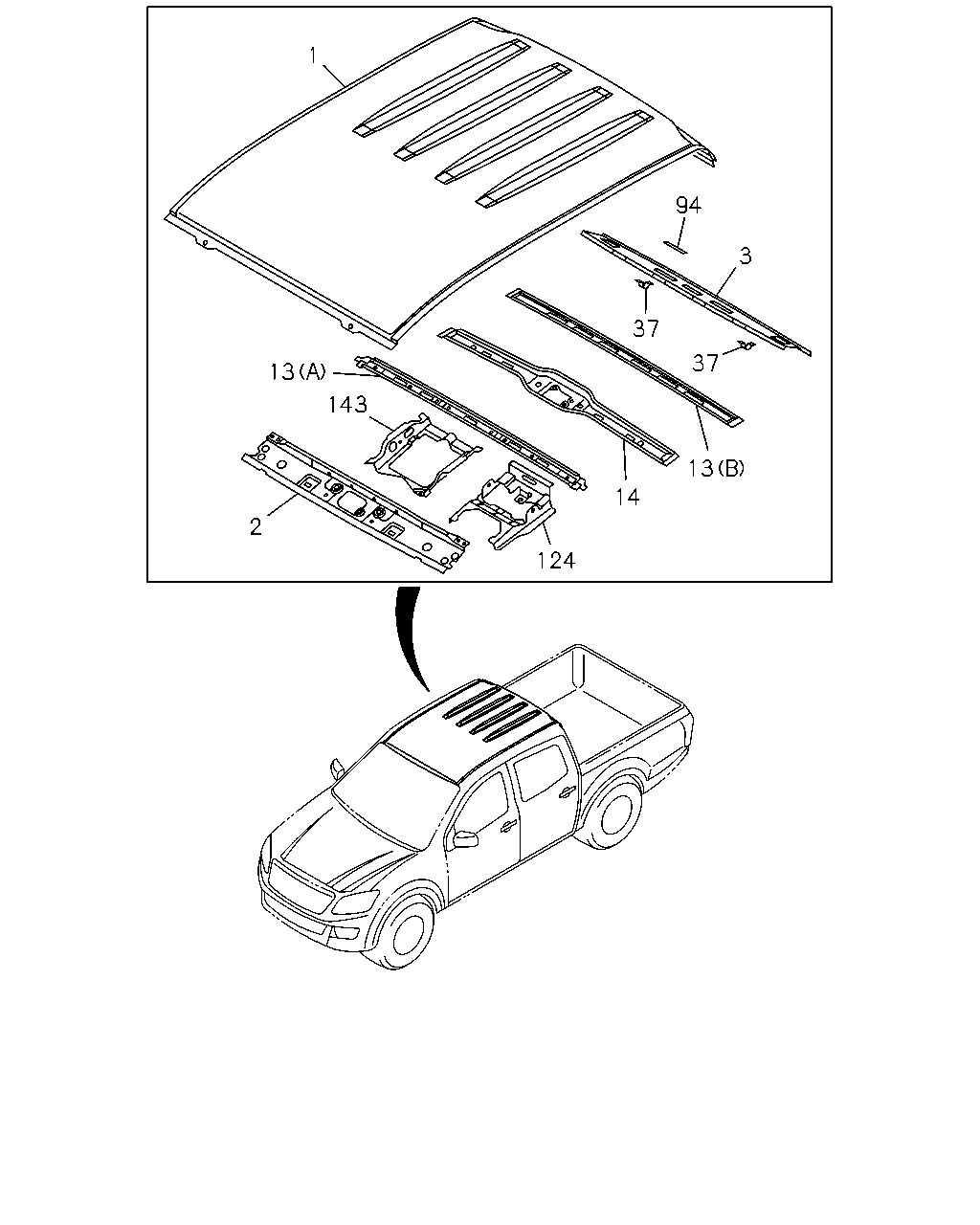

çizim 464442
1 94 3 37 37 13 14 124 143 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF 8-98103-960-3 01 1 1501- ● ●
1 PANEL; ROOF 8-98103-951-3 01 1 1501- ●
2 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1501- ● ● ●
3 PANEL; ROOF,RR 8-98103-999-3 01 1 1501- ● ● ●
13 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1501- ● ● ●
13 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1501- ● ●
13 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1501- ●
14 SUPPORT; ROOF 8-98112-817-1 01 1 1501- ● ●
37 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1501- ● ● ●
94 SEAL; REINFORCEMENT 8-98201-900-0 01 1 1501- ● ●
124 BRACKET; ROOM LAMP
MAP LAMP<C74> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. HEADER CONSOLE<DK6> 		8-98103-968-0 01 1 1501- ● ●
143 BRACKET; CONSOLE
HEADER CONSOLE<DK6> AM/FM,CLOCK,BLUE TOOTH,CD PLAYER(UGQ),RADIO DELETE(UL5),INST PANEL FOR DIN E SIZE AUDIO(7QL) EXC. MAP LAMP<C74> 		8-98103-962-1 01 1 1501- ● ●

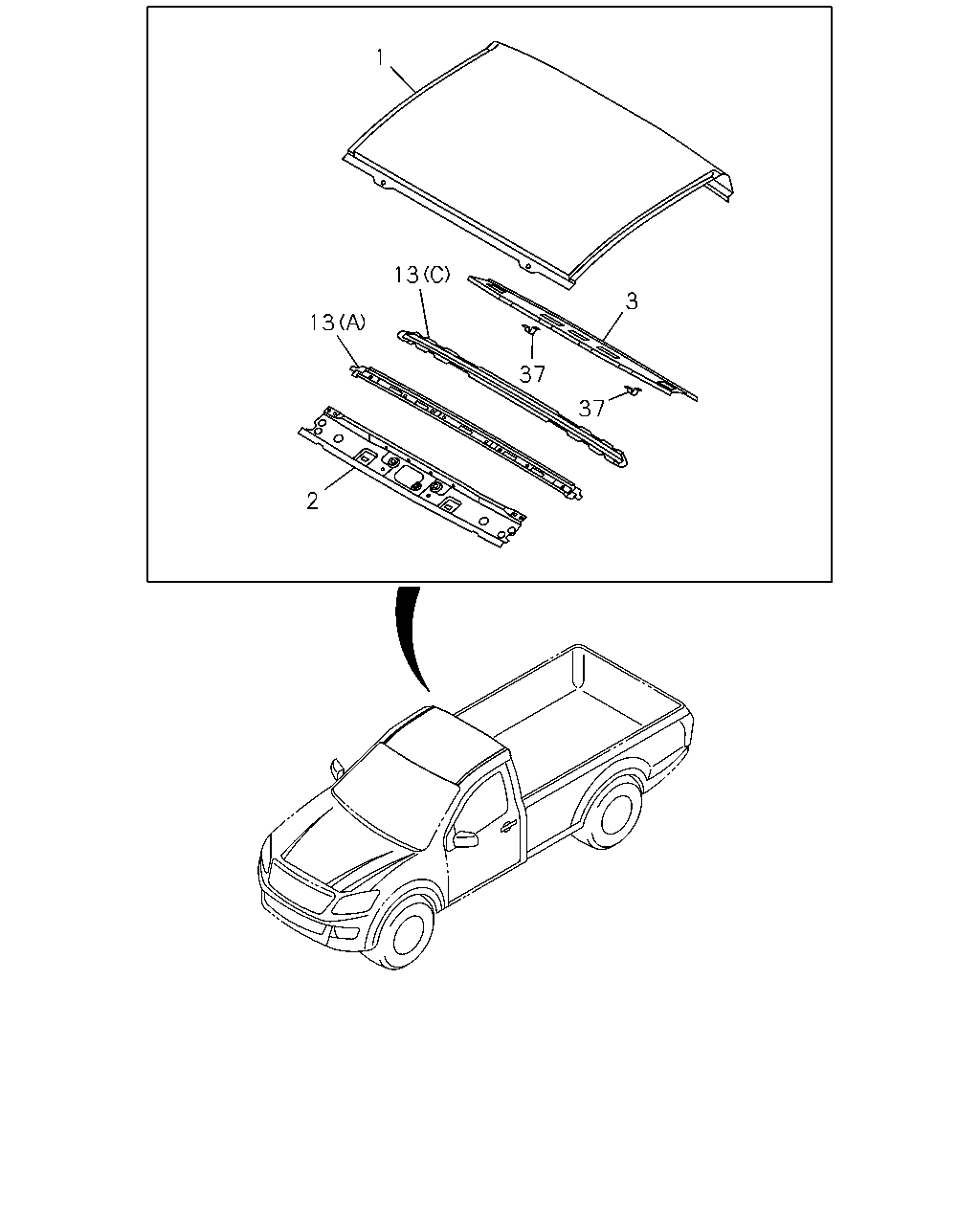

çizim 464910
1 13 13 3 37 37 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; ROOF 8-98103-960-3 01 1 1501- ● ●
1 PANEL; ROOF 8-98103-951-3 01 1 1501- ●
2 PANEL; ROOF,CENTER 8-98103-964-5 01 1 1501- ● ● ●
3 PANEL; ROOF,RR 8-98103-999-3 01 1 1501- ● ● ●
13 PANEL; ROOF SUPPORT
(A) 		8-98103-963-1 01 1 1501- ● ● ●
13 PANEL; ROOF SUPPORT
(B) 		8-98103-982-0 01 1 1501- ● ●
13 PANEL; ROOF SUPPORT
(C) 		8-98150-942-0 01 1 1501- ●
37 BRACKET; TRIM,ROOF BACK 8-98103-996-0 02 1 1501- ● ● ●
