◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-55 - REAR DOOR TRIM ▶
6-55 — REAR DOOR TRIM (#155440) — 41 parça

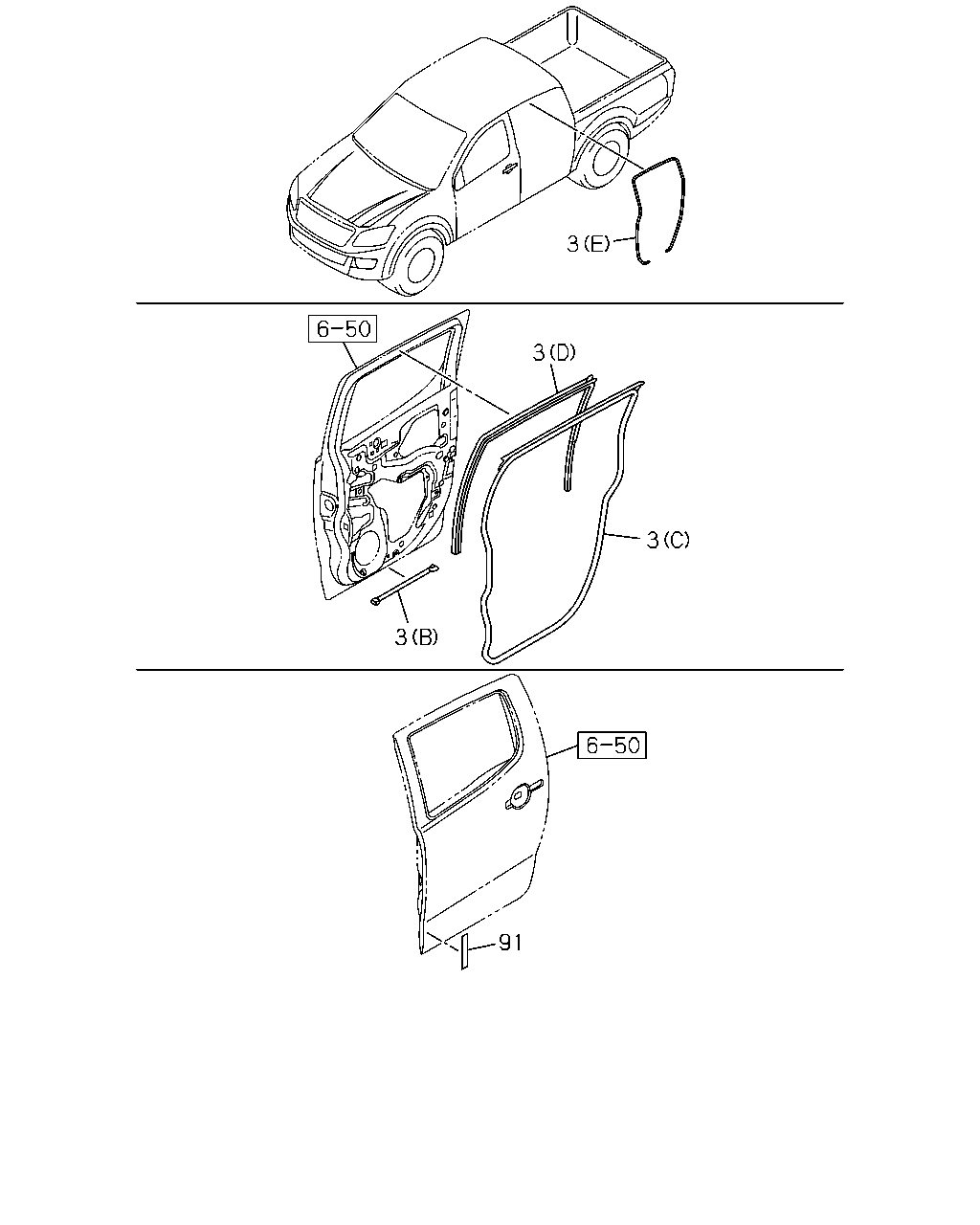

çizim 464544
3 3 3 3 91
BalonParca AdiParca NoAdetTipApplied Date A B
3 WEATHERSTRIP; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98109-546-2 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98109-547-2 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(D) 		8-98052-209-4 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(D) 		8-98052-210-4 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(B) 		8-98165-114-1 02 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(E) 		8-98201-893-0 02 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(C) 		8-98282-674-1 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(C) 		8-98282-675-1 01 1 1501- ● ●
91 TAPE
EXC. SIDE STEP<6TC> 		8-98165-205-1 01 1 1501- ● ●
91 TAPE
EXC. SIDE STEP<6TC> 		8-98165-206-1 01 1 1501- ● ●

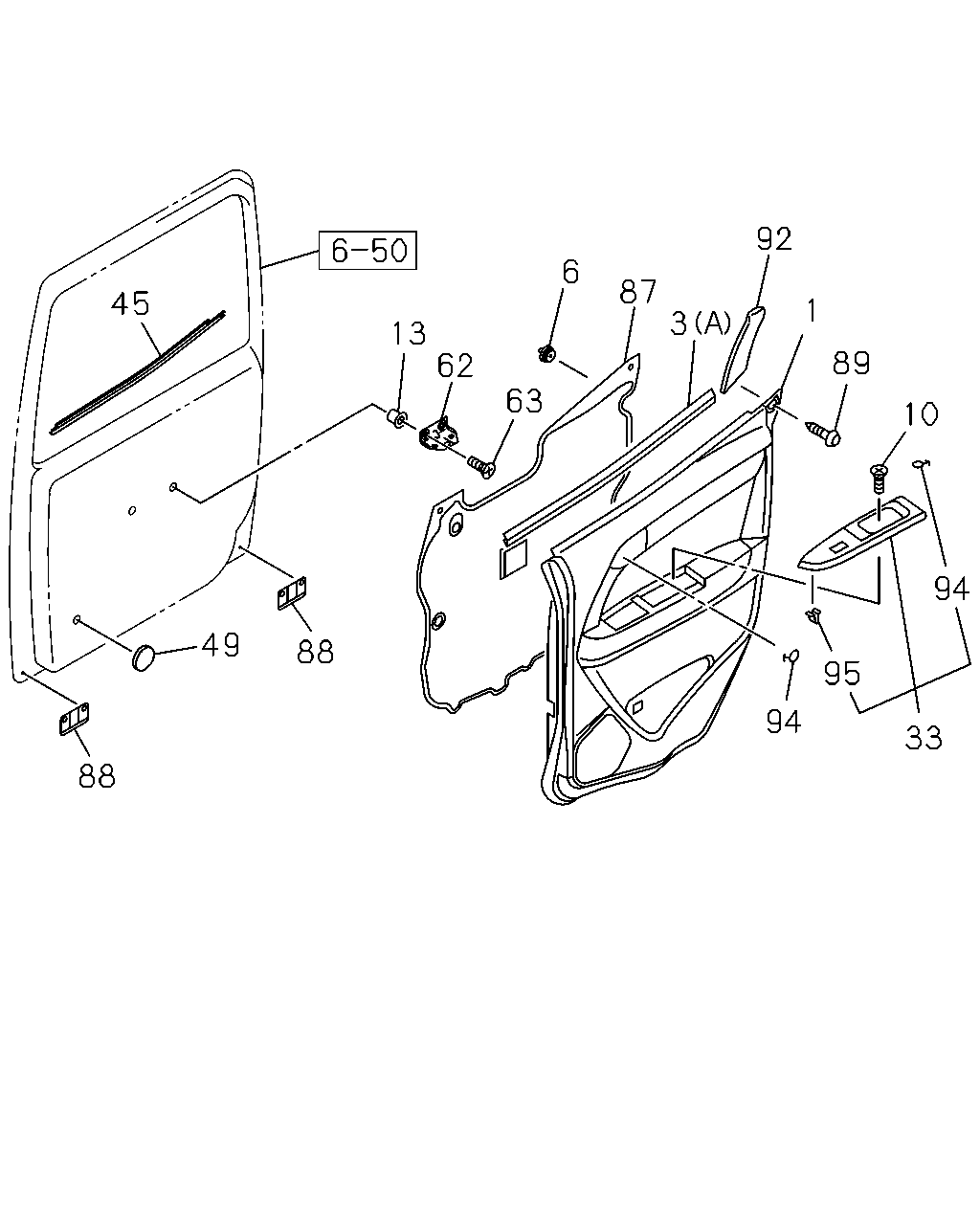

çizim 464983
45 13 62 63 6 87 92 1 3 89 10 94 95 33 94 88 49 88
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97417-011-4 01 1 1501- ● ●
1 PAD; TRIM,RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97417-013-4 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98109-546-2 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98109-547-2 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(D) 		8-98052-209-4 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(D) 		8-98052-210-4 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(B) 		8-98165-114-1 02 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(E) 		8-98201-893-0 02 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(C) 		8-98282-674-1 01 1 1501- ● ●
3 WEATHERSTRIP; RR DOOR
(C) 		8-98282-675-1 01 1 1501- ● ●
6 CLIP; DOOR PAD
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98160-729-0 14 1 1501- ● ●
10 SCREW; ARM REST
M5X14 TAPPING 		8-98184-363-0 02 1 1501- ● ●
13 GROMMET; SCREW,ARM REST 8-94152-494-0 04 1 1501- ● ●
33 BOX; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-989-3 01 1 1501- ● ●
33 BOX; RR DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-990-3 01 1 1501- ● ●
45 FINISHER; RR DOOR 8-98052-207-2 01 1 1501- ● ●
45 FINISHER; RR DOOR 8-98052-208-2 01 1 1501- ● ●
49 SEAL; DOOR
6-SPEAKER SYSTEM BASE<UW5> OD=25 BLACK 		1-76798-019-0 02 1 1501- ● ●
62 BRACKET 8-98117-091-1 02 1 1501- ● ●
63 BOLT
M5X14 TAPPING 		8-98184-363-0 04 1 1501- ● ●
87 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5> 		8-98103-525-1 01 1 1501- ● ●
87 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM BASE<UW5> 		8-98103-526-1 01 1 1501- ● ●
87 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98103-527-2 01 1 1501- ● ●
87 DEFLECTOR; RR DOOR
6-SPEAKER SYSTEM CUSTOM<UW6> 		8-98103-528-2 01 1 1501- ● ●
88 PLUG; DOOR 8-98197-448-0 04 1 1501- ● ●
89 RETAINER; RR DOOR
BLACK 		8-97419-388-0 02 1 1501- ● ●
92 PANEL; RR DOOR
BLACK 		8-97416-987-0 01 1 1501- ● ●
92 PANEL; RR DOOR
BLACK 		8-97416-988-0 01 1 1501- ● ●
94 COVER; HOLDER,BOLT
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-610-0 02 1 1501- ● ●
94 COVER; HOLDER,BOLT
BLACK 		8-97416-610-0 02 1 1501- ● ●
95 CLIP; DOOR TRIM
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98164-677-0 02 1 1501- ● ●
