6-47 — MUD GUARD AND INSULATOR (#155436) — 19 parça

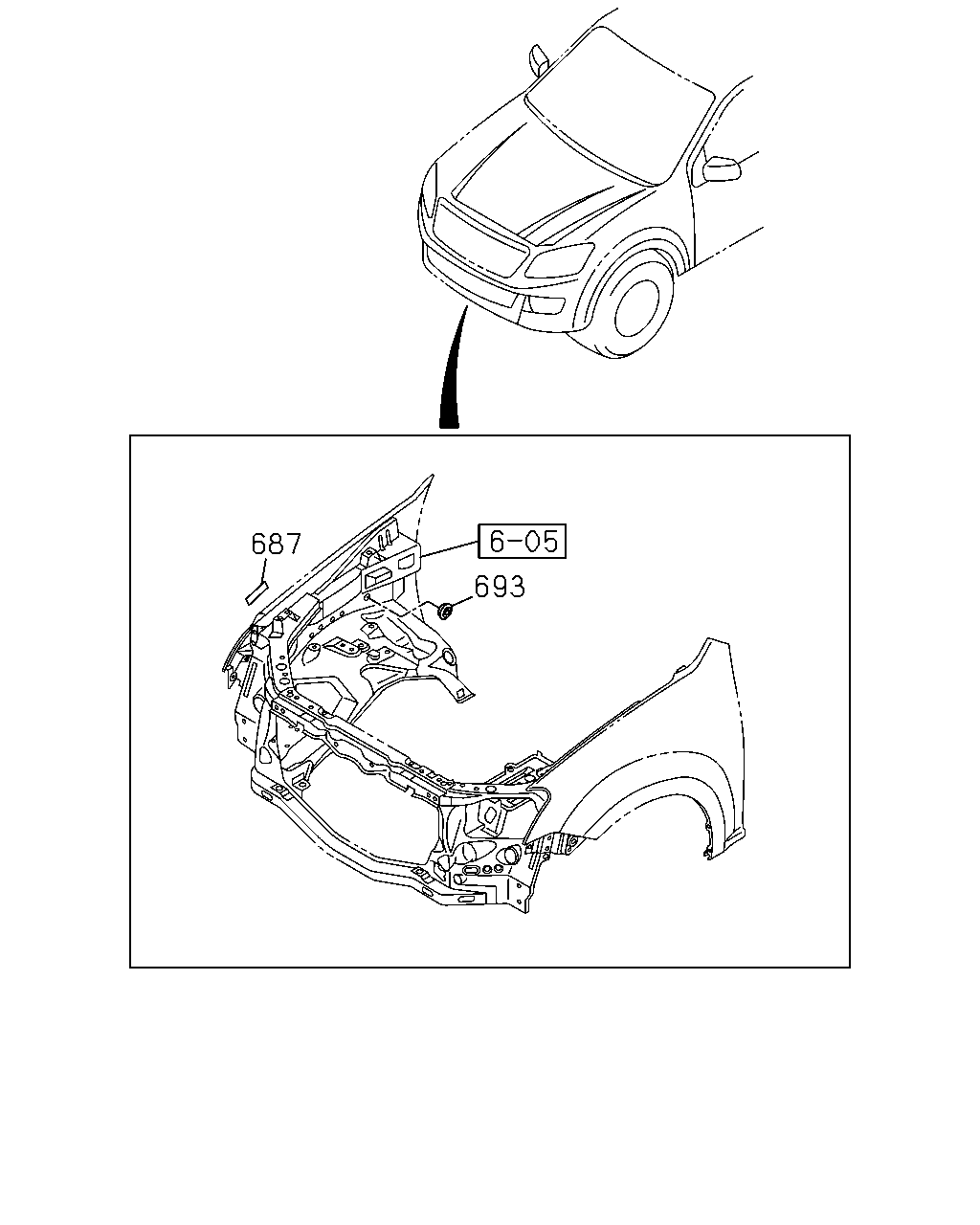

çizim 464494
687 693
BalonParca AdiParca NoAdetTipApplied Date A B C
687 TAPE; PROTECT 8-98191-602-1 02 1 1501- ● ● ●
693 GROMMET; ACCESSORY HOLE 8-98191-606-0 01 1 1501- ● ● ●

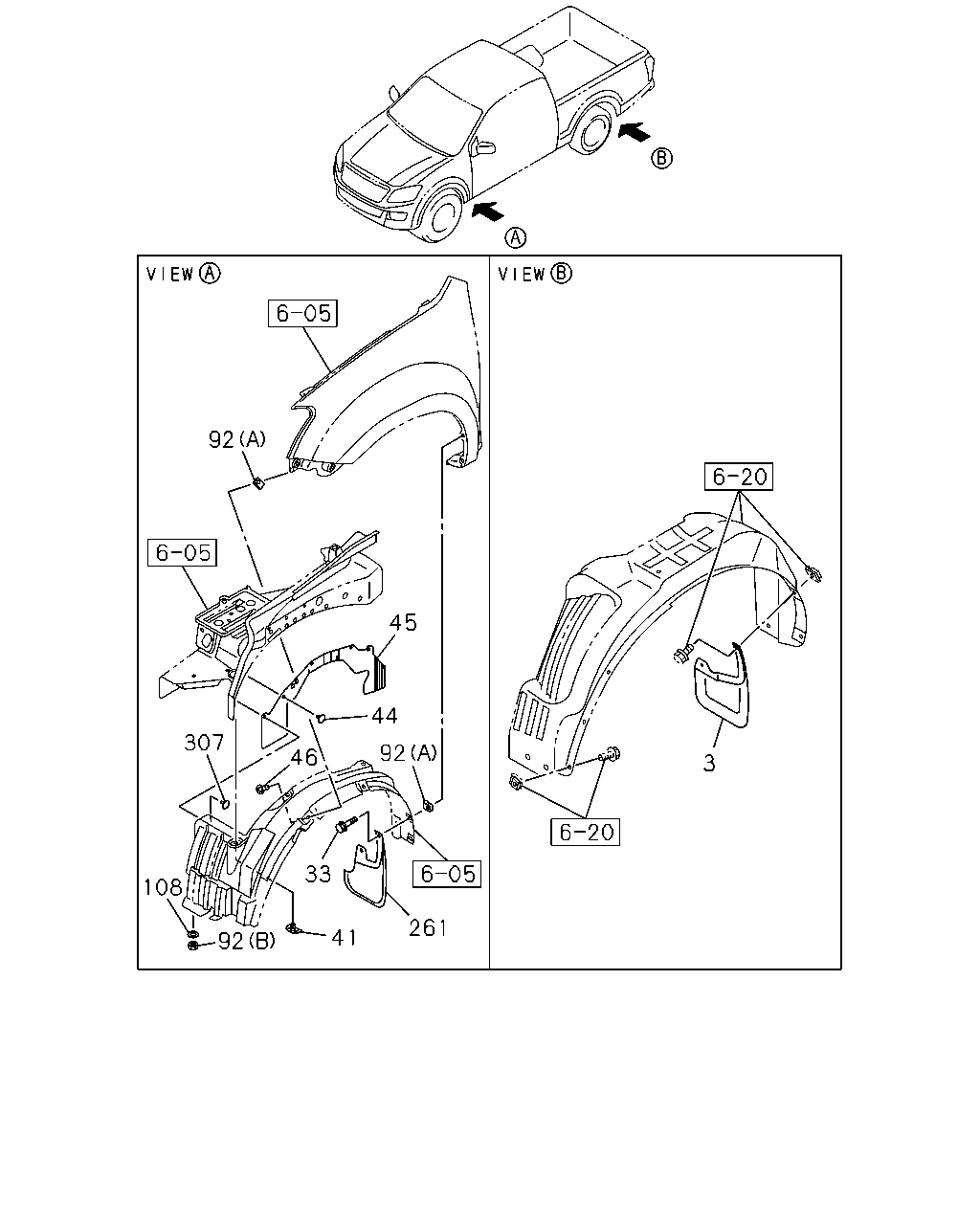

çizim 465072
92 45 3 261 33 41 92 108 307 44 92 46
BalonParca AdiParca NoAdetTipApplied Date A B C
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-276-1 01 1 1501- ● ● ●
3 GUARD; MUD,RR
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-279-1 01 1 1501- ● ● ●
33 BOLT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1501- ● ● ●
41 RIVET; INNER LINER 8-94221-150-0 02 1 1501- ● ● ●
41 RIVET; INNER LINER 8-94221-150-0 10 1 1501- ● ● ●
41 RIVET; INNER LINER
EXC. FORMED MUD FLAP FRT & RR<Q8H> 		8-94221-150-0 06 1 1501- ● ● ●
44 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 10 1 1501- ● ● ●
45 COVER; MUD,FENDER SKIRT 8-98077-268-1 01 1 1501- ● ● ●
45 COVER; MUD,FENDER SKIRT 8-98077-270-0 01 1 1501- ● ● ●
46 SCREW; INNER LINER
M6X20 TAPPING W/PL WASHER 		8-98167-444-0 04 1 1501- ● ● ●
92 NUT; MUD COVER
FORMED MUD FLAP FRT & RR<Q8H> (A) 		8-97125-519-0 06 1 1501- ● ● ●
92 NUT; MUD COVER
(A) 		8-97125-519-0 04 1 1501- ● ● ●
92 NUT; MUD COVER
(B) M6 CAP NUT 		8-98049-850-0 02 1 1501- ● ● ●
108 WASHER; PL,PANEL TO FRAME
ID=6.5 OD=18 T=1.6 		8-98049-851-0 02 1 1501- ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-272-0 01 1 1501- ● ● ●
261 RUBBER; FRT,MUD GUARD
FORMED MUD FLAP FRT & RR<Q8H> 		8-98077-274-0 01 1 1501- ● ● ●
307 RETAINER 8-98050-462-0 02 1 1501- ● ● ●
