◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#155431) — 37 parça

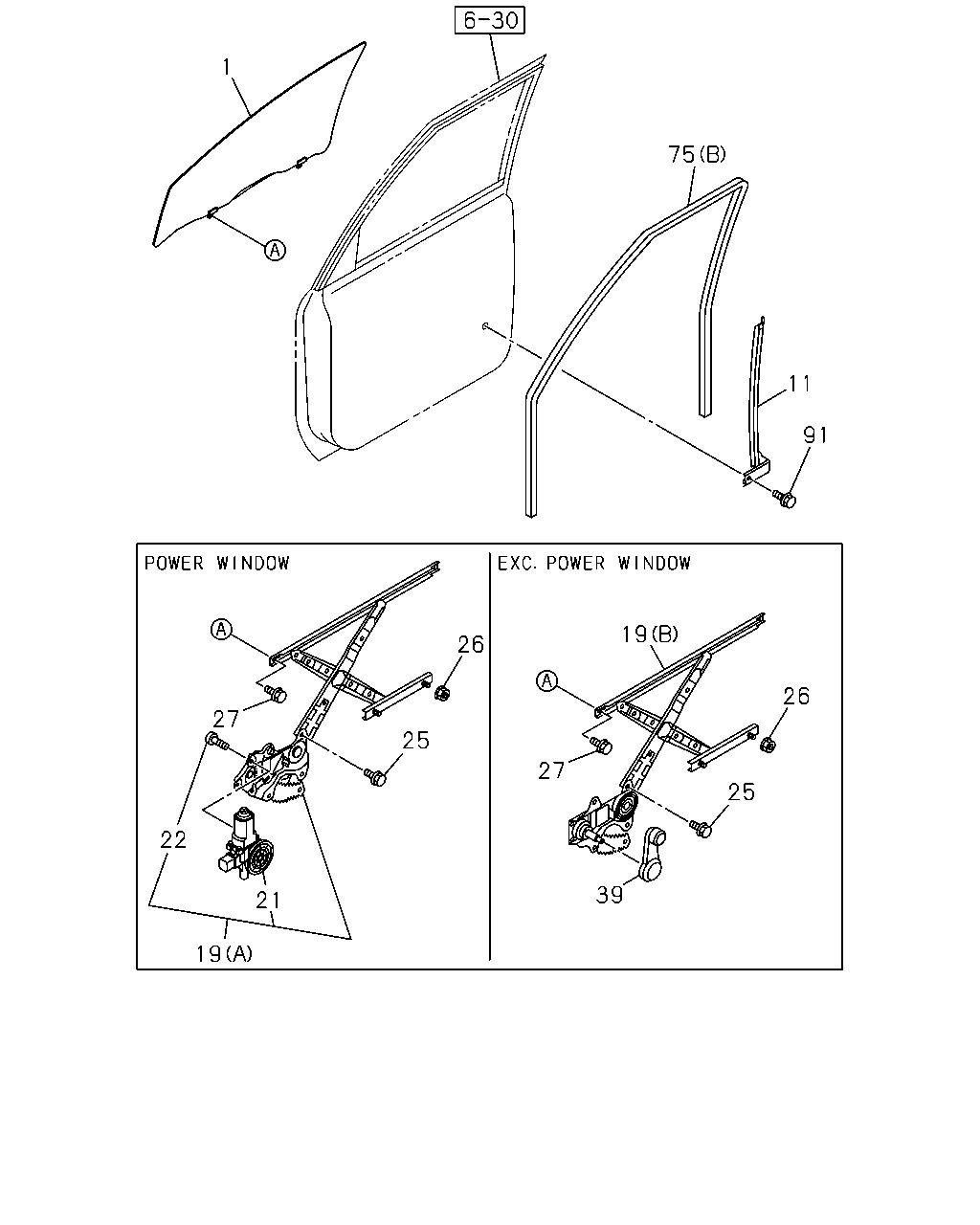

çizim 464751
1 75 11 91 19 26 25 27 39 25 26 27 22 21 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GLASS; FRT DOOR 8-98073-843-2 01 1 1501- ● ● ●
1 GLASS; FRT DOOR 8-98073-844-2 01 1 1501- ● ● ●
11 RAIL; RR GUIDE,FRT DOOR
REMOTE CONT DOOR LOCK<AP5> 		8-98100-792-5 01 1 1501- ● ●
11 RAIL; RR GUIDE,FRT DOOR
AUTO DOOR LOCK<AU4> EXC. REMOTE CONT DOOR LOCK<AP5>,REMOTE CONT DOOR LOCK W/ANTI THEFT<7KY> 		8-98100-792-5 01 1 1501- ● ●
11 RAIL; RR GUIDE,FRT DOOR
EXC. REMOTE CONT DOOR LOCK<AP5>,AUTO DOOR LOCK<AU4> 		8-98100-792-5 01 1 1501- ● ●
11 RAIL; RR GUIDE,FRT DOOR 8-98100-792-5 01 1 1501- ●
11 RAIL; RR GUIDE,FRT DOOR 8-98100-793-5 01 1 1501- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> (A) 		8-98093-555-1 01 1 1501- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98093-554-1 01 1 1501- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> (A) 		8-98093-553-1 01 1 1501- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98093-551-1 01 1 1501- ● ● ●
19 REGULATOR; WINDOW,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> (B) 		8-98093-552-1 01 1 1501- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ> 		8-98160-725-0 01 1 1501- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98160-724-0 01 1 1501- ● ● ●
21 MOTOR; POWER WINDOW REG,FRT DOOR
POWER WINDOW FRT&REAR DOOR<A31> 		8-98160-723-0 01 1 1501- ● ● ●
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98195-236-0 03 1 1501- ● ● ●
22 SCREW; POWER WINDOW MOTOR
POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> 		8-98195-236-0 03 1 1501- ● ● ●
25 BOLT; WINDOW REG
M6X10 FLANGE 		8-98188-381-0 06 1 1501- ● ● ●
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		8-98049-362-0 04 1 1501- ● ● ●
27 BOLT; GLASS FIX
M6X10 FLANGE 		8-98188-381-0 04 1 1501- ● ● ●
39 HANDLE; WINDOW REG,FRT DOOR
EXC. POWER WINDOW SAFETY DOOR<ABZ>,POWER WINDOW FRT&REAR DOOR<A31> BLACK 		8-97416-724-0 02 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1501- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1501- ● ●
91 BOLT; GUIDE RAIL TO DOOR
M6X8 FLANGE 		8-98048-996-0 02 1 1501- ● ● ●

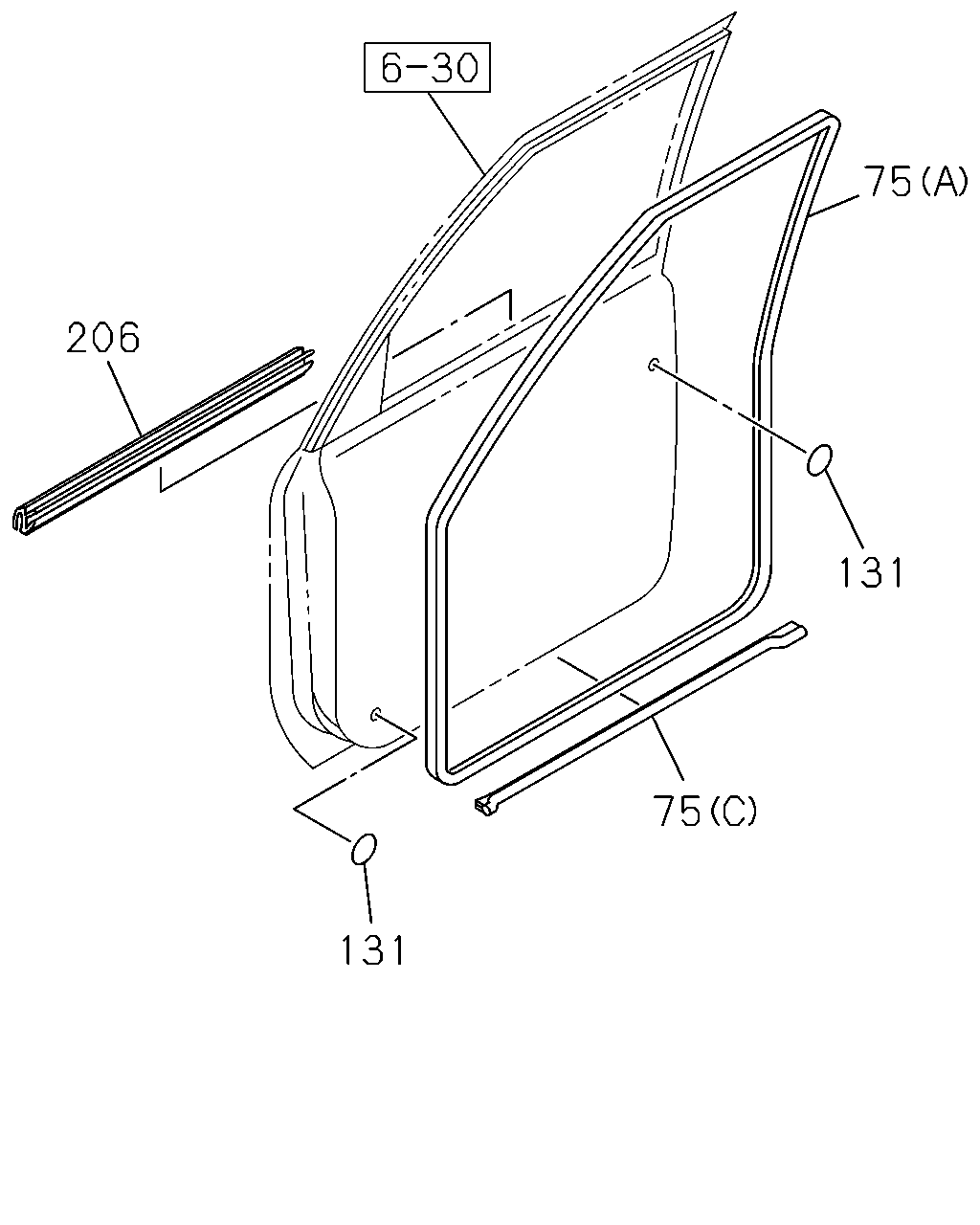

çizim 464802
206 131 75 75 131
BalonParca AdiParca NoAdetTipApplied Date A B C
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-199-9 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(B) 		8-98052-200-9 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-670-1 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(A) 		8-98282-671-1 01 1 1501- ● ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-107-0 01 1 1501- ● ●
75 WEATHERSTRIP; FRT DOOR
(C) 		8-98165-108-0 01 1 1501- ● ●
131 SEAL; FRT DOOR
OD=25 BLACK 		1-76798-019-0 04 1 1501- ● ● ●
206 WEATHERSTRIP; FRT DOOR GLASS 8-98052-197-2 01 1 1501- ● ● ●
206 WEATHERSTRIP; FRT DOOR GLASS 8-98052-198-2 01 1 1501- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
