6-20 — SIDE PANEL AND STEP (#155429) — 103 parça

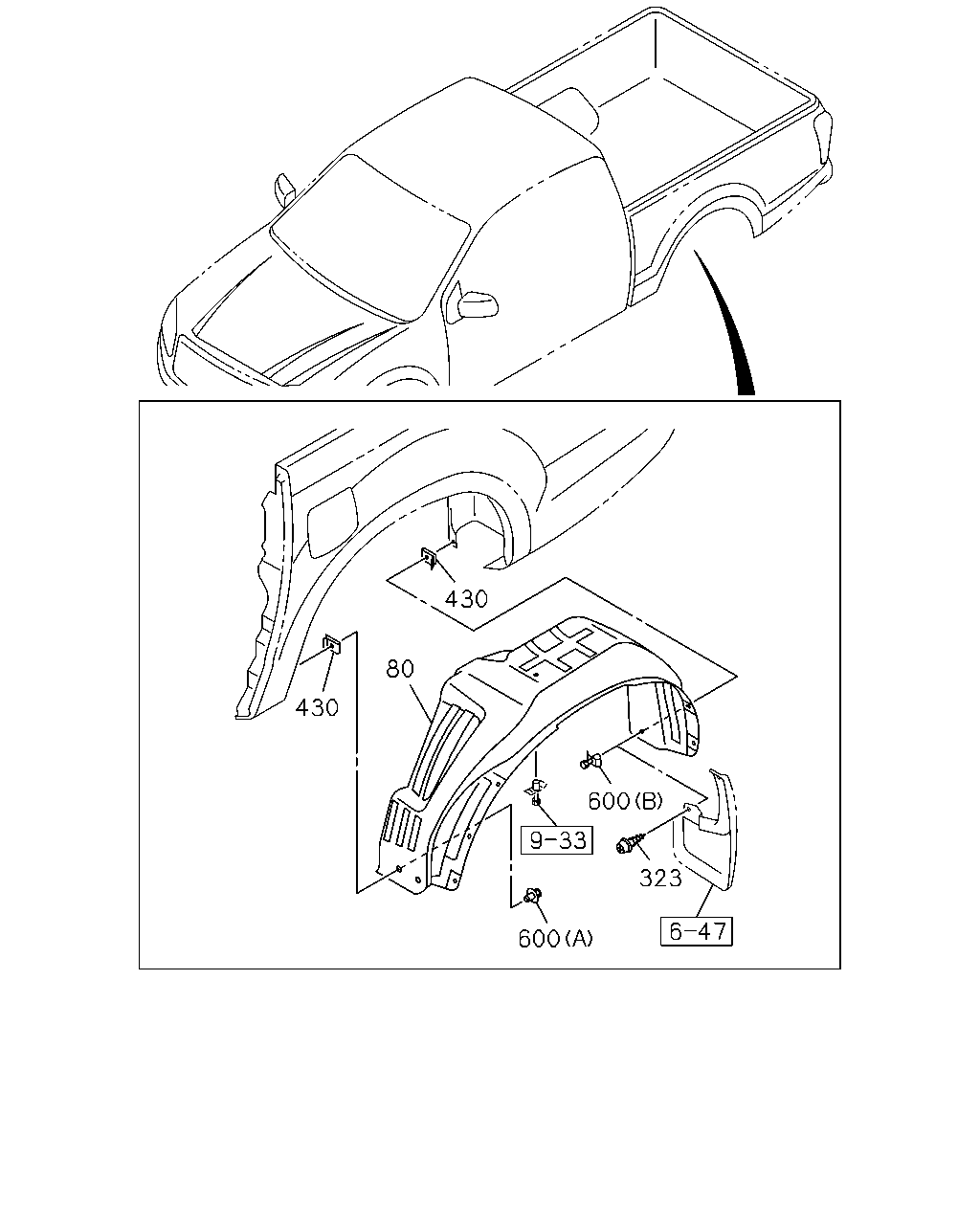

çizim 464487
430 80 430 600 323 600
BalonParca AdiParca NoAdetTipApplied Date A B C
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-945-5 01 1 1501- ● ● ●
80 PANEL; WHEEL HOUSE,INNER
REAR BODY DBL WALL CTR PULL(E63) 		8-98101-946-5 01 1 1501- ● ● ●
323 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) M6X20 TAPPING W/PL WASHER 		8-98167-444-0 02 1 1501- ● ● ●
323 SCREW; SET
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> M6X20 TAPPING W/PL WASHER 		8-98167-444-0 06 1 1501- ● ● ●
430 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) 		8-97125-519-0 02 1 1501- ● ● ●
430 NUT; PANEL
REAR BODY DBL WALL CTR PULL(E63) FORMED MUD FLAP FRT & RR<Q8H> 		8-97125-519-0 06 1 1501- ● ● ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) (A) 		8-98186-355-0 04 1 1501- ● ● ●
600 RIVET; EXTENSION
REAR BODY DBL WALL CTR PULL(E63) EXC. FORMED MUD FLAP FRT & RR<Q8H> (B) 		8-94221-150-0 06 1 1501- ● ● ●

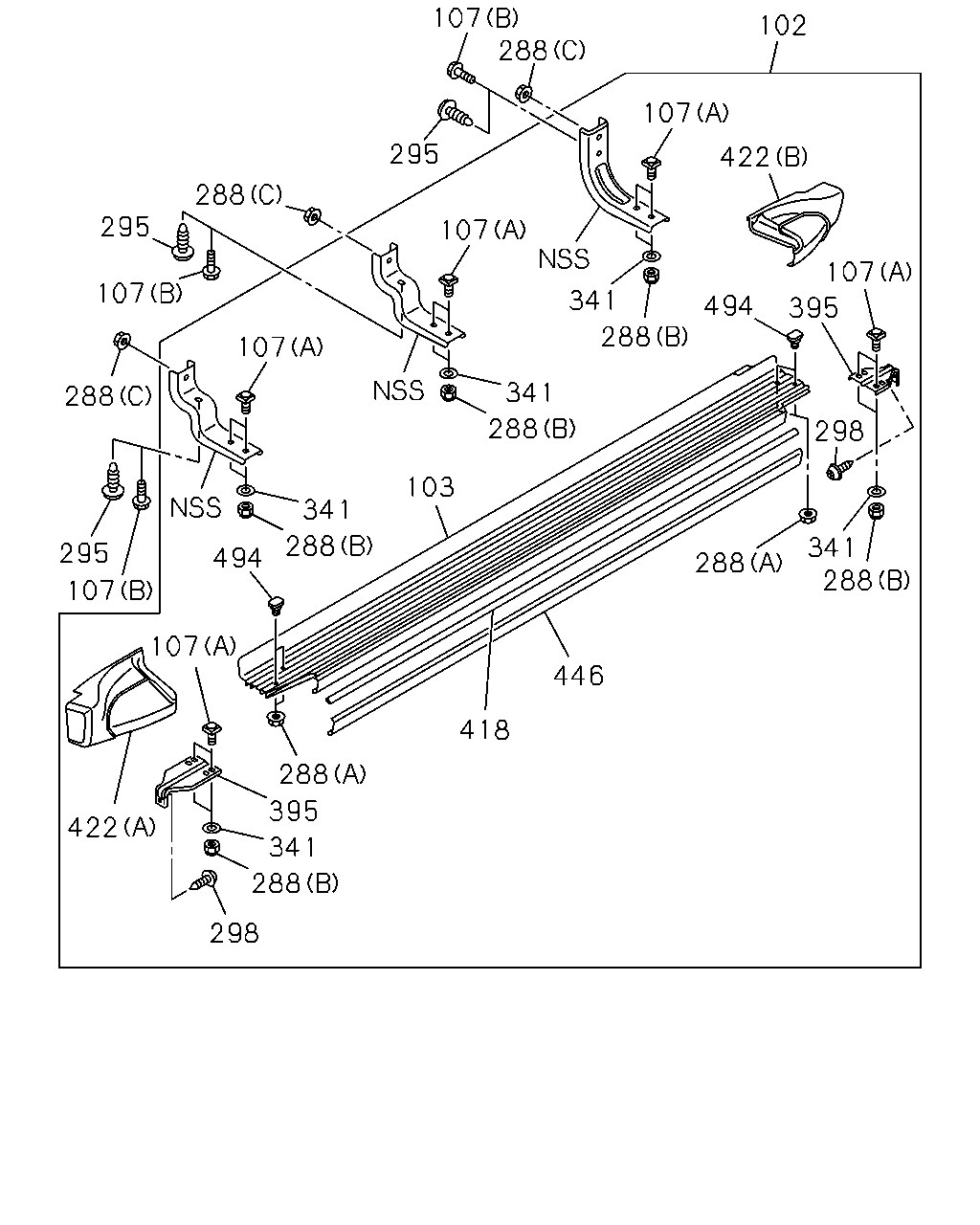

çizim 464610
102 288 107 295 288 295 107 288 295 107 422 298 288 341 395 288 107 494 288 341 107 103 418 446 288 288 341 298 107 395 494 422 107 288 341 107 341 288
BalonParca AdiParca NoAdetTipApplied Date A B C
102 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-321-5 01 1 1501- ● ●
102 STEP; BODY SIDE
SIDE STEP<6TC> SILVER 		8-98101-322-5 01 1 1501- ● ●
103 PLATE; STEP
SIDE STEP<6TC> 		8-98292-968-0 01 1 1501- ● ●
103 PLATE; STEP
SIDE STEP<6TC> 		8-98292-969-0 01 1 1501- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (B) M8X25 FLANGE 		8-98048-998-0 06 1 1501- ● ●
107 BOLT; SIDE STEP
SIDE STEP<6TC> (A) 		8-98251-460-0 20 1 1501- ● ●
288 NUT; STEP
SIDE STEP<6TC> (A) M6 FLANGE 		0-91180-106-0 08 1 1501- ● ●
288 NUT; STEP
SIDE STEP<6TC> (B) M8 FLANGE 		0-91180-108-0 20 1 1501- ● ●
288 NUT; STEP
SIDE STEP<6TC> (C) M8 FLANGE 		0-91180-208-0 06 1 1501- ● ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> OD=18 		8-94269-290-0 06 1 1501- ● ●
295 CLIP; BODY SIDE STEP
OD=18 		8-94269-290-0 04 1 1501- ●
298 SCREW; SIDE STEP
SIDE STEP<6TC> M5X16 		8-98073-081-0 04 1 1501- ● ●
341 WASHER; PL,STEP
SIDE STEP<6TC> ID=8.4 OD=18 		0-91614-608-0 20 1 1501- ● ●
395 BRACKET; SIDE STEP
SIDE STEP<6TC> 		8-98292-978-0 04 1 1501- ● ●
418 RUBBER; STEP
SIDE STEP<6TC> 		8-98293-008-0 02 1 1501- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-036-1 01 1 1501- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (A) FRONT SILVER 		8-97466-042-1 01 1 1501- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-046-1 01 1 1501- ● ●
422 COVER; SIDE STEP
SIDE STEP<6TC> (B) REAR SILVER 		8-97466-050-1 01 1 1501- ● ●
446 FINISHER; STEP
SIDE STEP<6TC> SILVER 		8-97466-048-0 02 1 1501- ● ●
494 STUD; BRKT
SIDE STEP<6TC> 		8-98056-035-0 08 1 1501- ● ●

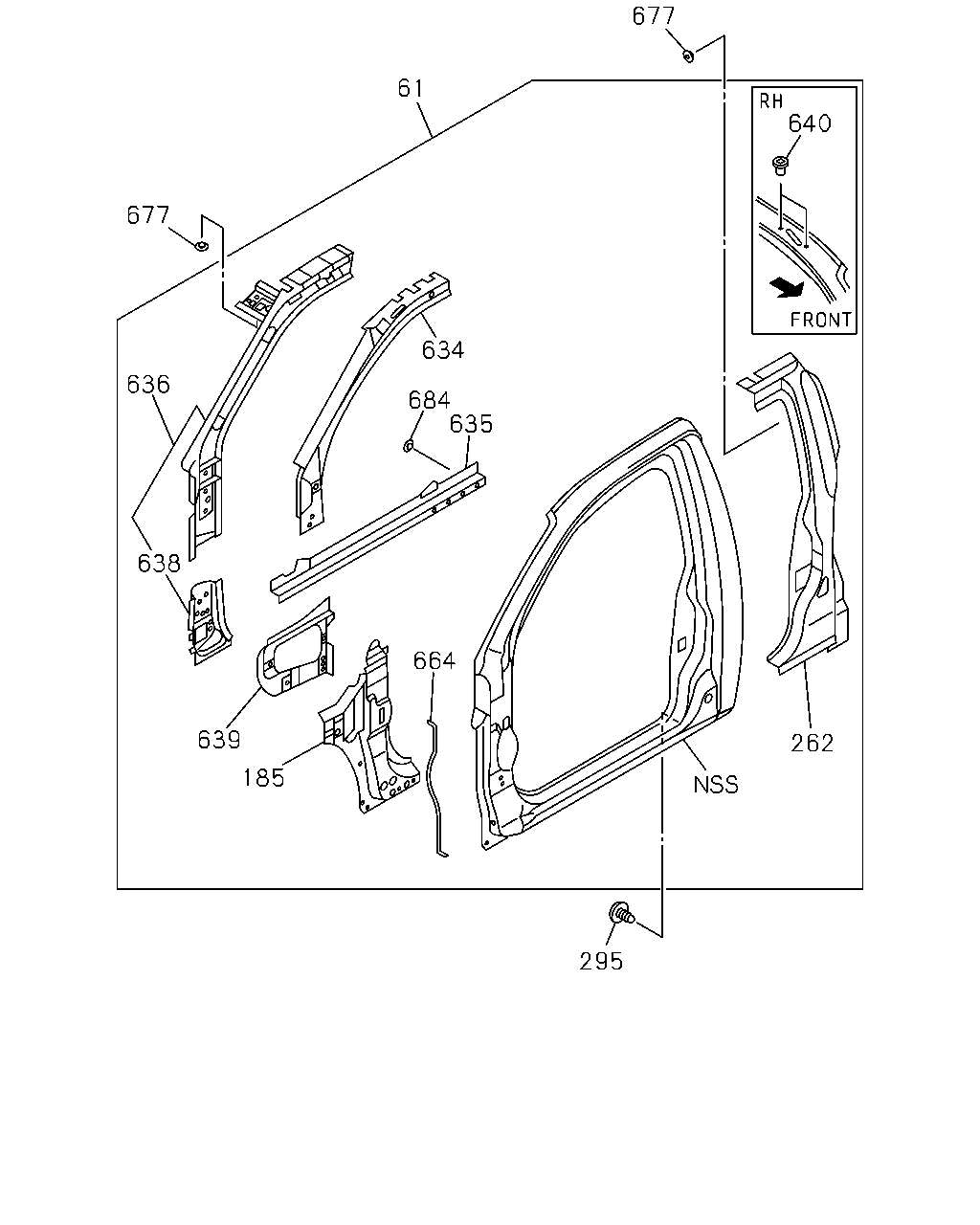

çizim 464761
640 677 61 677 636 638 639 185 664 635 684 634 295 262
BalonParca AdiParca NoAdetTipApplied Date A B C
61 PANEL; SIDE OUTER 8-98156-763-6 01 1 1501- ● ●
61 PANEL; SIDE OUTER 8-98156-771-6 01 1 1501- ● ●
61 PANEL; SIDE OUTER 8-98103-242-6 01 1 1501- ●
61 PANEL; SIDE OUTER 8-98103-245-6 01 1 1501- ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1501- ● ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1501- ● ● ●
262 PANEL; PILLAR 8-98192-993-1 01 1 1501- ●
262 PANEL; PILLAR 8-98269-897-0 01 1 1501- ●
295 CLIP; BODY SIDE STEP
EXC. SIDE STEP<6TC> OD=18 		8-94269-290-0 06 1 1501- ● ●
295 CLIP; BODY SIDE STEP
OD=18 		8-94269-290-0 04 1 1501- ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1501- ● ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1501- ● ● ●
635 REINFORCEMENT; ROCKER 8-98104-793-4 01 1 1501- ● ●
635 REINFORCEMENT; ROCKER 8-98104-794-4 01 1 1501- ● ●
635 REINFORCEMENT; ROCKER 8-98104-503-2 01 1 1501- ●
635 REINFORCEMENT; ROCKER 8-98104-504-2 01 1 1501- ●
636 PANEL; FRONT PILLAR INNER 8-98104-510-9 01 1 1501-1505 ● ●
636 PANEL; FRONT PILLAR INNER 8-98297-962-0 01 1 1506- ● ●
636 PANEL; FRONT PILLAR INNER 8-98104-512-9 01 1 1501-1505 ● ●
636 PANEL; FRONT PILLAR INNER 8-98297-963-0 01 1 1506- ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-087-7 01 1 1501- ●
636 PANEL; FRONT PILLAR INNER 8-98161-090-7 01 1 1501- ●
638 PANEL; DASH SIDE INNER 8-98104-640-5 01 1 1501- ● ● ●
638 PANEL; DASH SIDE INNER 8-98104-641-5 01 1 1501- ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1501- ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1501- ● ● ●
640 POP NUT
M5 POP NUT 		8-97249-574-0 02 1 1501- ●
664 SEAL; TAPE 8-98193-408-2 01 1 1501- ● ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1501- ● ● ●
677 RIVET; PANEL 8-98057-864-0 16 1 1501- ● ● ●
684 FASTENER 8-98057-864-0 10 1 1501- ● ●
684 FASTENER 8-98057-864-0 10 1 1501- ● ●
684 FASTENER 8-98057-864-0 07 1 1501- ●
684 FASTENER 8-98057-864-0 07 1 1501- ●

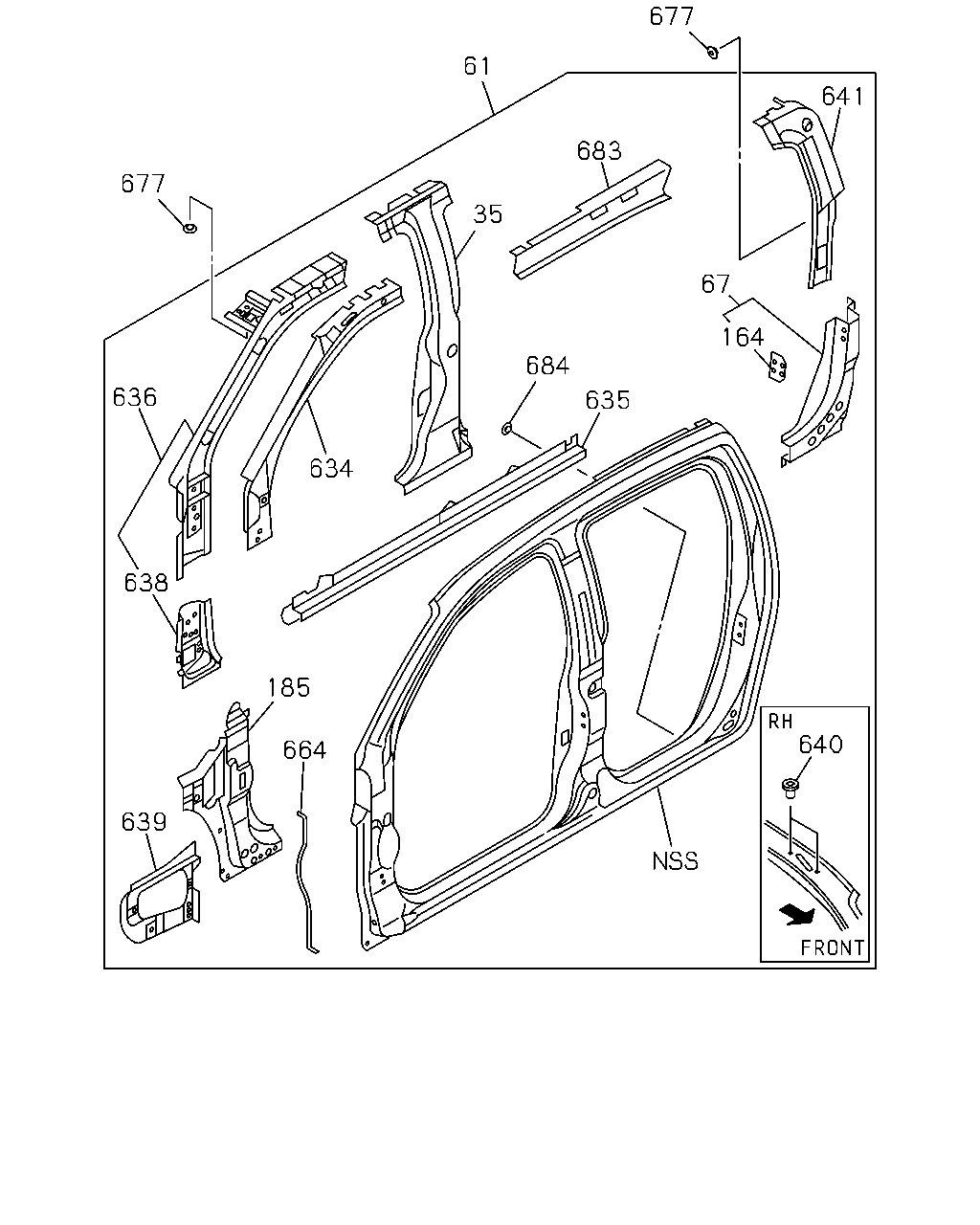

çizim 464781
677 61 677 636 634 35 683 641 67 164 635 684 638 639 185 664 640
BalonParca AdiParca NoAdetTipApplied Date A B C
35 PANEL; CENTER PILLAR,INNER 8-98104-766-7 01 1 1501- ● ●
35 PANEL; CENTER PILLAR,INNER 8-98104-767-8 01 1 1501- ● ●
61 PANEL; SIDE OUTER 8-98156-763-6 01 1 1501- ● ●
61 PANEL; SIDE OUTER 8-98156-771-6 01 1 1501- ● ●
61 PANEL; SIDE OUTER 8-98103-242-6 01 1 1501- ●
61 PANEL; SIDE OUTER 8-98103-245-6 01 1 1501- ●
67 PANEL; INNER,RR PILLAR LWR 8-98104-786-6 01 1 1501- ● ●
67 PANEL; INNER,RR PILLAR LWR 8-98104-787-6 01 1 1501- ● ●
164 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1501- ● ●
164 PLATE; SIDE PNL OUTER 8-93297-532-1 01 1 1501- ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-094-2 01 1 1501- ● ● ●
185 REINFORCEMENT; SIDE INNER LWR 8-98104-095-2 01 1 1501- ● ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-071-2 01 1 1501- ● ● ●
634 REINFORCEMENT; BODY SIDE INNER 8-98104-072-2 01 1 1501- ● ● ●
635 REINFORCEMENT; ROCKER 8-98104-793-4 01 1 1501- ● ●
635 REINFORCEMENT; ROCKER 8-98104-794-4 01 1 1501- ● ●
635 REINFORCEMENT; ROCKER 8-98104-503-2 01 1 1501- ●
635 REINFORCEMENT; ROCKER 8-98104-504-2 01 1 1501- ●
636 PANEL; FRONT PILLAR INNER 8-98104-510-9 01 1 1501-1505 ● ●
636 PANEL; FRONT PILLAR INNER 8-98297-962-0 01 1 1506- ● ●
636 PANEL; FRONT PILLAR INNER 8-98104-512-9 01 1 1501-1505 ● ●
636 PANEL; FRONT PILLAR INNER 8-98297-963-0 01 1 1506- ● ●
636 PANEL; FRONT PILLAR INNER 8-98161-087-7 01 1 1501- ●
636 PANEL; FRONT PILLAR INNER 8-98161-090-7 01 1 1501- ●
638 PANEL; DASH SIDE INNER 8-98104-640-5 01 1 1501- ● ● ●
638 PANEL; DASH SIDE INNER 8-98104-641-5 01 1 1501- ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98104-055-0 01 1 1501- ● ● ●
639 REINFORCEMENT; COWL SIDE 8-98185-421-0 01 1 1501- ● ● ●
640 POP NUT
M5 POP NUT 		8-97249-574-0 02 1 1501- ●
641 PANEL; BACK BODY PILLER 8-98121-123-6 01 1 1501- ● ●
641 PANEL; BACK BODY PILLER 8-98121-124-6 01 1 1501- ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1501- ● ● ●
664 SEAL; TAPE 8-98193-408-2 01 1 1501- ● ● ●
677 RIVET; PANEL 8-98057-864-0 16 1 1501- ● ● ●
683 PANEL; HEADER 8-98161-125-3 01 1 1501- ● ●
683 PANEL; HEADER 8-98161-129-3 01 1 1501- ● ●
684 FASTENER 8-98057-864-0 10 1 1501- ● ●
684 FASTENER 8-98057-864-0 10 1 1501- ● ●
684 FASTENER 8-98057-864-0 07 1 1501- ●
684 FASTENER 8-98057-864-0 07 1 1501- ●
