6-01 — FRONT BUMPER (#155423) — 28 parça

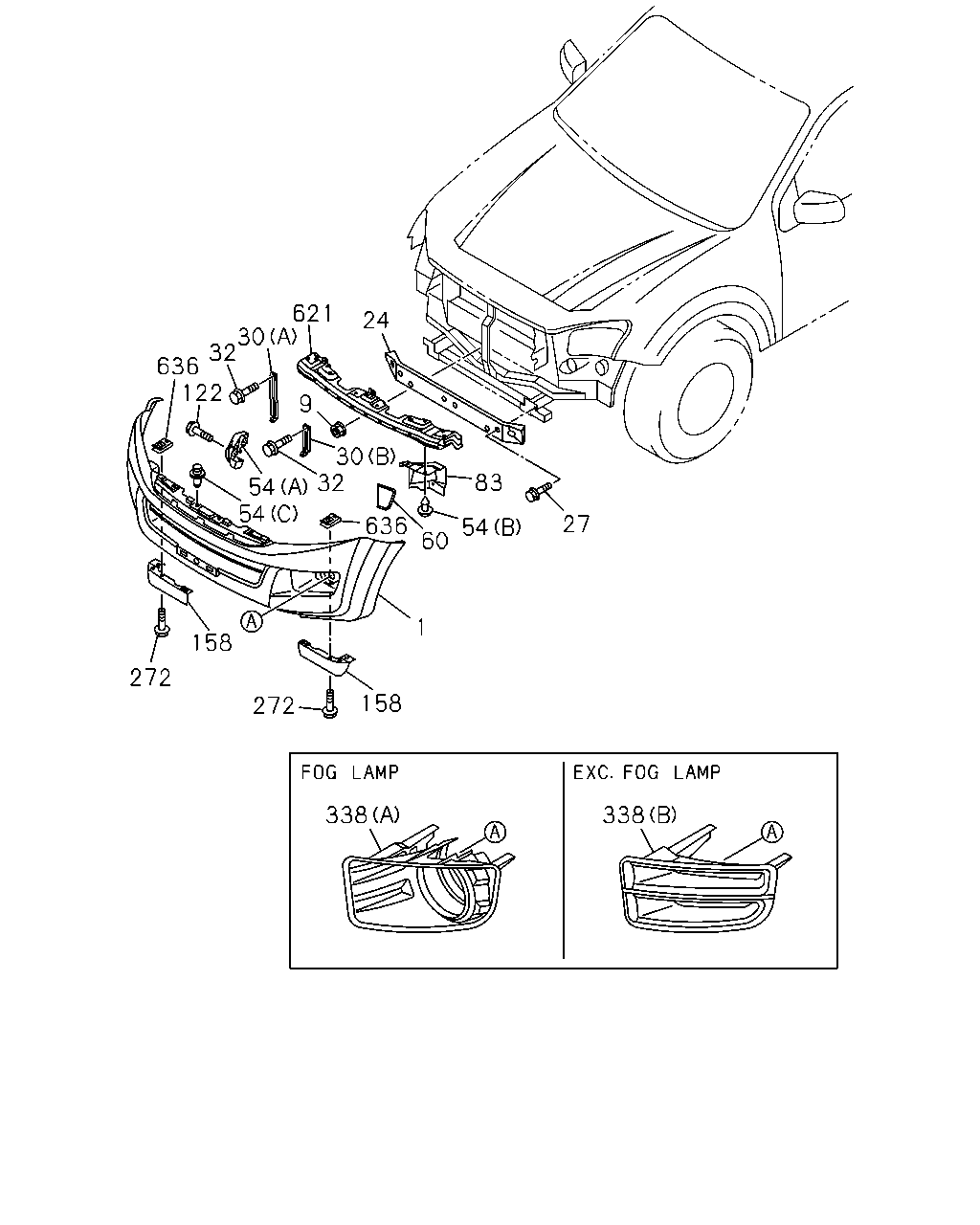

çizim 464822
27 83 54 60 1 636 158 272 158 272 54 54 32 30 9 621 24 30 32 636 122 338 338
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BUMPER ASM; FRT
4JK1-TCX ENG(LR0) KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1501- ● ●
1 BUMPER ASM; FRT
4JK1-TCX ENG(LR0) EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1501- ● ●
1 BUMPER ASM; FRT
EXC. COLOR KEYED BUMPER(VT4),KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1501- ●
1 BUMPER ASM; FRT
KD PAINT LESS SUPPLY<7TV> 		8-98193-447-2 01 1 1501- ●
1 BUMPER ASM; FRT
COLOR KEYED BUMPER(VT4) EXC. KD PAINT LESS SUPPLY<7TV> PRIMER MAL 		8-98196-573-2 01 1 1501- ● ● ●
9 NUT; REINF,FRT BUMPER
M6 FLANGE 		0-91180-106-0 06 1 1501- ● ● ●
24 BAR; FRT BUMPER 8-98165-112-1 01 1 1501- ● ● ●
27 BOLT; BUMPER TO BACK BAR
M10X25 FLANGE 		0-28661-025-0 04 1 1501- ● ● ●
30 BRACKET; FRT BUMPER
(A) 		8-98087-391-2 02 1 1501- ● ● ●
30 BRACKET; FRT BUMPER
(B) 		8-98087-392-0 02 1 1501- ● ● ●
32 BOLT; BRKT,BUMPER
M6X16 FLANGE 		0-28650-616-0 06 1 1501- ● ● ●
54 RETAINER; FRT BUMPER
(C) 		8-97301-188-0 10 1 1501- ● ● ●
54 RETAINER; FRT BUMPER
(B) 		8-98050-462-0 06 1 1501- ● ● ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-258-4 01 1 1501- ● ● ●
54 RETAINER; FRT BUMPER
(A) 		8-98074-259-4 01 1 1501- ● ● ●
60 SPACER; FRT BUMPER 8-98140-340-1 01 1 1501- ● ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-694-0 01 1 1501- ● ● ●
83 GUIDE; AIR,FRT BUMPER 8-98139-695-0 01 1 1501- ● ● ●
122 BOLT; RET,FRT BUMPER
M6X16 TAPPING W/PL WASHER 		0-74160-616-0 02 1 1501- ● ● ●
158 EXTENSION; FRT BUMPER 8-98101-950-0 01 1 1501- ● ● ●
158 EXTENSION; FRT BUMPER 8-98101-951-0 01 1 1501- ● ● ●
272 BOLT; BUMPER TO EXT
M6X15 TAPPING W/PL WASHER 		8-98164-799-0 04 1 1501- ● ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-824-1 01 1 1501- ● ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> (A) 		8-98099-825-1 01 1 1501- ● ● ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-827-1 01 1 1501- ● ● ●
338 BEZEL; FOG LAMP
EXC. FOG LAMP<T96> (B) 		8-98099-828-1 01 1 1501- ● ● ●
621 SUPPORT; FRT BUMPER 8-98087-390-1 01 1 1501- ● ● ●
636 NUT; EXT,FRT BUMPER 8-98072-786-0 04 1 1501- ● ● ●
