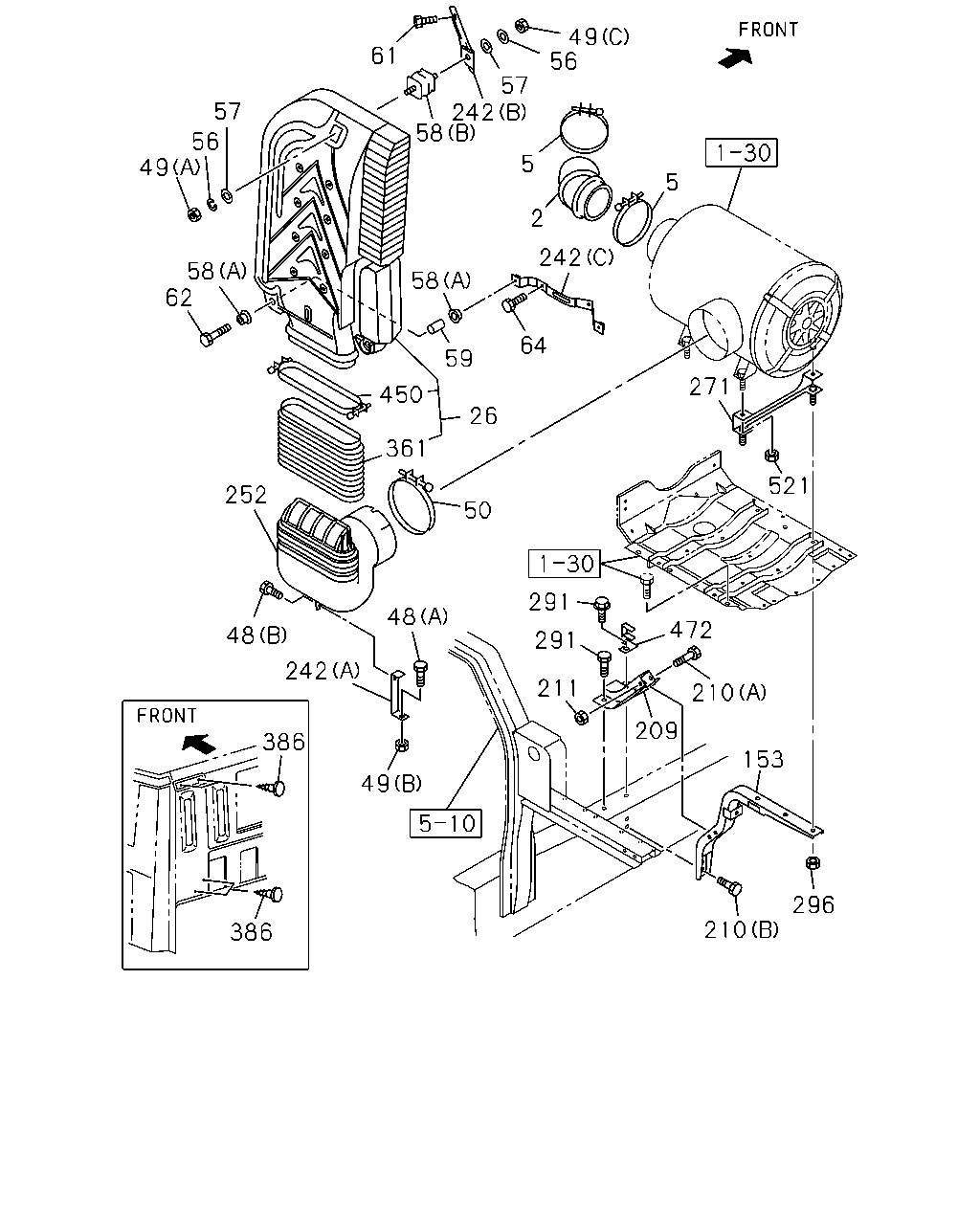

1-31 — AIR DUCT
(#15542) — 39 parça
49
56
61
57
242
58
57
56
5
49
5
2
242
58
62
58
64
59
271
450
26
361
521
252
50
291
48
472
48
291
242
211
210
209
386
153
49
296
210
386
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
HOSE; ACL
1-14231-955-1
01
1
0611-
5
CLIP; AIR DUCT
ID=130-169
1-09707-157-0
02
1
0611-
26
DUCT; AIR INT
1-14230-202-2
01
1
0611-1003
26
DUCT; AIR INT
8-98122-904-2
01
1
1004-
48
BOLT; AIR DUCT
(B) M8X25 FLANGE
0-28650-825-0
01
1
0611-
48
BOLT; AIR DUCT
(A) M10X25 FLANGE
0-28651-025-0
01
1
0611-
49
NUT; AIR DUCT
(C) M8
0-91110-508-0
01
1
0611-0808
49
NUT; AIR DUCT
(C) M8 FLANGE
1-09984-122-0
01
1
0809-
49
NUT; AIR DUCT
(B) M10 FLANGE
0-91180-210-0
01
1
0611-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
0611-
50
CLIP; JOINT HOSE
ID=183.5
1-09707-098-2
01
1
0611-
56
WASHER; LK,AIR INT DUCT
ID=8.2
1-09985-177-0
02
1
0611-
57
WASHER; PL,AIR INT DUCT
ID=8.4 OD=22
1-09985-188-0
02
1
0611-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
0611-
58
SUPPORT; AIR INL DUCT
(B)
8-97080-149-0
01
1
0611-
59
TUBE; DIST,AIR INT DUCT
1-79998-228-0
02
1
0611-
61
BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER
8-94279-218-0
02
1
0611-0702
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
0703-
62
BOLT; AIR INT DUCT
M10X60
1-09030-044-1
02
1
0611-
64
BOLT; BRKT,AIR DUCT
M8X29.5 W/LK+PL WASHER
8-94279-218-0
02
1
0611-0702
64
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
0703-
153
BRACKET; ACL,FRT
1-53419-299-0
01
1
0611-
209
BRACKET; ACL
1-53419-276-0
01
1
0611-
210
BOLT; ACL BRKT
(A) M8X70 FLANGE
0-28050-870-0
02
1
0611-
210
BOLT; ACL BRKT
(B) M12X30 FLANGE
0-28051-230-0
01
1
0611-
211
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0611-
242
BRACKET; AIR DUCT
(A)
1-23957-006-0
01
1
0611-
242
BRACKET; AIR DUCT
(B)
1-53419-325-1
01
1
0611-
242
BRACKET; AIR DUCT
(C)
1-53419-324-1
01
1
0611-
252
DUCT; AIR INT
1-14230-194-0
01
1
0611-
271
SPACER; BRKT,ACL
1-53419-343-1
02
1
0611-
291
BOLT; ACL
M12X30 FLANGE
0-28051-230-0
02
1
0611-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
0611-
361
RUBBER; CUSHION,AIR DUCT
1-14230-149-2
01
1
0611-
386
PLUG; DUCT BRKT,AIR INT
GRIP OUT SIDE<W52> OD=15 L=14.5
1-76378-157-0
01
1
0611-
386
PLUG; DUCT BRKT,AIR INT
EXC. GRIP OUT SIDE<W52> OD=15 L=14.5
1-76378-157-0
04
1
0611-
450
CLAMP; HOSE
1-14239-237-0
01
1
0611-
472
STOPPER; LINK ROD
1-33659-227-0
01
1
0611-
521
NUT; SPACER
M8 FLANGE
0-91180-108-0
04
1
0611-
