◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#155417) — 59 parça
çizim 464579
497 497 497 497 485
BalonParca AdiParca NoAdetTipApplied Date A B C
39 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1501- ● ● ●
485 NUT; TRANS MTG MBR,FRAME
M10 FLANGE 		0-91180-210-0 04 1 1501- ● ● ●
497 BOLT; C/MBR
(B) M10X35 FLANGE 		0-28661-035-0 06 1 1501- ● ● ●
497 BOLT; C/MBR
(C) M10X120 FLANGE 		0-28066-012-0 04 1 1501- ● ● ●
497 BOLT; C/MBR
EXC. SKID PLATE<7WE> (A) M10X28 W/LK&PL WASHER 		8-97945-706-0 02 1 1501- ●
497 BOLT; C/MBR
(D) M12X30 FLANGE 		0-28651-230-0 08 1 1501- ● ● ●

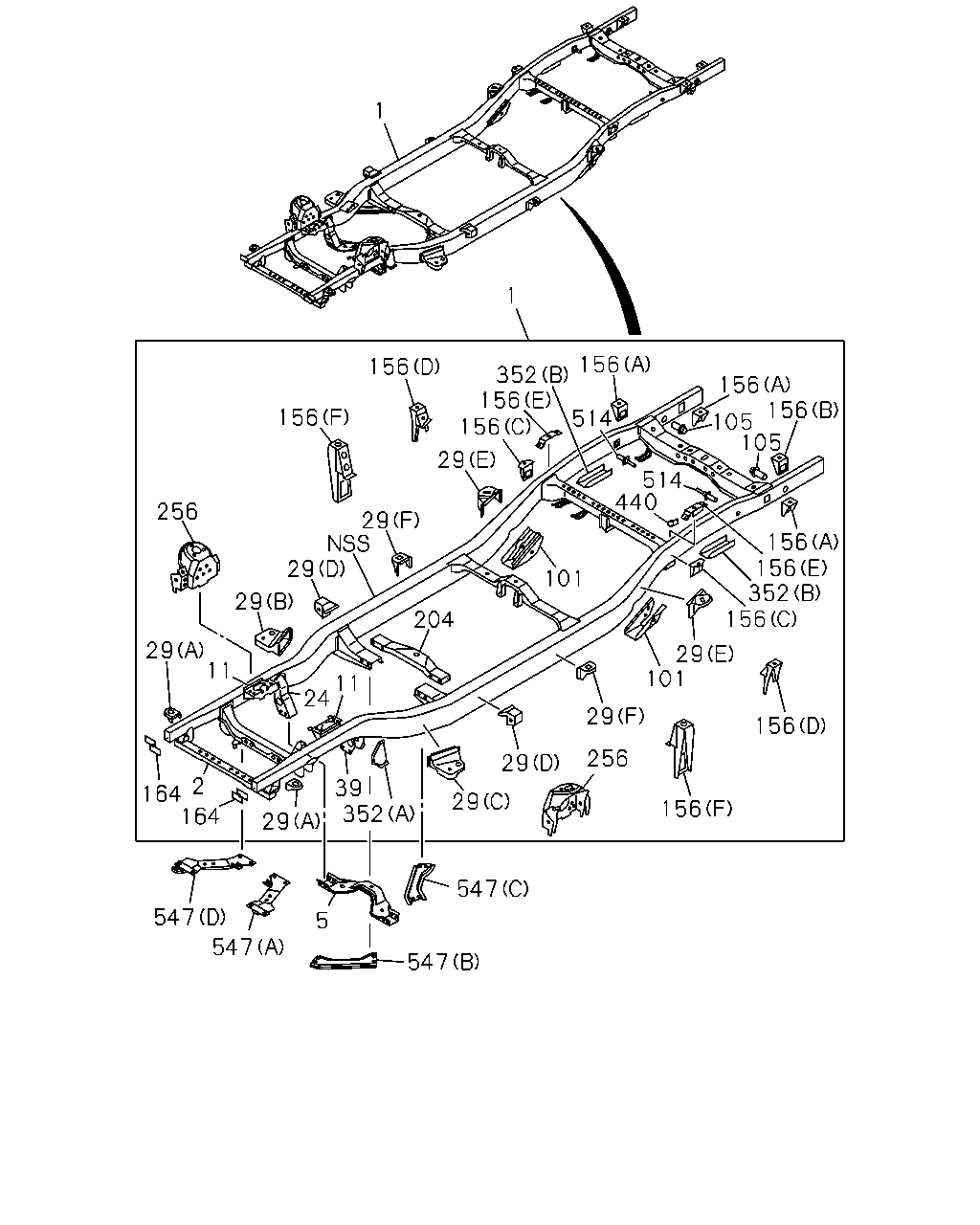

çizim 464633
156 156 352 156 29 101 156 156 256 29 29 29 352 24 11 204 1 1 156 156 256 29 29 29 29 11 164 164 29 547 547 547 5 547 105 156 105 156 514 352 156 156 29 101 440 514 156 391 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 FRAME ASM
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98275-099-0 01 1 1501- ●
1 FRAME ASM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98275-100-0 01 1 1501- ●
1 FRAME ASM
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98275-086-0 01 1 1501- ●
1 FRAME ASM
A/T 5 SPEED-AISIN(MA1) 		8-98275-103-0 01 1 1501- ●
1 FRAME ASM
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-98275-104-0 01 1 1501- ●
2 MEMBER; CROSS,1ST 8-98106-701-1 01 1 1501- ● ● ●
5 MEMBER; CROSS,SUSPENSION 8-98173-915-1 01 1 1501- ●
5 MEMBER; CROSS,SUSPENSION 8-98229-450-0 01 1 1501- ● ●
11 BRACKET; ENG MTG 8-98106-794-2 01 1 1501- ● ● ●
11 BRACKET; ENG MTG 8-98106-796-2 01 1 1501- ● ● ●
24 BRACKET; FRT SPR,FRT 8-98106-807-1 01 1 1501- ● ● ●
29 BRACKET; CAB MTG
(A) 		8-97942-341-3 02 1 1501- ● ● ●
29 BRACKET; CAB MTG
(B) 		8-98106-784-3 01 1 1501- ● ● ●
29 BRACKET; CAB MTG
(C) 		8-98106-791-3 01 1 1501- ● ● ●
29 BRACKET; CAB MTG
(D) 		8-98107-534-0 02 1 1501- ● ● ●
29 BRACKET; CAB MTG
(F) 		8-98173-497-0 02 1 1501- ● ● ●
29 BRACKET; CAB MTG
(E) 		8-98106-844-2 01 1 1501- ● ●
29 BRACKET; CAB MTG
(E) 		8-98106-845-2 01 1 1501- ● ●
39 BRACKET; FRT SPR,RR 8-98106-809-1 01 1 1501- ● ● ●
101 BRACKET; RR SPR,FRT 8-98106-868-0 01 1 1501- ● ● ●
101 BRACKET; RR SPR,FRT 8-98106-869-0 01 1 1501- ● ● ●
105 BRACKET; RR SPR,RR 8-98106-870-0 02 1 1501- ● ● ●
156 BRACKET; RR BODY MTG
(A) 		8-98213-874-0 03 1 1501- ● ● ●
156 BRACKET; RR BODY MTG
(B) 		8-98213-875-0 01 1 1501- ● ● ●
156 BRACKET; RR BODY MTG
(C) 		8-98214-084-0 02 1 1501- ● ●
156 BRACKET; RR BODY MTG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98106-864-0 01 1 1501- ●
156 BRACKET; RR BODY MTG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (E) 		8-98106-865-0 01 1 1501- ●
156 BRACKET; RR BODY MTG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (F) 		8-98213-870-0 01 1 1501- ●
156 BRACKET; RR BODY MTG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (F) 		8-98213-871-0 01 1 1501- ●
156 BRACKET; RR BODY MTG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (D) 		8-98213-872-0 01 1 1501- ●
156 BRACKET; RR BODY MTG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) (D) 		8-98213-873-0 01 1 1501- ●
164 PLATE; FRT 8-98106-814-0 01 1 1501- ● ● ●
164 PLATE; FRT 8-98106-815-0 01 1 1501- ● ● ●
204 MEMBER; CROSS,TRANS MTG
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98106-760-5 01 1 1501- ●
204 MEMBER; CROSS,TRANS MTG
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98106-759-4 01 1 1501- ●
204 MEMBER; CROSS,TRANS MTG 8-98106-761-4 01 1 1501- ●
204 MEMBER; CROSS,TRANS MTG
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-98106-761-4 01 1 1501- ●
204 MEMBER; CROSS,TRANS MTG
A/T 5 SPEED-AISIN(MA1) 		8-98106-762-4 01 1 1501- ●
256 BRACKET; S/ABS 8-98106-801-6 01 1 1501- ● ● ●
256 BRACKET; S/ABS 8-98106-803-4 01 1 1501- ● ● ●
352 BRACKET; BUMPER RUBBER
(A) 		8-98106-835-3 01 1 1501- ● ● ●
352 BRACKET; BUMPER RUBBER
(A) 		8-98106-836-3 01 1 1501- ● ● ●
352 BRACKET; BUMPER RUBBER
(B) 		8-98106-871-1 02 1 1501- ● ● ●
440 BRACKET; HOSE 8-98106-873-1 01 1 1501- ● ● ●
514 PIN; S/ABS 8-97942-395-1 02 1 1501- ● ● ●
547 BRACE; C/MBR
(A) 		8-98173-910-1 01 1 1501- ●
547 BRACE; C/MBR
(D) 		8-98177-568-3 01 1 1501- ●
547 BRACE; C/MBR
(B) 		8-98173-913-0 01 1 1501- ●
547 BRACE; C/MBR
(C) 		8-98173-914-0 01 1 1501- ●
547 BRACE; C/MBR
(D) 		8-98229-465-0 01 1 1501- ● ●
547 BRACE; C/MBR
(A) 		8-98229-466-0 01 1 1501- ● ●
547 BRACE; C/MBR
(B) 		8-98173-911-0 01 1 1501- ● ●
547 BRACE; C/MBR
(C) 		8-98173-912-0 01 1 1501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
