4-65 — REAR LEAF SPRING (#155415) — 40 parça

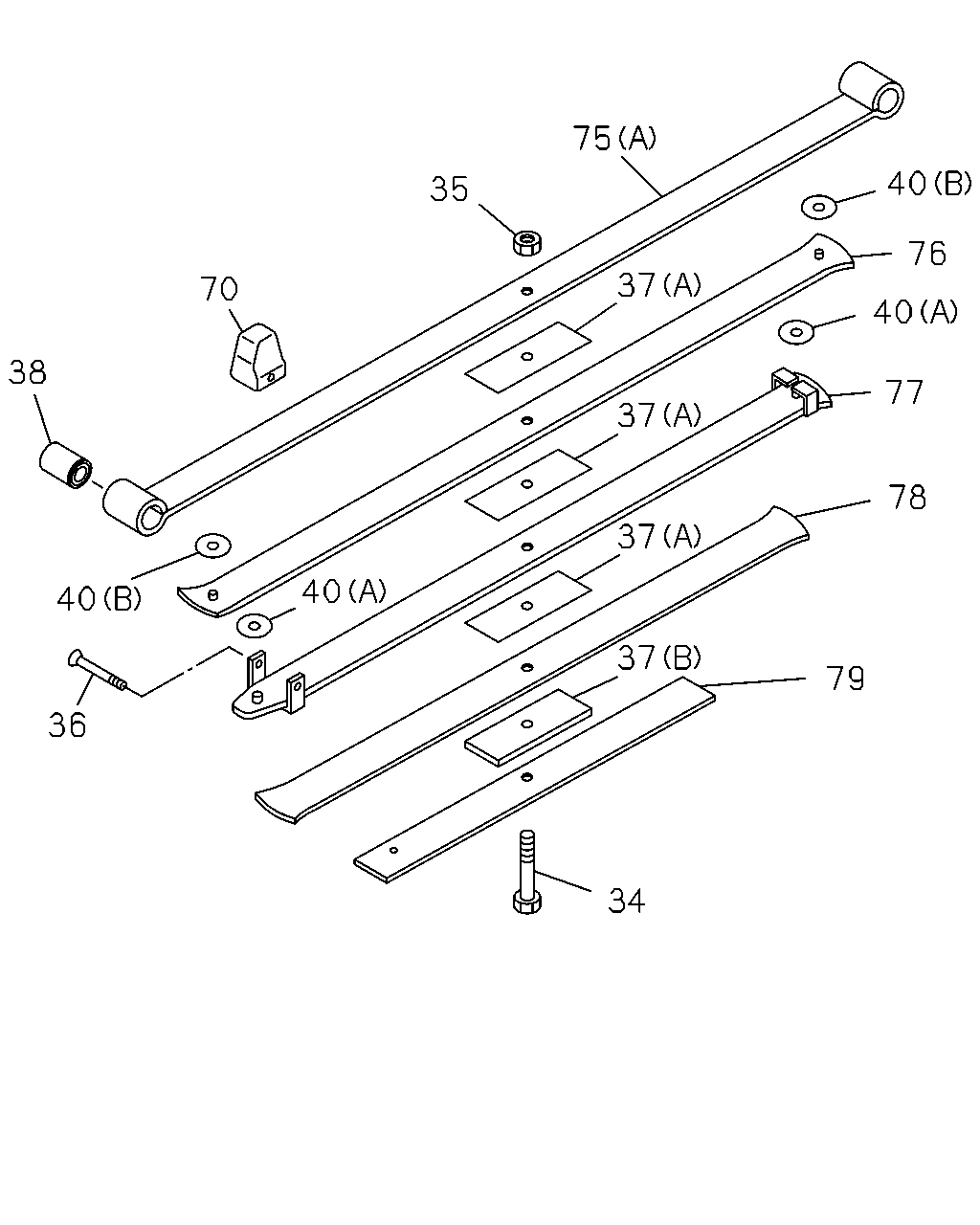

38 70 35 75 37 37 37 37 34 40 36 40 79 78 77 40 76 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: C = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	1-09400-055-0	01	1	-
36	BOLT; CLIP,LEAF SPR,RR ASM PART: A = 8-98282-593-1	8-98161-948-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (B) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98296-472-0	03	1	1505-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-97947-171-0	01	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98218-584-0	02	1	-
70	RUBBER; LEAF SPR,RR ASM PART: A = 8-98282-593-1	8-98170-912-0	01	1	-
75	SPRING; LEAF,NO 1,RR (B) ASM PART: C = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98193-953-1	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: C = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: A = 8-98282-593-1	8-98218-575-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: B = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: C = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: C = 8-98282-595-1	8-98215-884-0	01	1	-
79	SPRING; LEAF,NO 5,RR ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98215-882-0	01	1	-

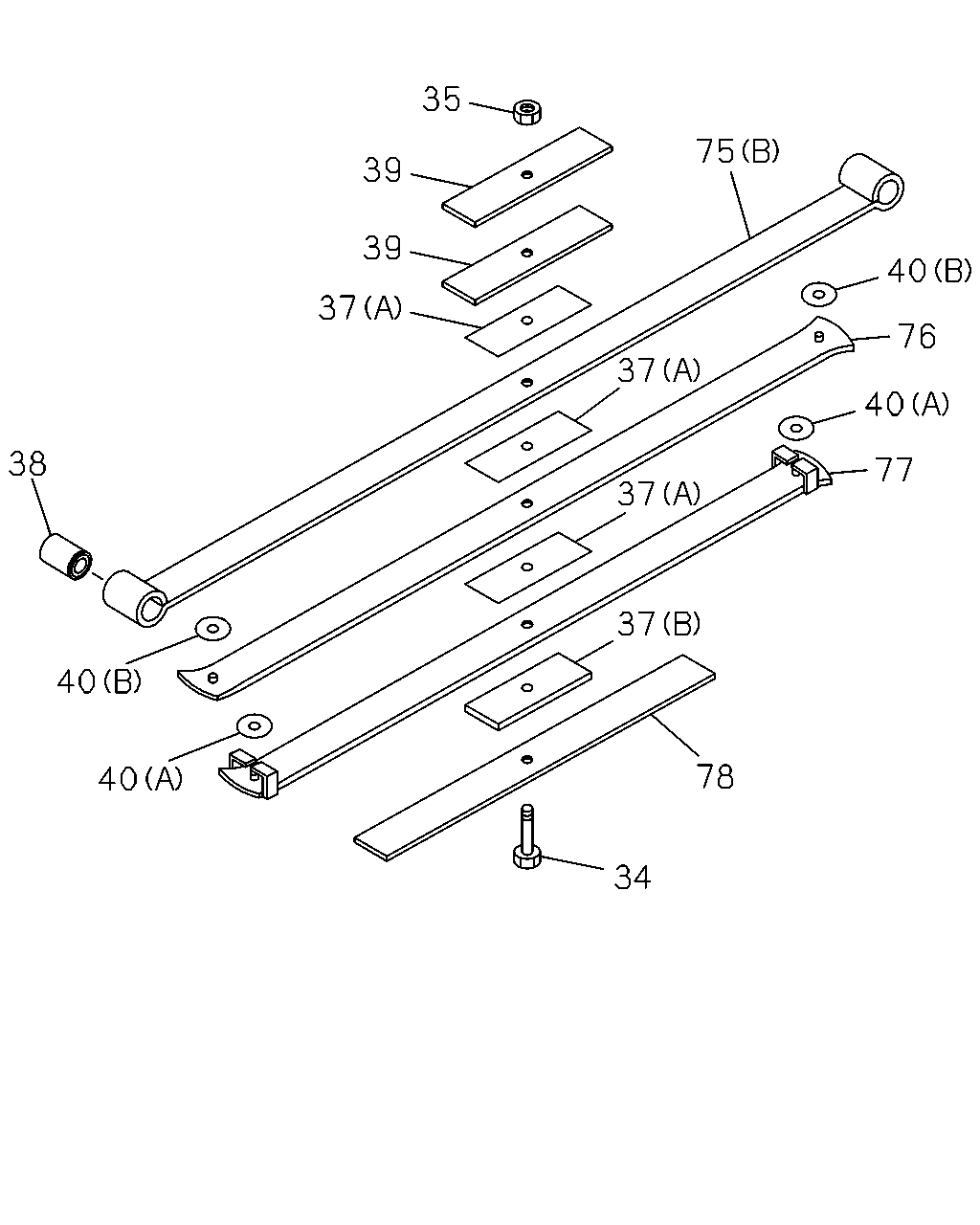

35 39 39 37 75 37 37 37 78 34 77 40 76 40 40 40 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X64 ASM PART: C = 8-98282-595-1	8-98161-928-0	01	1	-
34	BOLT; CENTER,LEAF SPR,RR MAIN M10X66 ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98161-929-0	01	1	-
35	NUT; CENTER BOLT,LEAF SPR,RR M10 ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	1-09400-055-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98161-302-0	03	1	-1504
37	SPACER; CENTER,LEAF SPR,RR (B) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98288-935-0	01	1	-
37	SPACER; CENTER,LEAF SPR,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98296-472-0	03	1	1505-
38	BUSHING; LEAF SPR,RR ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-97947-171-0	01	1	-
39	SEAT; LEAF SPR,RR MAIN ASM PART: C = 8-98282-595-1	8-98161-304-0	02	1	-
40	LINER; LEAF SPR,RR (B) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98218-583-0	02	1	-
40	LINER; LEAF SPR,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1, C = 8-98282-595-1	8-98218-584-0	02	1	-
75	SPRING; LEAF,NO 1,RR (B) ASM PART: C = 8-98282-595-1	8-97947-451-1	01	1	-
75	SPRING; LEAF,NO 1,RR (A) ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98193-953-1	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98218-574-0	01	1	-
76	SPRING; LEAF,NO 2,RR ASM PART: C = 8-98282-595-1	8-98218-578-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: A = 8-98282-593-1	8-98218-575-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: B = 8-98282-594-1	8-98218-577-0	01	1	-
77	SPRING; LEAF,NO 3,RR ASM PART: C = 8-98282-595-1	8-98218-579-0	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: A = 8-98282-593-1, B = 8-98282-594-1	8-98193-957-1	01	1	-
78	SPRING; LEAF,NO 4,RR ASM PART: C = 8-98282-595-1	8-98215-884-0	01	1	-
