◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#155413) — 20 parça

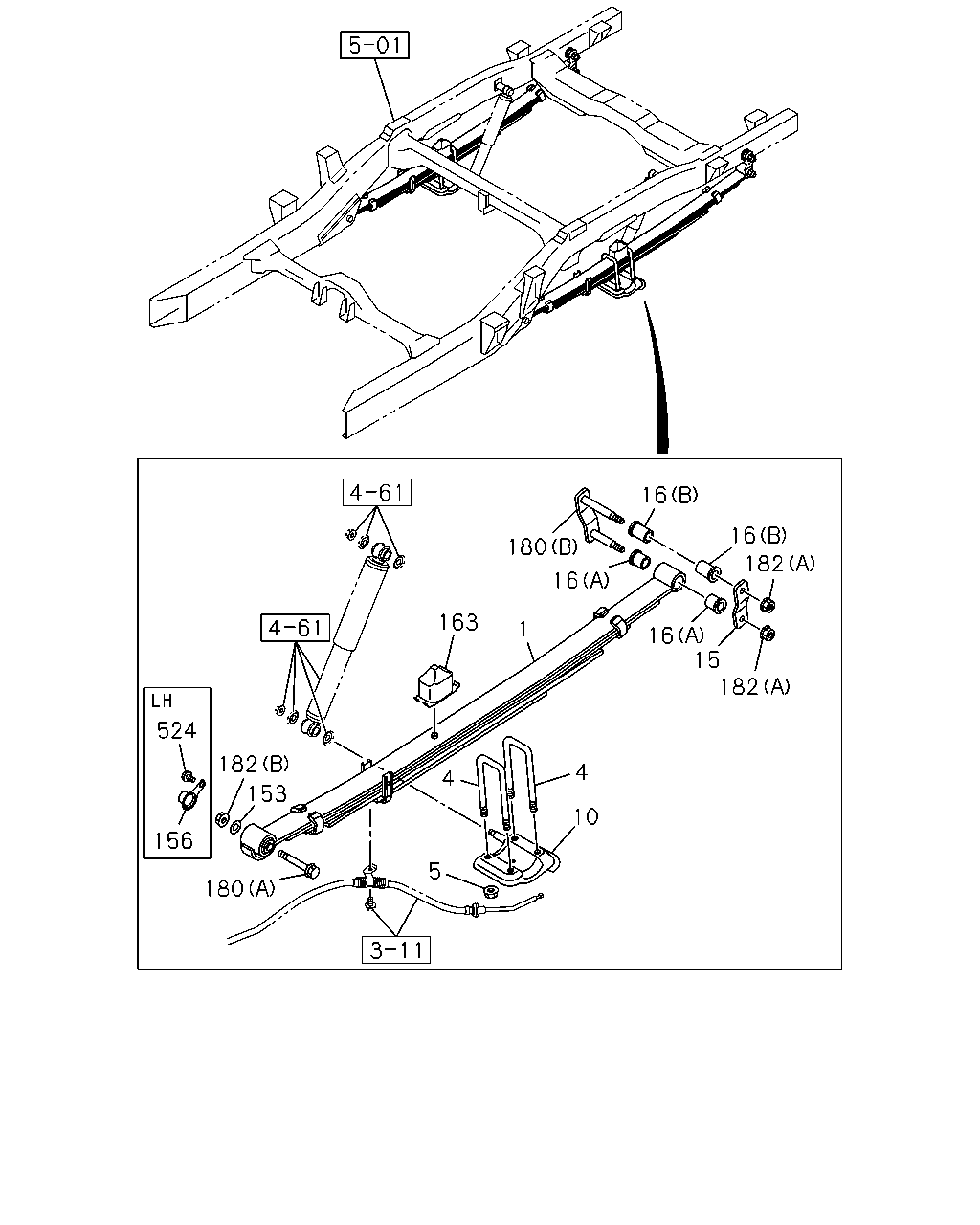

çizim 464718
16 182 16 16 15 182 16 180 163 4 10 4 5 153 182 524 156 180 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SOFT RIDE SUSPENSION SYSTEM<FE1> 4-LEAF 		8-98282-595-1 02 1 1501- ● ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 5-LEAF 		8-98282-594-1 02 1 1501- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		8-98282-594-1 02 1 1501- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 5-LEAF 		8-98282-594-1 02 1 1501- ●
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. A/T 5 SPEED-AISIN(MA1) EXC. SOFT RIDE SUSPENSION SYSTEM<FE1> 5-LEAF 		8-98282-593-1 02 1 1501- ●
4 U-BOLT; RR SPR
L=170 		8-97946-550-0 04 1 1501- ● ● ●
5 NUT; U-BOLT,RR SPR
M14 FLANGE 		8-97245-635-0 08 1 1501- ● ● ●
10 CLAMP; LWR,RR SPR 8-98165-850-1 01 1 1501- ● ● ●
10 CLAMP; LWR,RR SPR 8-98165-851-1 01 1 1501- ● ● ●
15 SHACKLE; RR SPR 8-97946-551-1 02 1 1501- ● ● ●
16 BUSHING; SHACKLE,RR SPR
(A) 		8-97357-492-0 04 1 1501- ● ● ●
16 BUSHING; SHACKLE,RR SPR
(B) 		8-97946-545-0 04 1 1501- ● ● ●
153 WASHER; PL,SPRING PIN
ID=14.5 OD=30 		8-98005-921-0 02 1 1501- ● ● ●
156 PROTECTOR; LEAF SPRING,RR SUSP 8-97947-363-0 01 1 1501- ● ● ●
163 RUBBER; HELPER,RR SPR 8-97946-549-3 02 1 1501- ● ● ●
180 PIN; RR SPR
(B) 		8-97946-547-1 02 1 1501- ● ● ●
180 PIN; RR SPR
(A) 		8-97947-078-0 02 1 1501- ● ● ●
182 NUT; PIN,RR SPR
(A) M14 FLANGE 		0-91180-114-0 04 1 1501- ● ● ●
182 NUT; PIN,RR SPR
(B) M14 FLANGE 		8-97245-651-0 02 1 1501- ● ● ●
524 BOLT; RR SPR
M8X20 FLANGE 		0-28650-820-0 01 1 1501- ● ● ●
