4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#155408) — 20 parça

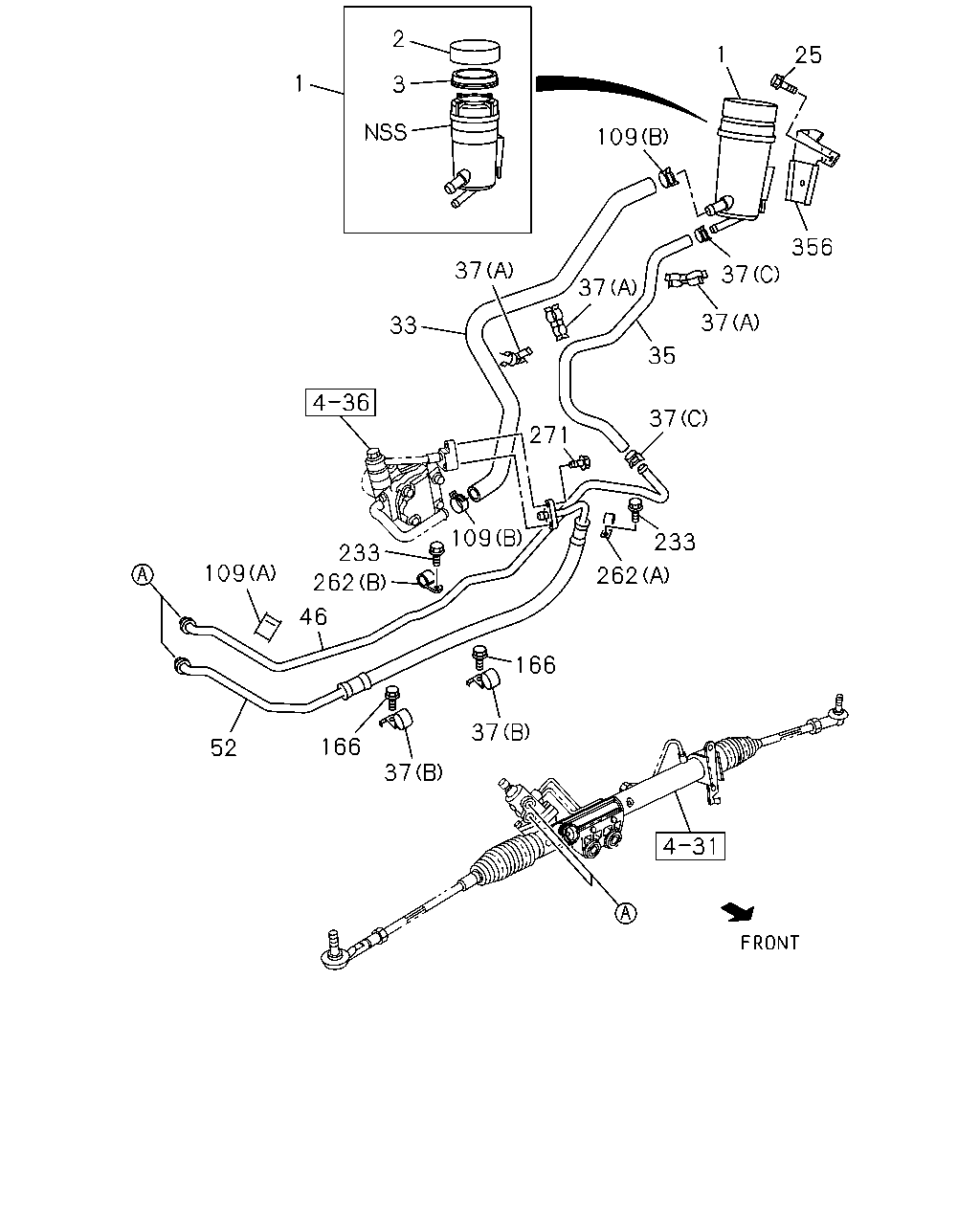

çizim 464757
2 3 1 37 33 109 1 25 356 37 37 35 37 233 262 166 37 37 166 52 109 262 233 109 271 37 46
BalonParca AdiParca NoAdetTipApplied Date A B C
1 TANK ASM; OIL,P/S 8-97234-350-0 01 1 1501- ● ● ●
2 CAP; OIL TANK,P/S 8-97349-476-0 01 1 1501- ● ● ●
3 GASKET; OIL TANK,P/S 8-97349-477-0 01 1 1501- ● ● ●
25 BOLT; OIL TANK BRKT
M6X16 FLANGE 		0-28650-616-0 02 1 1501- ● ● ●
33 HOSE; RUBBER,POWER STRG 8-97946-138-2 01 1 1501- ● ● ●
35 HOSE; RETURN,P/S TANK 8-97946-140-1 01 1 1501- ● ● ●
37 CLIP; HOSE,P/S
(A) ID=17.5 & 21 		8-97177-580-0 02 1 1501- ● ● ●
37 CLIP; HOSE,P/S
(C) ID=16 		8-98030-682-0 02 1 1501- ● ● ●
37 CLIP; HOSE,P/S
(B) ID=21.5 L=21 		8-98211-907-0 02 1 1501- ● ● ●
37 CLIP; HOSE,P/S
AUTO COOLER SYSTEM(CJ2),AIR CONDITIONER MANUAL CONT(C60),AIR CONDITIONER AUTOMATIC CONT(C61), COOLER W/FRESH AIR(C65),COOLER WO/FRESH AIR(8NF) (A) ID=17.5 & 21 		8-97177-580-0 01 1 1501- ● ● ●
46 PIPE; OIL,P/S UNIT TO OIL TANK 8-98228-468-1 01 1 1501- ● ● ●
52 HOSE; FLEX,P/S CONT VLV 8-98228-466-0 01 1 1501- ● ● ●
109 CLIP; RUBBER HOSE
(A) ID=10X2 H=22 		8-94252-455-2 01 1 1501- ● ● ●
109 CLIP; RUBBER HOSE
(B) ID=20.8 		8-97944-127-0 02 1 1501- ● ● ●
166 BOLT; CLIP
M6X16 FLANGE 		0-28650-616-0 02 1 1501- ● ● ●
233 BOLT; PIPE CLIP,P/S
M6X16 FLANGE 		0-28650-616-0 02 1 1501- ● ● ●
262 CLIP; P/S PIPE
(A) ID=11 H=20 L=20 		0-95207-310-0 01 1 1501- ● ● ●
262 CLIP; P/S PIPE
(B) ID=11 L=20 		0-95235-032-0 01 1 1501- ● ● ●
271 BOLT; P/S OIL PIPE FIX
M6X16 FLANGE 		0-28650-616-0 02 1 1501- ● ● ●
356 BRACKET; P/S,RESERVOIR 8-97946-163-0 01 1 1501- ● ● ●
