◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#155406) — 27 parça

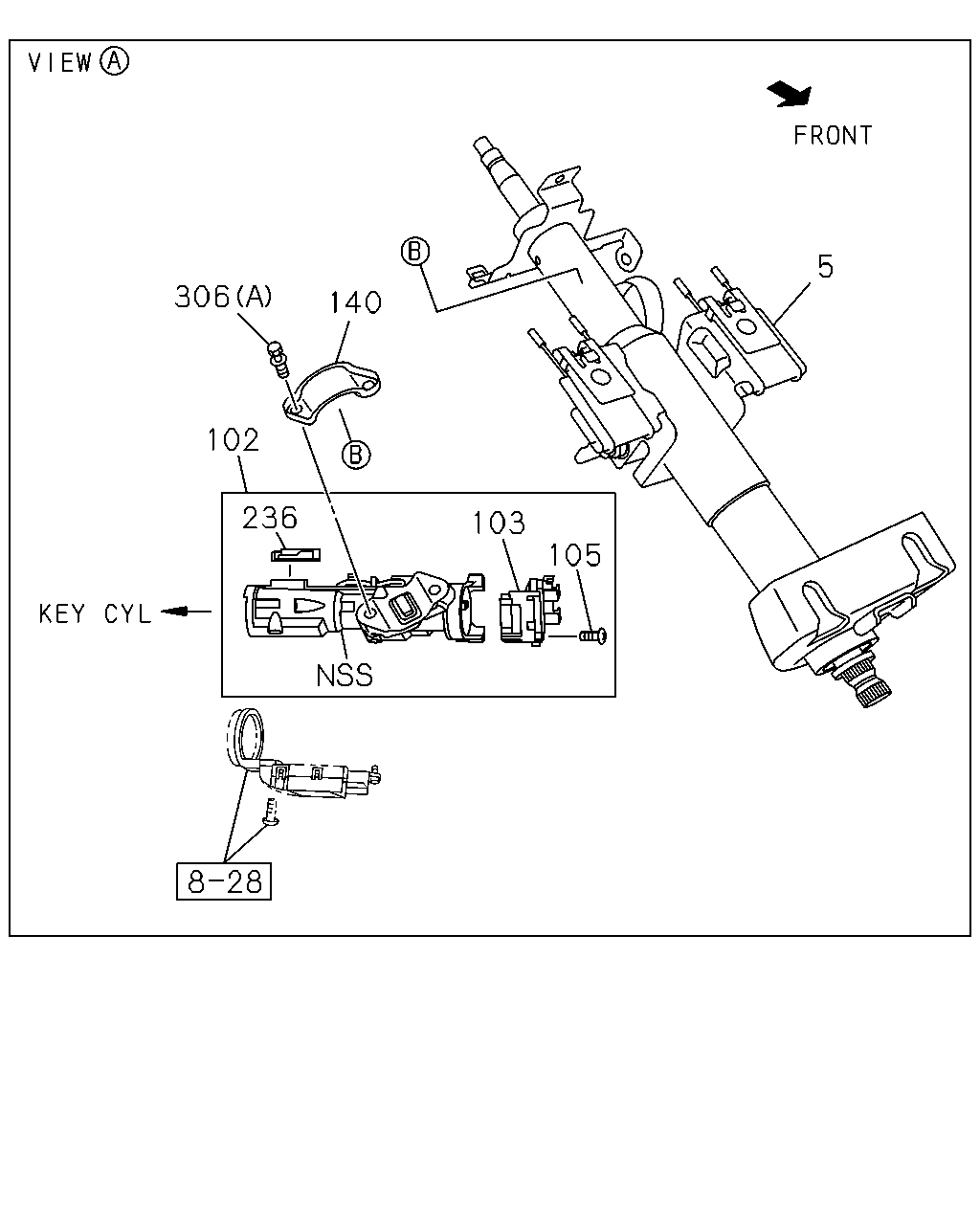

çizim 464712
306 140 102 236 103 105 5
BalonParca AdiParca NoAdetTipApplied Date A B C
5 COLUMN; STRG
TILT STEERING<N33> 		8-98273-325-0 01 1 1501- ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-98273-326-0 01 1 1501- ● ● ●
102 LOCK ASM; STRG
A/T 5 SPEED-AISIN(MA1) 		8-98076-120-0 01 1 1501- ● ●
102 LOCK ASM; STRG
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-98076-117-0 01 1 1501- ● ●
102 LOCK ASM; STRG 8-98076-117-0 01 1 1501- ●
103 SWITCH; IGNITION 8-98132-719-0 01 1 1501- ● ● ●
105 SCREW; IGN SW 8-98192-449-0 02 1 1501- ● ● ●
140 BRACKET; STRG COWL 8-98134-652-0 01 1 1501- ● ● ●
236 SWITCH; DOOR WARNING,STRG LOCK 8-98132-720-0 01 1 1501- ● ● ●
306 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1501- ● ● ●
306 BOLT; STRG SHAFT
(A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1501- ● ● ●

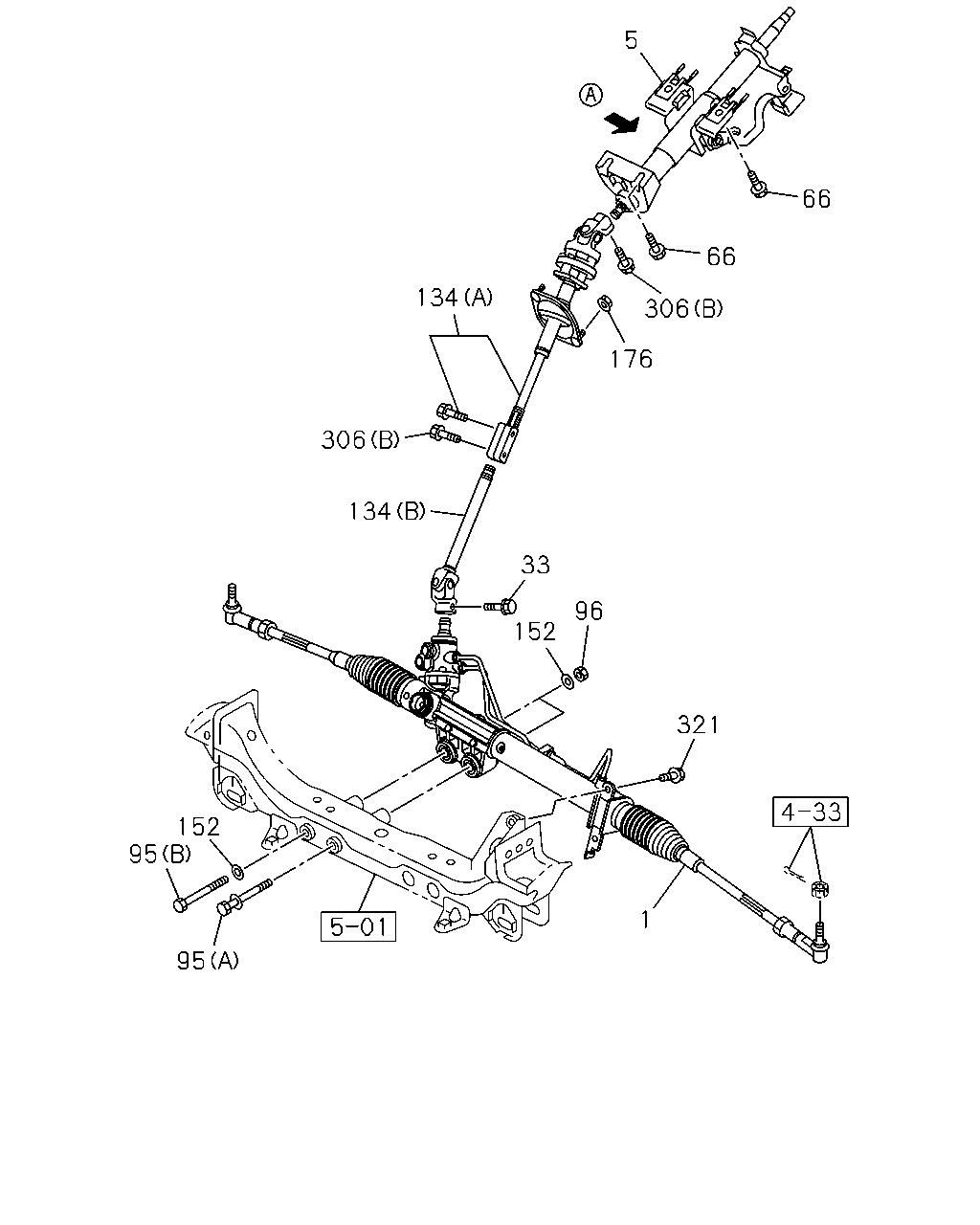

çizim 464824
5 66 66 306 176 134 306 134 33 96 152 321 1 95 95 152
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. 		8-97946-131-1 01 1 1501- ● ● ●
5 COLUMN; STRG
TILT STEERING<N33> 		8-98273-325-0 01 1 1501- ● ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-98273-326-0 01 1 1501- ● ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X35 FLANGE 		8-97249-320-0 01 1 1501- ● ● ●
66 BOLT; STRG COLUMN
M8X25 FLANGE 		0-28650-825-0 04 1 1501- ● ● ●
95 BOLT; STRG UNIT
(B) M16X186.5 		8-97947-503-0 01 1 1501- ● ● ●
95 BOLT; STRG UNIT
(A) M16X186.5 W/PL WASHER 		8-98162-884-1 01 1 1501- ● ● ●
96 NUT; STRG UNIT
M16 		0-91110-516-0 02 1 1501- ● ● ●
134 SHAFT; STRG,2ND
(A) 		8-97946-127-1 01 1 1501- ● ● ●
134 SHAFT; STRG,2ND
(B) 		8-97946-136-0 01 1 1501- ● ● ●
152 WASHER; LK,STRG UNIT
ID=17 		8-97947-501-0 03 1 1501-1504 ● ● ●
152 WASHER; LK,STRG UNIT
ID=17 		8-98296-670-0 03 1 1505- ● ● ●
176 NUT; STRG
M6 FLANGE 		0-91180-106-0 02 1 1501- ● ● ●
306 BOLT; STRG SHAFT
(B) M8X35 FLANGE 		8-97249-320-0 02 1 1501- ● ● ●
306 BOLT; STRG SHAFT
(A) M8X18.5 TWISTED OFF 		8-97945-749-0 02 1 1501- ● ● ●
321 BOLT; BRKT,STRG
M12X30 FLANGE 		0-28661-230-0 02 1 1501- ● ● ●
