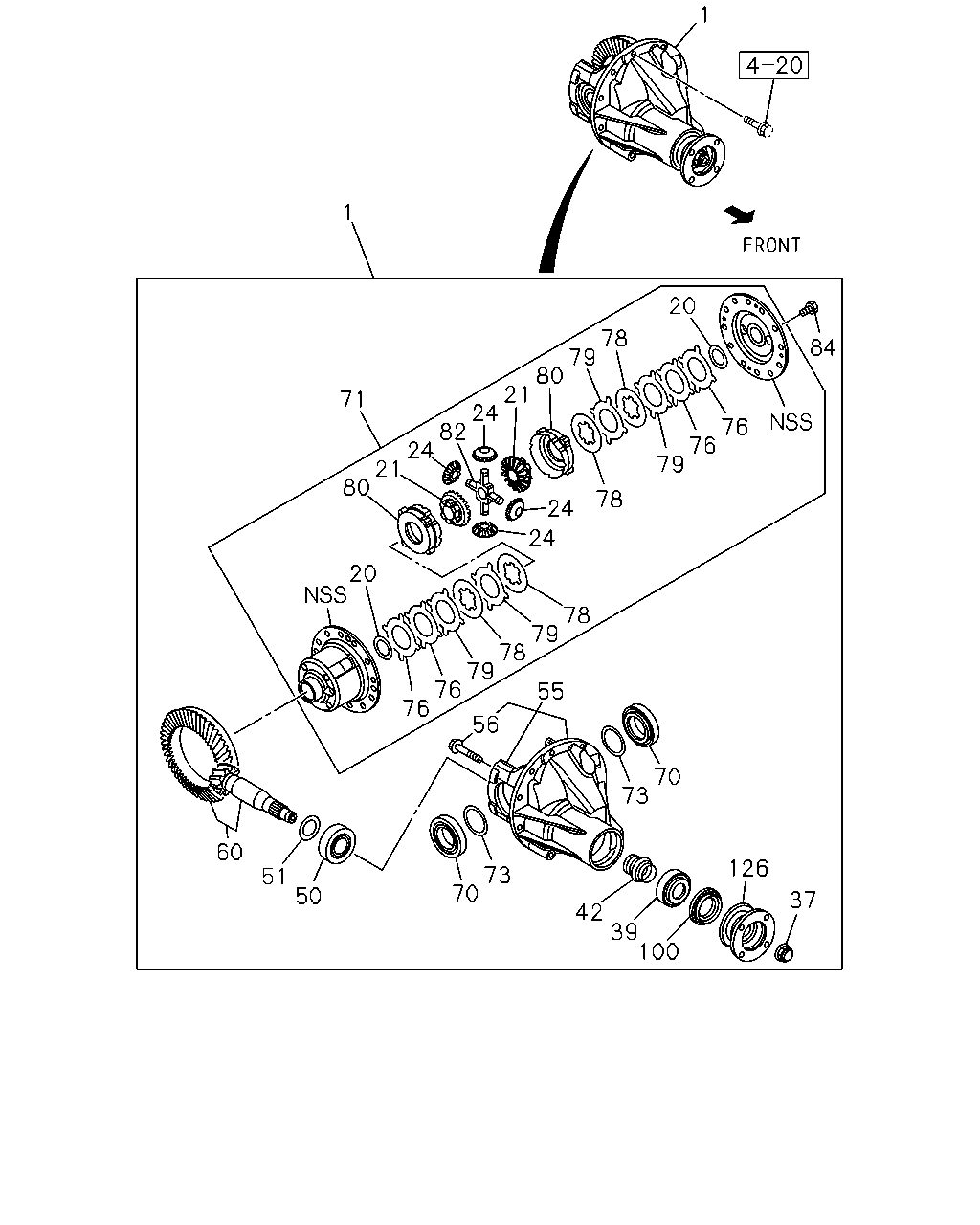

4-25 — REAR FINAL DRIVE (#155404) — 142 parça

37 126 73 42 39 100 73 70 76 78 79 76 79 78 24 24 78 79 76 76 84 20 78 79 80 21 24 82 24 21 80 20 71 1 1 55 56 50 51 60 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98167-624-0	01	1	1501-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98190-115-0	01	1	1501-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98167-626-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98190-117-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98167-625-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98190-116-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98167-623-0	01	1	1501-1602		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98190-114-0	01	1	1501-1602		●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	1501-	●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	1501-	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-98186-828-1	02	1	1501-	●	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-1	04	1	1501-	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-98186-829-0	02	1	1501-	●	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1501-	●	●	●
39	BEARING; FINAL PINION NSK	9-00093-078-0	01	1	1501-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	1501-	●	●	●
50	BEARING; FINAL PINION NSK	8-94435-342-0	01	1	1501-	●	●	●
50	BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	1501-	●	●	●
55	CARRIER; DIFF	8-97240-889-2	01	1	1501-	●	●	●
56	BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1501-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11(GT4) 41/11	8-98030-515-1	01	1	1501-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98014-984-1	01	1	1501-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GW1) 43/11	8-98014-980-1	01	1	1501-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12(GM0) 43/12	8-97374-174-1	01	1	1501-1602		●
70	BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	1501-	●	●	●
70	BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	1501-	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<G80>	8-98167-619-0	01	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	1501-	●	●	●
76	DISC; BEVEL LIMITED SLIP DIFF<G80>	8-97096-209-0	04	1	1501-	●	●	●
78	DISC; FRICTION LIMITED SLIP DIFF<G80>	8-94453-937-0	04	1	1501-	●	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.85	8-94365-189-0	04	1	1501-	●	●	●
79	PLATE; FRICTION LIMITED SLIP DIFF<G80> T=1.75	8-94453-936-0	04	1	1501-	●	●	●
80	RING; PRESSURE LIMITED SLIP DIFF<G80>	8-94453-931-0	02	1	1501-	●	●	●
82	SPIDER; DIFF PINION LIMITED SLIP DIFF<G80>	8-94453-932-0	01	1	1501-	●	●	●
84	BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	1501-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1501-	●	●	●
126	COUPLING; DRIVING PINION	8-98166-552-1	01	1	1501-	●	●	●

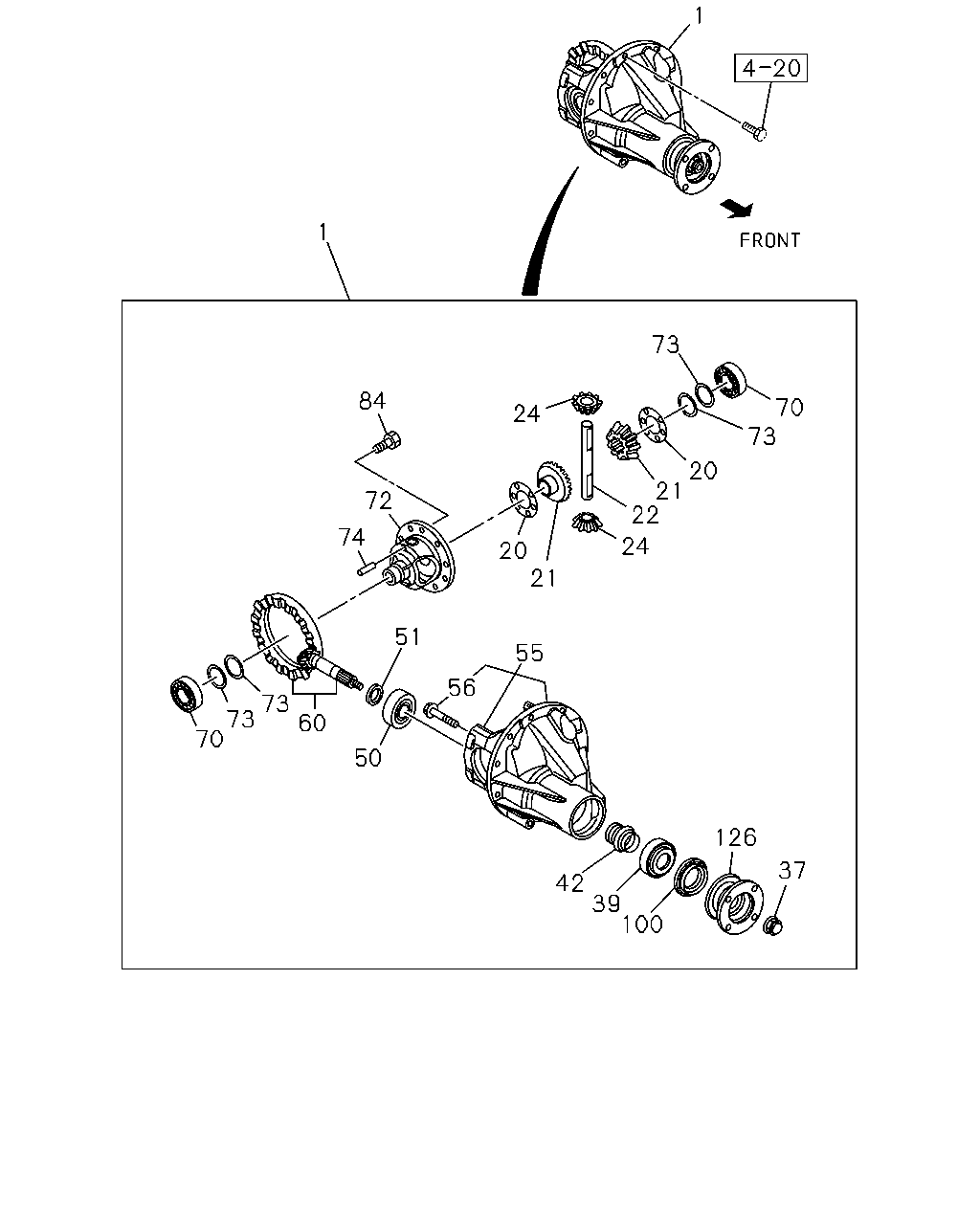

1 73 70 20 73 21 22 24 21 20 24 84 1 72 74 51 55 126 42 39 100 50 60 73 73 70 56 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) LIMITED SLIP DIFF<G80> 41/11	8-98167-624-0	01	1	1501-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/11(GT4) EXC. LIMITED SLIP DIFF<G80> 41/11	8-98190-115-0	01	1	1501-	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) LIMITED SLIP DIFF<G80> 41/10	8-98167-626-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) EXC. LIMITED SLIP DIFF<G80> 41/10	8-98190-117-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) LIMITED SLIP DIFF<G80> 43/11	8-98167-625-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/11(GW1) EXC. LIMITED SLIP DIFF<G80> 43/11	8-98190-116-0	01	1	1501-	●	●	●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) LIMITED SLIP DIFF<G80> 43/12	8-98167-623-0	01	1	1501-1602		●
1	DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/12(GM0) EXC. LIMITED SLIP DIFF<G80> 43/12	8-98190-114-0	01	1	1501-1602		●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.60	8-94365-187-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.70	8-94365-188-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.50	8-94453-935-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<G80> T=1.80	8-97066-412-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.80	8-94435-343-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=0.90	8-94435-344-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.10	8-94435-345-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.20	8-94435-346-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.30	8-94435-347-0	02	1	1501-	●	●	●
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF<G80> T=1.00	9-41562-602-0	02	1	1501-	●	●	●
21	GEAR; SIDE,DIFF LIMITED SLIP DIFF<G80>	8-97200-286-0	02	1	1501-	●	●	●
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<G80> Z=18	8-98186-828-1	02	1	1501-	●	●	●
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<G80>	8-94435-308-1	01	1	1501-	●	●	●
24	GEAR; PINION,DIFF LIMITED SLIP DIFF<G80>	8-97200-285-1	04	1	1501-	●	●	●
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF<G80> Z=10	8-98186-829-0	02	1	1501-	●	●	●
37	NUT; DRIVING PINION M24 FLANGE	8-94376-261-1	01	1	1501-	●	●	●
39	BEARING; FINAL PINION NSK	9-00093-078-0	01	1	1501-	●	●	●
42	COLLAR; DIST,COLLAPSIBLE	8-97035-399-0	01	1	1501-	●	●	●
50	BEARING; FINAL PINION NSK	8-94435-342-0	01	1	1501-	●	●	●
50	BEARING; FINAL PINION JTEKT	8-94452-448-0	01	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.94	8-94435-356-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.96	8-94435-357-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=1.98	8-94435-358-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.00	8-94435-359-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.02	8-94435-360-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.04	8-94435-361-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.06	8-94435-362-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.08	8-94435-363-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.10	8-94435-364-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.12	8-94435-365-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.14	8-94435-366-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.16	8-94435-367-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.18	8-94435-368-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.20	8-94435-369-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.22	8-94435-370-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.24	8-94435-371-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.26	8-94435-372-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.28	8-94435-373-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.30	8-94435-374-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.32	8-94435-375-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.34	8-94435-376-0	AR	1	1501-	●	●	●
51	SHIM; PINION,FINAL DRIVE T=2.36	8-94435-377-0	AR	1	1501-	●	●	●
55	CARRIER; DIFF	8-97240-889-2	01	1	1501-	●	●	●
56	BOLT; BRG CAP M12X75 FLANGE	8-98176-233-0	04	1	1501-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/11(GT4) 41/11	8-98030-515-1	01	1	1501-	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98014-984-1	01	1	1501-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/11(GW1) 43/11	8-98014-980-1	01	1	1501-	●	●	●
60	GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/12(GM0) 43/12	8-97374-174-1	01	1	1501-1602		●
70	BEARING; DIFF CAGE NSK	8-94435-355-0	02	1	1501-	●	●	●
70	BEARING; DIFF CAGE JTEKT	8-94452-449-1	02	1	1501-	●	●	●
72	CAGE; DIFF EXC. LIMITED SLIP DIFF<G80>	8-94325-448-0	01	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.12	8-94435-348-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.15	8-94435-349-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.18	8-94435-350-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.25	8-94435-351-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.30	8-94435-352-0	AR	1	1501-	●	●	●
73	SHIM; DIFF SIDE BRG T=0.50	8-94435-353-0	AR	1	1501-	●	●	●
74	PIN; LK,CROSS PIN EXC. LIMITED SLIP DIFF<G80> OD=5 L=35	9-09878-096-0	01	1	1501-	●	●	●
84	BOLT; FINAL DRIVE GEAR M10X18.5	8-97038-064-0	12	1	1501-	●	●	●
100	SEAL; OIL,FINAL PINION NOK	8-97328-648-0	01	1	1501-	●	●	●
126	COUPLING; DRIVING PINION	8-98166-552-1	01	1	1501-	●	●	●
