◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#155403) — 42 parça

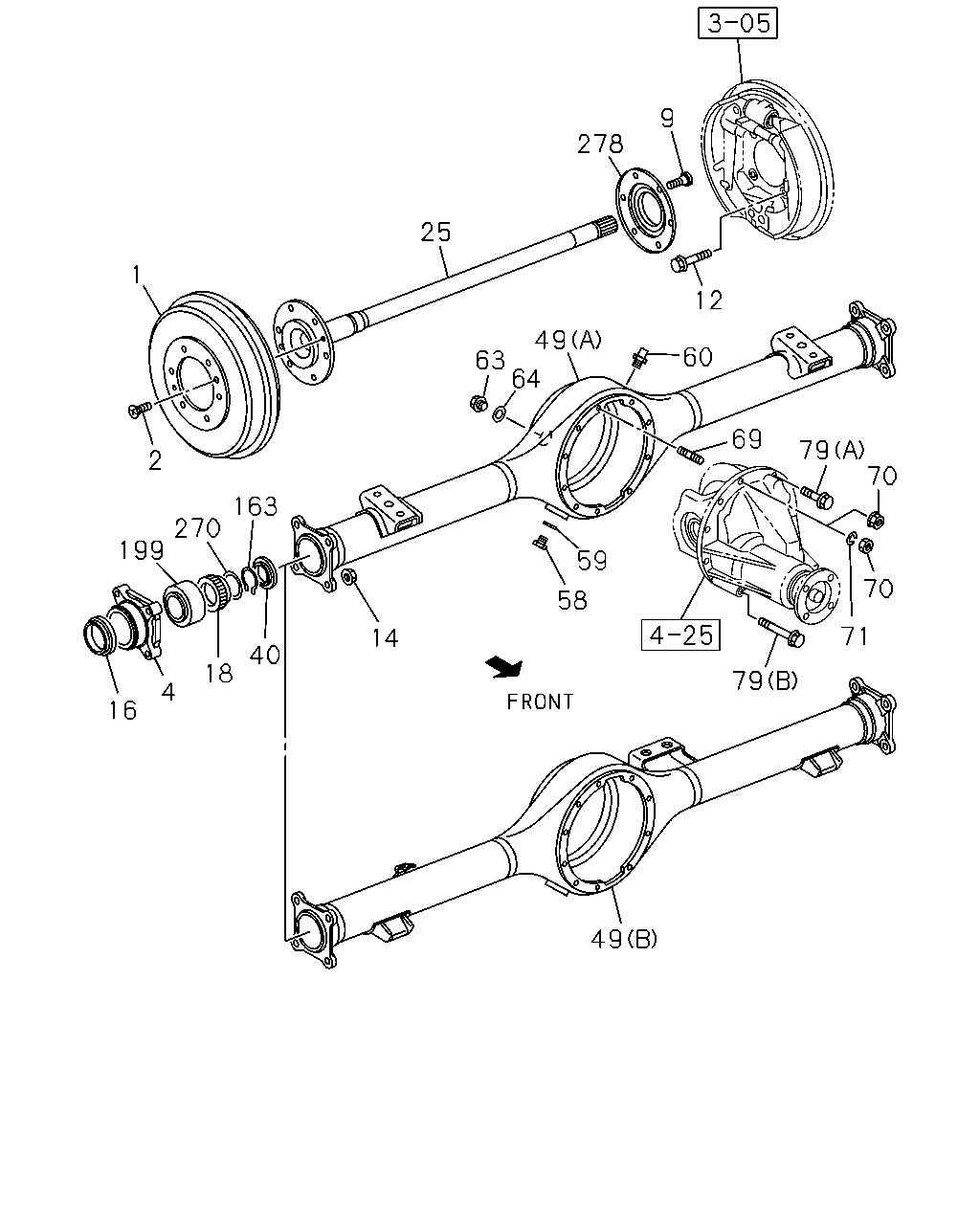

çizim 464739
71 79 49 70 70 79 69 12 60 9 278 49 25 63 59 64 58 163 14 40 18 270 1 2 199 4 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRUM; BRK,RR
AISIN TAKAOKA 		8-97948-038-1 02 1 1501- ● ● ●
1 DRUM; BRK,RR
SOMBOON 		8-98061-813-1 02 1 1501- ● ● ●
2 BOLT; BRK DRUM
M6X16 CK-HEAD 		0-36410-616-0 02 1 1501- ● ● ●
4 HOLDER; BRG,AXLE SHAFT 8-98103-450-3 02 1 1501- ● ● ●
9 PIN; WHEEL,RR AXLE
M12X42.5 RH THREAD 		8-97944-831-1 12 1 1501- ● ● ●
12 BOLT; BRG HOLDER TO CASE
M12X59 FLANGE 		8-98107-914-2 08 1 1501- ● ● ●
14 NUT; BRG HOLDER TO CASE
M12 FLANGE 		0-91180-212-0 08 1 1501- ● ● ●
16 SEAL; OIL,RR HUB,OUTER 8-98134-394-0 02 1 1501- ● ● ●
18 RETAINER; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-868-0 02 1 1501- ● ● ●
18 RETAINER; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98009-341-0 02 1 1501- ● ● ●
25 SHAFT; AXLE,RR 8-98080-678-2 02 1 1501- ● ● ●
40 SEAL; OIL,REAR AXLE 8-97323-297-0 02 1 1501- ● ● ●
49 CASE; RR AXLE
BRK WHL LK CONT LSPV<JR9> (A) 		8-98080-422-2 01 1 1501- ● ●
49 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) BRK WHL LK CONT LSPV<JR9> (A) 		8-98080-422-2 01 1 1501- ●
49 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (B) 		8-98080-420-2 01 1 1501- ● ●
49 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (B) 		8-98080-420-2 01 1 1501- ●
49 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98080-423-2 01 1 1501- ●
49 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98080-423-2 01 1 1501- ●
49 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98080-421-2 01 1 1501- ● ●
49 CASE; RR AXLE
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98080-421-2 01 1 1501- ●
49 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) BRK WHL LK CONT LSPV<JR9> (A) 		8-98173-632-0 01 1 1501- ●
49 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (B) 		8-98173-630-0 01 1 1501- ●
49 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98173-633-0 01 1 1501- ●
49 CASE; RR AXLE
A/T 5 SPEED-AISIN(MA1) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98173-631-0 01 1 1501- ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 1501- ● ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 1501- ● ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 1501- ● ● ●
63 PLUG; OIL FILLER,AXLE CASE 8-97307-059-1 01 1 1501- ● ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 1501- ● ● ●
69 STUD; AXLE CASE
M10X31 L=43 		8-98022-413-0 02 1 1501- ● ● ●
70 NUT; CARRIER
M10 		0-91110-510-0 02 1 1501-1509 ● ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91180-210-0 02 1 1510- ● ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=10.2 		0-91510-810-0 02 1 1501-1509 ● ● ●
79 BOLT; COVER TO CASE
(A) M10X30 W/LK WASHER 		0-50561-030-0 07 1 1501-1509 ● ● ●
79 BOLT; COVER TO CASE
(A) M10X30 FLANGE 		0-28061-030-0 07 1 1510- ● ● ●
79 BOLT; COVER TO CASE
(B) M10X90 W/LK WASHER 		0-50561-090-0 01 1 1501-1509 ● ● ●
79 BOLT; COVER TO CASE
(B) M10X90 		0-28061-090-0 01 1 1510- ● ● ●
163 RING; SNAP,AXLE SHAFT
ID=38.5 T=1.75 		9-09180-042-0 AR 1 1501- ● ● ●
163 RING; SNAP,AXLE SHAFT
ID=38.5 T=2.00 		9-09952-253-0 AR 1 1501- ● ● ●
199 BEARING; RR AXLE 8-97216-797-2 02 1 1501- ● ● ●
270 SHIM; RETAINER
T=0.24 		9-41519-109-0 AR 1 1501- ● ● ●
278 CATCHER; OIL 8-98103-447-2 02 1 1501- ● ● ●
