4-15 — FRONT FINAL DRIVE (#155402) — 52 parça

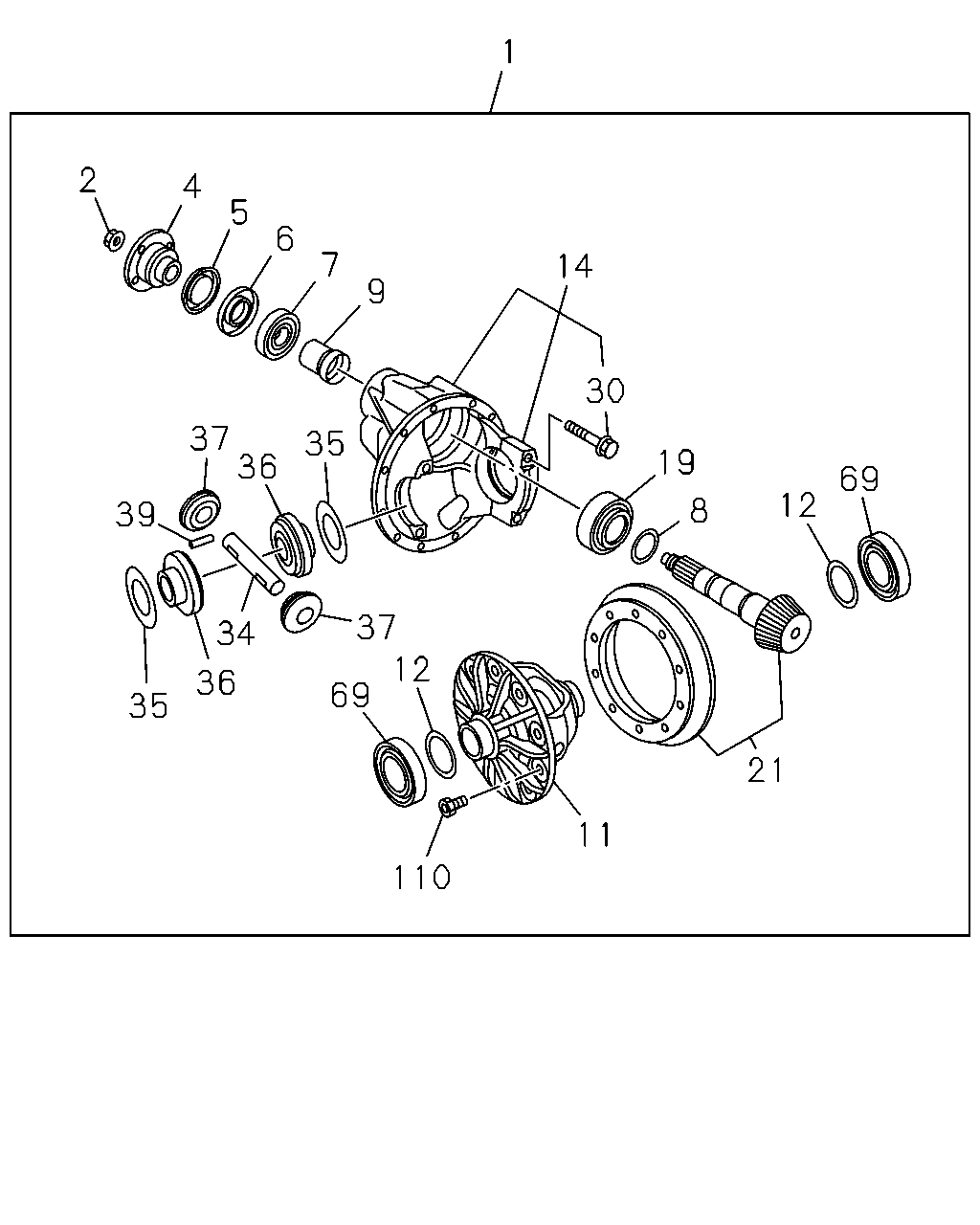

çizim 464809
1 14 30 19 12 69 21 11 110 12 37 35 37 69 34 36 35 8 2 4 7 5 9 6 36 39
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98104-903-0 01 1 1501- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-98104-902-0 01 1 1501- ● ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 43/12(GM0) 43/12 		8-98104-900-0 01 1 1501-1602 ●
1 DRIVE ASM; FINAL,FRT
FINAL GEAR RATIO 41/11(GT4) 41/11 		8-98104-901-0 01 1 1501- ●
2 NUT; FINAL DRIVE PINION
M18 LOCK NUT 		8-94376-262-0 01 1 1501- ● ●
4 COUPLING; FINAL DRIVE PINION 8-94318-527-6 01 1 1501- ● ●
5 COVER; DUST,PINION,FINAL DRIVE 8-94318-409-1 01 1 1501- ● ●
6 SEAL; OIL,FINAL PINION 8-94318-520-2 01 1 1501- ● ●
7 BEARING; PINION,OUTER
NSK 		8-94472-099-0 01 1 1501- ● ●
7 BEARING; PINION,OUTER
JTEKT 		8-94472-100-1 01 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.18 		9-41519-153-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.20 		9-41519-154-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.22 		9-41519-155-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.24 		9-41519-156-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.26 		9-41519-157-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.28 		9-41519-158-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.30 		9-41519-159-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.32 		9-41519-160-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.34 		9-41519-161-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.36 		9-41519-162-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.38 		9-41519-163-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.40 		9-41519-164-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.42 		9-41519-165-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.44 		9-41519-166-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.46 		9-41519-167-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.48 		9-41519-168-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.50 		9-41519-169-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.52 		9-41519-170-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.54 		9-41519-171-1 AR 1 1501- ● ●
8 SHIM; PINION,FINAL DRIVE
T=2.56 		9-41519-172-1 AR 1 1501- ● ●
9 COLLAR; DIST,PINION 8-94472-118-0 01 1 1501- ● ●
11 CAGE; FINAL PINION 8-97038-515-1 01 1 1501- ● ●
12 SHIM; FINAL PINION CAGE
T=0.10 		8-97130-386-0 AR 1 1501- ● ●
12 SHIM; FINAL PINION CAGE
T=0.50 		8-97130-387-0 AR 1 1501- ● ●
12 SHIM; FINAL PINION CAGE
T=0.24 		9-41519-109-0 AR 1 1501- ● ●
12 SHIM; FINAL PINION CAGE
T=0.15 		9-41519-111-0 AR 1 1501- ● ●
14 CARRIER ASM; FINAL DRIVE,FRT AXLE 8-98104-910-2 01 1 1501- ● ●
19 BEARING; PINION,INNER
NSK 		9-00093-621-1 01 1 1501- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/10(GT5) 41/10 		8-98104-945-1 01 1 1501- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/11(GW1) 43/11 		8-98104-933-1 01 1 1501- ● ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 43/12(GM0) 43/12 		8-98104-915-1 01 1 1501-1602 ●
21 GEAR SET; FINAL DRIVE,FRT
FINAL GEAR RATIO 41/11(GT4) 41/11 		8-98104-929-1 01 1 1501- ●
30 BOLT; DIFF CAGE SETTING
M12X62 		8-94376-322-0 04 1 1501- ● ●
34 PIN; CROSS,DIFF PINION 9-41521-044-1 01 1 1501- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.00 		5-41562-005-1 02 1 1501- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.05 		5-41562-006-1 02 1 1501- ● ●
35 WASHER; THRUST,SIDE GEAR
T=1.10 		5-41562-007-1 02 1 1501- ● ●
36 GEAR; SIDE,DIFF
Z=17 		8-97079-519-2 02 1 1501- ● ●
37 GEAR; PINION DIFF
Z=10 		8-97079-518-0 02 1 1501- ● ●
39 PIN; LK,CROSS PIN
OD=5 L=35 		9-09878-096-0 01 1 1501- ● ●
69 BEARING; DIFF SIDE
NSK 		9-00093-074-1 02 1 1501- ● ●
110 BOLT; DIFF BOX
M10X17 		8-97038-065-0 10 1 1501- ● ●
