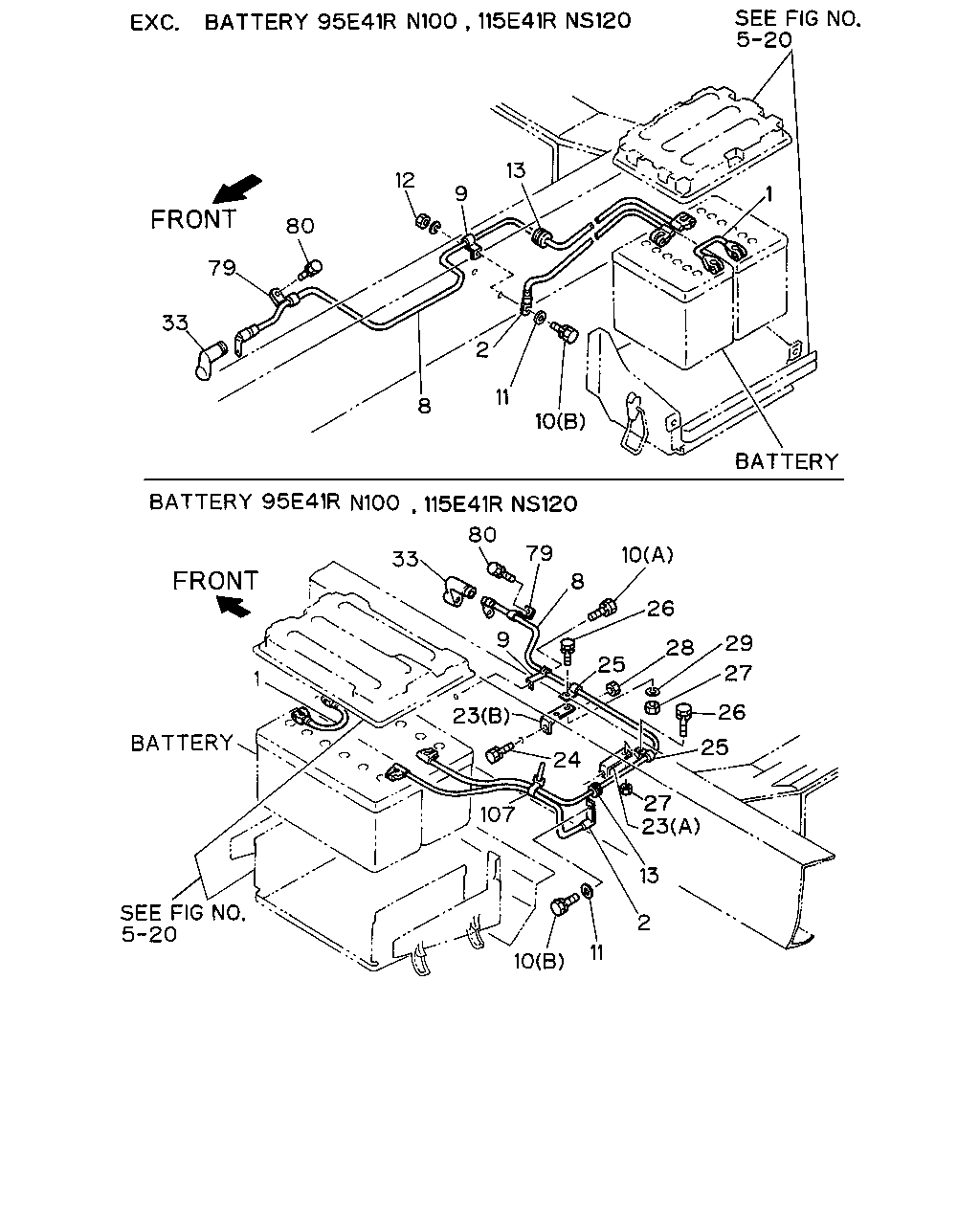

1 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
L=450
|
9-82932-417-1 |
01 |
1 |
9207- |
| |
1 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=180
|
9-82932-233-1 |
01 |
1 |
9207-9407 |
| |
1 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=180
|
1-82650-265-0 |
01 |
1 |
9408- |
| |
2 |
CABLE; BATTERY
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
L=380
|
9-82932-713-2 |
01 |
1 |
9207- |
| |
2 |
CABLE; BATTERY
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=185
|
1-82650-067-2 |
01 |
1 |
9207- |
| |
8 |
CABLE; BATTERY,STARTER
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
L=1500
|
1-82652-400-0 |
01 |
1 |
9207- |
| |
8 |
CABLE; BATTERY,STARTER
FSS SHORT CHASSIS & BED CAB(FSS5MC)
FTS ALL(FTS***)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=950
|
1-82652-236-0 |
01 |
1 |
9207- |
| |
8 |
CABLE; BATTERY,STARTER
FSS MIDDLE CHASSIS & BED CAB(FSS5MF)
EXC. AUSTRALIA EQUIPMENT(RR3),BATTERY 95E41R
N100<SJ1>,BATTERY 115E41R NS120<W73>
L=950
|
1-82652-236-0 |
01 |
1 |
9207- |
| |
8 |
CABLE; BATTERY,STARTER
FSS MIDDLE CHASSIS & BED CAB(FSS5MF)
AUSTRALIA EQUIPMENT(RR3)
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
L=1050
|
1-82652-415-0 |
01 |
1 |
9207- |
| |
9 |
CLIP; BATTERY CABLE
ID=16 T=1.6
|
1-09700-981-0 |
01 |
1 |
9207- |
| |
10 |
BOLT; BATTERY CABLE CLIP
(B)
M10X35 W/LK WASHER
|
0-50041-035-0 |
01 |
1 |
9207- |
| |
10 |
BOLT; BATTERY CABLE CLIP
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
(A)
M10X20 W/LK WASHER
|
0-50041-020-0 |
01 |
1 |
9207- |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22
|
9-09160-610-0 |
01 |
1 |
9207- |
| |
12 |
NUT; BATTERY CABLE CLIP
EXC. BATTERY 95E41R N100<SJ1>,BATTERY 115E41R
NS120<W73>
M10 FLANGE
|
5-09440-006-0 |
01 |
1 |
9207- |
| |
13 |
GROMMET; BATTERY CABLE
ID=24 OD=30 T=17
|
9-09956-092-1 |
01 |
1 |
9207- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
(A)
L=76
|
1-47475-588-0 |
01 |
1 |
9207- |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
(B)
L=112
|
1-47475-694-1 |
01 |
1 |
9207- |
| |
24 |
BOLT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9207- |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
ID=16 L=28
|
1-09700-872-0 |
02 |
1 |
9207- |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9207- |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M8
|
9-09110-408-0 |
02 |
1 |
9207- |
| |
28 |
NUT; BRKT TO FRAME
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
M8
|
9-09110-408-0 |
02 |
1 |
9207- |
| |
29 |
WASHER; PL,CLIP BRKT
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
ID=8.4 OD=18
|
9-09160-608-0 |
01 |
1 |
9207- |
| |
33 |
CAP; INSULATOR
|
1-82699-206-0 |
01 |
1 |
9207- |
| |
79 |
CLIP; BATTERY CABLE
MBG5B M/T(X4K)
ID=16 L=50 H=25
|
1-09700-838-0 |
01 |
1 |
9207- |
| |
79 |
CLIP; BATTERY CABLE
MLD6D M/T(X5Q)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
9207- |
| |
80 |
BOLT; BATTERY CABLE CLIP
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9207- |
| |
107 |
CLIP; BAND
BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>
L=140
|
5-09707-031-1 |
01 |
1 |
9207- |
