4-01 — PROPELLER SHAFT (#155398) — 126 parça

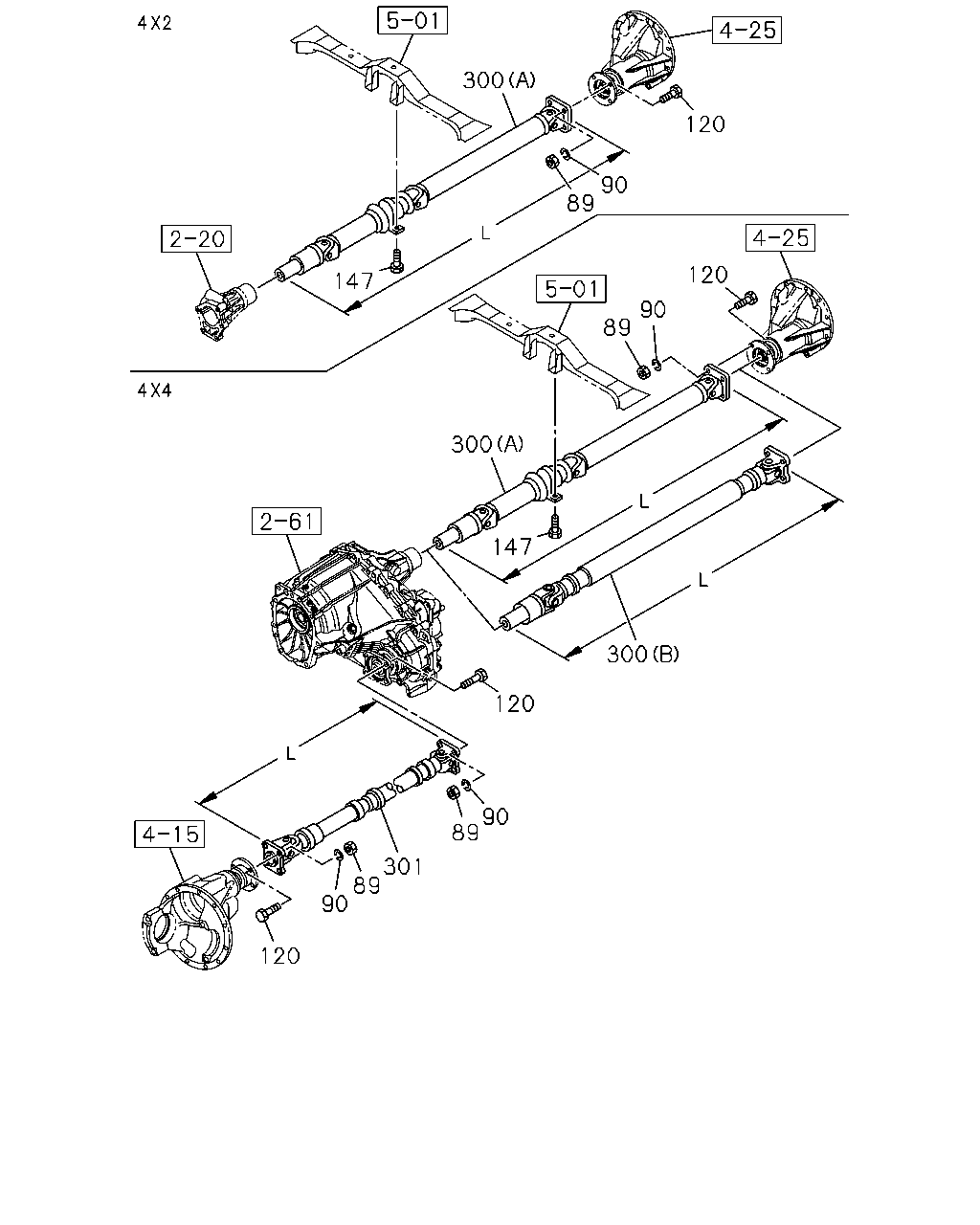

300 120 90 89 120 90 89 147 300 147 120 90 89 301 89 90 120 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	04	1	1501-	●	●	●
89	NUT; YOKE TO RR AXLE M10 FLANGE	8-97246-900-0	08	1	1501-		●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	04	1	1501-	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=10.1	8-97246-901-0	08	1	1501-		●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	04	1	1501-	●	●	●
120	BOLT; YOKE TO RR AXLE M10X29	8-97246-859-0	08	1	1501-		●	●
147	BOLT; CENTER BRG MTG M12X25 FLANGE	0-28661-225-0	02	1	1501-	●	●
147	BOLT; CENTER BRG MTG M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M12X25 FLANGE	0-28661-225-0	02	1	1501-			●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97948-750-0	01	1	1501-	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (A) L=1840	8-97948-743-0	01	1	1501-	●
300	SHAFT ASM; PROP,RR (A) L=1510	8-97948-757-0	01	1	1501-		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97948-757-0	01	1	1501-			●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S(MZJ) (A) L=1472	8-97948-755-0	01	1	1501-			●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1501-			●
301	SHAFT ASM; PROP,FRT L=671	8-97948-758-0	01	1	1501-		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97948-758-0	01	1	1501-			●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1501-			●
301	SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S(MZJ) L=710	8-97948-761-0	01	1	1501-			●

301 220 103 9 8 17 9 8 106 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97948-771-0	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1501-		●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1501-		●	●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1501-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (C)	8-97947-642-0	02	1	1501-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (D)	8-97947-643-0	01	1	1501-	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1501-		●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1501-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1501-			●
9	JOURNAL ASM; PROP SHAFT (A)	8-97947-645-0	01	1	1501-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-645-0	01	1	1501-			●
9	JOURNAL ASM; PROP SHAFT M/T MUX 5 SPEED 5S(MZJ) (A)	8-97947-645-0	03	1	1501-			●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1501-			●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	03	1	1501-		●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M6 STRAIGHT	0-90301-406-0	03	1	1501-			●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1501-		●	●
17	NIPPLE; GREASE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1501-			●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1501-	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97940-114-0	01	1	1501-	●
103	BOOT; PROP SHAFT (A)	8-97940-114-0	01	1	1501-		●	●
103	BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1501-		●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1501-		●	●
220	YOKE; SPLINED	8-97945-105-0	01	1	1501-		●
220	YOKE; SPLINED A/T 5 SPEED-AISIN(MA1),M/T MUA 5 SPEED 5H(MWQ)	8-97945-105-0	01	1	1501-			●
220	YOKE; SPLINED M/T MUX 5 SPEED 5S(MZJ)	8-97943-050-0	01	1	1501-			●
301	SHAFT ASM; PROP,FRT L=671	8-97948-758-0	01	1	1501-		●
301	SHAFT ASM; PROP,FRT M/T MUA 5 SPEED 5H(MWQ) L=671	8-97948-758-0	01	1	1501-			●
301	SHAFT ASM; PROP,FRT A/T 5 SPEED-AISIN(MA1) L=789	8-97948-762-0	01	1	1501-			●
301	SHAFT ASM; PROP,FRT M/T MUX 5 SPEED 5S(MZJ) L=710	8-97948-761-0	01	1	1501-			●

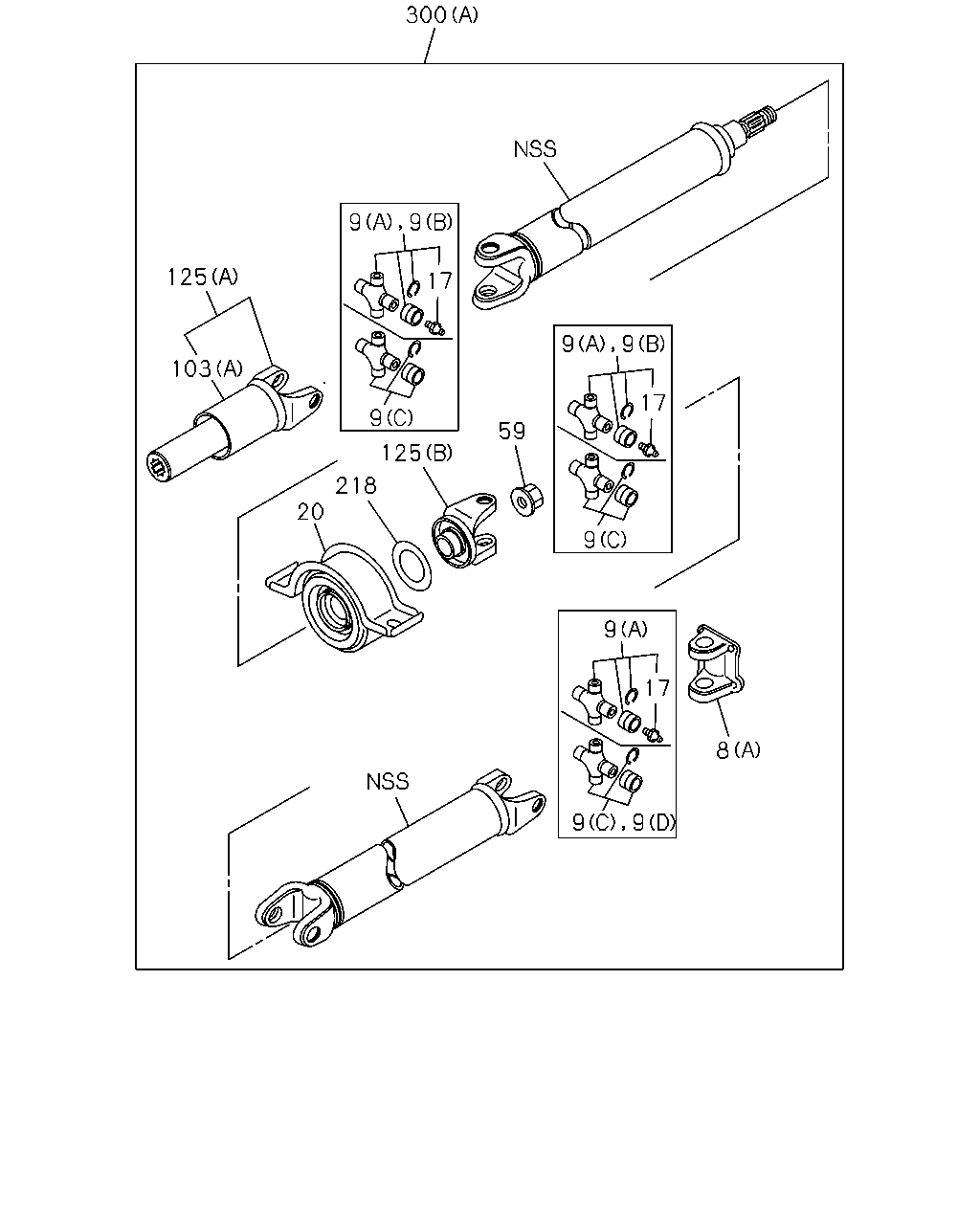

9 17 9 9 8 9 17 9 9 59 125 218 20 103 125 9 9 300 17 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97948-771-0	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1501-		●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1501-		●	●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1501-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (C)	8-97947-642-0	02	1	1501-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (D)	8-97947-643-0	01	1	1501-	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1501-		●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1501-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1501-			●
9	JOURNAL ASM; PROP SHAFT (A)	8-97947-645-0	01	1	1501-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-645-0	01	1	1501-			●
9	JOURNAL ASM; PROP SHAFT M/T MUX 5 SPEED 5S(MZJ) (A)	8-97947-645-0	03	1	1501-			●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1501-			●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	03	1	1501-		●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M6 STRAIGHT	0-90301-406-0	03	1	1501-			●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1501-		●	●
17	NIPPLE; GREASE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1501-			●
20	BEARING ASM; CTR,PROP SHAFT NSK	8-97947-659-0	01	1	1501-	●	●
20	BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) NSK	8-97947-659-0	01	1	1501-			●
20	BEARING ASM; CTR,PROP SHAFT NTN	8-97947-660-0	01	1	1501-	●	●
20	BEARING ASM; CTR,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) NTN	8-97947-660-0	01	1	1501-			●
20	BEARING ASM; CTR,PROP SHAFT M/T MUX 5 SPEED 5S(MZJ) NSK	8-97947-657-0	01	1	1501-			●
20	BEARING ASM; CTR,PROP SHAFT M/T MUX 5 SPEED 5S(MZJ) NTN	8-97947-658-0	01	1	1501-			●
59	NUT; RET TO SUPPORT	8-97947-557-0	01	1	1501-	●	●	●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1501-	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97940-114-0	01	1	1501-	●
103	BOOT; PROP SHAFT (A)	8-97940-114-0	01	1	1501-		●	●
103	BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1501-		●	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-631-0	01	1	1501-	●
125	YOKE ASM; SPLINED,PROP SHAFT (B)	8-97948-769-0	01	1	1501-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97948-769-0	01	1	1501-			●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-629-0	01	1	1501-	●		●
125	YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-629-0	01	1	1501-		●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S(MZJ) (B)	8-97947-732-0	01	1	1501-			●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A)	8-97947-630-0	01	1	1501-			●
218	WASHER; PL,PROP SHAFT ID=30 H=40 L=35	8-97192-641-0	01	1	1501-	●	●	●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97948-750-0	01	1	1501-	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (A) L=1840	8-97948-743-0	01	1	1501-	●
300	SHAFT ASM; PROP,RR (A) L=1510	8-97948-757-0	01	1	1501-		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97948-757-0	01	1	1501-			●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S(MZJ) (A) L=1472	8-97948-755-0	01	1	1501-			●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1501-			●

300 9 9 8 17 17 103 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	YOKE; FLANGE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97948-770-0	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97948-771-0	01	1	1501-	●
8	YOKE; FLANGE,PROP SHAFT (A)	8-97948-771-0	01	1	1501-		●	●
8	YOKE; FLANGE,PROP SHAFT (B)	8-97948-772-0	02	1	1501-		●	●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (C)	8-97947-642-0	03	1	1501-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (C)	8-97947-642-0	02	1	1501-	●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (D)	8-97947-643-0	01	1	1501-	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1501-		●	●
9	JOURNAL ASM; PROP SHAFT (B)	8-97947-582-0	02	1	1501-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97947-582-0	02	1	1501-			●
9	JOURNAL ASM; PROP SHAFT (A)	8-97947-645-0	01	1	1501-		●
9	JOURNAL ASM; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-645-0	01	1	1501-			●
9	JOURNAL ASM; PROP SHAFT M/T MUX 5 SPEED 5S(MZJ) (A)	8-97947-645-0	03	1	1501-			●
9	JOURNAL ASM; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-645-0	02	1	1501-			●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	03	1	1501-		●
17	NIPPLE; GREASE,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) M6 STRAIGHT	0-90301-406-0	03	1	1501-			●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	02	1	1501-		●	●
17	NIPPLE; GREASE,PROP SHAFT A/T 5 SPEED-AISIN(MA1) M6 STRAIGHT	0-90301-406-0	02	1	1501-			●
103	BOOT; PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-639-0	01	1	1501-	●
103	BOOT; PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97940-114-0	01	1	1501-	●
103	BOOT; PROP SHAFT (A)	8-97940-114-0	01	1	1501-		●	●
103	BOOT; PROP SHAFT (B)	8-97943-053-0	01	1	1501-		●	●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1) (A)	8-97947-631-0	01	1	1501-	●
125	YOKE ASM; SPLINED,PROP SHAFT (B)	8-97948-769-0	01	1	1501-	●	●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (B)	8-97948-769-0	01	1	1501-			●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUA 5 SPEED 5H(MWQ) (A)	8-97947-629-0	01	1	1501-	●		●
125	YOKE ASM; SPLINED,PROP SHAFT (A)	8-97947-629-0	01	1	1501-		●
125	YOKE ASM; SPLINED,PROP SHAFT M/T MUX 5 SPEED 5S(MZJ) (B)	8-97947-732-0	01	1	1501-			●
125	YOKE ASM; SPLINED,PROP SHAFT A/T 5 SPEED-AISIN(MA1),M/T MUX 5 SPEED 5S(MZJ) (A)	8-97947-630-0	01	1	1501-			●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (A) L=1740	8-97948-750-0	01	1	1501-	●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (A) L=1840	8-97948-743-0	01	1	1501-	●
300	SHAFT ASM; PROP,RR (A) L=1510	8-97948-757-0	01	1	1501-		●
300	SHAFT ASM; PROP,RR M/T MUA 5 SPEED 5H(MWQ) (A) L=1510	8-97948-757-0	01	1	1501-			●
300	SHAFT ASM; PROP,RR M/T MUX 5 SPEED 5S(MZJ) (A) L=1472	8-97948-755-0	01	1	1501-			●
300	SHAFT ASM; PROP,RR A/T 5 SPEED-AISIN(MA1) (B) L=1384	8-97948-764-0	01	1	1501-			●
