◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#155395) — 76 parça

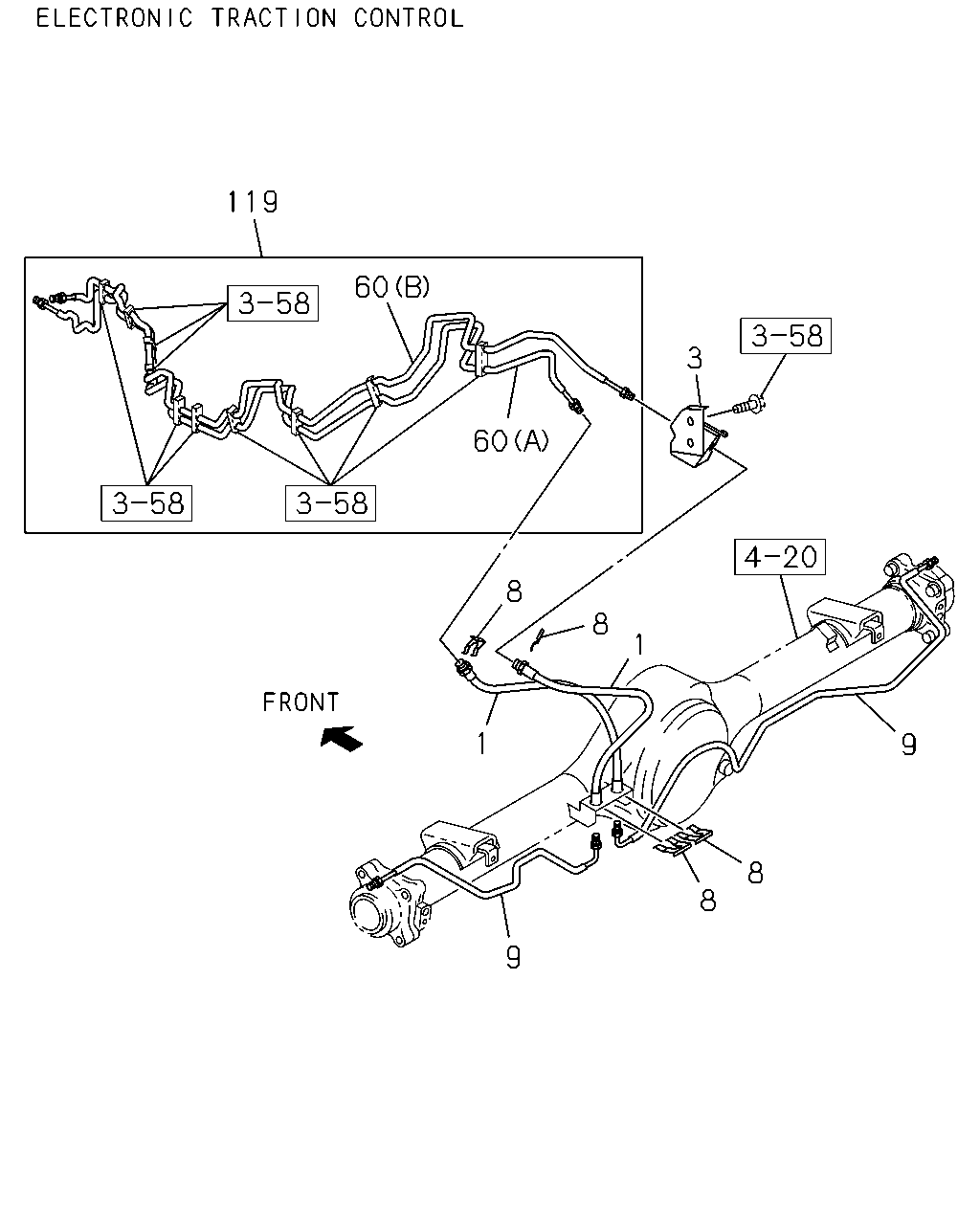

çizim 464155
119 3 60 60 8 8 1 1 8 9 9 8
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1501- ●
3 BRACKET; FLEX HOSE,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98102-358-1 01 1 1501- ● ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1501- ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1501- ● ●
8 CLIP; RR BRK 8-97360-054-0 01 1 1501- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE 8-98103-453-0 01 1 1501- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE 8-98103-454-0 01 1 1501- ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1501- ● ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1501- ● ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1501- ● ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1501- ● ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1501- ● ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1501- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1501- ● ● ●
çizim 464271
119 60 60 8 58 1 9 12 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1501- ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1501- ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1501- ● ●
8 CLIP; RR BRK 8-97360-054-0 01 1 1501- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE 8-98103-453-0 01 1 1501- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE 8-98103-454-0 01 1 1501- ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE 		0-28650-830-0 01 1 1501- ● ●
12 BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE 		0-28650-830-0 01 1 1501- ●
58 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<JR9> L=328 		8-98099-777-1 01 1 1501- ● ● ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1501- ● ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1501- ● ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1501- ● ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1501- ● ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1501- ● ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1501- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1501- ● ● ●

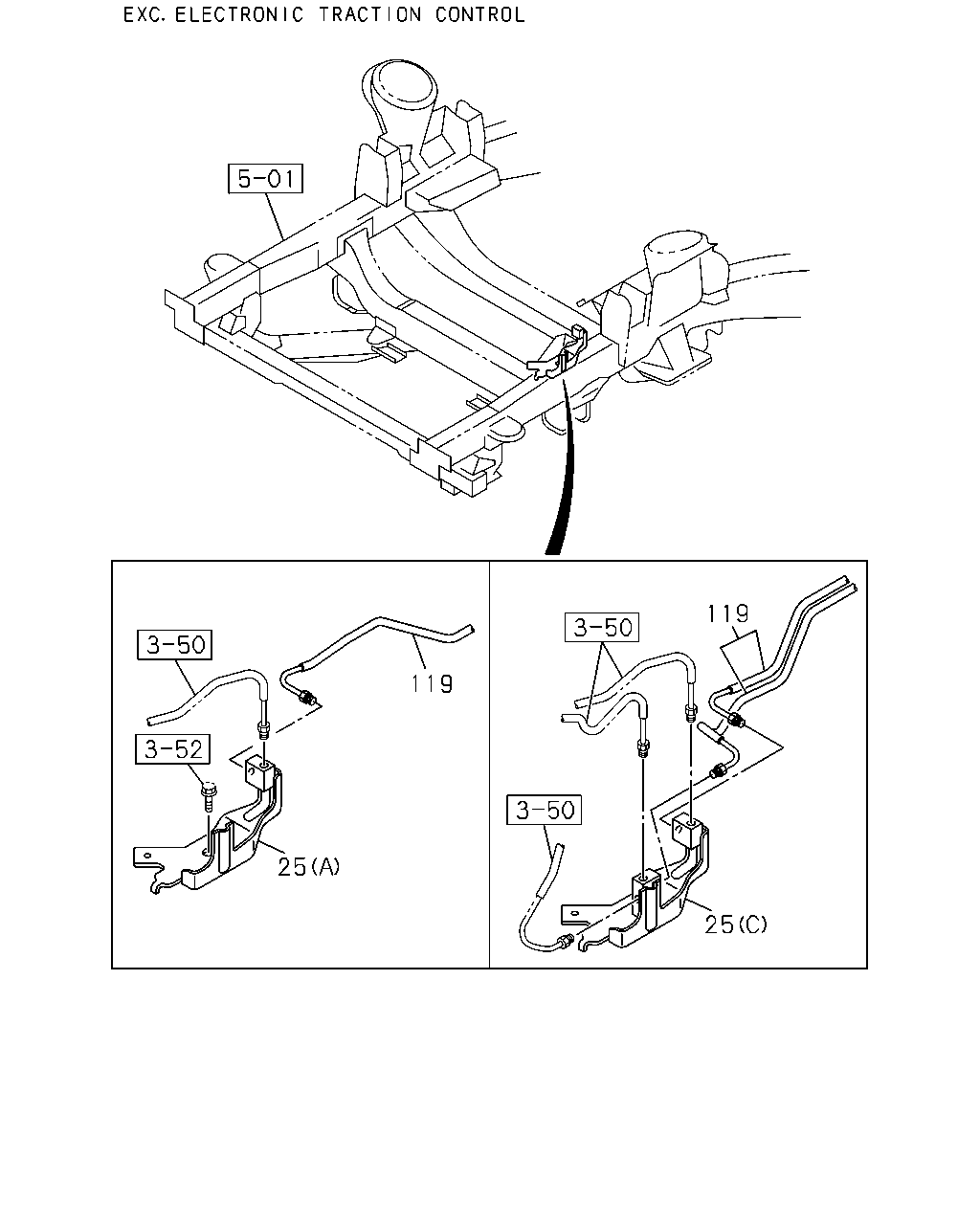

çizim 464272
119 119 25 25
BalonParca AdiParca NoAdetTipApplied Date A B C
25 CONNECTOR
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1501- ● ●
25 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1501- ● ● ●
25 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1501- ● ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1501- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1501- ● ● ●
çizim 464481
119 8 9 12 9 1 60
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97947-133-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-085-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98067-084-1 01 1 1501- ● ●
1 HOSE; FLEX,RR BRK 8-98067-084-1 01 1 1501- ●
8 CLIP; RR BRK
ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 04 1 1501- ● ●
8 CLIP; RR BRK
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-97360-054-0 01 1 1501- ● ●
8 CLIP; RR BRK 8-97360-054-0 01 1 1501- ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-455-1 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE
ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-456-1 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-453-0 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE 8-98103-453-0 01 1 1501- ●
9 PIPE; BRK,RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> 		8-98103-454-0 01 1 1501- ● ●
9 PIPE; BRK,RR AXLE 8-98103-454-0 01 1 1501- ●
12 BOLT; FLEX HOSE TO RR AXLE
EXC. ELECTRONIC TRACTION CONTROL<NW9> M8X30 FLANGE 		0-28650-830-0 01 1 1501- ● ●
12 BOLT; FLEX HOSE TO RR AXLE
M8X30 FLANGE 		0-28650-830-0 01 1 1501- ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-741-4 01 1 1501- ● ●
60 PIPE ASM; BRK
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-742-4 01 1 1501- ● ●
60 PIPE ASM; BRK
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (C) 		8-98099-723-4 01 1 1501- ● ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (D) 		8-98099-779-4 01 1 1501- ● ● ●
60 PIPE ASM; BRK
BRK WHL LK CONT LSPV<JR9> (E) 		8-98099-780-4 01 1 1501- ● ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1501- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1501- ● ● ●
çizim 464694
119 25
BalonParca AdiParca NoAdetTipApplied Date A B C
25 CONNECTOR
ELECTRONIC TRACTION CONTROL<NW9> (B) 		8-98099-785-1 01 1 1501- ● ●
25 CONNECTOR
BRK WHL LK CONT LSPV<JR9> (C) 		8-98099-783-1 01 1 1501- ● ● ●
25 CONNECTOR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> (A) 		8-98099-784-1 01 1 1501- ● ● ●
119 PIPE; BRK,2WAY TO RR
ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-740-4 01 1 1501- ● ●
119 PIPE; BRK,2WAY TO RR
EXC. BRK WHL LK CONT LSPV<JR9>,ELECTRONIC TRACTION CONTROL<NW9> 		8-98099-722-4 01 1 1501- ● ● ●
