3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#155393) — 96 parça

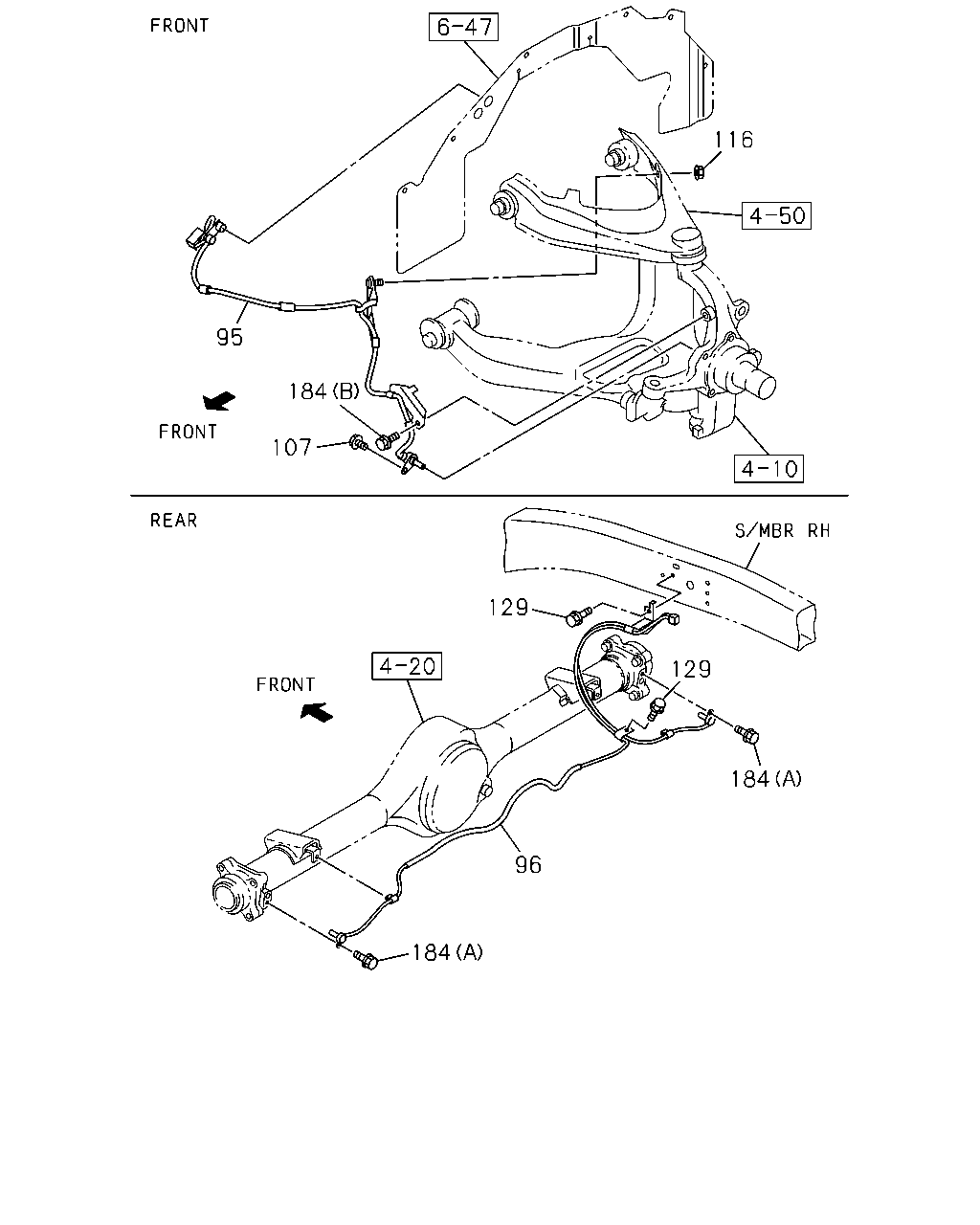

95 184 107 116 129 129 184 96 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98052-119-1	01	1	1501-1509	●	●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98292-432-0	01	1	1510-	●	●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98052-120-1	01	1	1501-1509	●	●	●
95	SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98292-433-0	01	1	1510-	●	●	●
96	SENSOR; SPD,RR WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98052-122-1	01	1	1501-	●	●	●
107	BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M6X10 FLANGE	0-28050-610-0	02	1	1501-1509	●	●	●
107	BOLT; WHEEL SPD SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●
116	NUT 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	1501-	●	●	●
129	BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	02	1	1501-	●	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X10 FLANGE	0-28050-610-0	02	1	1501-1509	●	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (B) M6X12 FLANGE	0-28050-612-0	02	1	1510-	●	●	●
184	BOLT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> (A) M6X16 FLANGE	0-28650-616-0	02	1	1501-	●	●	●

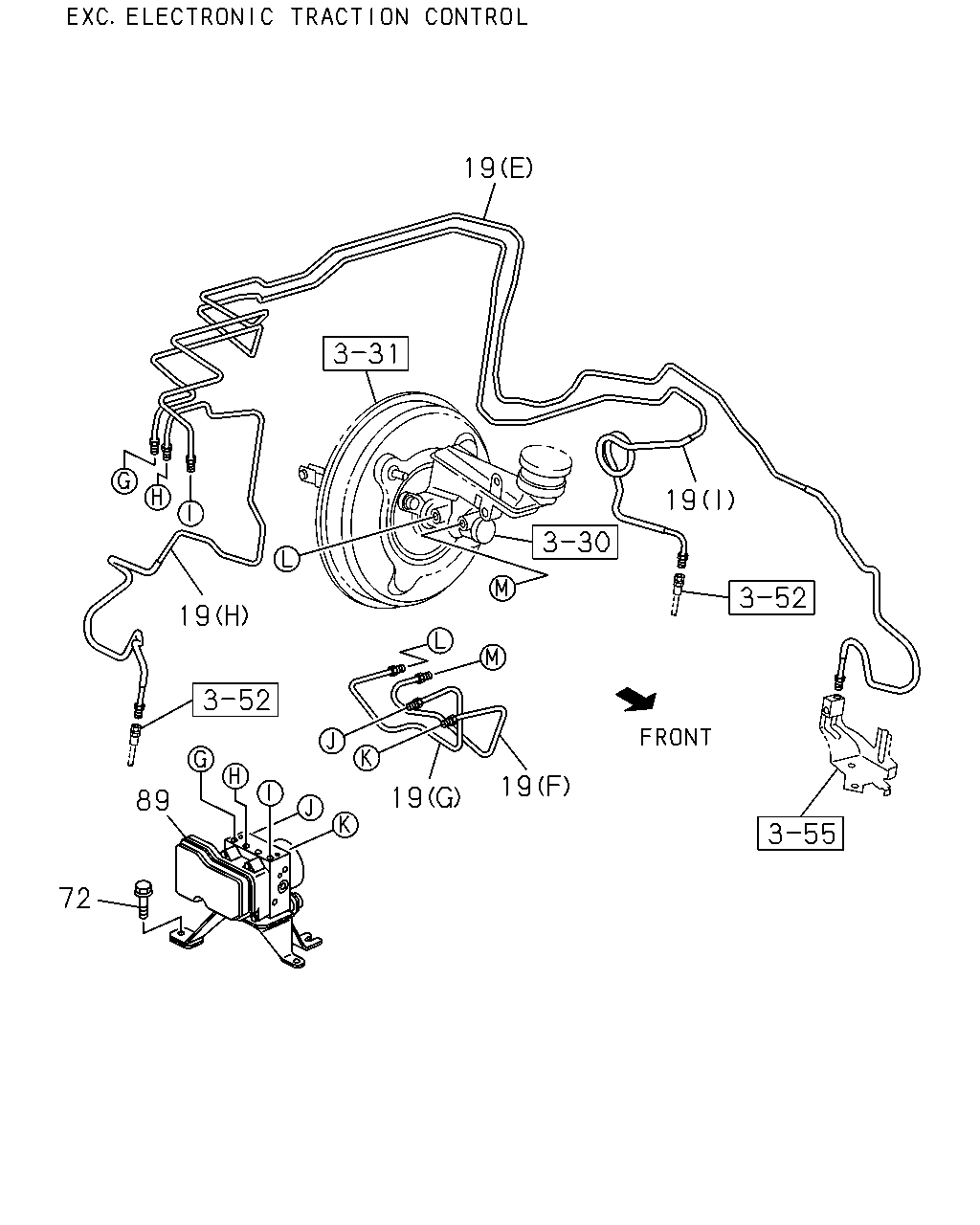

19 19 19 19 89 72 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (J)	8-98099-736-2	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98099-730-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98099-744-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98159-938-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (O)	8-98099-760-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (N)	8-98099-761-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (M)	8-98099-776-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (A)	8-98099-718-4	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (B)	8-98099-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (D)	8-98221-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-727-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (K)	8-98099-738-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98099-739-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-731-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98099-732-0	01	1	1501-	●	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	03	1	1501-	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98232-478-0	01	1	1501-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98232-479-0	01	1	1501-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98232-464-0	01	1	1501-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98285-163-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98232-466-0	01	1	1501-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98232-466-0	01	1	1501-1508			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98285-165-0	01	1	1509-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98285-165-0	01	1	1509-			●

19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (J)	8-98099-736-2	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98099-730-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98099-744-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98159-938-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (O)	8-98099-760-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (N)	8-98099-761-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (M)	8-98099-776-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (A)	8-98099-718-4	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (B)	8-98099-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (D)	8-98221-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-727-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (K)	8-98099-738-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98099-739-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-731-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98099-732-0	01	1	1501-	●	●	●

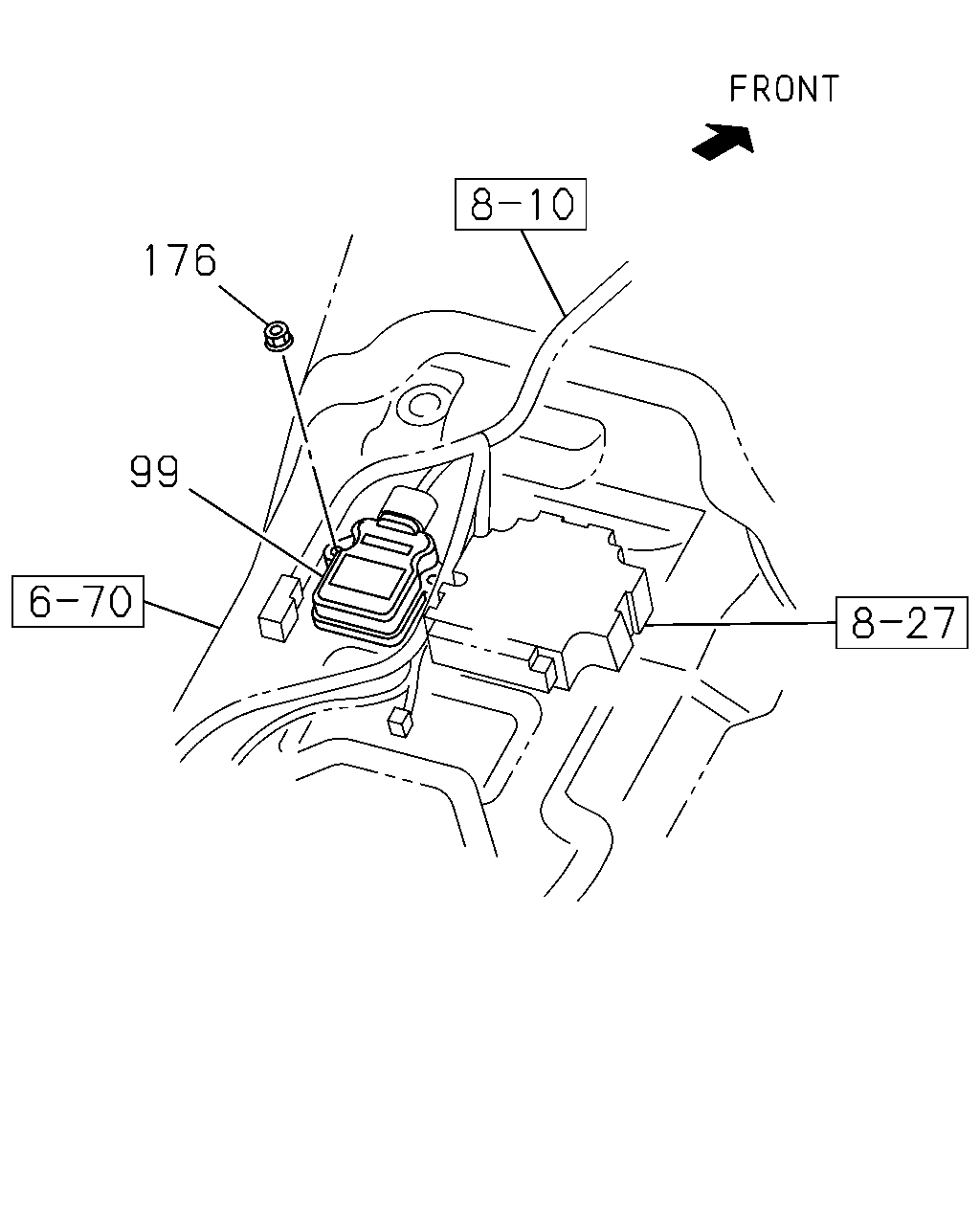

176 99

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
	99	SENSOR; DECELERATION 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98052-116-1	01	1	1501-	●		●
	176	NUT; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9> M6 FLANGE	0-91180-106-0	02	1	1501-	●		●

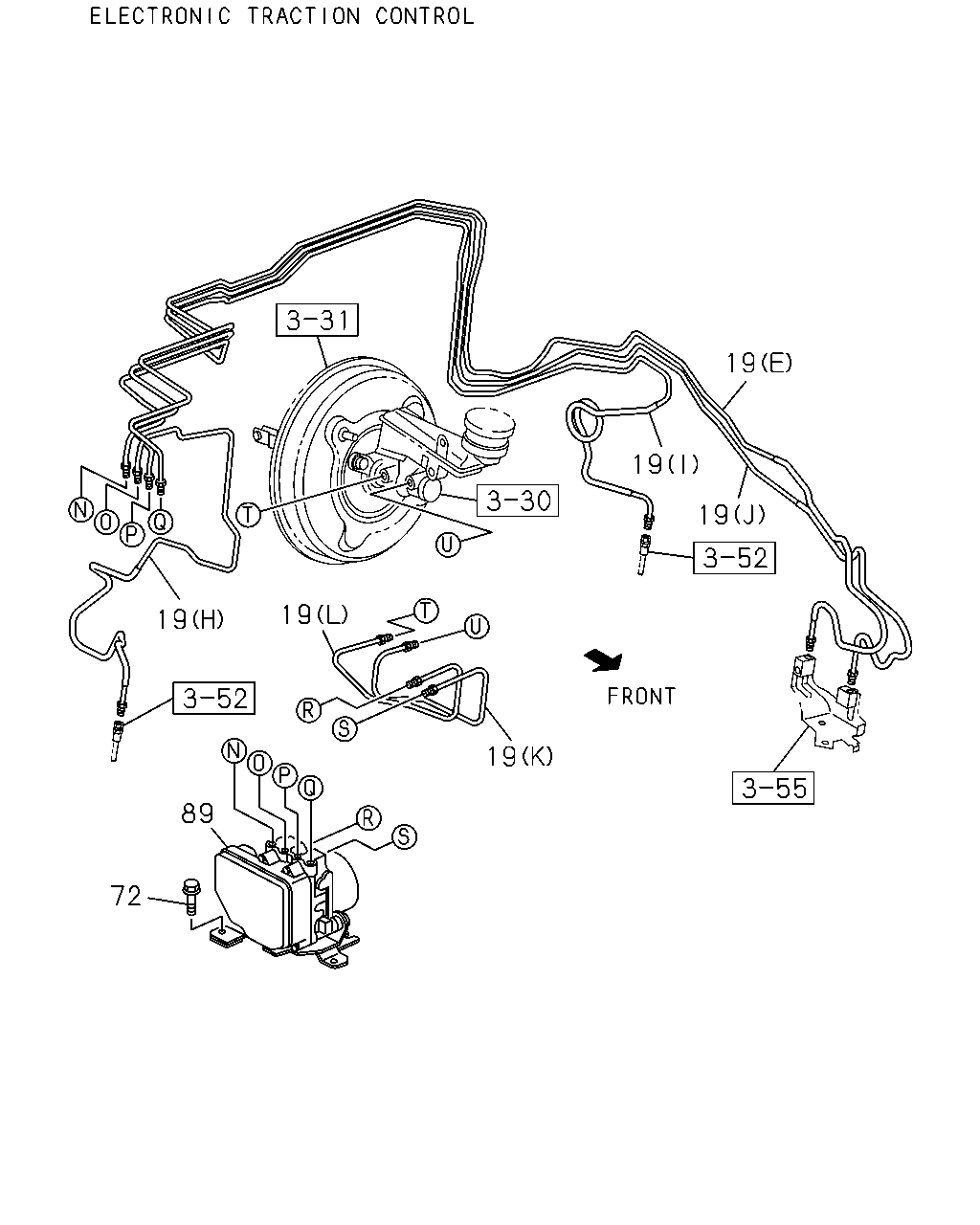

19 89 72 19 19 19 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (J)	8-98099-736-2	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98099-730-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98099-744-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98159-938-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (O)	8-98099-760-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (N)	8-98099-761-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (M)	8-98099-776-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (A)	8-98099-718-4	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (B)	8-98099-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (D)	8-98221-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-727-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (K)	8-98099-738-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98099-739-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-731-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98099-732-0	01	1	1501-	●	●	●
72	BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> M6X16 FLANGE	0-28650-616-0	03	1	1501-	●	●	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98232-478-0	01	1	1501-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> ELECTRONIC TRACTION CONTROL<NW9>	8-98232-479-0	01	1	1501-			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98232-464-0	01	1	1501-1508	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98285-163-0	01	1	1509-	●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98232-466-0	01	1	1501-1508		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98232-466-0	01	1	1501-1508			●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98285-165-0	01	1	1509-		●
89	HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9>	8-98285-165-0	01	1	1509-			●

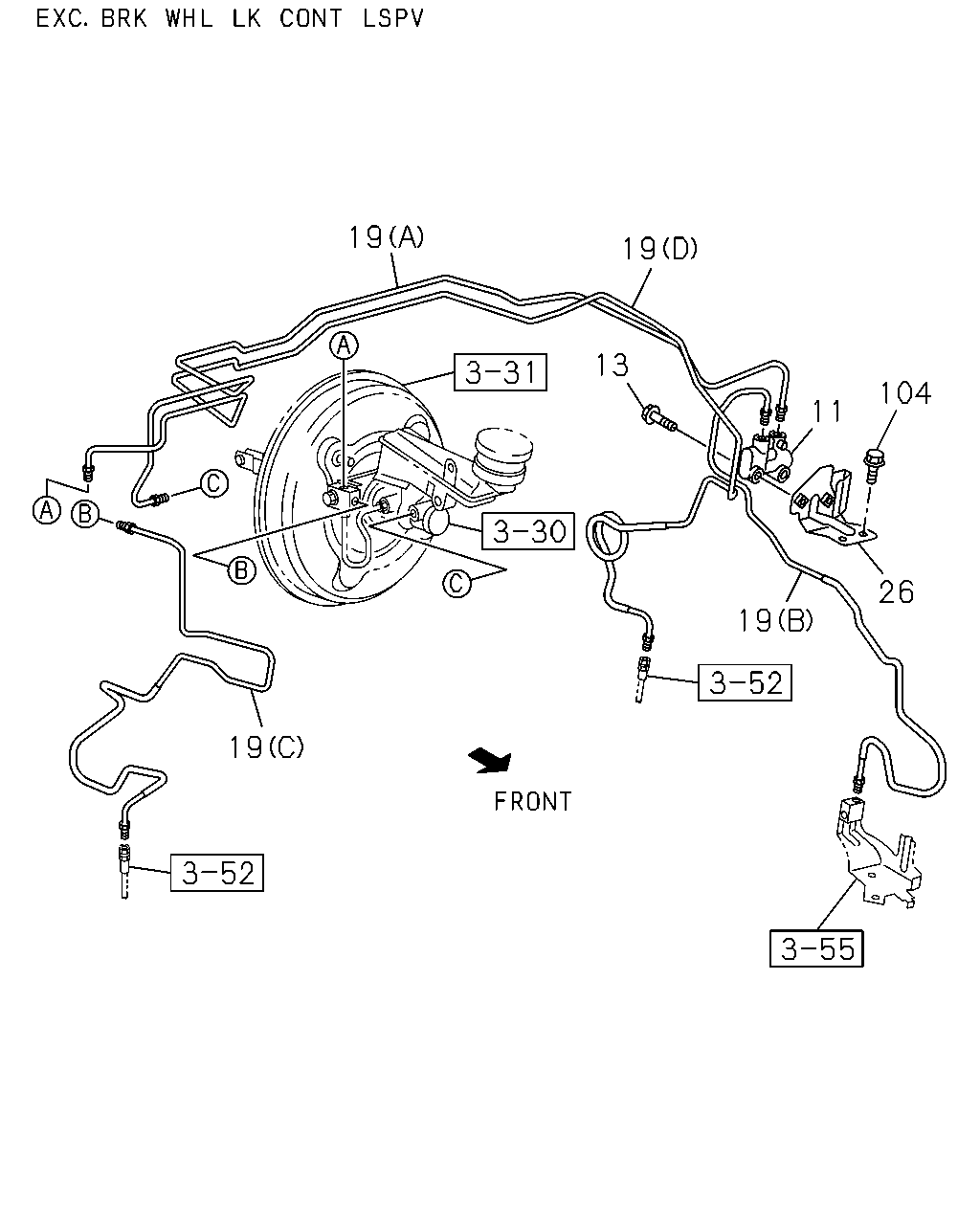

19 19 11 19 13 104 26 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	VALVE; BRK CONT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9>	8-97333-079-0	01	1	1501-	●	●	●
13	BOLT; VLV TO BRKT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> M8X45 FLANGE	0-29260-845-0	02	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (J)	8-98099-736-2	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (E)	8-98099-730-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (H)	8-98099-744-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (I)	8-98159-938-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (O)	8-98099-760-2	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (N)	8-98099-761-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION BRK WHL LK CONT LSPV<JR9> (M)	8-98099-776-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (A)	8-98099-718-4	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (B)	8-98099-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> (D)	8-98221-721-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-98099-727-1	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (K)	8-98099-738-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION ELECTRONIC TRACTION CONTROL<NW9> (L)	8-98099-739-0	01	1	1501-	●		●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (F)	8-98099-731-0	01	1	1501-	●	●	●
19	PIPE; BRK,M/CYL TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. ELECTRONIC TRACTION CONTROL<NW9> (G)	8-98099-732-0	01	1	1501-	●	●	●
26	BRACKET; PROPORTIONING VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9>	8-98101-970-1	01	1	1501-	●	●	●
104	BOLT; BRKT TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHL LK CONTLSPV<JR9> M6X16 FLANGE	0-28650-616-0	02	1	1501-	●	●	●
