Isuzu WW
▶
PICKUP
▶
TFR
▶
51608 - TFR/TFS(MALAYSIA)
▶
3 - Brakes, Brake System
▶
3-30 - BRAKE MASTER CYLINDER
▶

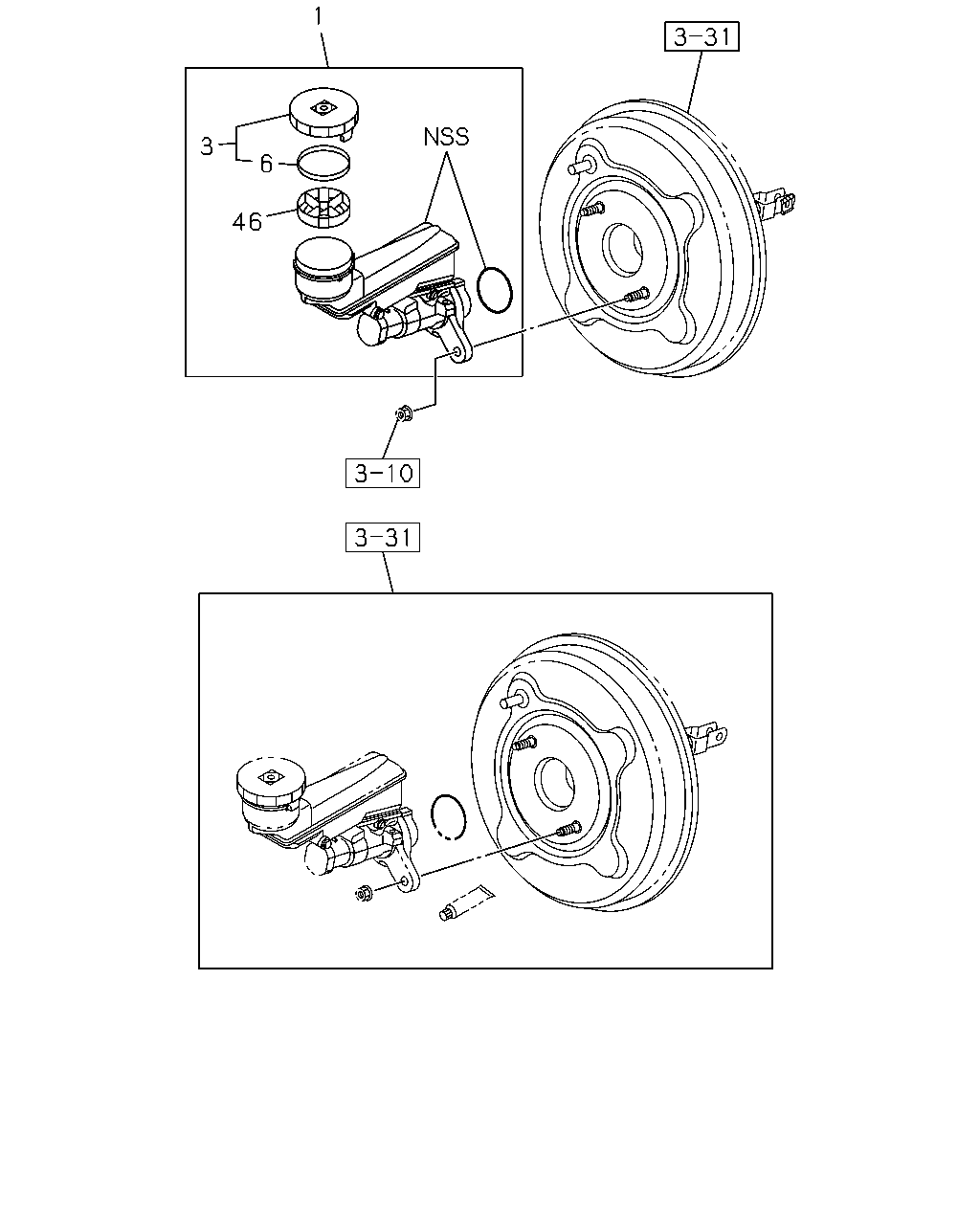

3-30 — BRAKE MASTER CYLINDER
(#155390) — 8 parça
Tümü
A - TFB5WF
B - TFS5WF
C - TFS5SF
3
46
6
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) ELECTRONIC TRACTION CONTROL<NW9>
8-98163-230-0
01
1
1501-
●
●
1
CYLINDER ASM; BRK MASTER
A/T 5 SPEED-AISIN(MA1) EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98163-228-0
01
1
1501-
●
●
1
CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) ELECTRONIC TRACTION CONTROL<NW9>
8-98163-229-0
01
1
1501-
●
●
1
CYLINDER ASM; BRK MASTER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) EXC. ELECTRONIC TRACTION CONTROL<NW9>
8-98163-227-0
01
1
1501-
●
●
1
CYLINDER ASM; BRK MASTER
8-98163-227-0
01
1
1501-
●
3
CAP; OIL TANK
8-98047-704-0
01
1
1501-
●
●
●
6
DIAPHRAGM; BRK M/CYL
8-98047-706-0
01
1
1501-
●
●
●
46
FILTER; OIL TANK,M/CYL
8-98047-702-0
01
1
1501-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
