◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#155388) — 23 parça

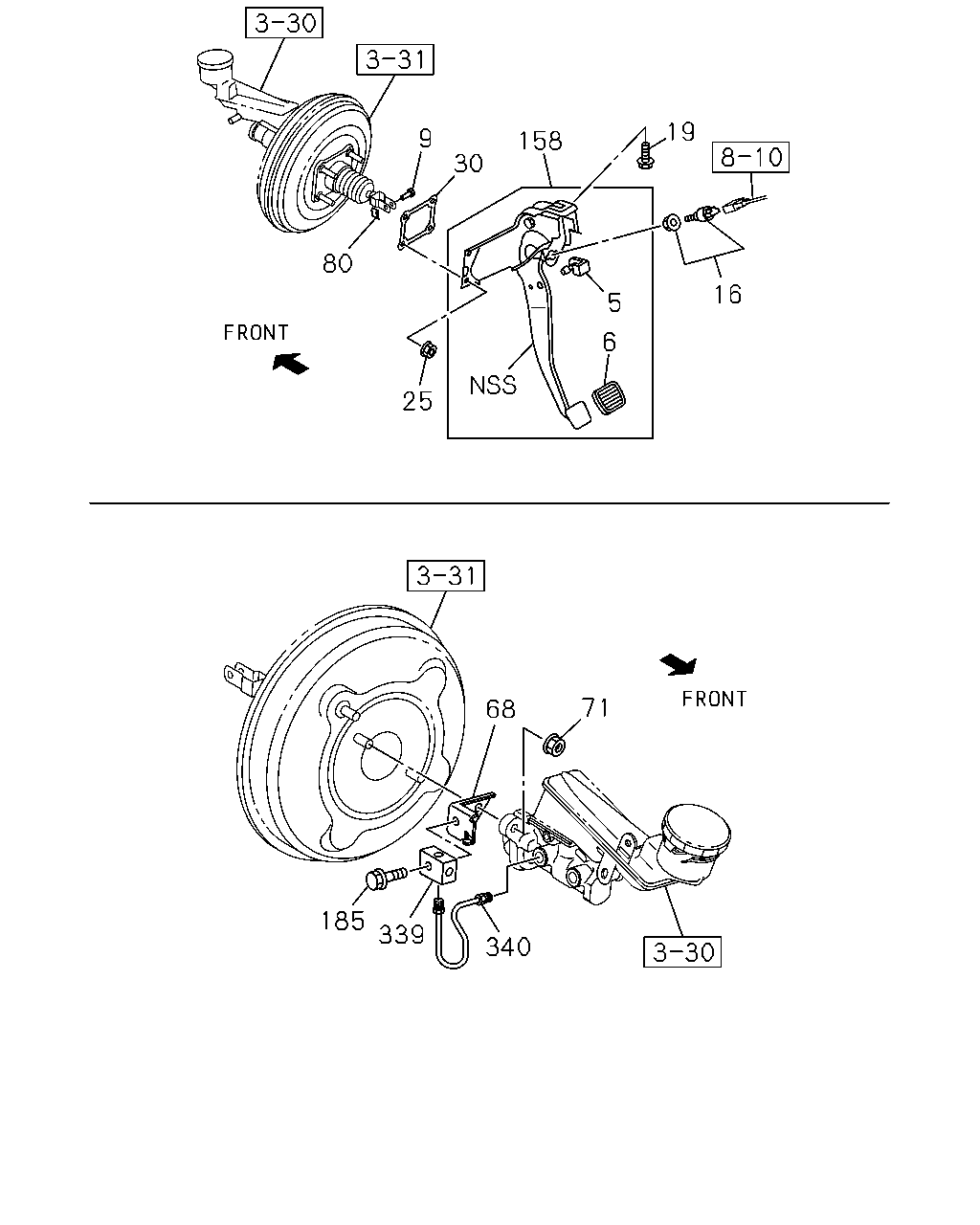

çizim 464332
9 158 19 16 5 6 80 25 71 68 340 339 185 30
BalonParca AdiParca NoAdetTipApplied Date A B C
5 STOPPER; BRK PEDAL 1-73996-231-1 01 1 1501- ● ● ●
6 COVER; BRK PEDAL
A/T 5 SPEED-AISIN(MA1) 		8-97263-035-0 01 1 1501- ● ●
6 COVER; BRK PEDAL
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-97318-799-0 01 1 1501- ● ●
6 COVER; BRK PEDAL 8-97318-799-0 01 1 1501- ●
9 PIN; JAW JOINT 8-97311-602-0 01 1 1501- ● ● ●
16 SWITCH; STOP LAMP
A/T 5 SPEED-AISIN(MA1) 		8-98140-486-0 01 1 1501- ●
16 SWITCH; STOP LAMP
4JJ1-TCX ENG(LS0) EXC. AUTO CRUISE CONT<K30> 		8-98140-486-0 01 1 1501- ●
16 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) A/T 5 SPEED-AISIN(MA1) 		8-98140-486-0 01 1 1501- ●
16 SWITCH; STOP LAMP
M/T MUA 5 SPEED 5H(MWQ) 		8-98140-487-0 01 1 1501- ● ●
16 SWITCH; STOP LAMP
4JJ1-TCX ENG(LS0) AUTO CRUISE CONT<K30> 		8-98140-487-0 01 1 1501- ●
16 SWITCH; STOP LAMP
4JK1-TCX ENG(LR0) M/T MUA 5 SPEED 5H(MWQ) 		8-98140-487-0 01 1 1501- ●
19 BOLT; BRKT
M8X22.5 W/PL WASHER 		8-97947-104-1 01 1 1501- ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 1501- ● ● ●
30 GASKET; M/VAC TO BODY 8-97943-457-0 01 1 1501- ● ● ●
68 BRACKET; SERVO TO DASH PANEL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-234-0 01 1 1501- ● ● ●
71 NUT; BRK M/CYL 8-98031-675-0 02 1 1501- ● ● ●
80 PIN; SNAP,BRK PEDAL 8-98007-161-0 01 1 1501- ● ● ●
158 PEDAL ASM; BRK
A/T 5 SPEED-AISIN(MA1) 		8-98061-818-1 01 1 1501- ● ●
158 PEDAL ASM; BRK
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-98061-817-1 01 1 1501- ● ●
158 PEDAL ASM; BRK 8-98061-817-1 01 1 1501- ●
185 BOLT; BRKT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X35 FLANGE 		8-97947-755-0 01 1 1501- ● ● ●
339 CONNECTOR; OIL PIPE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98163-269-0 01 1 1501- ● ● ●
340 PIPE; BRK M/CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97947-756-0 01 1 1501- ● ● ●
