3-05 — REAR WHEEL BRAKE (#155387) — 30 parça

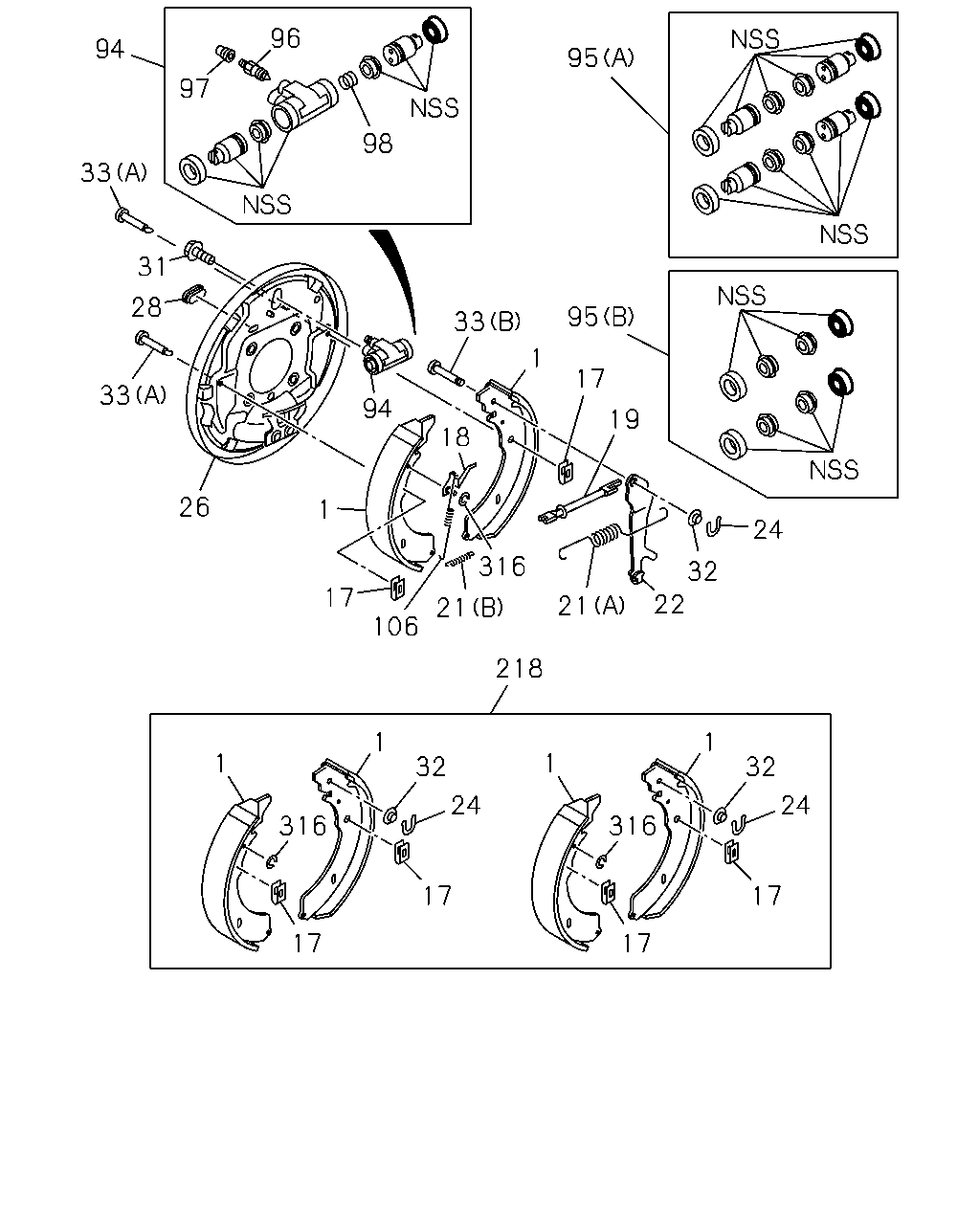

çizim 464331
95 95 19 17 1 33 98 96 97 94 33 31 28 33 26 1 94 17 18 316 21 106 218 21 22 24 32 24 32 1 17 17 316 1 24 32 1 316 17 17 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,RR
TRAILING 		8-97947-766-0 02 1 1501- ● ● ●
1 SHOE; BRK,RR
LEADING 		8-97947-767-0 01 1 1501- ● ● ●
1 SHOE; BRK,RR
LEADING 		8-97947-768-0 01 1 1501- ● ● ●
17 SPRING; SHOE HOLD DOWN 8-98164-787-0 04 1 1501- ● ● ●
18 LEVER; AUTO ADJ 8-97947-474-0 01 1 1501- ● ● ●
18 LEVER; AUTO ADJ 8-97947-475-0 01 1 1501- ● ● ●
19 ADJUSTER; RR BRK 8-97947-402-0 01 1 1501- ● ● ●
19 ADJUSTER; RR BRK 8-97947-403-0 01 1 1501- ● ● ●
21 SPRING; SHOE,RET
(A) 		8-97947-413-0 02 1 1501- ● ● ●
21 SPRING; SHOE,RET
(B) 		8-98008-002-0 02 1 1501- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97947-392-0 01 1 1501- ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK 8-97947-393-0 01 1 1501- ● ● ●
24 RETAINER; PARKING BRK 8-97301-493-0 02 1 1501- ● ● ●
26 PLATE; BACK,RR BRK 8-97947-406-2 01 1 1501- ● ● ●
26 PLATE; BACK,RR BRK 8-97947-407-2 01 1 1501- ● ● ●
28 COVER; ADJ HOLE 8-97301-477-0 04 1 1501- ● ● ●
31 BOLT; RR WHEEL CYL
M6X14 		8-97947-469-0 04 1 1501- ● ● ●
32 WASHER; LK 8-97947-470-0 02 1 1501- ● ● ●
33 PIN; SHOE HOLD DOWN
(A) 		8-97301-509-0 04 1 1501- ● ● ●
33 PIN; SHOE HOLD DOWN
(B) 		8-98008-034-0 02 1 1501- ● ● ●
94 CYLINDER; WHEEL,RR BRK 8-97319-300-0 02 1 1501- ● ● ●
95 CUP SET; RR WHEEL CYL
(A) W/PISTON 		5-87832-068-0 01 1 1501- ● ● ●
95 CUP SET; RR WHEEL CYL
(B) WO/PISTON 		5-87832-247-0 01 1 1501- ● ● ●
96 SCREW; BLEEDER,RR BRK 8-97301-484-0 02 1 1501- ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 8-97301-485-0 02 1 1501- ● ● ●
98 SPRING; RR WHEEL CYL 8-97301-483-0 02 1 1501- ● ● ●
106 SPRING; ADJ LEVER 8-98008-006-0 01 1 1501- ● ● ●
106 SPRING; ADJ LEVER 8-98008-007-0 01 1 1501- ● ● ●
218 SHOE KIT; BRK,RR 8-97947-802-0 01 1 1501- ● ● ●
316 RING; SNAP 8-97330-511-0 02 1 1501- ● ● ●
