◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-66 - MANUAL TRANSFER GEAR; OUTPUT ▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT (#155385) — 47 parça

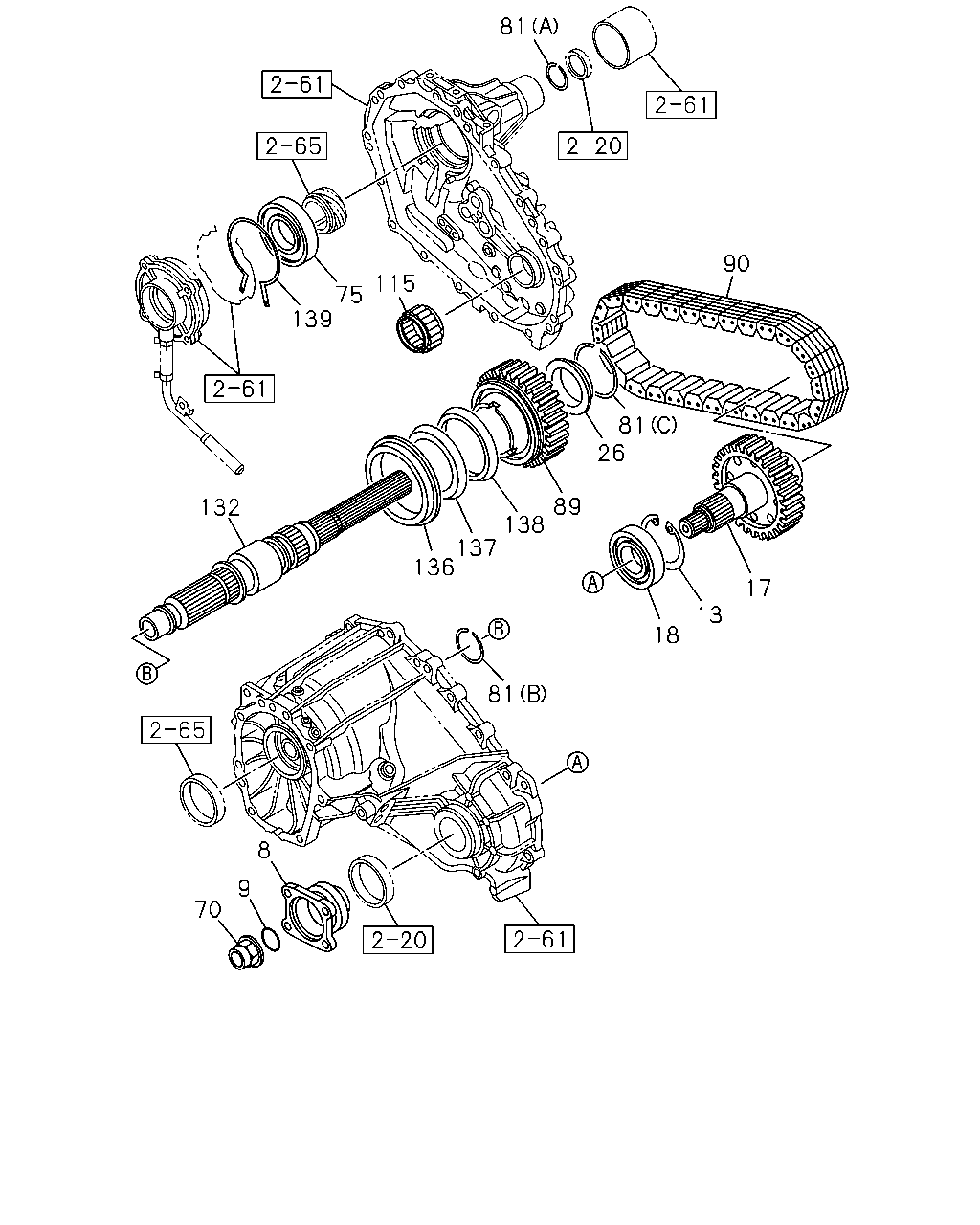

çizim 464305
81 115 75 139 132 90 17 13 18 81 26 89 138 137 136 81 8 9 70
BalonParca AdiParca NoAdetTipApplied Date A B
8 FLANGE; OUTPUT
M/T MUA 5 SPEED 5H(MWQ) 		8-97319-825-2 01 1 1501- ●
8 FLANGE; OUTPUT 8-97319-825-2 01 1 1501- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). M/T MUA 5 SPEED 5H(MWQ). ID=29.7 OD=36.1 		8-94483-035-0 01 1 1501- ●
9 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=29.7 OD=36.1 		8-94483-035-0 01 1 1501- ●
13 RING; SNAP,OUTPUT,FRT
M/T MUA 5 SPEED 5H(MWQ) ID=67 		8-97305-402-0 01 1 1501- ●
13 RING; SNAP,OUTPUT,FRT
ID=67 		8-97305-402-0 01 1 1501- ●
17 SHAFT; OUTPUT
M/T MUA 5 SPEED 5H(MWQ) 		8-97231-853-0 01 1 1501- ●
17 SHAFT; OUTPUT 8-97231-853-0 01 1 1501- ●
18 BEARING; BALL,OUTPUT,FRT
M/T MUA 5 SPEED 5H(MWQ) NSK 		8-94422-172-1 01 1 1501- ●
18 BEARING; BALL,OUTPUT,FRT
NSK 		8-94422-172-1 01 1 1501- ●
26 WASHER; THRUST
M/T MUA 5 SPEED 5H(MWQ) 		8-97239-774-0 01 1 1501- ●
26 WASHER; THRUST 8-97239-774-0 01 1 1501- ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) M36 FLANGE 		8-97358-603-0 01 1 1501- ●
70 NUT; RR OUTPUT SHAFT,TRANSFER
M36 FLANGE 		8-97358-603-0 01 1 1501- ●
75 BEARING; BALL,RR OUTPUT
M/T MUA 5 SPEED 5H(MWQ) 		8-97234-737-0 01 1 1501- ●
75 BEARING; BALL,RR OUTPUT 8-97234-737-0 01 1 1501- ●
81 RING; SNAP
M/T MUA 5 SPEED 5H(MWQ) (A) T=1.9 		8-97305-404-1 01 1 1501- ●
81 RING; SNAP
(A) T=1.9 		8-97305-404-1 01 1 1501- ●
81 RING; SNAP
M/T MUA 5 SPEED 5H(MWQ) (B) T=1.4 		8-97305-405-0 01 1 1501- ●
81 RING; SNAP
(B) T=1.4 		8-97305-405-0 01 1 1501- ●
81 RING; SNAP
M/T MUA 5 SPEED 5H(MWQ) (C) T=2.15 RED 		8-97305-407-0 01 1 1501- ●
81 RING; SNAP
(C) T=2.15 RED 		8-97305-407-0 01 1 1501- ●
81 RING; SNAP
M/T MUA 5 SPEED 5H(MWQ) (C) T=2.10 NON COLOR 		8-97305-408-0 01 1 1501- ●
81 RING; SNAP
(C) T=2.10 NON COLOR 		8-97305-408-0 01 1 1501- ●
81 RING; SNAP
M/T MUA 5 SPEED 5H(MWQ) (C) T=2.05 BLUE 		8-97305-409-0 01 1 1501- ●
81 RING; SNAP
(C) T=2.05 BLUE 		8-97305-409-0 01 1 1501- ●
81 RING; SNAP
M/T MUA 5 SPEED 5H(MWQ) (C) T=2.00 WHITE 		8-97305-410-0 01 1 1501- ●
81 RING; SNAP
(C) T=2.00 WHITE 		8-97305-410-0 01 1 1501- ●
89 SPROCKET; DRIVE
M/T MUA 5 SPEED 5H(MWQ) Z=48 		8-98013-525-0 01 1 1501- ●
89 SPROCKET; DRIVE
Z=48 		8-98013-525-0 01 1 1501- ●
90 CHAIN; DRIVE
M/T MUA 5 SPEED 5H(MWQ) 		8-98275-645-0 01 1 1501- ●
90 CHAIN; DRIVE 8-98275-645-0 01 1 1501- ●
115 BEARING; NEEDLE
M/T MUA 5 SPEED 5H(MWQ) 		8-97234-747-0 01 1 1501- ●
115 BEARING; NEEDLE 8-97234-747-0 01 1 1501- ●
132 SHAFT; MAIN,TRANSFER
A/T 5 SPEED-AISIN(MA1) Z=34-36-26-27 		8-98316-370-0 01 1 1509- ●
132 SHAFT; MAIN,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) Z=34-36-26-27 		8-98013-925-1 01 1 1501-1508 ●
132 SHAFT; MAIN,TRANSFER
Z=34-36-26-27 		8-98013-925-1 01 1 1501-1508 ●
132 SHAFT; MAIN,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) Z=34-36-26-27 		8-98013-925-1 01 1 1509- ●
132 SHAFT; MAIN,TRANSFER
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) Z=34-36-26-27 		8-98013-925-1 01 1 1509- ●
136 BLOCK RING; 2-4
M/T MUA 5 SPEED 5H(MWQ) Z=48 		8-94363-054-1 01 1 1501- ●
136 BLOCK RING; 2-4
Z=48 		8-94363-054-1 01 1 1501- ●
137 RING; OUTSIDE,2-4
M/T MUA 5 SPEED 5H(MWQ) OD=90.0 		8-94363-055-1 01 1 1501- ●
137 RING; OUTSIDE,2-4
OD=90.0 		8-94363-055-1 01 1 1501- ●
138 RING; INSIDE,2-4
M/T MUA 5 SPEED 5H(MWQ) OD=95.8 		8-94363-056-0 01 1 1501- ●
138 RING; INSIDE,2-4
OD=95.8 		8-94363-056-0 01 1 1501- ●
139 RING; RETAINING,RR OUTPUT
M/T MUA 5 SPEED 5H(MWQ) ID=76 		8-97305-012-0 01 1 1501- ●
139 RING; RETAINING,RR OUTPUT
ID=76 		8-97305-012-0 01 1 1501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
