◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-65 - MANUAL TRANSFER GEAR; INPUT AND IDLE ▶
2-65 — MANUAL TRANSFER GEAR; INPUT AND IDLE (#155384) — 33 parça

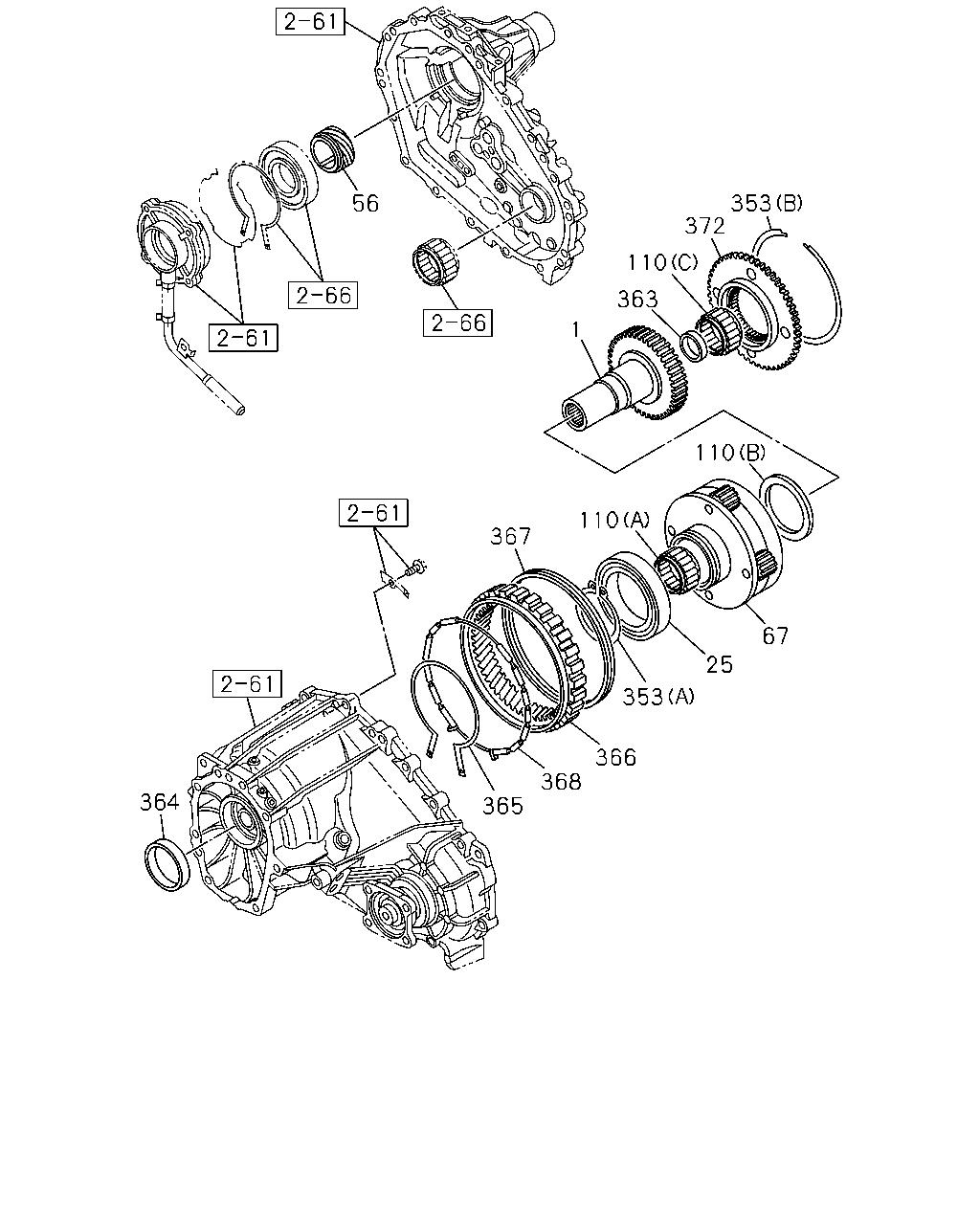

çizim 465091
353 372 110 363 56 110 67 25 353 110 367 366 368 365 364 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H(MWQ) 		8-97373-467-0 01 1 1501- ●
1 SHAFT; GEAR,INPUT
M/T MUA 5 SPEED 5H(MWQ),M/T MUX 5 SPEED 5S(MZJ) 		8-97373-467-0 01 1 1501- ●
1 SHAFT; GEAR,INPUT
A/T 5 SPEED-AISIN(MA1) 		8-98118-924-1 01 1 1501- ●
25 BEARING; BALL,INPUT SHAFT
M/T MUA 5 SPEED 5H(MWQ) NSK 		8-97234-735-0 01 1 1501- ●
25 BEARING; BALL,INPUT SHAFT
NSK 		8-97234-735-0 01 1 1501- ●
56 GEAR; SPD DRIVE,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) Z=6 		8-97238-581-0 01 1 1501- ●
56 GEAR; SPD DRIVE,TRANSFER
Z=6 		8-97238-581-0 01 1 1501- ●
67 CARRIER; TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98158-116-0 01 1 1501- ●
67 CARRIER; TRANSFER 8-98158-116-0 01 1 1501- ●
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97234-739-0 01 1 1501- ●
110 BEARING; NEEDLE
(A) 		8-97234-739-0 01 1 1501- ●
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97234-741-0 01 1 1501- ●
110 BEARING; NEEDLE
(B) 		8-97234-741-0 01 1 1501- ●
110 BEARING; NEEDLE
M/T MUA 5 SPEED 5H(MWQ) (C) 		8-97234-743-0 01 1 1501- ●
110 BEARING; NEEDLE
(C) 		8-97234-743-0 01 1 1501- ●
353 RING; SNAP,CARRIER
M/T MUA 5 SPEED 5H(MWQ) (A) ID=65.5 		8-97305-403-0 01 1 1501- ●
353 RING; SNAP,CARRIER
(A) ID=65.5 		8-97305-403-0 01 1 1501- ●
353 RING; SNAP,CARRIER
M/T MUA 5 SPEED 5H(MWQ) (B) ID=137 		8-97305-406-0 01 1 1501- ●
353 RING; SNAP,CARRIER
(B) ID=137 		8-97305-406-0 01 1 1501- ●
363 CAP; SEAL,INPUT SHAFT
M/T MUA 5 SPEED 5H(MWQ) 		8-97238-725-0 01 1 1501- ●
363 CAP; SEAL,INPUT SHAFT 8-97238-725-0 01 1 1501- ●
364 SEAL; OIL,COVER,INPUT
M/T MUA 5 SPEED 5H(MWQ) NOK 		8-97238-999-0 01 1 1501- ●
364 SEAL; OIL,COVER,INPUT
NOK 		8-97238-999-0 01 1 1501- ●
365 RING; RETAINING,OUTER INPUT
M/T MUA 5 SPEED 5H(MWQ) ID=97 		8-97305-010-1 01 1 1501- ●
365 RING; RETAINING,OUTER INPUT
ID=97 		8-97305-010-1 01 1 1501- ●
366 GEAR; INTERNAL,HIGH-LOW
M/T MUA 5 SPEED 5H(MWQ) Z=27 		8-97231-831-2 01 1 1501- ●
366 GEAR; INTERNAL,HIGH-LOW
Z=27 		8-97231-831-2 01 1 1501- ●
367 RING; RETAINING,SPIRAL TYPE
M/T MUA 5 SPEED 5H(MWQ) ID=162 OD=176 		8-97247-459-0 01 1 1501- ●
367 RING; RETAINING,SPIRAL TYPE
ID=162 OD=176 		8-97247-459-0 01 1 1501- ●
368 RING; DAMPER,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) ID=168.4 OD=178 		8-97320-914-0 01 1 1501- ●
368 RING; DAMPER,TRANSFER
ID=168.4 OD=178 		8-97320-914-0 01 1 1501- ●
372 TEETH; DOG,PLANETARY
M/T MUA 5 SPEED 5H(MWQ) Z=56 		8-97358-244-0 01 1 1501- ●
372 TEETH; DOG,PLANETARY
Z=56 		8-97358-244-0 01 1 1501- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
