◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-62 - TRANSFER SIDE CASE AND SHIFT LEVER ▶

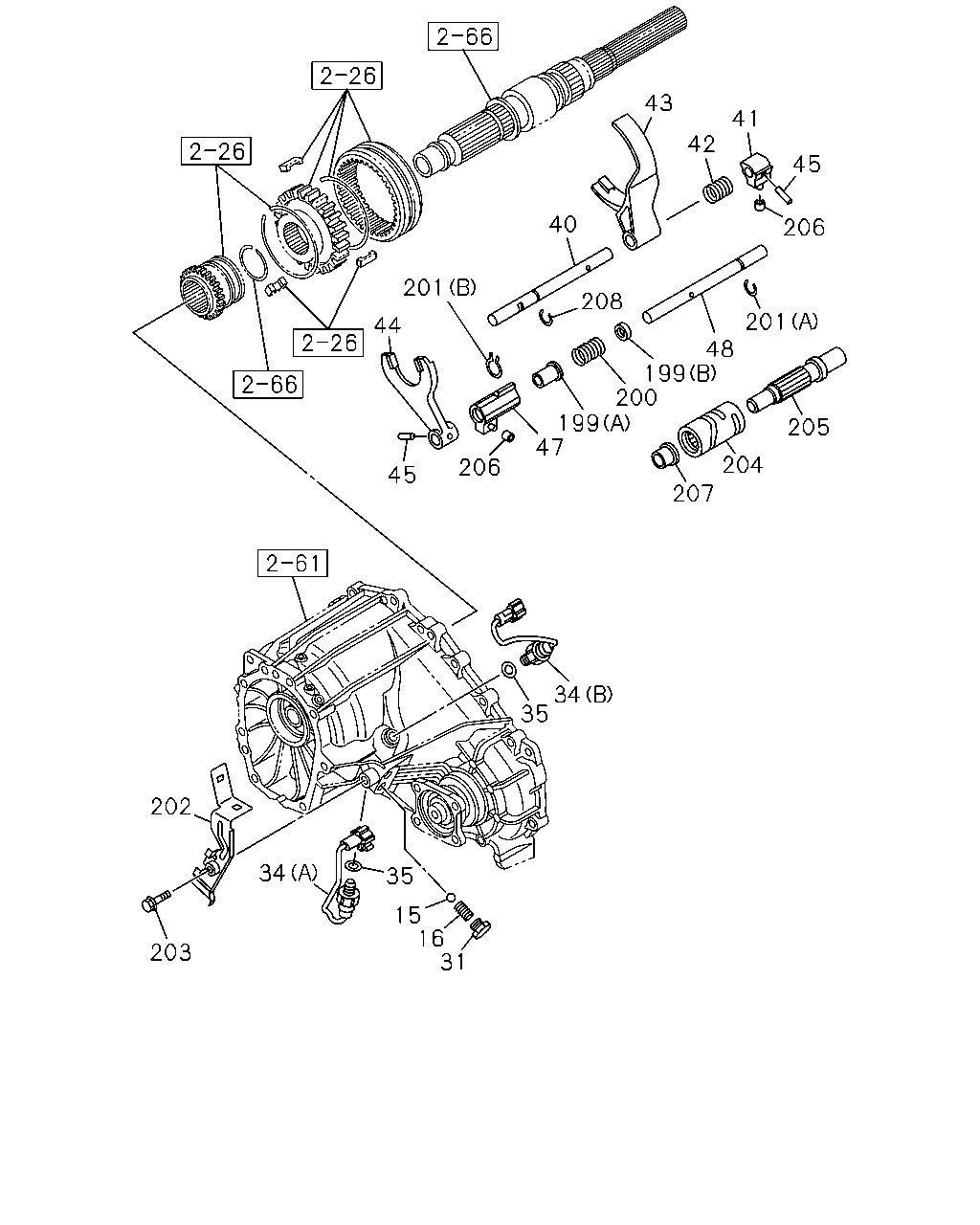

2-62 — TRANSFER SIDE CASE AND SHIFT LEVER (#155383) — 52 parça
çizim 464317
43 42 41 45 206 201 48 205 204 207 199 200 199 208 40 47 206 45 201 44 35 34 31 16 15 35 34 202 203
BalonParca AdiParca NoAdetTipApplied Date A B
15 BALL; DETENT,SHIFT ROD,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-94435-335-0 02 1 1501- ●
15 BALL; DETENT,SHIFT ROD,TRANSFER 8-94435-335-0 02 1 1501- ●
16 SPRING; DETENT,SHIFT ROD,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) L=23.4 		8-97145-374-0 02 1 1501- ●
16 SPRING; DETENT,SHIFT ROD,TRANSFER
L=23.4 		8-97145-374-0 02 1 1501- ●
31 PLUG; DETENT BALL,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) M12X9 		0-92002-412-0 02 1 1501- ●
31 PLUG; DETENT BALL,TRANSFER
M12X9 		0-92002-412-0 02 1 1501- ●
34 SWITCH; TRANSFER INDICATOR
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-98181-233-0 01 1 1501- ●
34 SWITCH; TRANSFER INDICATOR
(A) 		8-98181-233-0 01 1 1501- ●
34 SWITCH; TRANSFER INDICATOR
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98181-234-0 01 1 1501- ●
34 SWITCH; TRANSFER INDICATOR
(B) 		8-98181-234-0 01 1 1501- ●
35 GASKET; INDICATOR SWITCH,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) ID=14.2 OD=20.0 		9-09571-414-0 02 1 1501- ●
35 GASKET; INDICATOR SWITCH,TRANSFER
ID=14.2 OD=20.0 		9-09571-414-0 02 1 1501- ●
40 ROD; SHIFT,4X2-4X4,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-97234-229-0 01 1 1501- ●
40 ROD; SHIFT,4X2-4X4,TRANSFER 8-97234-229-0 01 1 1501- ●
41 BLOCK; SHIFT,4X2-4X4,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-97234-233-1 01 1 1501- ●
41 BLOCK; SHIFT,4X2-4X4,TRANSFER 8-97234-233-1 01 1 1501- ●
42 SPRING; GEAR LOCK RELEASE,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-97239-010-1 01 1 1501- ●
42 SPRING; GEAR LOCK RELEASE,TRANSFER 8-97239-010-1 01 1 1501- ●
43 ARM; SHIFT,4X2-4X4,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-97234-231-0 01 1 1501- ●
43 ARM; SHIFT,4X2-4X4,TRANSFER 8-97234-231-0 01 1 1501- ●
44 ARM; SHIFT,HIGH-LOW,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-97300-106-1 01 1 1501- ●
44 ARM; SHIFT,HIGH-LOW,TRANSFER 8-97300-106-1 01 1 1501- ●
45 PIN; SPR,SHIFT ARM TO ROD
M/T MUA 5 SPEED 5H(MWQ) D=4.2 L=25 		8-94171-541-0 02 1 1501- ●
45 PIN; SPR,SHIFT ARM TO ROD
D=4.2 L=25 		8-94171-541-0 02 1 1501- ●
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98161-034-0 01 1 1501- ●
47 BLOCK; SHIFT,LOW-HIGH,TRANSFER 8-98161-034-0 01 1 1501- ●
48 ROD; SHIFT,HIGH-LOW,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-97234-230-0 01 1 1501- ●
48 ROD; SHIFT,HIGH-LOW,TRANSFER 8-97234-230-0 01 1 1501- ●
199 COLLAR; TRANSFER CONTROL
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97234-662-1 01 1 1501- ●
199 COLLAR; TRANSFER CONTROL
(A) 		8-97234-662-1 01 1 1501- ●
199 COLLAR; TRANSFER CONTROL
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97234-663-1 01 1 1501- ●
199 COLLAR; TRANSFER CONTROL
(B) 		8-97234-663-1 01 1 1501- ●
200 SPRING; SHIFT HIGH-LOW
M/T MUA 5 SPEED 5H(MWQ) 		8-97239-011-0 01 1 1501- ●
200 SPRING; SHIFT HIGH-LOW 8-97239-011-0 01 1 1501- ●
201 RING; SNAP,SHIFT
M/T MUA 5 SPEED 5H(MWQ) (A) ID=12 		8-94460-357-0 01 1 1501- ●
201 RING; SNAP,SHIFT
(A) ID=12 		8-94460-357-0 01 1 1501- ●
201 RING; SNAP,SHIFT
M/T MUA 5 SPEED 5H(MWQ) (B) ID=23 		8-97305-011-1 01 1 1501- ●
201 RING; SNAP,SHIFT
(B) ID=23 		8-97305-011-1 01 1 1501- ●
202 BRACKET; SWITCH
M/T MUA 5 SPEED 5H(MWQ) 		8-98118-922-1 01 1 1501- ●
202 BRACKET; SWITCH 8-98118-922-1 01 1 1501- ●
203 BOLT; BRACKET,SWITCH
M/T MUA 5 SPEED 5H(MWQ) M8X25 FLANGE 		0-28650-825-0 01 1 1501- ●
203 BOLT; BRACKET,SWITCH
M8X25 FLANGE 		0-28650-825-0 01 1 1501- ●
204 DRUM; SHIFT
M/T MUA 5 SPEED 5H(MWQ) 		8-98158-123-0 01 1 1501- ●
204 DRUM; SHIFT 8-98158-123-0 01 1 1501- ●
205 SHAFT; SHIFT DRUM
M/T MUA 5 SPEED 5H(MWQ) 		8-98063-364-1 01 1 1501- ●
205 SHAFT; SHIFT DRUM 8-98063-364-1 01 1 1501- ●
206 ROLLER; GUIDE,SHIFT
M/T MUA 5 SPEED 5H(MWQ) 		8-97234-499-0 02 1 1501- ●
206 ROLLER; GUIDE,SHIFT 8-97234-499-0 02 1 1501- ●
207 BUSH; CONTROL SHAFT
M/T MUA 5 SPEED 5H(MWQ) 		8-98158-124-0 01 1 1501- ●
207 BUSH; CONTROL SHAFT 8-98158-124-0 01 1 1501- ●
208 RING; SNAP,SHIFT
M/T MUA 5 SPEED 5H(MWQ) ID=12 		8-94460-357-0 01 1 1501- ●
208 RING; SNAP,SHIFT
ID=12 		8-94460-357-0 01 1 1501- ●
