2-61 — TRANSFER CASE AND GEAR SHIFTER (#155382) — 42 parça

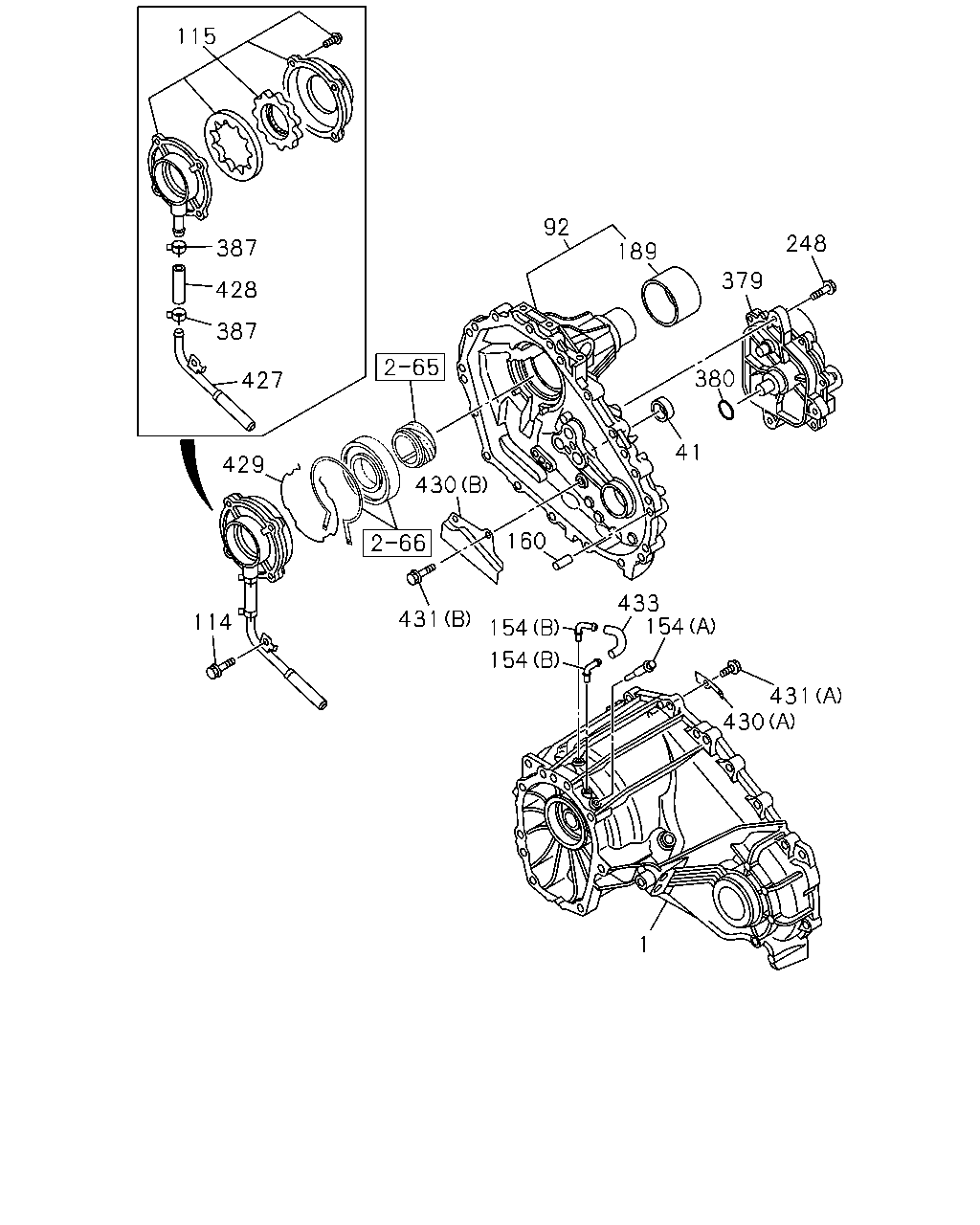

çizim 464313
115 387 428 387 427 429 114 431 154 154 433 154 431 430 1 41 380 379 248 189 92 430 160
BalonParca AdiParca NoAdetTipApplied Date A B
1 CASE; TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98177-505-0 01 1 1501- ●
1 CASE; TRANSFER 8-98177-505-0 01 1 1501- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). M/T MUA 5 SPEED 5H(MWQ). 		8-97238-998-0 01 1 1501- ●
41 SEAL; OIL,SHIFT ROD
ALSO INCLUDED IN REPAIR KIT(T/F). 		8-97238-998-0 01 1 1501- ●
92 COVER; RR,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98118-921-0 01 1 1501- ●
92 COVER; RR,TRANSFER 8-98118-921-0 01 1 1501- ●
114 BOLT; OIL PUMP,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) M8X20 FLANGE 		0-28650-820-0 01 1 1501- ●
114 BOLT; OIL PUMP,TRANSFER
M8X20 FLANGE 		0-28650-820-0 01 1 1501- ●
115 PUMP ASM; OIL,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-98029-157-0 01 1 1501- ●
115 PUMP ASM; OIL,TRANSFER 8-98029-157-0 01 1 1501- ●
154 PIPE; BREATHER
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-97358-318-0 02 1 1501- ●
154 PIPE; BREATHER
(B) 		8-97358-318-0 02 1 1501- ●
154 PIPE; BREATHER
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97358-319-0 01 1 1501- ●
154 PIPE; BREATHER
(A) 		8-97358-319-0 01 1 1501- ●
160 PIN; KNOCK,SHIFT CASE
M/T MUA 5 SPEED 5H(MWQ) OD=10 L=20 		8-97135-423-0 02 1 1501- ●
160 PIN; KNOCK,SHIFT CASE
OD=10 L=20 		8-97135-423-0 02 1 1501- ●
189 COVER; DUST,OIL SEAL
M/T MUA 5 SPEED 5H(MWQ) 		8-98173-748-0 01 1 1501- ●
189 COVER; DUST,OIL SEAL 8-98173-748-0 01 1 1501- ●
248 BOLT
M/T MUA 5 SPEED 5H(MWQ) M8X30 FLANGE 		0-28650-830-0 03 1 1501- ●
248 BOLT
M8X30 FLANGE 		0-28650-830-0 03 1 1501- ●
379 ACTUATOR; TRANSFER,2-4 SHIFT
M/T MUA 5 SPEED 5H(MWQ) 		8-98196-415-0 01 1 1501- ●
379 ACTUATOR; TRANSFER,2-4 SHIFT 8-98196-415-0 01 1 1501- ●
380 GASKET; ACTUATOR
M/T MUA 5 SPEED 5H(MWQ) ID=29.7 OD=36.7 		8-97318-475-0 01 1 1501- ●
380 GASKET; ACTUATOR
ID=29.7 OD=36.7 		8-97318-475-0 01 1 1501- ●
387 CLAMP; HOSE
M/T MUA 5 SPEED 5H(MWQ) ID=16 		8-97329-628-0 02 1 1501- ●
387 CLAMP; HOSE
ID=16 		8-97329-628-0 02 1 1501- ●
427 SCREEN; OIL PUMP
M/T MUA 5 SPEED 5H(MWQ) 		8-98063-358-0 01 1 1501- ●
427 SCREEN; OIL PUMP 8-98063-358-0 01 1 1501- ●
428 HOSE; OIL PUMP
M/T MUA 5 SPEED 5H(MWQ) L=50 		8-98064-220-0 01 1 1501- ●
428 HOSE; OIL PUMP
L=50 		8-98064-220-0 01 1 1501- ●
429 RING; SNAP,OIL PUMP
M/T MUA 5 SPEED 5H(MWQ) 		8-97240-666-0 01 1 1501- ●
429 RING; SNAP,OIL PUMP 8-97240-666-0 01 1 1501- ●
430 PLATE; BAFFLE
M/T MUA 5 SPEED 5H(MWQ) (A) 		8-97239-130-0 01 1 1501- ●
430 PLATE; BAFFLE
(A) 		8-97239-130-0 01 1 1501- ●
430 PLATE; BAFFLE
M/T MUA 5 SPEED 5H(MWQ) (B) 		8-98063-360-0 01 1 1501- ●
430 PLATE; BAFFLE
(B) 		8-98063-360-0 01 1 1501- ●
431 BOLT; BAFFLE PLATE
M/T MUA 5 SPEED 5H(MWQ) (A) M6X16 FLANGE 		0-28650-616-0 01 1 1501- ●
431 BOLT; BAFFLE PLATE
(A) M6X16 FLANGE 		0-28650-616-0 01 1 1501- ●
431 BOLT; BAFFLE PLATE
M/T MUA 5 SPEED 5H(MWQ) (B) M8X20 FLANGE 		0-28650-820-0 02 1 1501- ●
431 BOLT; BAFFLE PLATE
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1501- ●
433 HOSE; AIR,TRANSFER
M/T MUA 5 SPEED 5H(MWQ) 		8-97236-080-0 01 1 1501- ●
433 HOSE; AIR,TRANSFER 8-97236-080-0 01 1 1501- ●
