◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-53 - TRANSMISSION OIL COOLER SYSTEM ▶
2-53 — TRANSMISSION OIL COOLER SYSTEM (#155378) — 11 parça

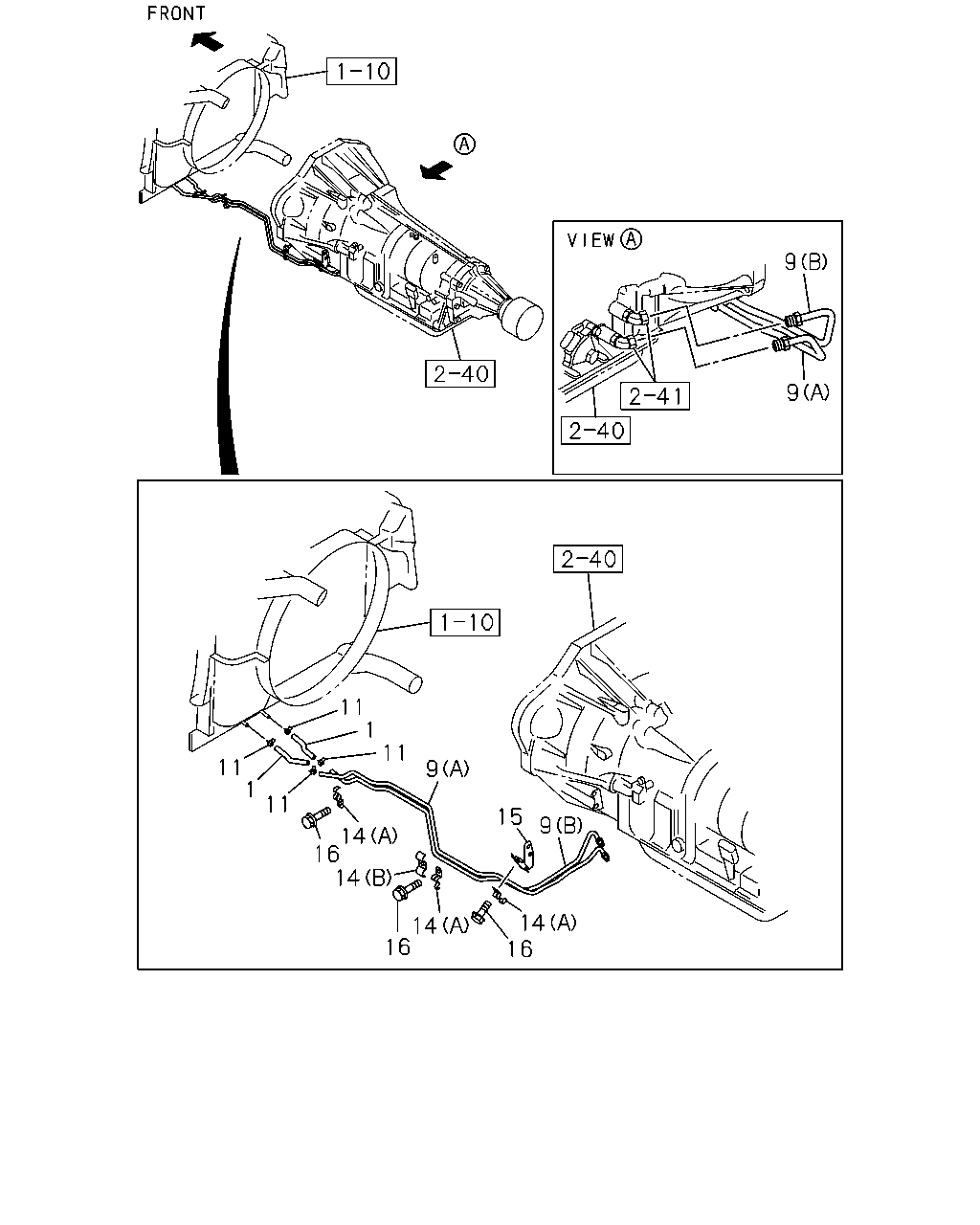

çizim 464312
11 1 11 9 15 9 14 16 14 16 14 14 16 11 1 11 9 9
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; ATF
L=180 SERVICED BY L=3000 		0-02259-300-0 02 1 1501-
9 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) INLET 		8-98100-272-2 01 1 1501-
9 PIPE; ATF,INL,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) (B) RETURN 		8-98100-274-2 01 1 1501-
9 PIPE; ATF,INL,A/T
4X4 CREW CAB(TFS*W*) (A) INLET 		8-98221-531-2 01 1 1501-
9 PIPE; ATF,INL,A/T
4X4 CREW CAB(TFS*W*) (B) RETURN 		8-98221-532-2 01 1 1501-
11 CLIP; PIPE 8-98008-165-0 04 1 1501-
14 CLIP; PIPE TO ENG SIDE
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) 		8-98008-163-0 03 1 1501-
14 CLIP; PIPE TO ENG SIDE
4X4 CREW CAB(TFS*W*) (A) 		8-98008-163-0 02 1 1501-
14 CLIP; PIPE TO ENG SIDE
4X4 CREW CAB(TFS*W*) (B) 		8-98232-374-0 01 1 1501-
15 BRACKET; ATF PIPE 8-98100-277-0 01 1 1501-
16 BOLT; CLIP,ENG SIDE
M8X16 FLANGE 		0-28050-816-0 03 1 1501-
