Isuzu WW
▶
PICKUP
▶
TFR
▶
51608 - TFR/TFS(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-49 - AUTO TRANS INHIBITOR SWITCH
▶

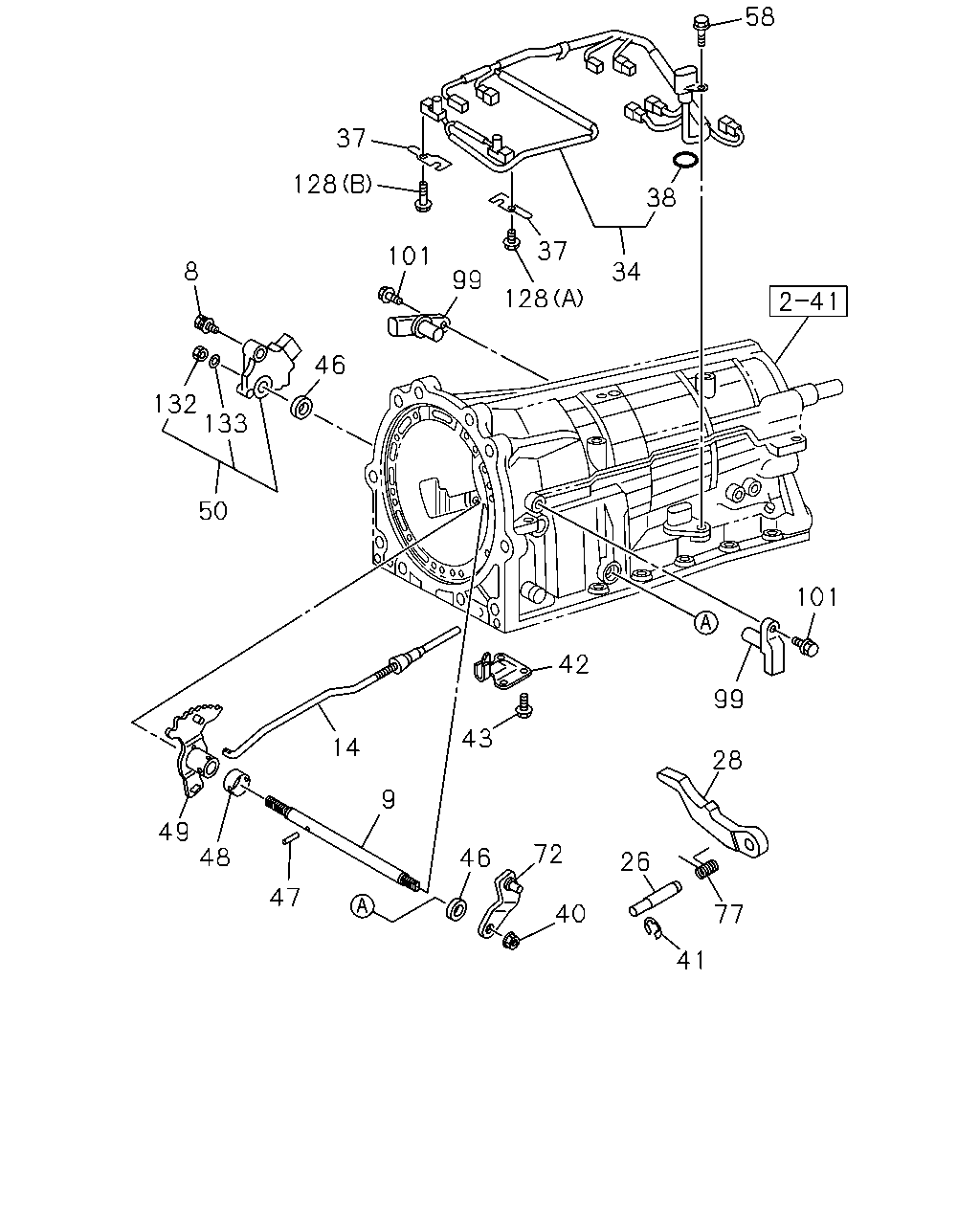

2-49 — AUTO TRANS INHIBITOR SWITCH
(#155377) — 26 parça
58
38
34
37
128
99
101
128
37
101
99
28
41
77
26
40
72
42
43
46
9
14
47
48
49
50
133
132
8
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
BOLT; NEUTRAL START SW,A/T
M8X30
8-97130-929-0
01
1
1501-
9
SHAFT; MANUAL,A/T
8-98189-472-0
01
1
1501-
14
ROD ASM; PARKING,A/T
8-98189-508-0
01
1
1501-
26
SHAFT; PARKING PAWL,A/T
8-98189-505-0
01
1
1501-
28
PAWL; PARKING,A/T
8-98189-507-0
01
1
1501-
34
SOLENOID ASM; A/T
8-98189-470-0
01
1
1501-
37
CLAMP; SOLENOID,A/T
8-98189-741-0
02
1
1501-
38
GASKET; SOLENOID INNER
ID=22
8-98189-471-0
01
1
1501-
40
NUT; LEVER TO SHAFT
CREW CAB(TF**W*) M8 FLANGE
0-91180-108-0
01
1
1501-
41
RETAINER; SPR,SHAFT
5-34488-002-0
01
1
1501-
42
BRACKET; PARKING LOCK
8-98189-509-0
01
1
1501-
43
BOLT; BRKT
M6X14
8-94479-978-0
03
1
1501-
46
SEAL; OIL
OD=22
8-94479-740-0
02
1
1501-
47
PIN; ROLL SHAFT
D=4
8-94257-081-0
01
1
1501-
48
COVER; SLEEVE
8-97362-483-0
01
1
1501-
49
LEVER ASM; CAM
8-98189-504-0
01
1
1501-
50
SWITCH; NEUTRAL,A/T
8-98189-469-0
01
1
1501-
58
BOLT; SOLENOID TO A/T
M6X16
8-94479-712-0
01
1
1501-
72
LEVER; SELECT CONT
CREW CAB(TF**W*)
8-98077-401-0
01
1
1501-
77
SPRING; TORSION,PARKING BRK LK,A/T
8-98189-506-0
01
1
1501-
99
SENSOR; SPD
8-98189-474-0
02
1
1501-
101
BOLT; SPD SENSOR
M6X14
8-94479-978-0
02
1
1501-
128
BOLT; CLAMP
(A) M6X36
8-94473-630-0
04
1
1501-
128
BOLT; CLAMP
(B) M6X12
8-94479-927-0
01
1
1501-
132
NUT; SWITCH
M16
8-97354-883-0
01
1
1501-
133
WASHER; SWITCH
ID=16
8-97354-889-0
01
1
1501-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
