2-48 — AUTO TRANS MULTIPLE-DISC CLUTCH (#155376) — 76 parça

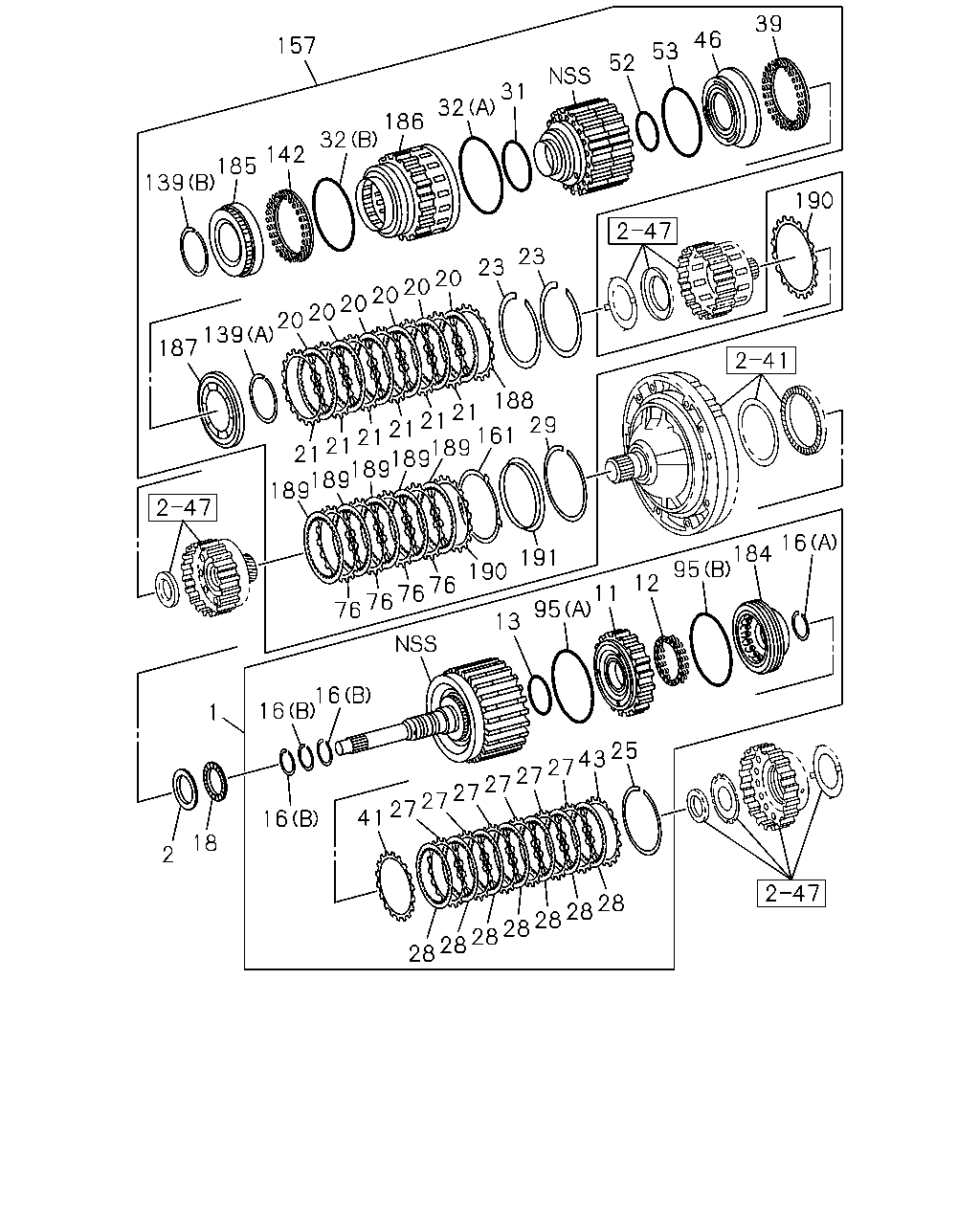

çizim 464535
157 139 185 142 32 186 32 31 52 53 46 39 190 23 23 20 20 20 20 20 20 139 187 21 21 21 21 21 21 188 161 189 189 189 189 189 76 191 190 76 76 76 1 2 41 16 18 27 27 27 27 27 27 28 43 25 28 28 28 28 28 28 95 12 11 95 13 184 16 16 16 29
BalonParca AdiParca NoAdetTipApplied Date
1 HUB ASM; CLU,INPUT SHAFT,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) 		8-98189-762-0 01 1 1501-
1 HUB ASM; CLU,INPUT SHAFT,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) 		8-98189-510-0 01 1 1501-
2 RACE; THRUST BRG,A/T 8-98189-534-0 01 1 1501-
11 PISTON ASM; CLU,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) 		8-98189-764-0 01 1 1501-
11 PISTON ASM; CLU,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) 		8-98189-512-0 01 1 1501-
12 SPRING; CLU RETURN,A/T 8-98189-515-0 01 1 1501-
13 GASKET; INNER,CLU,A/T
ID=40 		8-98189-513-0 01 1 1501-
16 RING; SNAP,CLU,A/T
(A) ID=35 		8-98189-518-0 01 1 1501-
16 RING; SNAP,CLU,A/T
(B) ID=29 		8-98189-533-0 03 1 1501-
18 BEARING; THRUST,CLU,A/T 8-98189-535-0 01 1 1501-
20 DISC; CLU,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) OD=162 		8-98189-559-0 05 1 1501-
20 DISC; CLU,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) OD=162 		8-98189-559-0 06 1 1501-
21 DISC ASM; CLU & FACING,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) ID=149 		8-98189-558-0 05 1 1501-
21 DISC ASM; CLU & FACING,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) ID=149 		8-98189-558-0 06 1 1501-
23 RING; RET,CLU,A/T
ID=160 		8-98189-576-0 02 1 1501-
25 RING; RET,BACKING PLATE,A/T
ID=115 		8-98189-532-0 01 1 1501-
27 DISC ASM; CLU & FACING,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) T=1.8 		8-98189-520-0 05 1 1501-
27 DISC ASM; CLU & FACING,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) T=1.8 		8-98189-520-0 06 1 1501-
28 DISC; CLU,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) OD=120 		8-98189-519-0 06 1 1501-
28 DISC; CLU,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) OD=120 		8-98189-519-0 07 1 1501-
29 RING; SNAP,CLU,A/T
ID=171 		8-98189-597-0 01 1 1501-
31 GASKET; CLU,INNER,A/T
ID=101 		8-98189-586-0 01 1 1501-
32 GASKET; CLU,OUTER,A/T
(A) ID=142 		8-98189-582-0 01 1 1501-
32 GASKET; CLU,OUTER,A/T
(B) ID=140 		8-98189-585-0 01 1 1501-
39 SPRING; DIRECT CLU RETURN 8-98189-543-0 01 1 1501-
41 FLANGE; DIRECT CLU
T=3.0 		8-98189-521-0 01 1 1501-
43 FLANGE; FWD CLU
T=3.0 		8-98189-521-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.1 		8-98189-522-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.2 		8-98189-523-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.3 		8-98189-524-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.4 		8-98189-525-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.5 		8-98189-526-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.6 		8-98189-527-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.7 		8-98189-528-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.8 		8-98189-529-0 AR 1 1501-
43 FLANGE; FWD CLU
T=3.9 		8-98189-530-0 AR 1 1501-
43 FLANGE; FWD CLU
T=4.0 		8-98189-531-0 AR 1 1501-
46 PISTON; DIRECT CLU,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) 		8-98189-766-0 01 1 1501-
46 PISTON; DIRECT CLU,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) 		8-98189-540-0 01 1 1501-
52 GASKET; PISTON INNER,DIRECT CLU,A/T
ID=75 		8-98189-542-0 01 1 1501-
53 GASKET; PISTON OUTER,DIRECT CLU,A/T
ID=126.7 		8-98189-541-0 01 1 1501-
76 PLATE; 3RD CLU
T=2.4 		8-98189-591-0 04 1 1501-
95 GASKET; CLU HUB
(A) ID=108 		8-98189-514-0 01 1 1501-
95 GASKET; CLU HUB
(B) ID=107 		8-98189-517-0 01 1 1501-
139 RING; SNAP
(A) ID=64 		8-98189-557-0 01 1 1501-
139 RING; SNAP
(B) ID=79 		8-98189-589-0 01 1 1501-
142 SPRING; CLU 8-98189-587-0 01 1 1501-
157 CLUTCH ASM; A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) 		8-98189-765-0 01 1 1501-
157 CLUTCH ASM; A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) 		8-98189-538-0 01 1 1501-
161 PLATE; CLU
T=1.5 		8-98189-595-0 01 1 1501-
184 BALANCER; CLUTCH NO 1 8-98189-516-0 01 1 1501-
185 BALANCER; CLUTCH NO 3 8-98189-588-0 01 1 1501-
186 PISTON; REVERSE CLUTCH 8-98189-579-0 01 1 1501-
187 BALANCER; CLUTCH NO 2 8-98189-556-0 01 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.0 		8-98189-560-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.1 		8-98189-561-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.2 		8-98189-562-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.3 		8-98189-563-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.4 		8-98189-564-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.5 		8-98189-565-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.6 		8-98189-566-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.7 		8-98189-568-0 AR 1 1501-
188 FLANGE; REVERSE CLUTCH
T=3.8 		8-98189-572-0 AR 1 1501-
189 DISC; CLUTCH NO 3
OD=162 		8-98189-590-0 05 1 1501-
190 FLANGE; CLUTCH
T=3.0 		8-98189-560-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.1 		8-98189-561-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.2 		8-98189-562-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.3 		8-98189-563-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.4 		8-98189-564-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.5 		8-98189-565-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.6 		8-98189-566-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.7 		8-98189-568-0 AR 1 1501-
190 FLANGE; CLUTCH
T=3.8 		8-98189-572-0 AR 1 1501-
190 FLANGE; CLUTCH
T=2.8 		8-98189-592-0 AR 1 1501-
190 FLANGE; CLUTCH
T=2.9 		8-98189-594-0 AR 1 1501-
191 SLEEVE; CLUTCH 8-98189-596-0 01 1 1501-
