2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#155375) — 57 parça

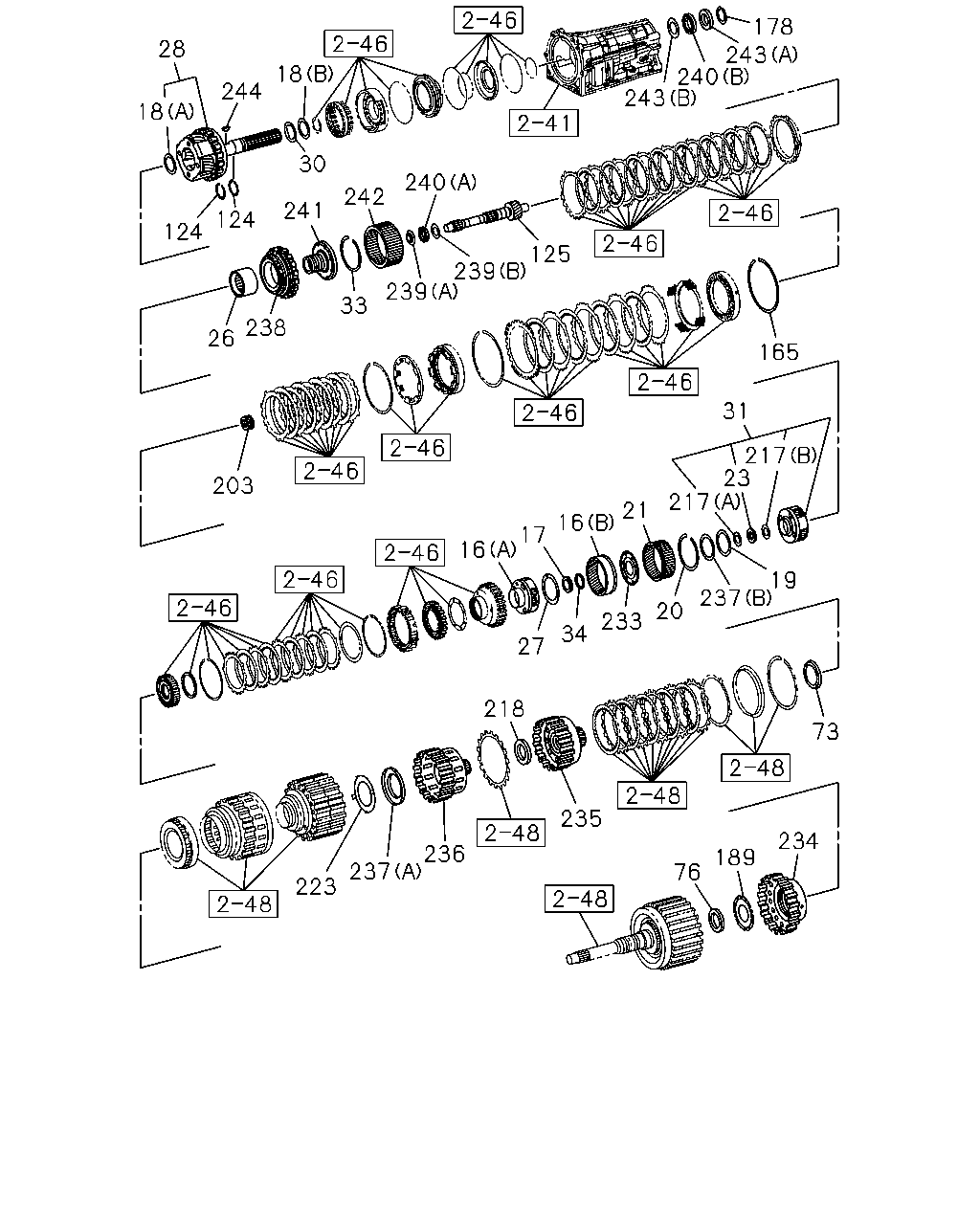

çizim 464519
178 243 240 243 18 244 18 28 124 124 241 242 240 125 239 239 33 238 26 203 16 17 16 21 217 23 217 31 165 27 34 233 20 237 19 218 223 237 236 235 76 189 234 30 73
BalonParca AdiParca NoAdetTipApplied Date
16 GEAR ASM; FRT PLANETARY,A/T
(A) 		8-98189-682-0 01 1 1501-
16 GEAR ASM; FRT PLANETARY,A/T
(B) 		8-98189-686-0 01 1 1501-
17 RACE; THRUST BRG,PLANETARY SHAFT,A/T
ID=38 		8-98189-684-0 01 1 1501-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(A) 		8-98189-708-0 01 1 1501-
18 BEARING; THRUST,RR PLANETARY GEAR,A/T
(B) 		8-98189-712-0 01 1 1501-
19 RACE; THRUST BRG,PLANETARY SHAFT,A/T 8-98189-692-0 01 1 1501-
20 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-691-0 01 1 1501-
21 GEAR; PLANETARY,INTERNAL FRT,A/T 8-98189-688-0 01 1 1501-
23 BEARING; THRUST,PLANETARY SHAFT,A/T 8-98189-695-0 01 1 1501-
26 RACE; ONEWAY CLU,A/T 8-98189-701-0 01 1 1501-
27 WASHER; THRUST,FRT PLANETARY,A/T
ID=64 		8-98189-683-0 01 1 1501-
28 GEAR ASM; RR PLANETARY,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-707-0 01 1 1501-
28 GEAR ASM; RR PLANETARY,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-774-0 01 1 1501-
28 GEAR ASM; RR PLANETARY,A/T
4X4 CREW CAB(TFS*W*) 		8-98189-784-0 01 1 1501-
30 RACE; THRUST BRG,RR PLANETARY FLANGE 8-98189-711-0 01 1 1501-
31 GEAR ASM; INTERNAL,PLANETARY,A/T 8-98189-694-0 01 1 1501-
33 RING; RET,PLANETARY GEAR,A/T
T=1.4 		8-98189-710-0 01 1 1501-
34 BEARING; THRUST,FRT PLANETARY SHAFT,A/ 8-98189-685-0 01 1 1501-
73 WASHER; THRUST,CARRIER
ID=74 		8-98189-679-0 01 1 1501-
76 BEARING; THRUST,CARRIER 8-98189-673-0 01 1 1501-
124 RING; SLEEVE,OIL SEAL,RR PLANETARY GEA
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=33 		8-98189-775-0 02 1 1501-
125 SHAFT ASM; INTERMEDIATE,PLANETARY GEAR 8-98189-698-0 01 1 1501-
165 RING; RET
ID=151 		8-98189-702-0 01 1 1501-
178 RING; RET
4X2(TFB***) 4JK1-TCX ENG(LR0) ID=34 		8-98189-730-0 01 1 1501-
189 RACE; INNER,LOW CLU
ID=23 		8-98189-670-0 01 1 1501-
203 GEAR; SUN
Z=31 		8-98189-699-0 01 1 1501-
217 RACE; THRUST BRG,INTERNAL GEAR
(A) 		8-98189-696-0 01 1 1501-
217 RACE; THRUST BRG,INTERNAL GEAR
(B) 		8-98189-697-0 01 1 1501-
218 BEARING; THRUST,INTERNAL GEAR 8-98189-680-0 01 1 1501-
223 RACE; BRG,CARRIER 8-98189-675-0 01 1 1501-
233 FLANGE; FR PLANETARY 8-98189-687-0 01 1 1501-
234 HUB; FORWARD CLUTCH 8-98189-674-0 01 1 1501-
235 HUB; REVERSE CLUTCH 8-98189-681-0 01 1 1501-
236 HUB; CLUTCH 8-98189-678-0 01 1 1501-
237 BEARING; THRUST
(A) 		8-98189-676-0 01 1 1501-
237 BEARING; THRUST
(B) 		8-98189-693-0 01 1 1501-
238 CLUTCH ASM; 1WAY 8-98189-700-0 01 1 1501-
239 RACE; INTERMEDIATE SHAFT
(A) 		8-98189-703-0 01 1 1501-
239 RACE; INTERMEDIATE SHAFT
(B) 		8-98189-704-0 01 1 1501-
240 BEARING; THRUST NEEDLE ROLLER
4X2(TFB***) 4JK1-TCX ENG(LR0) (B) 		8-98189-729-0 01 1 1501-
240 BEARING; THRUST NEEDLE ROLLER
(A) 		8-98189-705-0 01 1 1501-
241 FLANGE; RR PLANETARY 8-98189-706-0 01 1 1501-
242 GEAR; RR PLANETARY 8-98189-709-0 01 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=3.8 		8-98189-716-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=3.9 		8-98189-717-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.0 		8-98189-718-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.1 		8-98189-719-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.2 		8-98189-720-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=3.85 		8-98189-721-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=3.95 		8-98189-722-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.05 		8-98189-723-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.15 		8-98189-724-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.25 		8-98189-725-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.30 		8-98189-726-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) T=4.35 		8-98189-727-0 AR 1 1501-
243 RACE; THRUST BEARING
4X2(TFB***) 4JK1-TCX ENG(LR0) (B) T=2.0 		8-98189-728-0 01 1 1501-
244 KEY; WOODRUF,PLANETARY GEAR
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94479-904-0 01 1 1501-
