2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#155371) — 53 parça

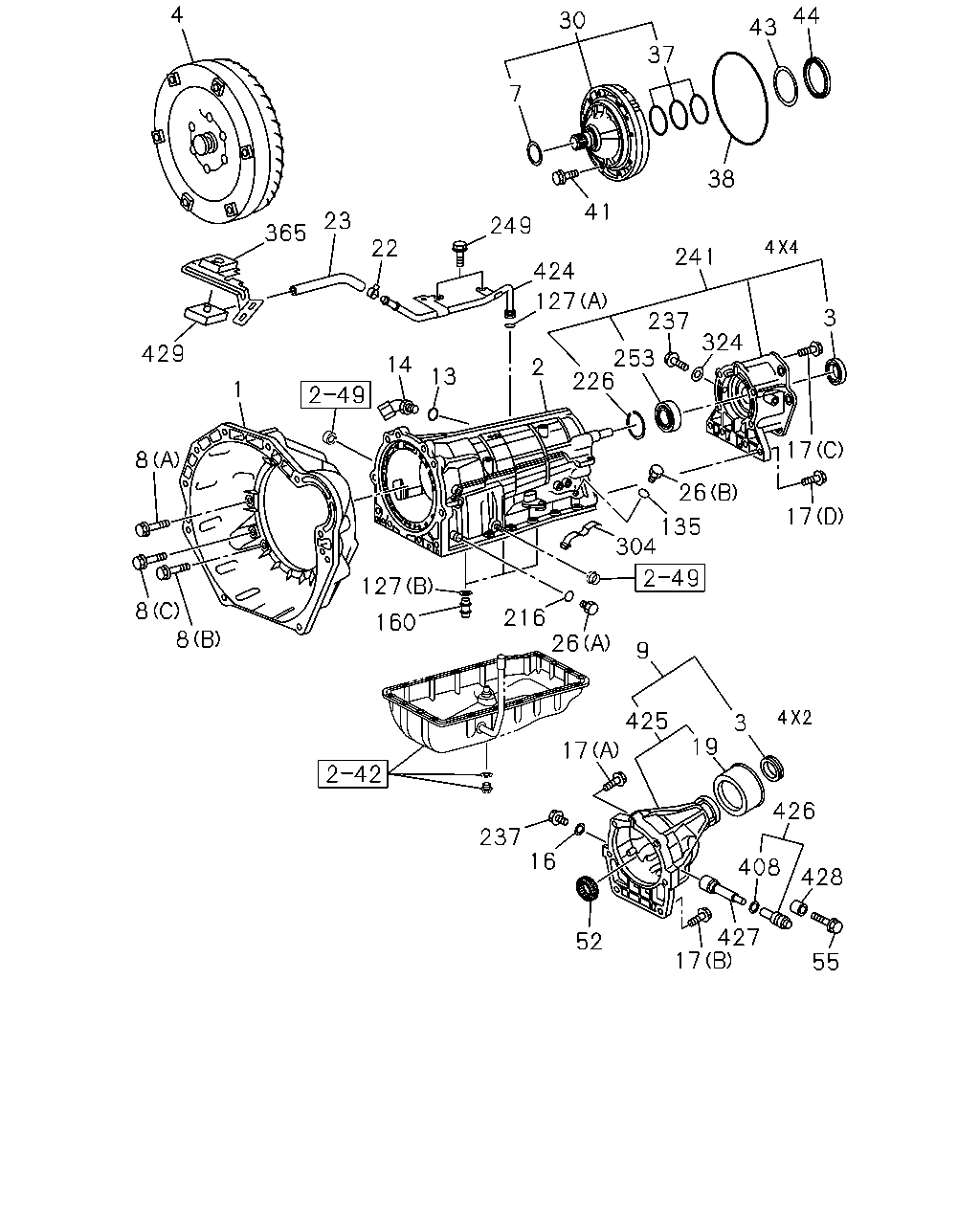

çizim 464402
30 43 44 37 7 41 38 241 424 249 22 23 365 429 14 13 2 253 127 237 324 3 17 17 26 135 304 216 127 160 8 8 8 1 17 19 425 3 9 26 408 426 428 55 427 17 52 237 16 226 4
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; CONV,A/T 8-98189-468-0 01 1 1501-
2 CASE ASM; A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) 		8-98189-485-0 01 1 1501-
2 CASE ASM; A/T
4X4 CREW CAB(TFS*W*) 		8-98189-783-0 01 1 1501-
3 SEAL; OIL,RR COVER,A/T 8-98189-757-0 01 1 1501-
4 CONVERTER ASM; TORQUE,A/T
CREW CAB(TF**W*) 4JK1-TCX ENG(LR0) 		8-98189-761-0 01 1 1501-
4 CONVERTER ASM; TORQUE,A/T
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) 		8-98189-467-0 01 1 1501-
7 SEAL; OIL,LIP,A/T 8-98189-493-0 01 1 1501-
8 BOLT; HSG TO CASE
(A) M10X35 		8-90257-082-0 06 1 1501-
8 BOLT; HSG TO CASE
(B) M10X35 		8-98189-486-0 02 1 1501-
8 BOLT; HSG TO CASE
(C) M12X38 		8-98189-487-0 02 1 1501-
9 COVER ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-754-0 01 1 1501-
9 COVER ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-777-0 01 1 1501-
13 GASKET; OIL COOLER PIPE
ID=11.7 		8-94479-724-0 02 1 1501-
14 UNION; OIL COOLER RETURN PIPE 8-98189-473-0 02 1 1501-
16 GASKET; EXT HSG
4X2(TFB***) 4JK1-TCX ENG(LR0) ID=15.4 		8-98189-759-0 01 1 1501-
17 BOLT; REAR COVER TO CASE
4X2(TFB***) 4JK1-TCX ENG(LR0) (A) M10X45 		8-94473-632-0 04 1 1501-
17 BOLT; REAR COVER TO CASE
4X2(TFB***) 4JK1-TCX ENG(LR0) (B) M10X35 		8-94479-951-0 02 1 1501-
17 BOLT; REAR COVER TO CASE
4X4 CREW CAB(TFS*W*) (C) M8X45 		8-94479-858-0 01 1 1501-
17 BOLT; REAR COVER TO CASE
4X4 CREW CAB(TFS*W*) (D) M10X50 		8-94479-935-0 08 1 1501-
19 COVER; DUST,REAR COVER
4X2(TFB***) 4JK1-TCX ENG(LR0) 		8-98189-756-0 01 1 1501-
22 CLIP; BREATHER HOSE,A/T
ID=11 		8-97173-219-0 01 1 1501-
23 HOSE; BREATHER,A/T
L=220 SERVICED BY L=3000 		0-02857-300-0 01 1 1501-
26 PLUG; TRANS CASE
(A) 		5-34119-002-0 05 1 1501-
26 PLUG; TRANS CASE
(B) M14X12 		8-98189-490-0 01 1 1501-
30 PUMP ASM; OIL,A/T 8-98189-491-0 01 1 1501-
37 RING; SEAL,OIL PUMP,A/T
ID=63 		8-98189-492-0 03 1 1501-
38 GASKET; OIL PUMP,A/T
ID=218 		8-98189-494-0 01 1 1501-
41 BOLT; OIL PUMP HSG,A/T
M8X40 		8-97141-759-0 10 1 1501-
43 RACE; THRUST BRG,OIL PUMP,A/T
ID=74 		8-98189-495-0 01 1 1501-
44 BEARING; THRUST,OIL PUMP,A/T 8-98189-496-0 01 1 1501-
52 GEAR; SPD DRIVE
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-771-0 01 1 1501-
55 BOLT; COVER
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X14 W/WASHER 		8-94480-043-0 01 1 1501-
127 GASKET; CASE TO COVER
(A) ID=5 		8-98189-476-0 01 1 1501-
127 GASKET; CASE TO COVER
(B) ID=10 		8-98189-488-0 03 1 1501-
135 GASKET; PLUG,A/T CASE
ID=11.7 		8-94479-724-0 01 1 1501-
160 GASKET; BRK DRUM,A/T 8-98189-489-0 03 1 1501-
216 GASKET; SOLENOID OUTER
ID=6 		5-34119-001-0 05 1 1501-
226 RING; SNAP
4X4 CREW CAB(TFS*W*) ID=67 		8-98189-790-0 01 1 1501-
237 PLUG; COVER 8-98189-760-0 01 1 1501-
241 ADAPTER; A/T
4X4 CREW CAB(TFS*W*) 		8-98189-788-0 01 1 1501-
249 BOLT; BRKT
M6X10 		8-94252-680-0 02 1 1501-
253 BEARING; BALL,COVER
4X4 CREW CAB(TFS*W*) 		8-98189-789-0 01 1 1501-
304 SPRING; LEAF,A/T 8-98189-484-0 01 1 1501-
324 GASKET; PLUG,REAR COVER
4X4 CREW CAB(TFS*W*) ID=15.4 		8-98189-759-0 01 1 1501-
365 BRACKET; BREATHER HOSE,A/T
CREW CAB(TF**W*) 		8-98161-920-1 01 1 1501-
408 GASKET; SPEED SENSOR
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=19 		8-97181-545-0 01 1 1501-
424 TUBE; BREATHER 8-98189-475-0 01 1 1501-
425 COVER SUB ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-755-0 01 1 1501-
425 COVER SUB ASM; RR,A/T
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-778-0 01 1 1501-
426 SLEEVE; SPEED METER
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97181-543-0 01 1 1501-
427 GEAR; SPEED METER
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=19 		8-98189-772-0 01 1 1501-
428 PLATE; SLEEVE
4X2(TFB***) 4JK1-TCX ENG(LR0) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98189-773-0 01 1 1501-
429 CLIP; BREATHER HOSE
CREW CAB(TF**W*) 		8-98161-881-0 01 1 1501-
