Isuzu WW
▶
PICKUP
▶
TFR
▶
51608 - TFR/TFS(MALAYSIA)
▶
2 - Clutch, Transmission, Trans Axle
▶

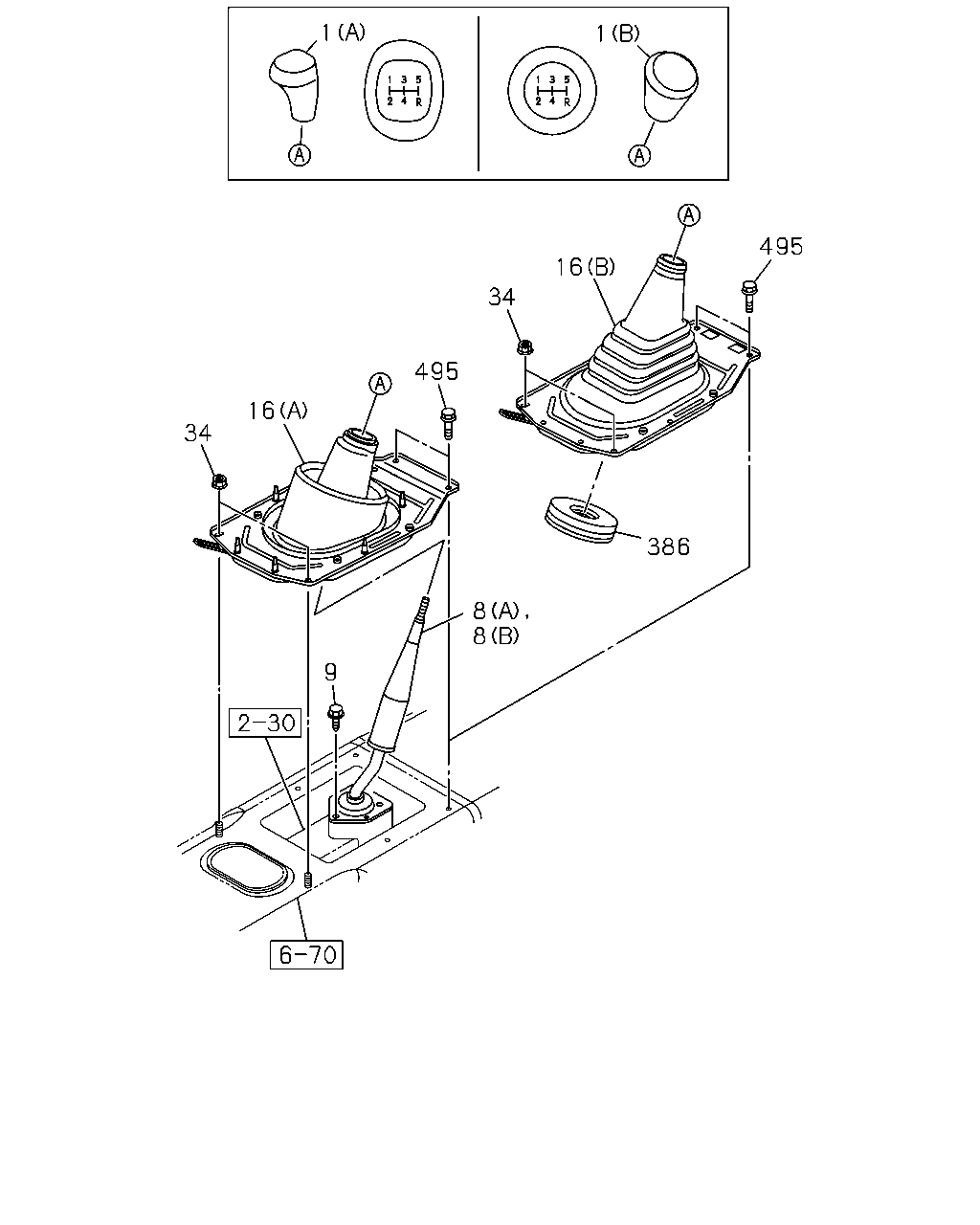

2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#155369) — 16 parça
Tümü
A - M/T MUA 5 SPEED 5H
B - M/T MUX 5 SPEED 5S
◀
[235A] NO.1 (12 parça)
[235A] NO.2 (4 parça)
▶
1
1
495
16
34
495
16
34
8
8
386
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
KNOB; CHANGE LEVER
SHIFT KNOB SPORTS<KAE> (A) BLACK
8-97416-791-3
01
1
1501-
●
●
1
KNOB; CHANGE LEVER
SHIFT KNOB SILVER INSERT<KH1> (A) SILVER
8-97423-313-0
01
1
1501-
●
●
1
KNOB; CHANGE LEVER
EXC. SHIFT KNOB SPORTS<KAE>,SHIFT KNOB SILVER INSERT<KH1> (B)
8-97371-734-0
01
1
1501-
●
●
8
LEVER; CHANGE
(A)
8-98202-733-1
01
1
1501-
●
8
LEVER; CHANGE
(B)
8-98201-972-1
01
1
1501-
●
9
BOLT; CHANGE LEVER
M8X20 FLANGE
0-28650-820-0
03
1
1501-
●
9
BOLT; CHANGE LEVER
M8X20 FLANGE
0-28650-820-0
04
1
1501-
●
16
BOOT; CHANGE LEVER
CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (A)
8-98186-367-0
01
1
1501-
●
●
16
BOOT; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55> (B)
8-98186-369-0
01
1
1501-
●
●
34
NUT
M6 FLANGE
8-98055-704-0
02
1
1501-
●
●
386
INSULATION; CHANGE LEVER
EXC. CUSTOM FRONT CONSOLE<D07>,FRONT CONSOLE W/LID<D55>
8-98191-338-0
01
1
1501-
●
●
495
SCREW; GROMMET
M6X16 FLANGE
0-28650-616-0
02
1
1501-
●
●
8
8
22
24
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
8
LEVER; CHANGE
(A)
8-98202-733-1
01
1
1501-
●
8
LEVER; CHANGE
(B)
8-98201-972-1
01
1
1501-
●
22
COVER; DUST,CHANGE LEVER
8-97945-801-0
01
1
1501-
●
24
BUSHING; CHANGE LEVER
8-97943-618-0
01
1
1501-
●
●
