2-30 — GEAR SHIFTER AND QUADRANT BOX (#155368) — 85 parça

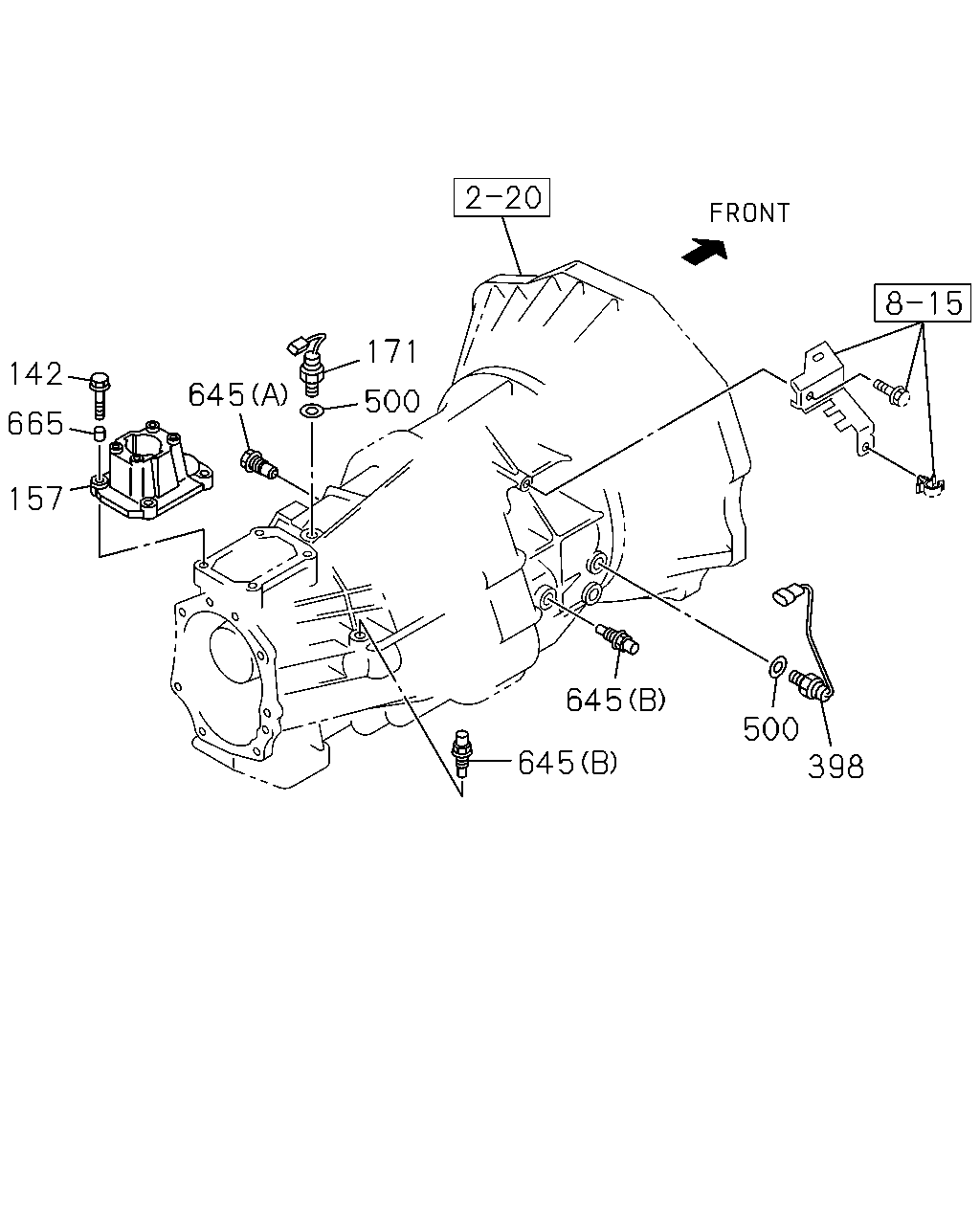

142 665 157 645 500 171 645 645 500 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1501-	●
142	BOLT; QUAD BOX M8X35 FLANGE	0-28650-835-0	04	1	1501-		●
157	BOX; QUAD,TRANS	8-98094-798-1	01	1	1501-		●
171	SWITCH; NEUTRAL	8-98103-743-0	01	1	1501-	●
171	SWITCH; NEUTRAL	8-98180-974-0	01	1	1501-		●
398	SWITCH; REV LAMP	8-98103-750-0	01	1	1501-	●
398	SWITCH; REV LAMP	8-98180-973-0	01	1	1501-		●
500	GASKET; SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0	9-09571-414-0	02	1	1501-		●
645	DETENT ASM (A)	8-97362-469-2	01	1	1501-		●
645	DETENT ASM (B)	8-98019-536-0	02	1	1501-		●
665	DOWEL OD=11 L=8	9-11229-058-1	02	1	1501-		●

262 288 271 268 271 289 261 459 22 132 248 274 172 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	CAP; RETURN SPR,SHIFT BLOCK	8-97181-326-0	02	1	1501-	●
132	SPRING; SELECT STOP	8-97181-395-0	02	1	1501-	●
171	SWITCH; NEUTRAL	8-98103-743-0	01	1	1501-	●
171	SWITCH; NEUTRAL	8-98180-974-0	01	1	1501-		●
172	GASKET; NEUTRAL SW ID=14.2	8-94462-114-0	01	1	1501-	●
248	RETAINER; CONT BOX	8-98210-983-0	02	1	1501-	●
261	ROD; GEAR CONT	8-97257-909-0	01	1	1501-	●
261	ROD; GEAR CONT	8-97362-444-0	01	1	1501-		●
262	BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1501-	●
268	LEVER; CONT,INTERNAL	8-97184-895-0	01	1	1501-	●
271	BUSHING; QUAD BOX ID=14 L=12	8-98017-908-0	02	1	1501-	●
274	COVER; SHAFT,QUAD BOX	8-97181-324-1	01	1	1501-	●
288	PLUG; AIR BREATHER	9-00097-517-0	01	1	1501-	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX	8-98017-744-0	01	1	1501-	●
459	PIN; SPR,ROD TO ARM OD=5	8-97184-905-0	01	1	1501-	●

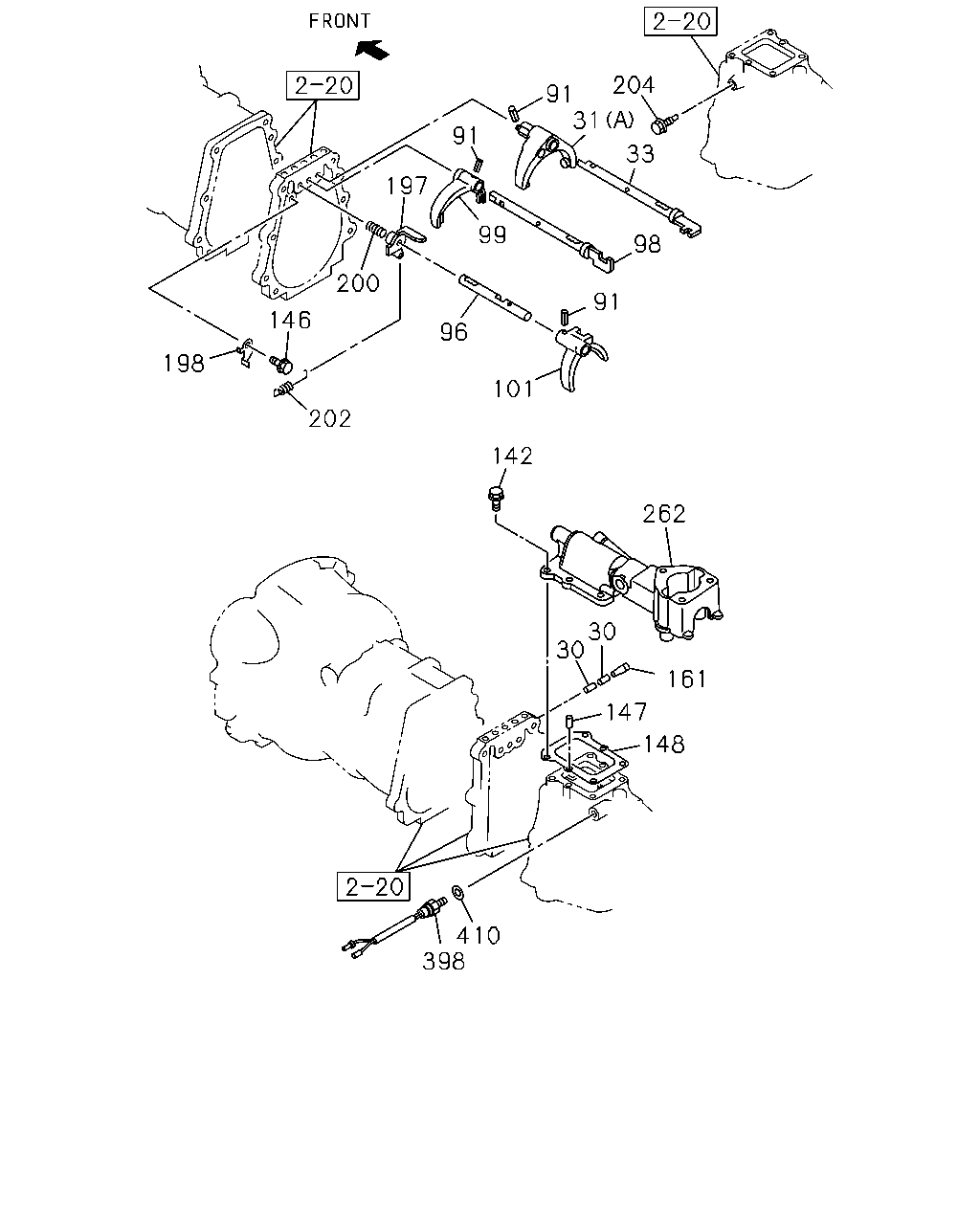

204 91 33 31 98 91 197 99 91 96 101 142 262 30 30 161 147 148 410 398 202 198 146 200

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	PIN; INTER LK OD=5.5 L=10	5-33534-002-1	02	1	1501-	●
31	ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	1501-	●
31	ARM; SHIFT,LOW & 2ND (B)	8-97362-435-0	01	1	1501-		●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1501-	●
33	ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1501-		●
91	PIN; SPR,SHIFT ARM D=4.2 L=25	8-94171-541-0	03	1	1501-	●
96	ROD; SHIFT,5TH	8-97232-886-0	01	1	1501-	●
98	ROD; SHIFT,TOP & 3RD	8-97019-060-3	01	1	1501-	●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1501-	●
99	ARM; SHIFT,4TH & 3RD	8-97362-439-2	01	1	1501-		●
101	ARM; SHIFT,REV & 5TH	8-97232-894-0	01	1	1501-	●
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1501-	●
142	BOLT; QUAD BOX M8X35 FLANGE	0-28650-835-0	04	1	1501-		●
146	BOLT; REV INHIBITOR M8X20 FLANGE	0-28650-820-0	01	1	1501-	●
147	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1501-	●
148	GASKET; QUAD BOX ALSO INCLUDED IN GASKET SET(M/T).	8-97083-599-0	01	1	1501-	●
161	PLUG; INTER LK HOLE	8-94239-543-1	01	1	1501-	●
197	INHIBITOR; REV SHIFT	8-94448-753-0	01	1	1501-	●
198	BRACKET; REV INHIBITOR	8-94448-199-0	01	1	1501-	●
200	SPRING; REV INHIBITOR,COMP	8-94448-807-0	01	1	1501-	●
202	SPRING; REV INHIBITOR,EXT	8-97017-500-0	01	1	1501-	●
204	STOPPER; REV INHIBITOR	8-98035-673-0	01	1	1501-	●
262	BOX ASM; SHIFT CONT	8-98219-761-0	01	1	1501-	●
398	SWITCH; REV LAMP	8-98103-750-0	01	1	1501-	●
398	SWITCH; REV LAMP	8-98180-973-0	01	1	1501-		●
410	GASKET; REV SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 OD=20.0	9-09571-414-0	01	1	1501-	●

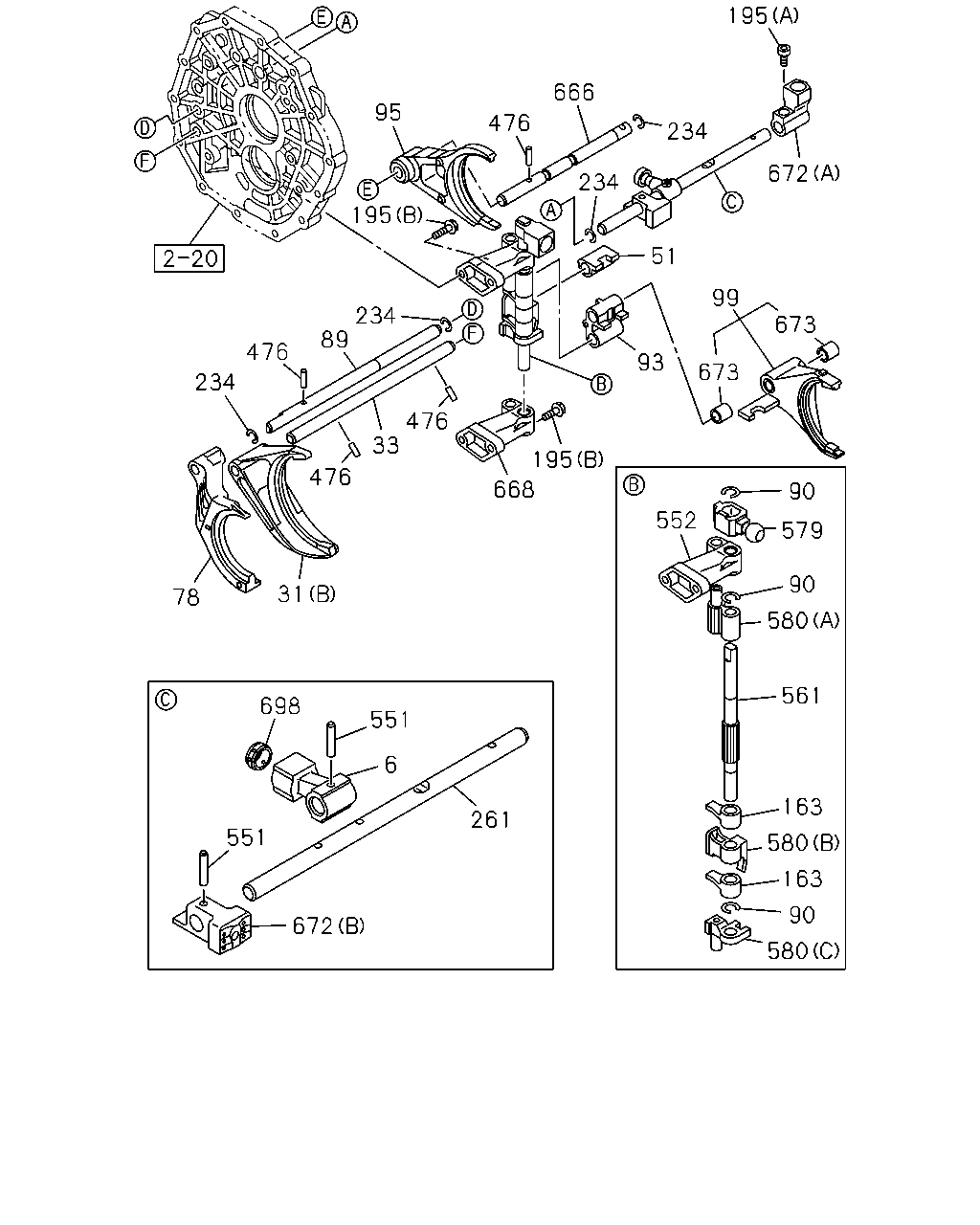

195 666 234 672 234 51 99 673 673 93 195 668 90 579 90 580 561 163 580 163 90 580 261 551 6 698 551 672 476 33 476 31 78 89 234 476 234 195 95 476 552

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	8-98095-658-1	01	1	1501-		●
31	ARM; SHIFT,LOW & 2ND (A)	8-94421-912-2	01	1	1501-	●
31	ARM; SHIFT,LOW & 2ND (B)	8-97362-435-0	01	1	1501-		●
33	ROD; SHIFT,LOW & 2ND	8-97019-061-2	01	1	1501-	●
33	ROD; SHIFT,LOW & 2ND	8-97362-441-0	01	1	1501-		●
51	BLOCK; SHIFT,1ST & 2ND	8-98186-703-0	01	1	1501-		●
78	ARM; SHIFT,REV	8-97362-434-1	01	1	1501-		●
89	ROD; SHIFT,REV	8-98106-032-0	01	1	1501-		●
90	RING; SNAP,SHIFT ROD ID=12	8-94460-357-0	03	1	1501-		●
93	BLOCK; SHIFT,REV & 5TH	8-98106-035-0	01	1	1501-		●
95	ARM; SHIFT,5TH	8-97362-436-1	01	1	1501-		●
99	ARM; SHIFT,4TH & 3RD	8-94421-911-2	01	1	1501-	●
99	ARM; SHIFT,4TH & 3RD	8-97362-439-2	01	1	1501-		●
163	LEVER; SELECT,INTERNAL	8-98052-461-0	02	1	1501-		●
195	BOLT (A) M8X8.5 TAPER	8-97250-975-0	01	1	1501-		●
195	BOLT (B) M8X30 FLANGE	8-98034-764-0	04	1	1501-		●
234	RING; SNAP ID=12	8-94460-357-0	04	1	1501-		●
261	ROD; GEAR CONT	8-97257-909-0	01	1	1501-	●
261	ROD; GEAR CONT	8-97362-444-0	01	1	1501-		●
476	PIN; SHIFT ROD D=4.2 L=25	8-94171-541-0	04	1	1501-		●
551	PIN; SPRING D=4.2 L=25	8-94171-541-0	02	1	1501-		●
552	BRACKET	8-97362-465-1	01	1	1501-		●
561	ROD; SHIFT	8-98095-659-1	01	1	1501-		●
579	BLOCK; SHIFT,ROD GUIDE	8-98095-657-0	01	1	1501-		●
580	BLOCK; INTERLOCK (A)	8-97362-461-1	01	1	1501-		●
580	BLOCK; INTERLOCK (B)	8-98052-462-0	01	1	1501-		●
580	BLOCK; INTERLOCK (C)	8-98186-700-0	01	1	1501-		●
666	ROD; GEAR SHIFT,3RD,4TH & 4TH	8-97362-442-2	01	1	1501-		●
668	BRACKET; SHIFT ROD	8-97362-465-1	01	1	1501-		●
672	BLOCK; SHIFT,T/M CONTROL (A)	8-97362-467-0	01	1	1501-		●
672	BLOCK; SHIFT,T/M CONTROL (B)	8-98095-689-1	01	1	1501-		●
673	BEARING; SHIFT ARM	8-97362-853-0	02	1	1501-		●
698	SEAT; SHIFT CONT	8-98073-812-0	01	1	1501-		●
