2-26 — MANUAL TRANSMISSION GEAR (#155367) — 264 parça

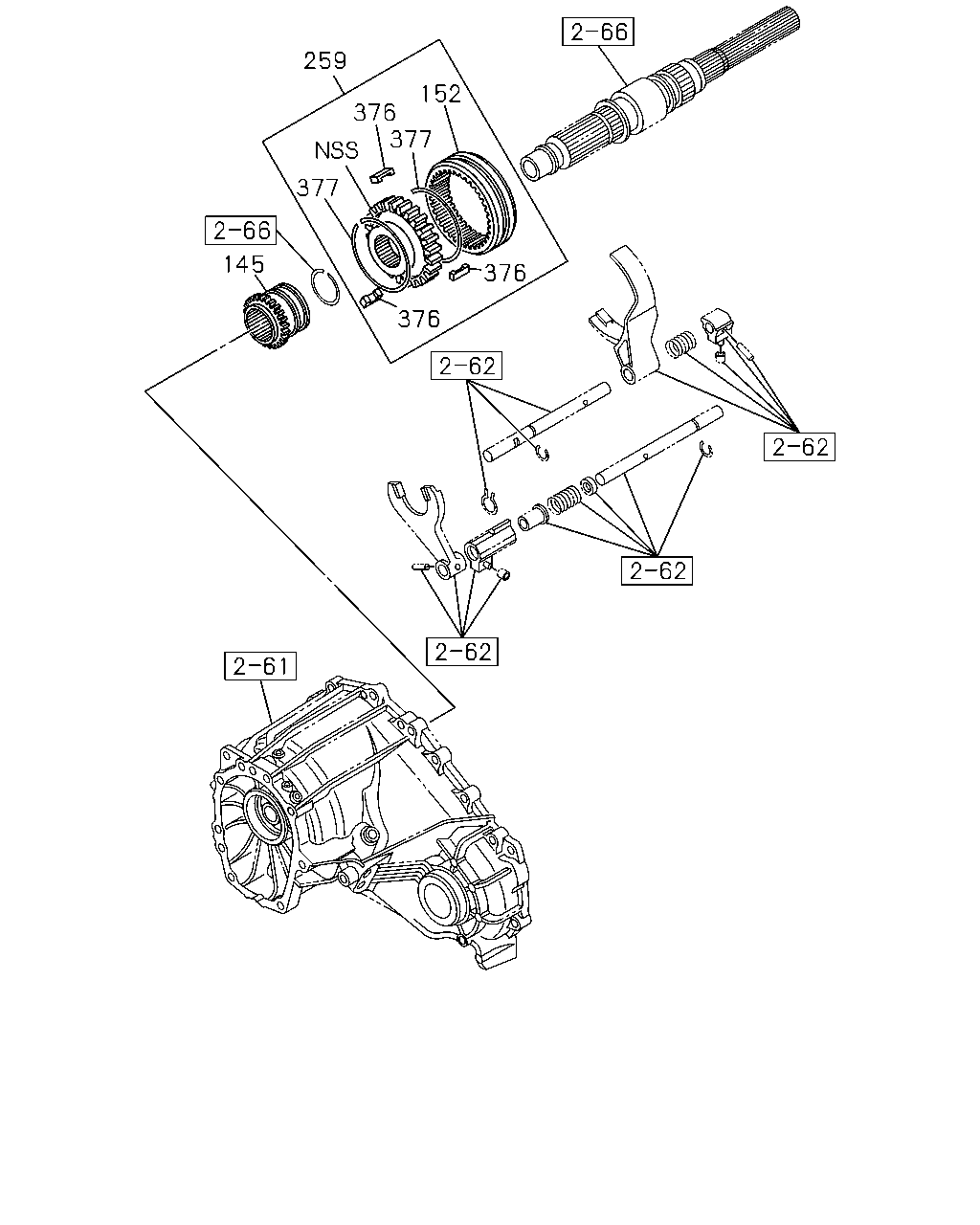

259 152 376 377 377 145 376 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
145	SLEEVE; HIGH-LOW SHIFT,TRANSFER 4X4(TFS***)	8-98063-369-1	01	1	1501-	●	●	●
152	SLEEVE; 4X2-4X4 SHIFT,TRANSFER 4X4(TFS***)	8-94363-060-0	01	1	1501-	●	●	●
259	SYNCHRONIZER; 4X2-4X4,TRANSFER 4X4(TFS***)	8-97234-225-0	01	1	1501-	●	●	●
376	INSERT; 4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-97238-590-0	03	1	1501-	●	●	●
377	SPRING; INSERT,4X2-4X4 SYN,TRANSFER 4X4(TFS***)	8-94448-045-0	02	1	1501-	●	●	●

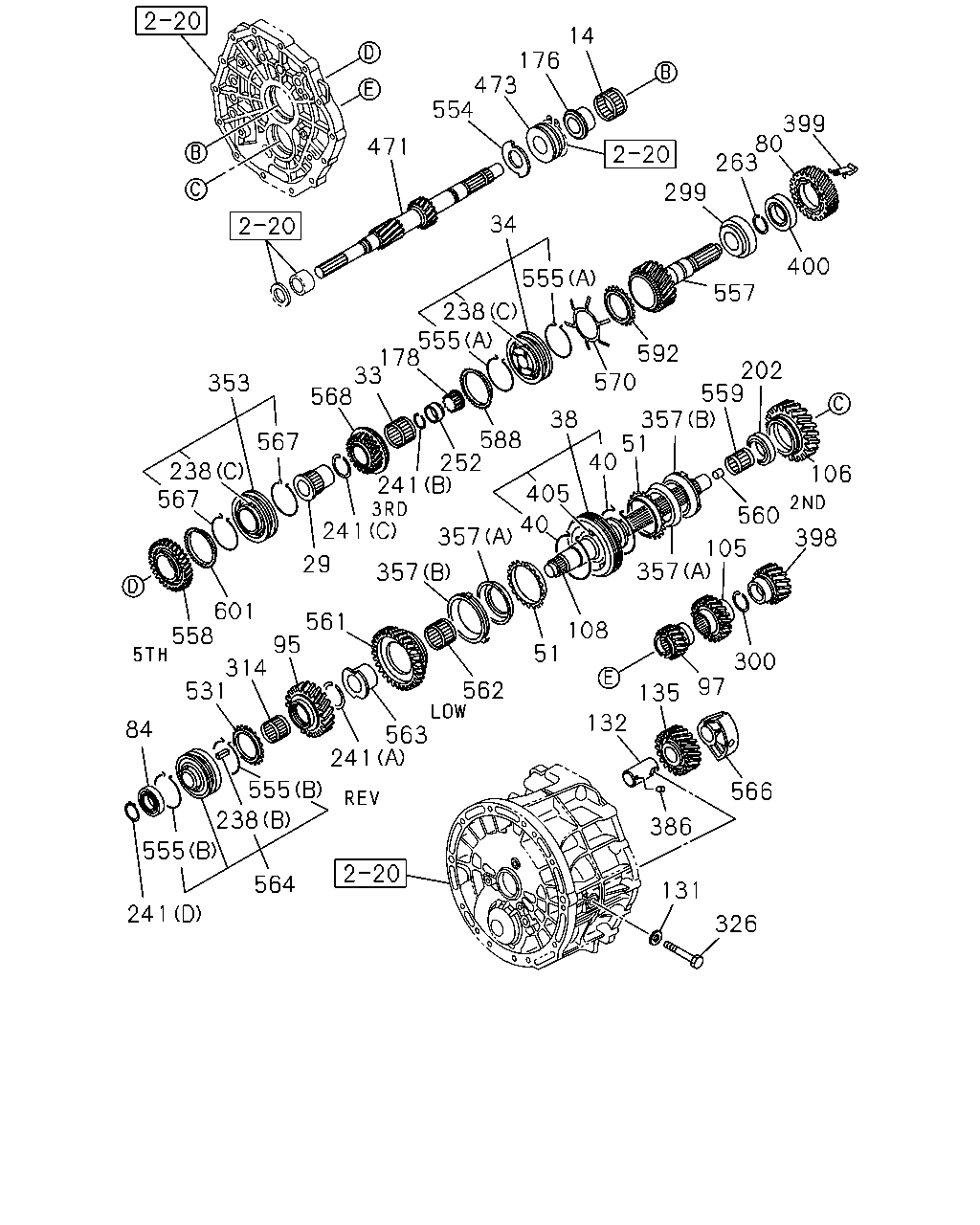

14 176 473 554 471 34 399 80 263 299 400 557 592 570 202 559 357 51 40 405 40 357 357 561 95 314 531 84 558 601 29 241 241 252 588 38 555 238 555 178 33 568 353 567 238 567 106 560 398 105 357 108 300 97 135 132 51 562 563 241 555 238 555 564 241 326 131 386 566

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1501-	●
14	BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1501-		●
29	COLLAR; 3RD GEAR	8-97362-568-1	01	1	1501-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1501-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1501-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1501-		●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1501-	●
38	SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1501-		●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1501-	●	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1501-	●	●
80	GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1501-	●
84	BEARING; COUNTER SHAFT,FRT	8-97362-724-0	01	1	1501-		●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1501-	●
95	GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1501-		●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1501-	●
97	GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1501-		●
105	GEAR; 3RD,COUNTER Z=31	8-98233-612-0	01	1	1501-		●
106	GEAR; 2ND,COUNTER Z=38	8-98210-236-0	01	1	1501-		●
108	SHAFT; COUNTER Z=26-34-26-26	8-98023-108-1	01	1	1501-		●
131	GASKET; REV SHAFT ALSO INCLUDED IN GASKET SET(M/T). ID=12.2	9-09571-412-0	01	1	1501-		●
132	SHAFT; REV	8-98245-493-0	01	1	1501-	●
132	SHAFT; REV	8-98023-113-0	01	1	1501-		●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1501-	●
135	GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1501-		●
176	COLLAR; 5TH GEAR	8-97362-567-0	01	1	1501-		●
178	BEARING; NEEDLE,MAINSHAFT	8-97362-869-0	01	1	1501-		●
202	BEARING; COUNTER GEAR	8-97362-725-0	01	1	1501-		●
238	INSERT (A)	8-94448-202-2	03	1	1501-	●
238	INSERT (B)	8-94249-576-2	03	1	1501-		●
238	INSERT (C)	8-98004-522-0	06	1	1501-		●
241	RING; SNAP (A) ID=34.4 T=1.9	8-97254-735-0	01	1	1501-		●
241	RING; SNAP (B) ID=27.1 T=1.9	8-97362-871-0	01	1	1501-		●
241	RING; SNAP (B) ID=27.1 T=2.1	8-97362-872-0	01	1	1501-		●
241	RING; SNAP (B) ID=27.1 T=2.3	8-97362-873-0	01	1	1501-		●
241	RING; SNAP (C) ID=37 T=1.95	8-98004-523-1	01	1	1501-		●
241	RING; SNAP (C) ID=37 T=2.1	8-98004-524-1	01	1	1501-		●
241	RING; SNAP (D) ID=27.9	9-09180-030-0	01	1	1501-		●
252	SPACER	8-98024-456-0	01	1	1501-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.1	8-98004-525-0	01	1	1501-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.2	8-98004-526-0	01	1	1501-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.3	8-98004-527-0	01	1	1501-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.4	8-98004-528-0	01	1	1501-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.5	8-98004-529-0	01	1	1501-		●
263	RING; SNAP,OUTPUT SHAFT BRG ID=30.7 T=2.6	8-98004-530-0	01	1	1501-		●
299	BEARING; OUTPUT SHAFT FRT	8-97362-722-0	01	1	1501-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.3	8-98024-222-1	01	1	1501-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.5	8-98024-223-1	01	1	1501-		●
300	RING; SNAP,COUNTER SHAFT,RR END ID=29 T=2.7	8-98024-224-1	01	1	1501-		●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1501-		●
326	BOLT; REV SHAFT M12X70	9-92621-270-0	01	1	1501-		●
353	SYNCHRONIZER; 5TH	8-98004-511-1	01	1	1501-		●
357	RING (B) OD=95.8	8-94363-056-0	02	1	1501-		●
357	RING (A) OD=90.0	8-98115-793-0	02	1	1501-		●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1501-	●
386	PIN; REV SHAFT OD=4 L=8	9-08160-408-0	01	1	1501-		●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1501-	●
398	GEAR; COUNTER Z=23	8-98106-584-0	01	1	1501-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1501-	●
400	BEARING; OUTPUT SHAFT RR	8-97362-723-0	01	1	1501-		●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1501-	●	●
471	SHAFT; INPUT Z=24-14-20-27	8-98106-034-0	01	1	1501-		●
473	BEARING; INPUT SHAFT	8-97362-721-1	01	1	1501-		●
531	RING; BLOCK,REV OD=74	8-98037-846-0	01	1	1501-		●
554	IMPELLER; OIL	8-97362-730-0	01	1	1501-		●
555	SPRING; INSERT (A)	5-33264-012-0	02	1	1501-		●
555	SPRING; INSERT (B)	8-97109-690-0	02	1	1501-		●
557	GEAR; OUTPUT Z=31-27	8-98210-239-0	01	1	1501-		●
558	GEAR; 5TH,INPUT SHAFT Z=46	8-98233-610-0	01	1	1501-		●
559	BEARING; NEEDLE,LOW & 2ND	8-97362-727-0	01	1	1501-		●
560	RING; DUM	8-97078-729-1	01	1	1501-		●
561	GEAR; LOW,COUNTER Z=45	8-98210-235-0	01	1	1501-		●
562	BEARING; NEEDLE,LOW & 2ND	8-97362-727-0	01	1	1501-		●
563	COLLAR; 1ST GEAR	8-97362-569-1	01	1	1501-		●
564	SYNCHRONIZER; REV	8-97362-496-1	01	1	1501-		●
566	BRACKET; REV IDLER	8-97362-516-0	01	1	1501-		●
567	SPRING; INSERT,5TH	5-33264-012-0	02	1	1501-		●
568	GEAR; 3RD,INPUT SHAFT Z=28	8-98233-608-0	01	1	1501-		●
570	SPRING; PLATE	8-98072-467-2	01	1	1501-		●
588	RING; BLOCK,3RD Z=36	8-98052-559-0	01	1	1501-		●
592	RING; BLOCK,4TH	8-98197-460-0	01	1	1501-		●
601	RING; BLOCK,5TH	8-98283-241-0	01	1	1501-		●

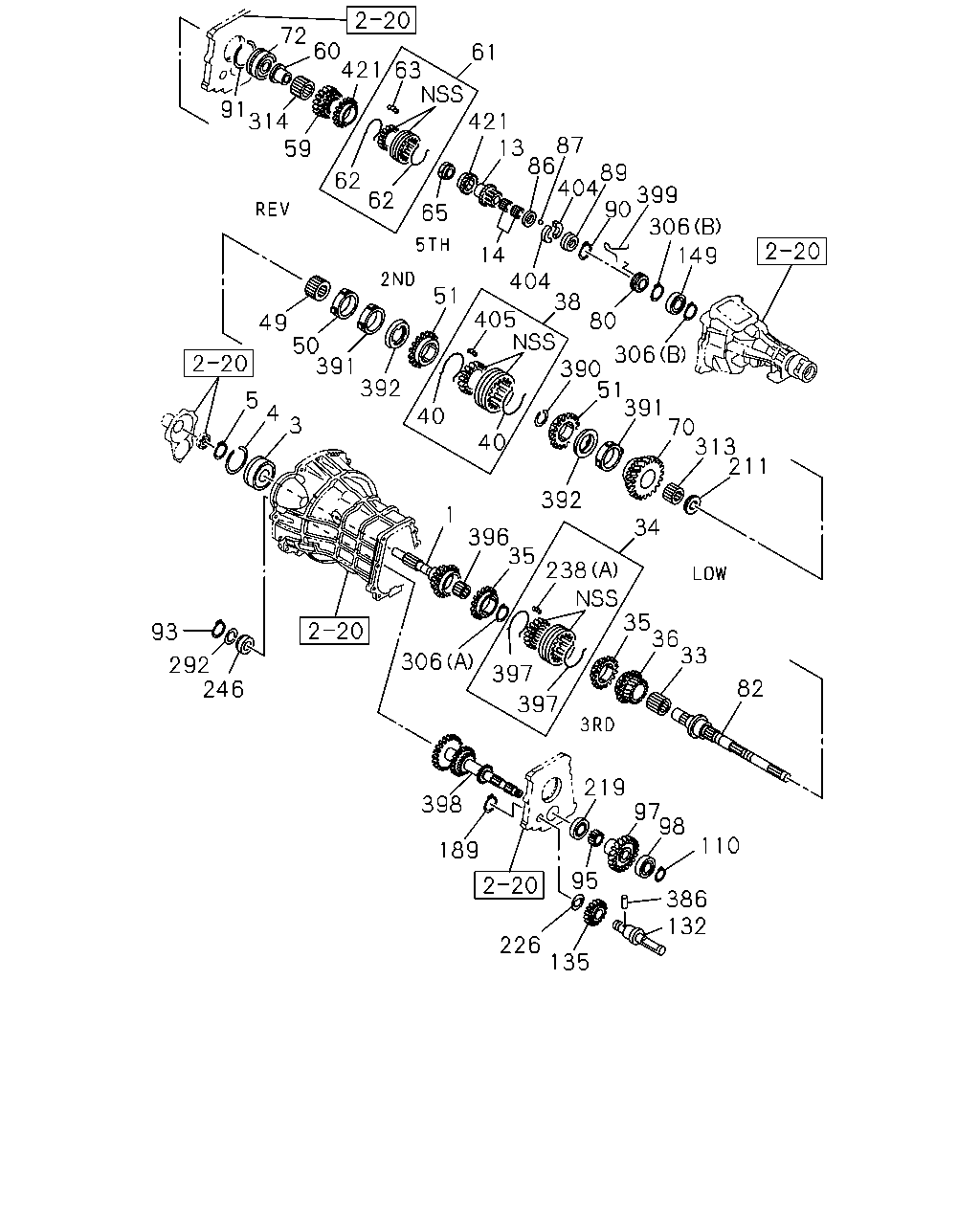

132 386 135 226 95 110 98 97 219 189 398 397 397 306 246 292 93 1 396 35 238 35 36 33 82 34 392 211 313 70 391 51 40 40 392 3 4 5 306 80 390 405 51 14 404 38 149 306 399 90 89 404 86 87 13 421 61 63 421 60 72 91 314 59 62 62 65 391 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
1	SHAFT; TOP GEAR,TRANS Z=26	8-98233-594-0	01	1	1501-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1501-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1501-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1501-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1501-	●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1501-	●
14	BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1501-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1501-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1501-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1501-		●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1501-	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98233-597-0	01	1	1501-	●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1501-	●
38	SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1501-		●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1501-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1501-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1501-	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1501-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1501-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1501-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1501-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1501-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1501-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1501-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1501-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1501-	●
80	GEAR; SPD DRIVE 4X2(TFB***) Z=6	8-94472-608-1	01	1	1501-	●
82	SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1501-	●
82	SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1501-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1501-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1501-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1501-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1501-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1501-	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1501-	●
90	RING; SNAP,THRUST RING 4X2(TFB***) ID=29.6	9-09180-032-0	01	1	1501-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1501-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1501-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1501-	●
95	GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1501-		●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1501-	●
97	GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1501-		●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1501-	●
132	SHAFT; REV	8-98245-493-0	01	1	1501-	●
132	SHAFT; REV	8-98023-113-0	01	1	1501-		●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1501-	●
135	GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1501-		●
149	BEARING; NEEDLE,MAINSHAFT,RR 4X2(TFB***) NSK	8-94173-863-0	01	1	1501-	●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1501-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1501-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1501-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1501-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1501-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1501-	●
238	INSERT (A)	8-94448-202-2	03	1	1501-	●
238	INSERT (B)	8-94249-576-2	03	1	1501-		●
238	INSERT (C)	8-98004-522-0	06	1	1501-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1501-	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1501-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1501-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1501-		●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1501-	●
386	PIN; REV SHAFT OD=4 L=8	9-08160-408-0	01	1	1501-		●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1501-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1501-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1501-	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1501-	●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1501-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1501-	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1501-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1501-	●
398	GEAR; COUNTER Z=23	8-98106-584-0	01	1	1501-		●
399	CLIP; SPEEDOMETER DRIVE GEAR 4X2(TFB***)	8-94310-229-0	01	1	1501-	●
404	PLATE; THRUST	8-94421-892-0	02	1	1501-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1501-	●	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1501-	●

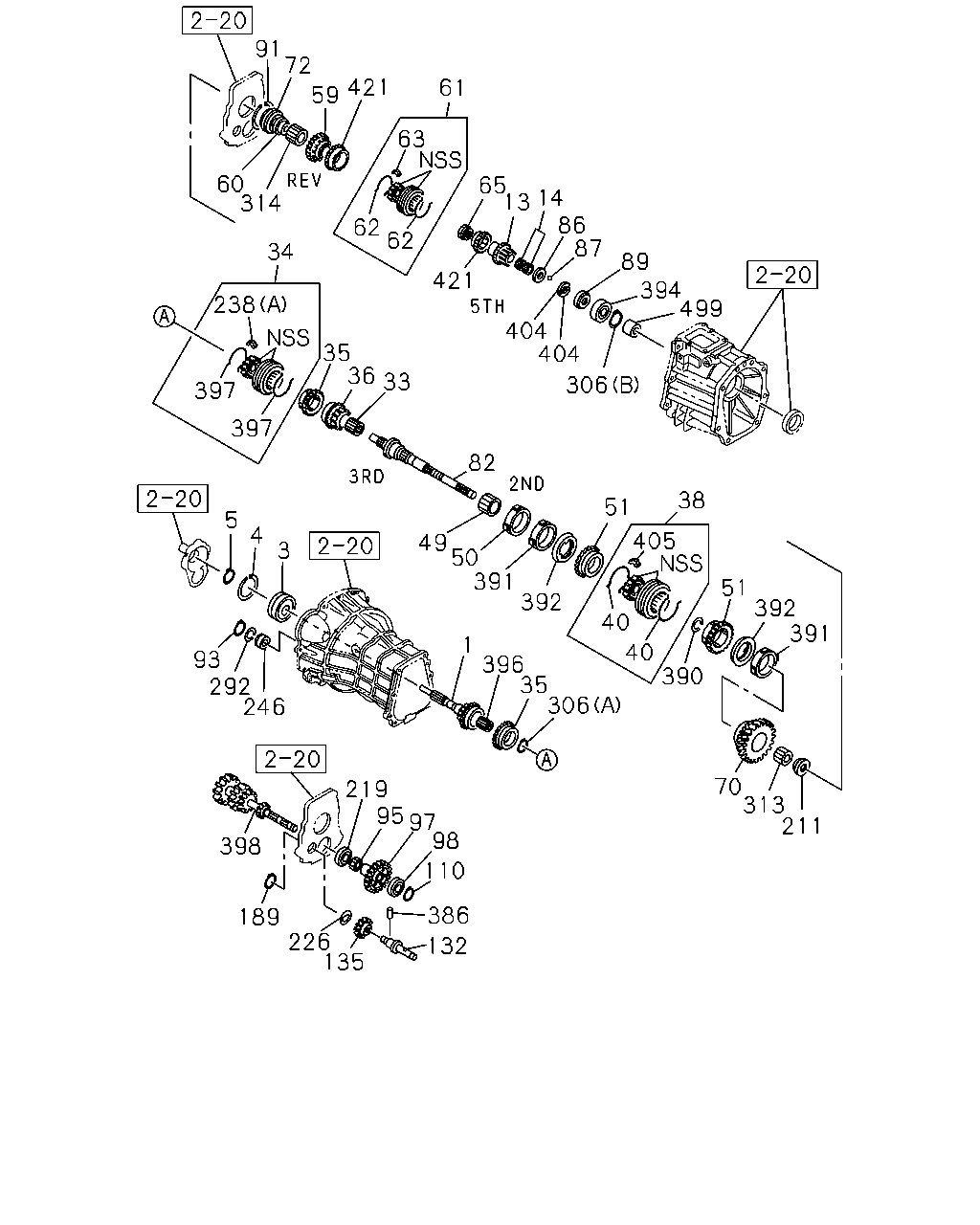

91 72 59 421 63 61 65 13 14 86 87 89 394 499 306 404 404 421 62 62 34 314 60 238 397 35 36 33 397 5 4 3 93 292 246 82 49 50 391 392 40 40 390 51 405 51 38 392 391 70 313 211 306 35 396 1 98 97 95 219 110 386 132 135 226 189 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
1	SHAFT; TOP GEAR,TRANS Z=26	8-98233-594-0	01	1	1501-	●
3	BEARING; TOP GEAR SHAFT NSK	8-97943-879-0	01	1	1501-	●
4	RING; SNAP,BRG TO TOP GEAR SHAFT NSK	8-94422-083-0	01	1	1501-	●
5	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.4	8-97254-316-0	01	1	1501-	●
13	GEAR; 5TH,MAINSHAFT Z=22	8-98210-227-0	01	1	1501-	●
14	BEARING; NEEDLE,5TH NTN	8-98172-356-0	01	1	1501-	●
14	BEARING; NEEDLE,5TH NSK	8-97362-728-0	01	1	1501-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-028-1	01	1	1501-	●	●
34	SYNCHRONIZER; 4TH & 3RD	8-97977-991-0	01	1	1501-	●
34	SYNCHRONIZER; 4TH & 3RD	8-97362-474-3	01	1	1501-		●
35	RING; BLOCK,4TH & 3RD Z=45	8-94151-510-3	02	1	1501-	●
36	GEAR; 3RD,MAINSHAFT Z=27	8-98233-597-0	01	1	1501-	●
38	SYNCHRONIZER; LOW & 2ND	8-97977-989-0	01	1	1501-	●
38	SYNCHRONIZER; LOW & 2ND	8-97362-503-1	01	1	1501-		●
40	SPRING; INSERT,LOW & 2ND	8-94448-045-0	02	1	1501-	●	●
49	BEARING; NEEDLE,2ND GEAR JTEKT	9-00096-625-0	01	1	1501-	●
50	GEAR; 2ND,MAINSHAFT Z=34	8-97301-183-1	01	1	1501-	●
51	RING; BLOCK,LOW & 2ND Z=36	8-98115-804-0	02	1	1501-	●	●
59	GEAR; REV MAINSHAFT Z=41	8-98210-228-0	01	1	1501-	●
60	COLLAR; REV MAIN	8-97031-079-0	01	1	1501-	●
61	SYNCHRONIZER; REV & 5TH	8-97030-106-1	01	1	1501-	●
62	SPRING; INSERT,REV & 5TH	5-33264-012-0	02	1	1501-	●
63	INSERT; SYN,REV & 5TH	5-33263-001-0	03	1	1501-	●
65	NUT; MAINSHAFT M34	8-94422-071-1	01	1	1501-	●
70	GEAR; 1ST,MAINSHAFT Z=45	8-97301-182-1	01	1	1501-	●
72	BEARING; BALL,MAINSHAFT NSK	8-94380-017-1	01	1	1501-	●
82	SHAFT; MAIN,TRANS 4X2(TFB***) Z=28-34-26-27	8-97300-981-0	01	1	1501-	●
82	SHAFT; MAIN,TRANS 4X4(TFS***) Z=28-34-26-27	8-97300-980-0	01	1	1501-	●
86	WASHER; THRUST,5TH T=7.90 WHITE	8-94422-110-2	01	1	1501-	●
86	WASHER; THRUST,5TH T=8.00 YELLOW	8-94422-111-2	01	1	1501-	●
86	WASHER; THRUST,5TH T=8.10 GREEN	8-94422-112-2	01	1	1501-	●
86	WASHER; THRUST,5TH T=8.20 BLUE	8-94422-113-2	01	1	1501-	●
87	BALL; THRUST WASHER	8-94201-356-0	01	1	1501-	●
89	RING; RET,THRUST RING ID=31.8	8-94422-395-0	01	1	1501-	●
91	RING; SNAP,CENTER BRG,MAINSHAFT ID=76.2	8-94322-411-0	01	1	1501-	●
93	RING; SNAP,COUNTER FRT BRG ID=23.2	9-09180-025-0	01	1	1501-	●
95	GEAR; REV,COUNTER Z=19	8-94377-433-0	01	1	1501-	●
95	GEAR; REV,COUNTER Z=41	8-98210-237-0	01	1	1501-		●
97	GEAR; 5TH,COUNTER Z=50	8-94377-434-0	01	1	1501-	●
97	GEAR; 5TH,COUNTER Z=27	8-98040-114-0	01	1	1501-		●
98	BEARING; BALL,COUNTER END NSK	8-97018-535-1	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.10 WHITE	8-94422-103-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.20 YELLOW	8-94422-104-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.30 BLUE	8-94422-105-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.40 PINK	8-94422-106-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.50 GREEN	8-94422-107-0	01	1	1501-	●
110	RING; SNAP,COUNTER BRG T=1.60 BROWN	8-94422-108-0	01	1	1501-	●
132	SHAFT; REV	8-98245-493-0	01	1	1501-	●
132	SHAFT; REV	8-98023-113-0	01	1	1501-		●
135	GEAR; REV IDLER Z=33	8-98233-606-0	01	1	1501-	●
135	GEAR; REV IDLER Z=32	8-98233-615-0	01	1	1501-		●
189	RING; SNAP,REV,GEAR T=1.20 WHITE	8-94422-100-0	01	1	1501-	●
189	RING; SNAP,REV,GEAR T=1.30 YELLOW	8-94422-101-0	01	1	1501-	●
189	RING; SNAP,REV,GEAR T=1.40 BLUE	8-94422-102-0	01	1	1501-	●
211	BEARING; THRUST NEEDLE,1ST GEAR NSK	8-94148-935-0	01	1	1501-	●
219	BEARING; BALL,CLUSTER,RR NSK	8-94436-929-0	01	1	1501-	●
226	WASHER; THRUST,REV GEAR,COUNTER ID=30.0	8-94223-069-1	01	1	1501-	●
238	INSERT (A)	8-94448-202-2	03	1	1501-	●
238	INSERT (B)	8-94249-576-2	03	1	1501-		●
238	INSERT (C)	8-98004-522-0	06	1	1501-		●
246	BEARING; ROLLER,COUNTER SHAFT FRT NSK	8-97029-600-4	01	1	1501-	●
292	RING; SNAP,BRG OUTER NSK	8-94422-081-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT 4X2(TFB***) (B) ID=27.9	9-09180-030-0	02	1	1501-	●
306	RING; SNAP,MAINSHAFT (A) T=1.90 BLUE	8-97129-615-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT (A) T=1.85 YELLOW	8-97129-616-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT (A) T=1.80 WHITE	8-97129-617-0	01	1	1501-	●
306	RING; SNAP,MAINSHAFT 4X4(TFS***) (B) ID=27.9	9-09180-030-0	01	1	1501-	●
313	BEARING; NEEDLE,LOW GEAR NSK	1-09811-028-1	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-94422-064-0	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR JTEKT	8-94422-065-1	01	1	1501-	●
314	BEARING; NEEDLE,REV GEAR NSK	8-97362-719-0	01	1	1501-		●
386	PIN; REV SHAFT OD=6 L=40	9-08150-640-0	01	1	1501-	●
386	PIN; REV SHAFT OD=4 L=8	9-08160-408-0	01	1	1501-		●
390	RING; SNAP,CLU HUB T=1.80 WHITE	8-94422-088-2	01	1	1501-	●
390	RING; SNAP,CLU HUB T=1.85 YELLOW	8-94422-089-1	01	1	1501-	●
390	RING; SNAP,CLU HUB T=1.90 BLUE	8-94422-090-2	01	1	1501-	●
391	RING; INSIDE,SYN OD=95.8	8-94363-056-0	02	1	1501-	●
392	RING; OUTSIDE,SYN OD=90.0	8-98115-793-0	02	1	1501-	●
394	BEARING; BALL,MAINSHAFT RR 4X4(TFS***) NSK	8-97018-921-1	01	1	1501-	●
396	BEARING; NEEDLE,MAINSHAFT NSK	8-98172-355-0	01	1	1501-	●
397	SPRING; INSERT,4TH & 3RD	8-94422-075-0	02	1	1501-	●
398	GEAR; COUNTER Z=44-32-25-19	8-97301-186-2	01	1	1501-	●
398	GEAR; COUNTER Z=23	8-98106-584-0	01	1	1501-		●
404	PLATE; THRUST	8-94421-892-0	02	1	1501-	●
405	INSERT; SYN,LOW & 2ND	8-94363-062-1	03	1	1501-	●	●
421	RING; BLOCK,REV & 5TH Z=36	8-97071-688-0	02	1	1501-	●
499	COLLAR; OIL SEAL 4X4(TFS***)	8-97300-954-0	01	1	1501-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
