◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 51608 - TFR/TFS(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-25 - SPEEDOMETER DRIVEN GEAR ▶
2-25 — SPEEDOMETER DRIVEN GEAR (#155366) — 104 parça

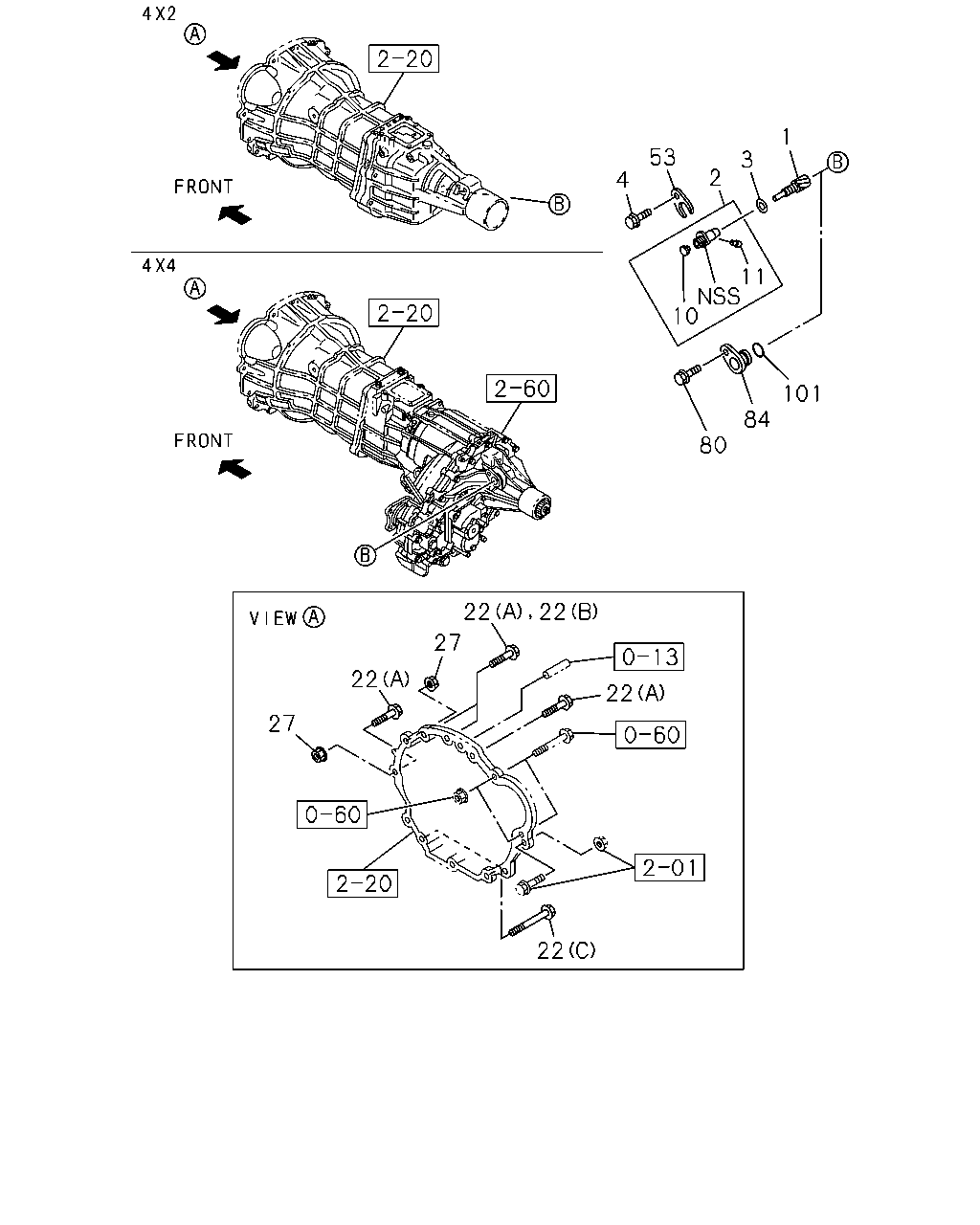

çizim 464255
4 53 2 3 1 10 11 101 84 80 22 22 27 22 27 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97012-085-2 01 1 1501- ●
1 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97238-583-0 01 1 1501- ●
1 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97238-583-0 01 1 1501- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97021-133-4 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97305-454-1 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97305-454-1 01 1 1501- ● ●
3 GASKET; BUSHING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ●
3 GASKET; BUSHING
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ● ●
4 BOLT; RET,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ●
4 BOLT; RET,DRIVEN GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ● ●
10 SEAL; OIL,DRIVE GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1501- ●
10 SEAL; OIL,DRIVE GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1501- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94446-571-1 01 1 1501- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94446-571-1 01 1 1501- ● ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (A) M10X40 FLANGE 		0-28051-040-0 04 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (C) M10X60 FLANGE 		0-28051-060-0 02 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (B) M12X40 FLANGE 		0-28051-240-0 01 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1501-1505 ●
22 BOLT; TRANS CASE TO ENG
CREW CAB(TF**W*) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1501-1505 ●
22 BOLT; TRANS CASE TO ENG
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1506- ● ●
22 BOLT; TRANS CASE TO ENG
CREW CAB(TF**W*) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1506- ●
27 NUT; CLU HSG TO TRANS
4JK1-TCX ENG(LR0) M10 FLANGE 		0-91180-110-0 02 1 1501- ●
27 NUT; CLU HSG TO TRANS
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) M12 FLANGE 		0-91180-112-0 02 1 1501-1505 ●
27 NUT; CLU HSG TO TRANS
CREW CAB(TF**W*) M12 FLANGE 		0-91180-112-0 02 1 1501-1505 ●
27 NUT; CLU HSG TO TRANS
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) M12 FLANGE 		0-91180-112-0 02 1 1506- ● ●
27 NUT; CLU HSG TO TRANS
CREW CAB(TF**W*) M12 FLANGE 		0-91180-112-0 02 1 1506- ●
53 PLATE; LOCK,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-572-0 01 1 1501- ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-572-0 01 1 1501- ● ●
80 BOLT; SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ●
80 BOLT; SPD SENSOR
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ● ●
84 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98103-318-0 01 1 1501- ●
84 CAP; BUSH,SPEEDOMETER GEAR
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98103-318-0 01 1 1501- ● ●
101 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ●
101 GASKET; CAP
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ● ●

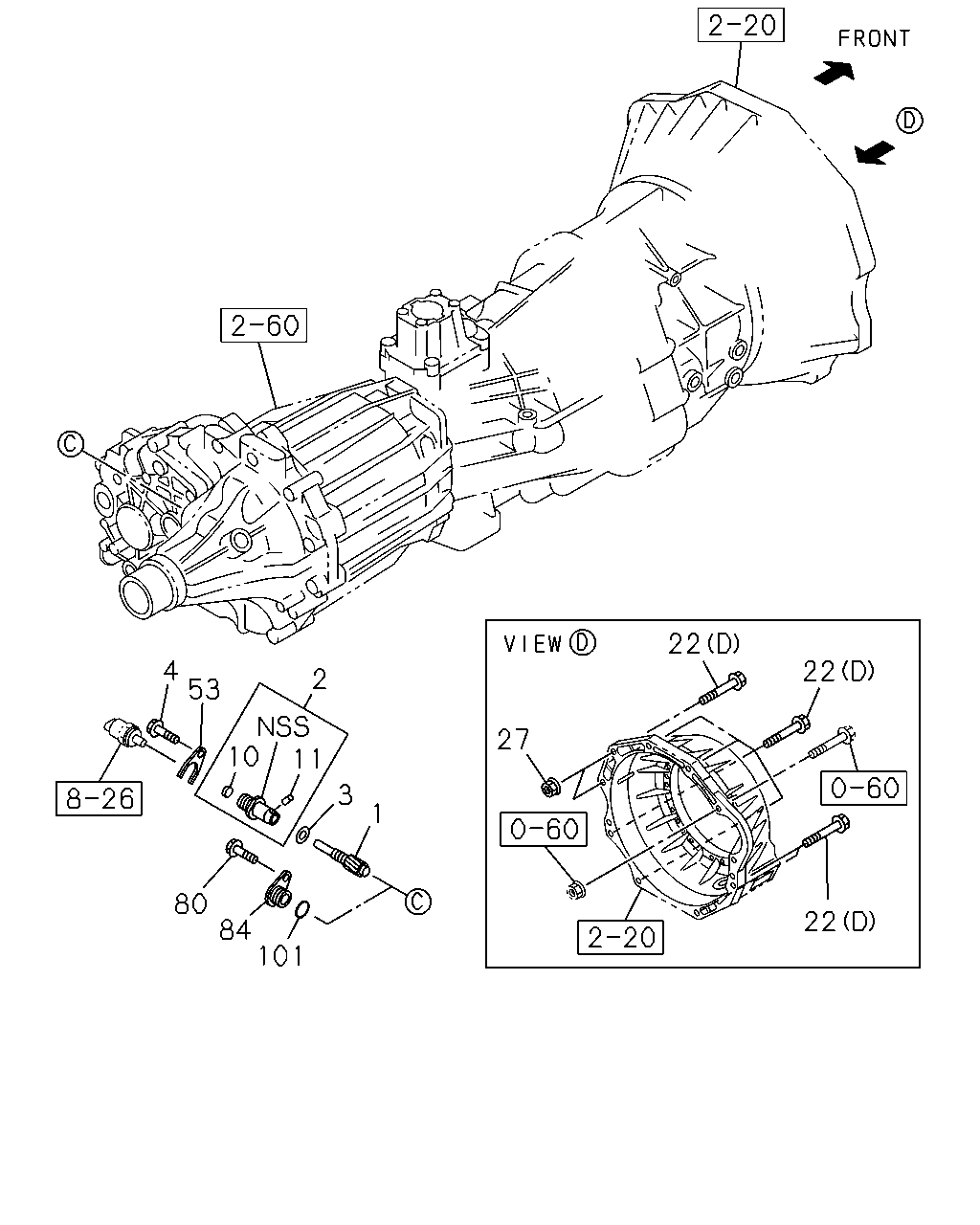

çizim 464256
2 10 11 3 1 101 84 80 4 53 27 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97012-085-2 01 1 1501- ●
1 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97238-583-0 01 1 1501- ●
1 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97238-583-0 01 1 1501- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97021-133-4 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97305-454-1 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97305-454-1 01 1 1501- ● ●
3 GASKET; BUSHING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ●
3 GASKET; BUSHING
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ● ●
4 BOLT; RET,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ●
4 BOLT; RET,DRIVEN GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ● ●
10 SEAL; OIL,DRIVE GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1501- ●
10 SEAL; OIL,DRIVE GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1501- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94446-571-1 01 1 1501- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94446-571-1 01 1 1501- ● ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (A) M10X40 FLANGE 		0-28051-040-0 04 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (C) M10X60 FLANGE 		0-28051-060-0 02 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (B) M12X40 FLANGE 		0-28051-240-0 01 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1501-1505 ●
22 BOLT; TRANS CASE TO ENG
CREW CAB(TF**W*) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1501-1505 ●
22 BOLT; TRANS CASE TO ENG
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1506- ● ●
22 BOLT; TRANS CASE TO ENG
CREW CAB(TF**W*) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1506- ●
27 NUT; CLU HSG TO TRANS
4JK1-TCX ENG(LR0) M10 FLANGE 		0-91180-110-0 02 1 1501- ●
27 NUT; CLU HSG TO TRANS
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) M12 FLANGE 		0-91180-112-0 02 1 1501-1505 ●
27 NUT; CLU HSG TO TRANS
CREW CAB(TF**W*) M12 FLANGE 		0-91180-112-0 02 1 1501-1505 ●
27 NUT; CLU HSG TO TRANS
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) M12 FLANGE 		0-91180-112-0 02 1 1506- ● ●
27 NUT; CLU HSG TO TRANS
CREW CAB(TF**W*) M12 FLANGE 		0-91180-112-0 02 1 1506- ●
53 PLATE; LOCK,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-572-0 01 1 1501- ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-572-0 01 1 1501- ● ●
80 BOLT; SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ●
80 BOLT; SPD SENSOR
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ● ●
84 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98103-318-0 01 1 1501- ●
84 CAP; BUSH,SPEEDOMETER GEAR
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98103-318-0 01 1 1501- ● ●
101 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ●
101 GASKET; CAP
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ● ●

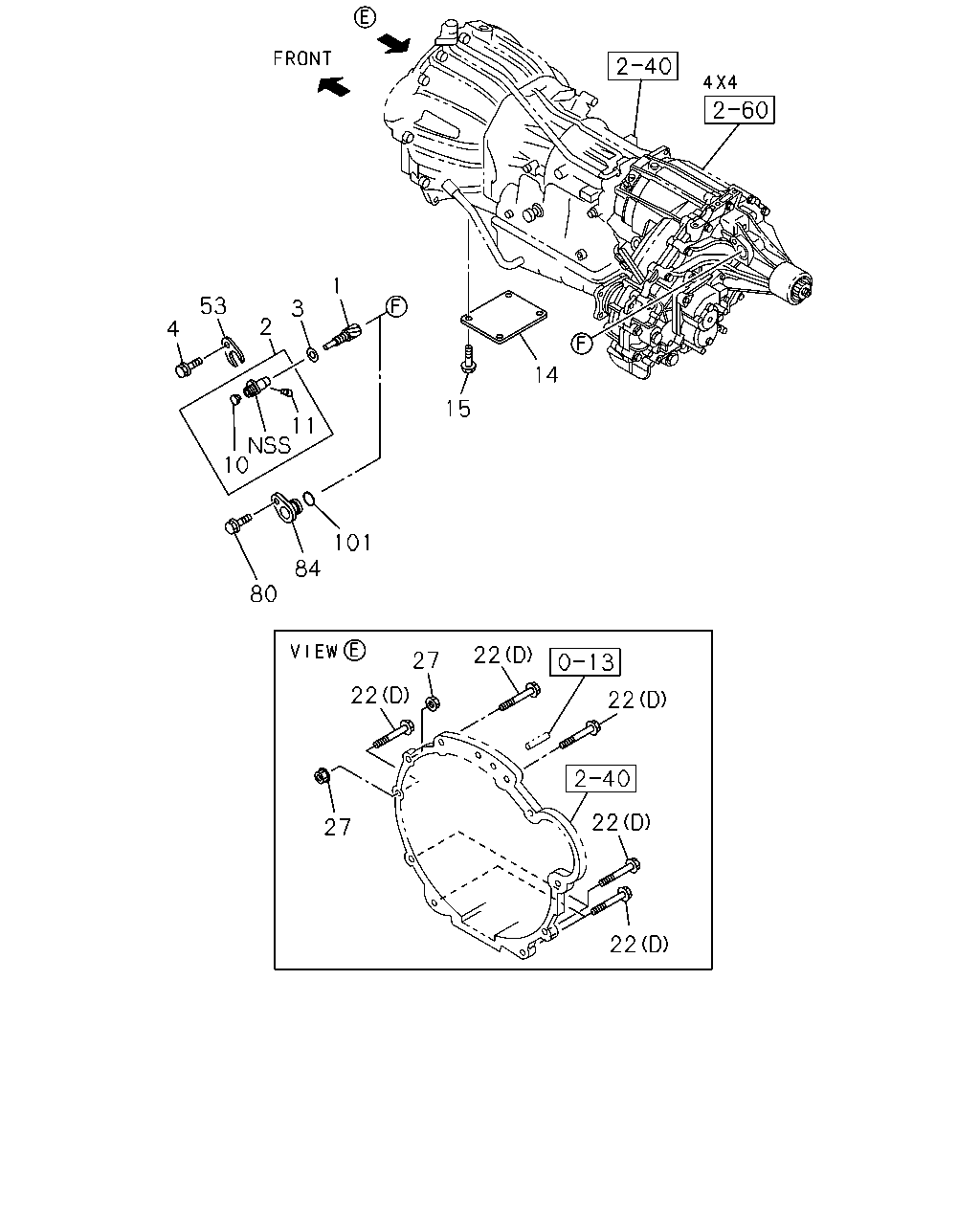

çizim 464257
14 15 1 3 2 53 4 11 10 101 84 80 22 27 27 22 22 22 22
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GEAR; DRIVEN,SPD
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97012-085-2 01 1 1501- ●
1 GEAR; DRIVEN,SPD
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97238-583-0 01 1 1501- ●
1 GEAR; DRIVEN,SPD
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> Z=17 		8-97238-583-0 01 1 1501- ● ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X2(TFB***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97021-133-4 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4(TFS***) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97305-454-1 01 1 1501- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97305-454-1 01 1 1501- ● ●
3 GASKET; BUSHING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ●
3 GASKET; BUSHING
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ● ●
4 BOLT; RET,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ●
4 BOLT; RET,DRIVEN GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ● ●
10 SEAL; OIL,DRIVE GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1501- ●
10 SEAL; OIL,DRIVE GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> NOK 		8-97131-328-1 01 1 1501- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94446-571-1 01 1 1501- ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94446-571-1 01 1 1501- ● ●
14 COVER; UNDER,TRANS
CREW CAB(TF**W*) 		8-98049-857-0 01 1 1501- ●
15 BOLT; UNDER COVER TO TRANS
CREW CAB(TF**W*) M6X16 FLANGE 		0-28650-616-0 04 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (A) M10X40 FLANGE 		0-28051-040-0 04 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (C) M10X60 FLANGE 		0-28051-060-0 02 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4JK1-TCX ENG(LR0) (B) M12X40 FLANGE 		0-28051-240-0 01 1 1501- ●
22 BOLT; TRANS CASE TO ENG
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1501-1505 ●
22 BOLT; TRANS CASE TO ENG
CREW CAB(TF**W*) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1501-1505 ●
22 BOLT; TRANS CASE TO ENG
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1506- ● ●
22 BOLT; TRANS CASE TO ENG
CREW CAB(TF**W*) (D) M12X50 FLANGE 		0-28051-250-0 08 1 1506- ●
27 NUT; CLU HSG TO TRANS
4JK1-TCX ENG(LR0) M10 FLANGE 		0-91180-110-0 02 1 1501- ●
27 NUT; CLU HSG TO TRANS
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) M12 FLANGE 		0-91180-112-0 02 1 1501-1505 ●
27 NUT; CLU HSG TO TRANS
CREW CAB(TF**W*) M12 FLANGE 		0-91180-112-0 02 1 1501-1505 ●
27 NUT; CLU HSG TO TRANS
4X4 CREW CAB(TFS*W*) 4JJ1-TCX ENG(LS0) M12 FLANGE 		0-91180-112-0 02 1 1506- ● ●
27 NUT; CLU HSG TO TRANS
CREW CAB(TF**W*) M12 FLANGE 		0-91180-112-0 02 1 1506- ●
53 PLATE; LOCK,DRIVEN GEAR
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-572-0 01 1 1501- ●
53 PLATE; LOCK,DRIVEN GEAR
4X4 CREW CAB(TFS*W*) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98035-572-0 01 1 1501- ● ●
80 BOLT; SPD SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ●
80 BOLT; SPD SENSOR
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> M8X20 FLANGE 		0-28050-820-0 01 1 1501- ● ●
84 CAP; BUSH,SPEEDOMETER GEAR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98103-318-0 01 1 1501- ●
84 CAP; BUSH,SPEEDOMETER GEAR
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98103-318-0 01 1 1501- ● ●
101 GASKET; CAP
4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ●
101 GASKET; CAP
4X4 CREW CAB(TFS*W*) 4 WHEEL ANTI LOCK BRAKE<JE5> ID=21.7 OD=28.7 		9-09921-100-0 01 1 1501- ● ●
