2-20 — MANUAL TRANSMISSION ASM AND CASE (#155365) — 180 parça

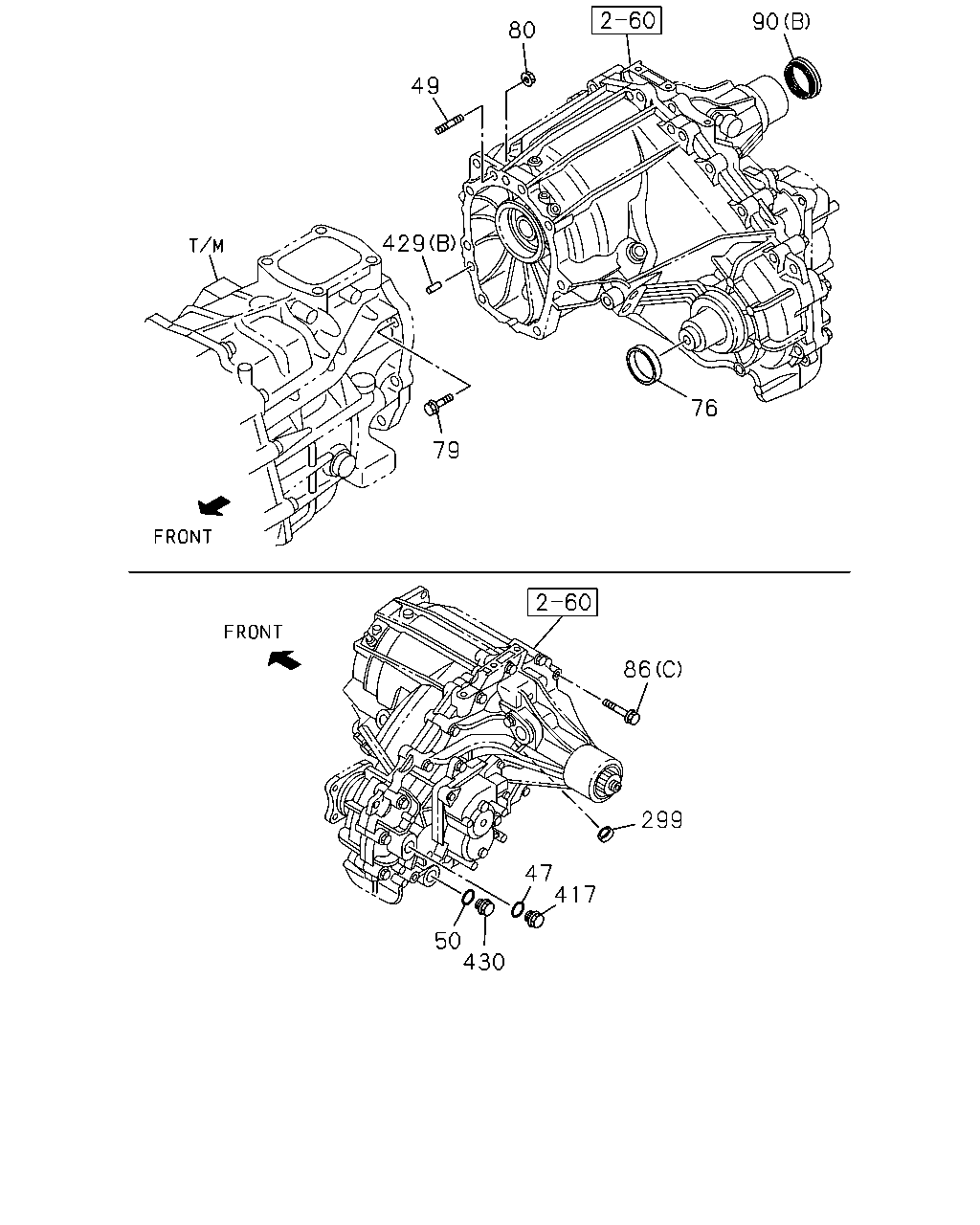

429 49 80 90 79 76 86 299 47 417 50 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
47	GASKET; FILLER PLUG,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) ID=17	8-97115-712-0	01	1	1501-	●	●	●
49	STUD; TRANSFER CASE 4X4(TFS***) M10X30 L=45	8-98035-675-0	01	1	1501-		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	1501-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-		●	●
76	SEAL; OIL,TRANSFER CASE ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) NOK	8-97238-999-0	01	1	1501-	●	●	●
79	BOLT; TRANSFER CASE 4X4(TFS***) M10X35 FLANGE	0-28051-035-0	06	1	1501-		●
79	BOLT; TRANSFER CASE 4X4 CREW CAB(TFSW) M10X35 FLANGE	0-28051-035-0	06	1	1501-			●
79	BOLT; TRANSFER CASE 4X4 CREW CAB(TFSW) M10X45 FLANGE	0-28051-045-0	07	1	1501-	●
80	NUT; TRANSFER CASE 4X4(TFS***) M10 FLANGE	0-91180-110-0	01	1	1501-		●
80	NUT; TRANSFER CASE 4X4 CREW CAB(TFSW) M10 FLANGE	0-91180-110-0	01	1	1501-			●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1501-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1501-		●
86	BOLT; RR COVER 4X4(TFS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1501-	●	●	●
86	BOLT; RR COVER (D) M8X50 FLANGE	0-28050-850-0	02	1	1501-			●
86	BOLT; RR COVER (E) M8X35 FLANGE	0-28650-835-0	03	1	1501-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (D) NOK	8-97947-840-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97947-841-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1501-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	1501-			●
299	PLUG; SHIFTER ROD 4X4(TFS***) OD=15.6	8-94173-641-0	02	1	1501-	●	●	●
417	PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-	●	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-		●	●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1501-		●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1501-	●	●	●
430	PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-	●	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-		●	●
678	PIN	9-08160-436-0	01	1	1501-			●

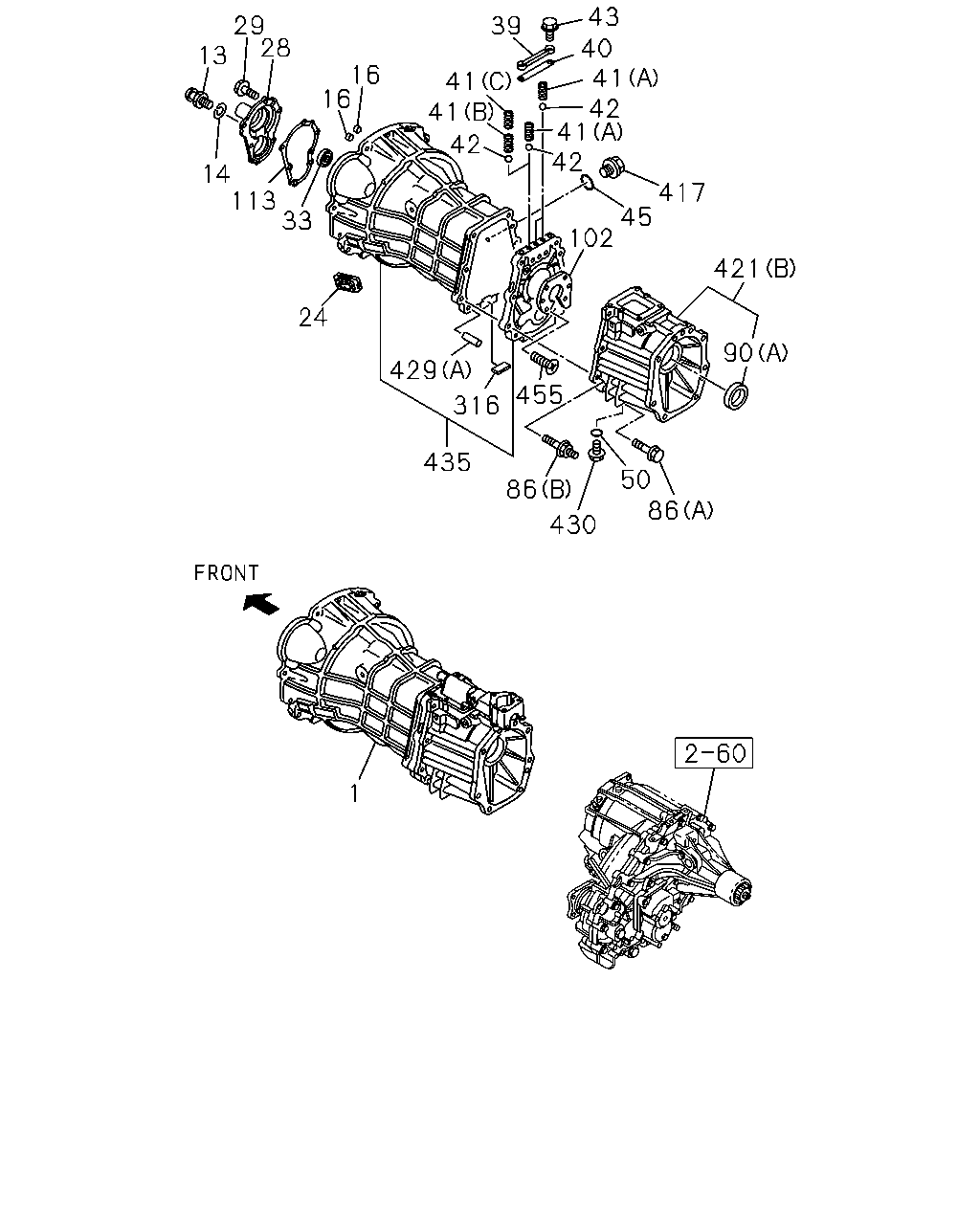

29 13 28 14 113 33 24 16 16 41 41 39 43 40 41 42 41 42 42 417 102 45 429 316 455 435 86 430 86 50 90 421 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98172-462-0	01	1	1501-		●
1	TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98172-959-0	01	1	1501-		●
1	TRANSMISSION ASM; MANUAL	8-98102-382-0	01	1	1501-			●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-		●	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1501-		●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1501-		●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1501-		●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1501-		●
28	COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1501-			●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●
29	BOLT; FRT COVER M8X20 FLANGE	0-28650-820-0	03	1	1501-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1501-		●	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1501-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1501-		●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1501-		●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1501-		●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1501-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1501-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1501-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	1501-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-		●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1501-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1501-		●
86	BOLT; RR COVER 4X4(TFS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1501-	●	●	●
86	BOLT; RR COVER (D) M8X50 FLANGE	0-28050-850-0	02	1	1501-			●
86	BOLT; RR COVER (E) M8X35 FLANGE	0-28650-835-0	03	1	1501-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (D) NOK	8-97947-840-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97947-841-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1501-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	1501-			●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1501-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1501-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1501-		●	●
417	PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-	●	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-		●	●
421	COVER; RR,TRANS 4X2(TFB***) (A)	8-97978-059-0	01	1	1501-		●
421	COVER; RR,TRANS 4X4(TFS***) (B)	8-97978-061-0	01	1	1501-		●
421	COVER; RR,TRANS (C)	8-97362-423-1	01	1	1501-			●
421	COVER; RR,TRANS (D)	8-98108-319-0	01	1	1501-			●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1501-		●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1501-	●	●	●
430	PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-	●	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-		●	●
435	CASE; TRANS	8-98047-230-0	01	1	1501-		●
435	CASE; TRANS	8-98108-317-1	01	1	1501-			●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1501-		●
678	PIN	9-08160-436-0	01	1	1501-			●

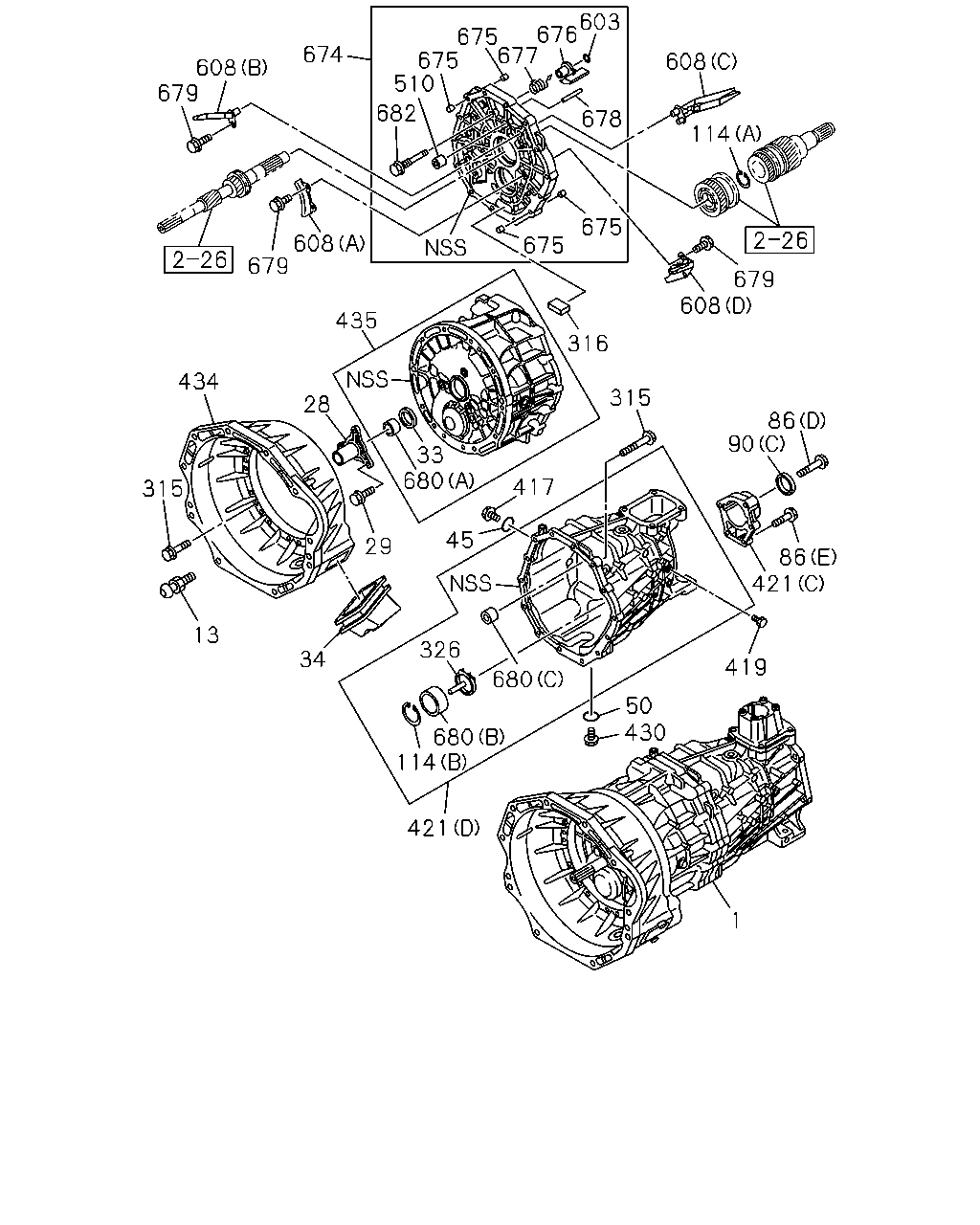

419 421 90 86 315 316 608 679 114 608 679 675 675 417 45 326 680 50 430 1 421 114 34 29 28 315 13 680 33 435 680 434 679 608 679 608 674 682 510 675 675 676 603 677 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98172-462-0	01	1	1501-		●
1	TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98172-959-0	01	1	1501-		●
1	TRANSMISSION ASM; MANUAL	8-98102-382-0	01	1	1501-			●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-		●	●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1501-		●
28	COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1501-			●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●
29	BOLT; FRT COVER M8X20 FLANGE	0-28650-820-0	03	1	1501-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1501-		●	●
34	COVER; DUST,SHIFT FORK	8-98097-470-0	01	1	1501-			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	1501-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-		●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1501-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1501-		●
86	BOLT; RR COVER 4X4(TFS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1501-	●	●	●
86	BOLT; RR COVER (D) M8X50 FLANGE	0-28050-850-0	02	1	1501-			●
86	BOLT; RR COVER (E) M8X35 FLANGE	0-28650-835-0	03	1	1501-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (D) NOK	8-97947-840-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97947-841-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1501-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	1501-			●
114	RING; SNAP,BALL BRG (A) OD=77	8-98024-221-0	01	1	1501-			●
114	RING; SNAP,BALL BRG (B) OD=60.2	9-09180-156-0	01	1	1501-			●
315	BOLT; CASE M8X60 FLANGE	0-28050-860-0	14	1	1501-			●
315	BOLT; CASE M8X35 FLANGE	8-98046-876-0	11	1	1501-			●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1501-		●	●
326	NOZZLE; OIL,OUTLET	8-98023-517-0	01	1	1501-			●
417	PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-	●	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-		●	●
419	PLUG; RR COVER M12X9	8-98047-054-0	01	1	1501-			●
421	COVER; RR,TRANS 4X2(TFB***) (A)	8-97978-059-0	01	1	1501-		●
421	COVER; RR,TRANS 4X4(TFS***) (B)	8-97978-061-0	01	1	1501-		●
421	COVER; RR,TRANS (C)	8-97362-423-1	01	1	1501-			●
421	COVER; RR,TRANS (D)	8-98108-319-0	01	1	1501-			●
430	PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-	●	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-		●	●
434	HOUSING; CLU	8-98108-316-0	01	1	1501-			●
435	CASE; TRANS	8-98047-230-0	01	1	1501-		●
435	CASE; TRANS	8-98108-317-1	01	1	1501-			●
510	BEARING	8-97362-853-0	01	1	1501-			●
603	RING; SNAP	8-98039-270-0	01	1	1501-			●
608	GUTTER; OIL (A)	8-97362-391-0	01	1	1501-			●
608	GUTTER; OIL (B)	8-97362-564-1	01	1	1501-			●
608	GUTTER; OIL (C)	8-98004-505-0	01	1	1501-			●
608	GUTTER; OIL (D)	8-98142-574-0	01	1	1501-			●
674	PLATE; INTERMEDIATE	8-98042-863-0	01	1	1501-			●
675	DOWEL OD=11 L=8	9-11229-058-1	04	1	1501-			●
676	INHIBITOR	8-98037-604-1	01	1	1501-			●
677	SPRING; INHIBITOR	8-97362-852-0	01	1	1501-			●
678	PIN	9-08160-436-0	01	1	1501-			●
679	BOLT; GUTTER M6X12 FLANGE	0-28050-612-0	04	1	1501-			●
680	BEARING (A)	8-97362-720-1	01	1	1501-			●
680	BEARING (C)	8-97362-853-0	01	1	1501-			●
680	BEARING (B)	8-98024-431-0	01	1	1501-			●
682	BOLT; INHIBITOR M10X50	8-98042-618-0	01	1	1501-			●

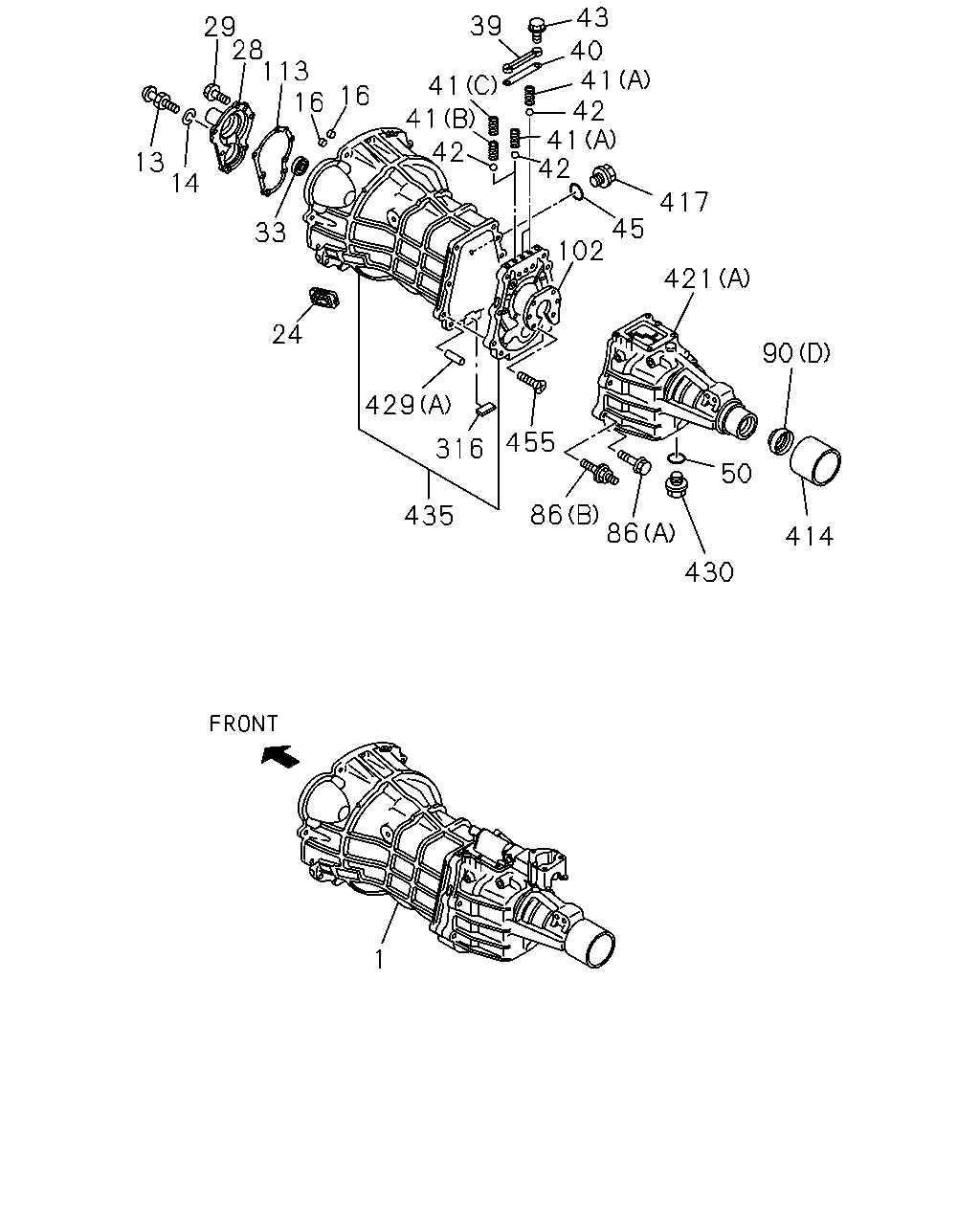

13 14 33 24 429 316 435 1 29 28 113 16 16 41 41 39 43 40 41 42 41 42 42 102 45 417 421 90 414 50 455 86 86 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TRANSMISSION ASM; MANUAL 4X2(TFB***)	8-98172-462-0	01	1	1501-		●
1	TRANSMISSION ASM; MANUAL 4X4(TFS***)	8-98172-959-0	01	1	1501-		●
1	TRANSMISSION ASM; MANUAL	8-98102-382-0	01	1	1501-			●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	1501-		●	●
14	WASHER; LK,SUPPORT ID=12.2	0-91510-512-0	01	1	1501-		●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	1501-		●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	1501-		●
28	COVER; FRT,TRANS CASE	8-97381-406-0	01	1	1501-		●
28	COVER; FRT,TRANS CASE	8-98094-800-0	01	1	1501-			●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	1501-		●
29	BOLT; FRT COVER M8X20 FLANGE	0-28650-820-0	03	1	1501-			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97947-839-0	01	1	1501-		●	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	1501-		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-600-1	01	1	1501-		●
41	SPRING; DETENT BALL (A) L=26.8	8-94320-193-0	02	1	1501-		●
41	SPRING; DETENT BALL (B) L=27.6	8-97214-402-0	01	1	1501-		●
41	SPRING; DETENT BALL (C) L=26.6	8-97214-403-0	01	1	1501-		●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	1501-		●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	1501-		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-		●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***). ID=17	8-97115-712-0	01	1	1501-	●	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1501-		●	●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8	8-97305-468-0	01	1	1501-		●
86	BOLT; RR COVER (A) M10X55 FLANGE	8-98035-672-0	07	1	1501-		●
86	BOLT; RR COVER 4X4(TFS***) (C) M8X45 FLANGE	0-28050-845-0	16	1	1501-	●	●	●
86	BOLT; RR COVER (D) M8X50 FLANGE	0-28050-850-0	02	1	1501-			●
86	BOLT; RR COVER (E) M8X35 FLANGE	0-28650-835-0	03	1	1501-			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2(TFB***) (D) NOK	8-97947-840-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (A) NOK	8-97947-841-0	01	1	1501-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4(TFS***) (B) NOK	8-97046-705-3	01	1	1501-	●	●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). (C) JTEKT	8-98004-531-0	01	1	1501-			●
102	RETAINER; BRG UPR,MAINSHAFT	8-97138-673-0	01	1	1501-		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97083-589-0	01	1	1501-		●
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1501-		●	●
414	COVER; DUST,RR COVER 4X2(TFB***)	8-98027-802-0	01	1	1501-		●
417	PLUG; OIL FILLER,TRANS 4X4(TFS***)	8-97365-373-0	01	1	1501-	●	●	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	1501-		●	●
421	COVER; RR,TRANS 4X2(TFB***) (A)	8-97978-059-0	01	1	1501-		●
421	COVER; RR,TRANS 4X4(TFS***) (B)	8-97978-061-0	01	1	1501-		●
421	COVER; RR,TRANS (C)	8-97362-423-1	01	1	1501-			●
421	COVER; RR,TRANS (D)	8-98108-319-0	01	1	1501-			●
429	PIN; STRAIGHT (A) OD=10 L=40	5-09740-018-1	02	1	1501-		●
429	PIN; STRAIGHT 4X4(TFS***) (B) OD=10 L=20	8-97135-423-0	02	1	1501-	●	●	●
430	PLUG; OIL DRAIN 4X4(TFS***)	8-97365-374-0	01	1	1501-	●	●	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	1501-		●	●
435	CASE; TRANS	8-98047-230-0	01	1	1501-		●
435	CASE; TRANS	8-98108-317-1	01	1	1501-			●
455	SCREW; BRG RET M8X22	8-98035-654-0	04	1	1501-		●
678	PIN	9-08160-436-0	01	1	1501-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
