2-05 — CLUTCH PIPING (#155361) — 22 parça

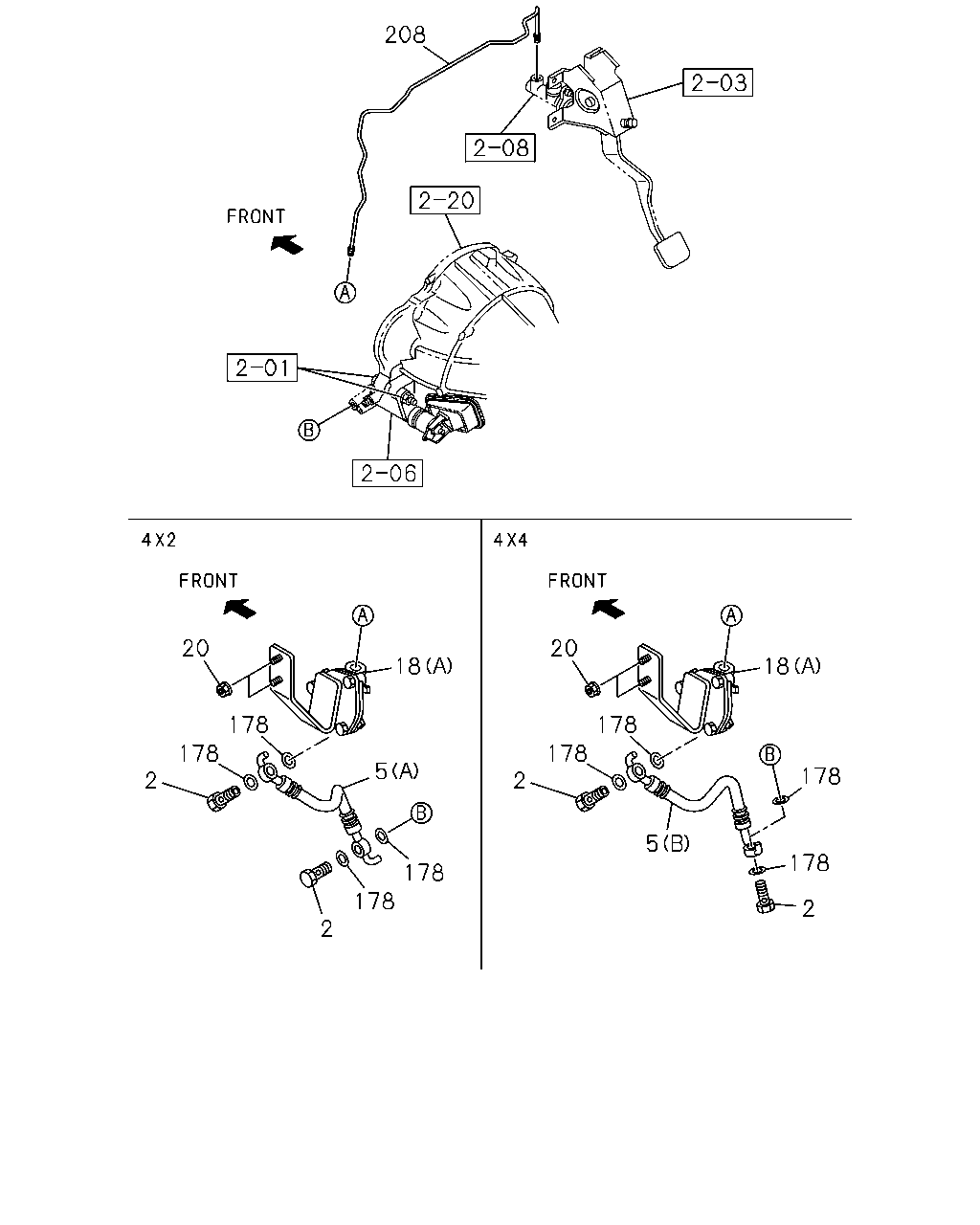

208 20 178 178 2 5 18 178 178 2 20 178 178 2 18 178 178 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,SLAVE CYL M10X22	8-97359-818-0	02	1	1501-	●	●
5	HOSE; FLEX,CLU PIPE 4X2(TFB***) (A)	8-98098-317-1	01	1	1501-	●
5	HOSE; FLEX,CLU PIPE 4X4(TFS***) (B)	8-98221-241-0	01	1	1501-	●
5	HOSE; FLEX,CLU PIPE (C)	8-98098-315-1	01	1	1501-		●
18	DAMPER ASM; CLU OIL (A)	8-97946-616-1	01	1	1501-	●	●
18	DAMPER ASM; CLU OIL (B)	8-97946-623-1	01	1	1501-		●
20	NUT; CLU OIL DAMPER M6 FLANGE	0-91180-106-0	02	1	1501-	●	●
178	GASKET; FLEX HOSE TO M/CYL ID=10.2 OD=16.0	9-09571-410-0	04	1	1501-	●	●
208	PIPE; OIL,M/CYL TO DAMPER CYL	8-98100-268-1	01	1	1501-	●	●

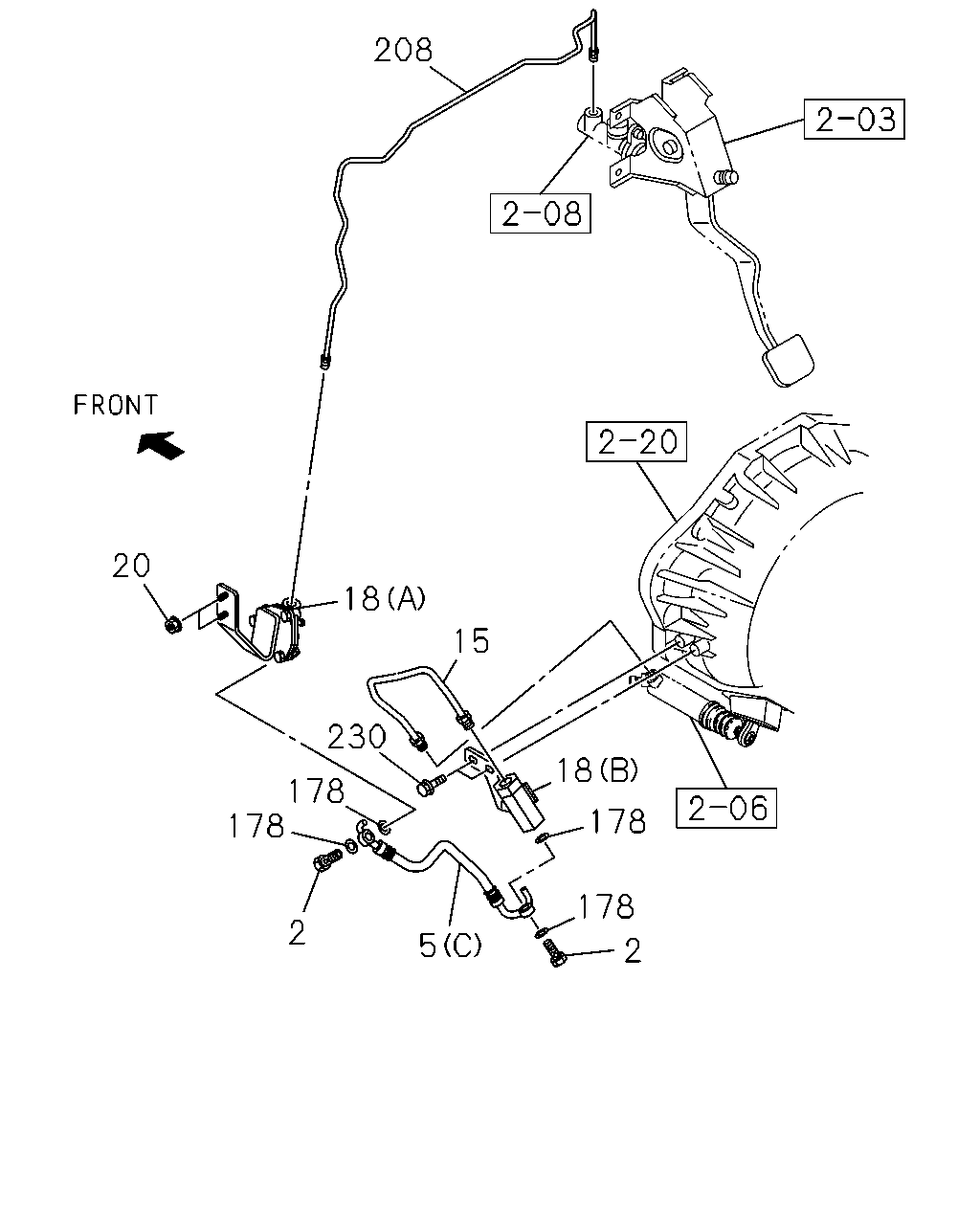

208 20 18 15 230 178 178 2 5 18 178 178 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; EYE,SLAVE CYL M10X22	8-97359-818-0	02	1	1501-	●	●
5	HOSE; FLEX,CLU PIPE 4X2(TFB***) (A)	8-98098-317-1	01	1	1501-	●
5	HOSE; FLEX,CLU PIPE 4X4(TFS***) (B)	8-98221-241-0	01	1	1501-	●
5	HOSE; FLEX,CLU PIPE (C)	8-98098-315-1	01	1	1501-		●
15	PIPE; CLU,FLEX HOSE	8-98097-509-0	01	1	1501-		●
18	DAMPER ASM; CLU OIL (A)	8-97946-616-1	01	1	1501-	●	●
18	DAMPER ASM; CLU OIL (B)	8-97946-623-1	01	1	1501-		●
20	NUT; CLU OIL DAMPER M6 FLANGE	0-91180-106-0	02	1	1501-	●	●
178	GASKET; FLEX HOSE TO M/CYL ID=10.2 OD=16.0	9-09571-410-0	04	1	1501-	●	●
208	PIPE; OIL,M/CYL TO DAMPER CYL	8-98100-268-1	01	1	1501-	●	●
230	BOLT; ACTUATOR M6X16 FLANGE	0-28650-616-0	02	1	1501-		●

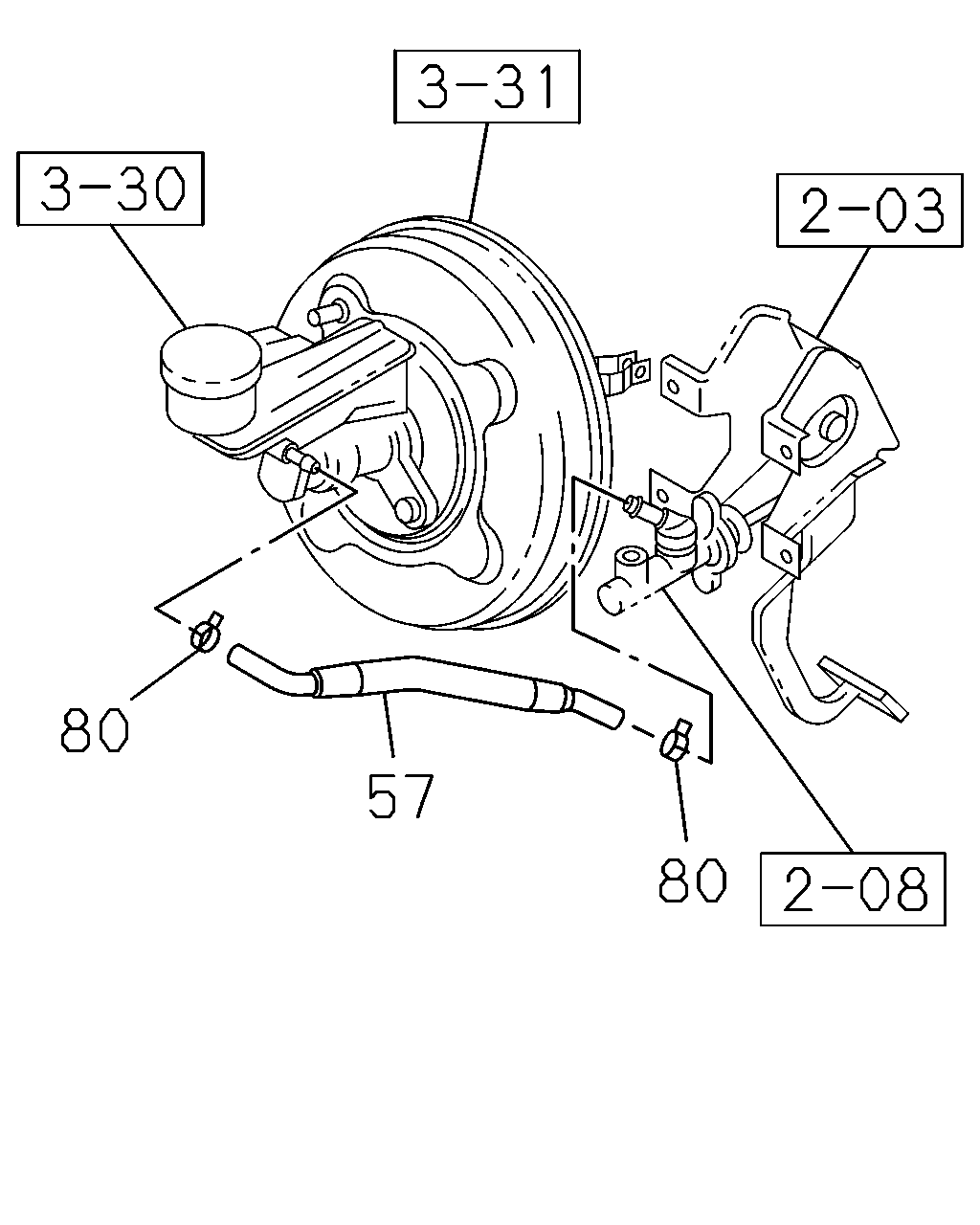

80 57 80

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	57	HOSE; CLU M/CYL TO OIL TANK	8-98097-543-1	01	1	1501-	●	●
	80	CLIP; HOSE ID=12 WO/PVC COATING	8-97947-824-0	02	1	1501-	●	●
